UTT60
TÄIELIKULT
| Suurus: | |
|---|---|
| Materjal: | |
| Heakskiidud: | |
| Näidis: | |
| Pind: | |
| Kogus: | |

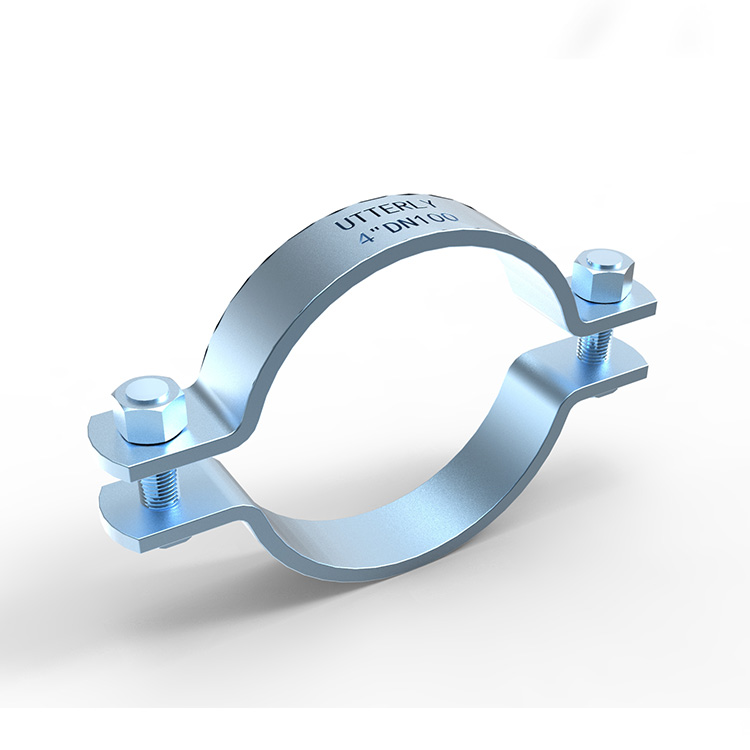

UTT60 FM UL standardne toruklamber
Funktsioon: Soovitatav külma- või kuumatorujuhtmete riputamiseks, kui isolatsiooni pole vaja.
Suurus: 1/2'kuni 8'
Materjal: süsinikteras
Viimistlus: must, värvitud või tsingitud
Heakskiit:

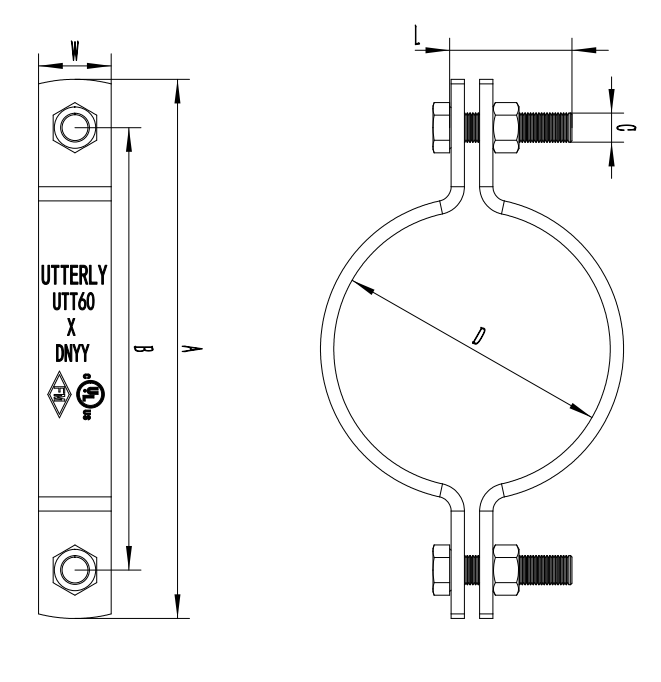

| Suurus | A | B | C | D | T | W | L | Max Rec. Laadige | |||||||||
| sisse | mm | sisse | mm | sisse | mm | sisse | mm | sisse | mm | sisse | mm | sisse | mm | sisse | mm | naela | KN |
| 1/2' | DN15 | 2.91 | 73 | 2.09 | 53 | 3/8' või M10 | M10 | 1/2' | 21.3 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 3/4' | DN20 | 3.07 | 77 | 2.01 | 51 | 3/8' | M10 | 3/4' | 26.7 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1' | DN25 | 3.31 | 83 | 2.24 | 57 | 3/8' | M10 | 1' | 33.4 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1-1/4' | DN32 | 3.94 | 99 | 2.87 | 73 | 3/8' | M10 | 1-1/4' | 42.2 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1-1/2' | DN40 | 5.22 | 131 | 3.74 | 95 | 1/2' | M12 | 1-1/2' | 48.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 750 | 3.34 |
| 2' | DN50 | 5.82 | 146 | 4.33 | 110 | 1/2' | M12 | 2' | 60.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 750 | 3.34 |
| 2-1/2' | DN65 | 6.29 | 158 | 4.8 | 122 | 1/2' | M12 | 2-1/2' | 73 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 850 | 3.78 |
| 3' | DN80 | 7.01 | 176 | 5.51 | 140 | 1/2' | M12 | 3' | 88.9 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 1050 | 4.67 |
| 4' | DN100 | 8.01 | 201 | 6.5 | 165 | 1/2' | M12 | 4' | 114.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 1500 | 6.67 |
| 5' | DN125 | 9.2 | 231 | 7.68 | 195 | 1/2' | M12 | 5' | 141.3 | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 2000 | 8.9 |
| 6' | DN150 | 10.2 | 256 | 8.66 | 220 | 1/2' | M12 | 6' | 168.3 | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 2650 | 11.79 |
| 8' | 200 DN | 12.31 | 309 | 10.75 | 273 | 1/2' | M12 | 8' | 219.1 | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 4050 | 18.02 |
