UTT60
UTTERLY
| Size: | |
|---|---|
| Material: | |
| Approvals: | |
| Sample: | |
| Surface: | |
| Quantity: | |
UTT60 FM UL Standard Pipe Clamp
Function: Recommended for suspension of cold pipe lines or hot lines where no insulation is required.
Size: 1/2"Thru 8"
Material:Carbon Steel
Finish: Black,Pained or Galvanzed
Approval:

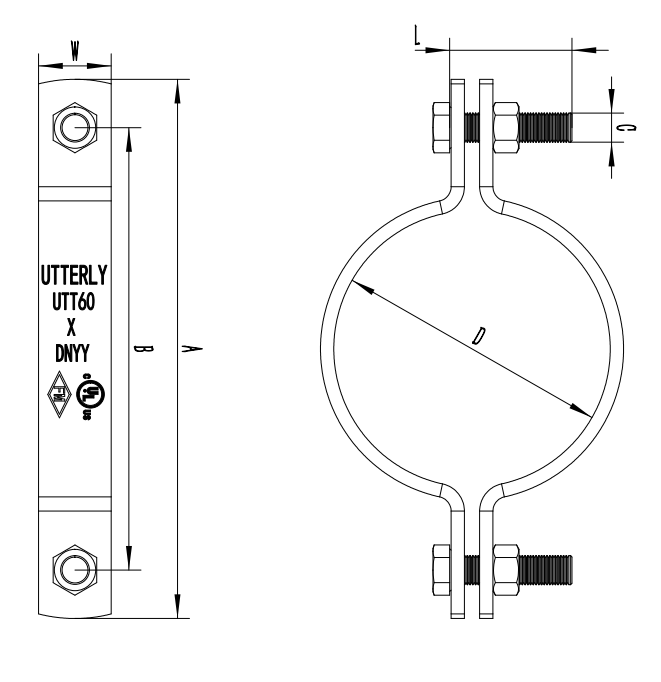

| Size | A | B | C | D | T | W | L | Max. Rec. Load | |||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | lbs | KN |
| 1/2" | DN15 | 2.91 | 73 | 2.09 | 53 | 3/8" or M10 | M10 | 1/2" | 21.3 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 3/4" | DN20 | 3.07 | 77 | 2.01 | 51 | 3/8" | M10 | 3/4" | 26.7 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1" | DN25 | 3.31 | 83 | 2.24 | 57 | 3/8" | M10 | 1" | 33.4 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1-1/4" | DN32 | 3.94 | 99 | 2.87 | 73 | 3/8" | M10 | 1-1/4" | 42.2 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 |
| 1-1/2" | DN40 | 5.22 | 131 | 3.74 | 95 | 1/2" | M12 | 1-1/2" | 48.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 750 | 3.34 |
| 2" | DN50 | 5.82 | 146 | 4.33 | 110 | 1/2" | M12 | 2" | 60.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 750 | 3.34 |
| 2-1/2" | DN65 | 6.29 | 158 | 4.8 | 122 | 1/2" | M12 | 2-1/2" | 73 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 850 | 3.78 |
| 3" | DN80 | 7.01 | 176 | 5.51 | 140 | 1/2" | M12 | 3" | 88.9 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 1050 | 4.67 |
| 4" | DN100 | 8.01 | 201 | 6.5 | 165 | 1/2" | M12 | 4" | 114.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 1500 | 6.67 |
| 5" | DN125 | 9.2 | 231 | 7.68 | 195 | 1/2" | M12 | 5" | 141.3 | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 2000 | 8.9 |
| 6" | DN150 | 10.2 | 256 | 8.66 | 220 | 1/2" | M12 | 6" | 168.3 | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 2650 | 11.79 |
| 8" | DN200 | 12.31 | 309 | 10.75 | 273 | 1/2" | M12 | 8" | 219.1 | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 4050 | 18.02 |
