UTT90 4-Way Adaptor

  • UTT90

  • UTTERLY

Color:
Sliver
Material:
Carbom Steel
Sample:
Available
MOQ:
10
Finish:
Electro-galvanized
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

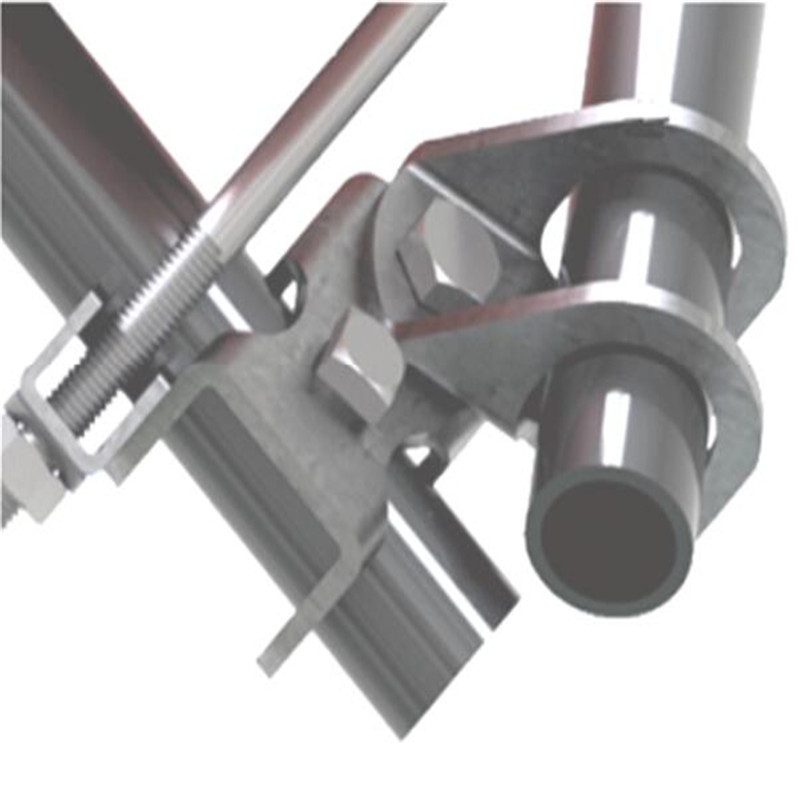

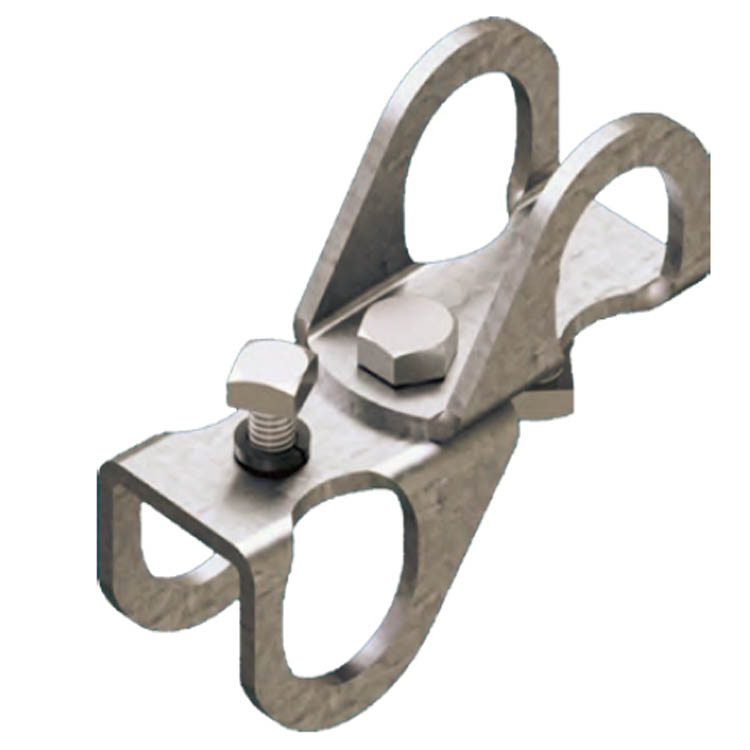

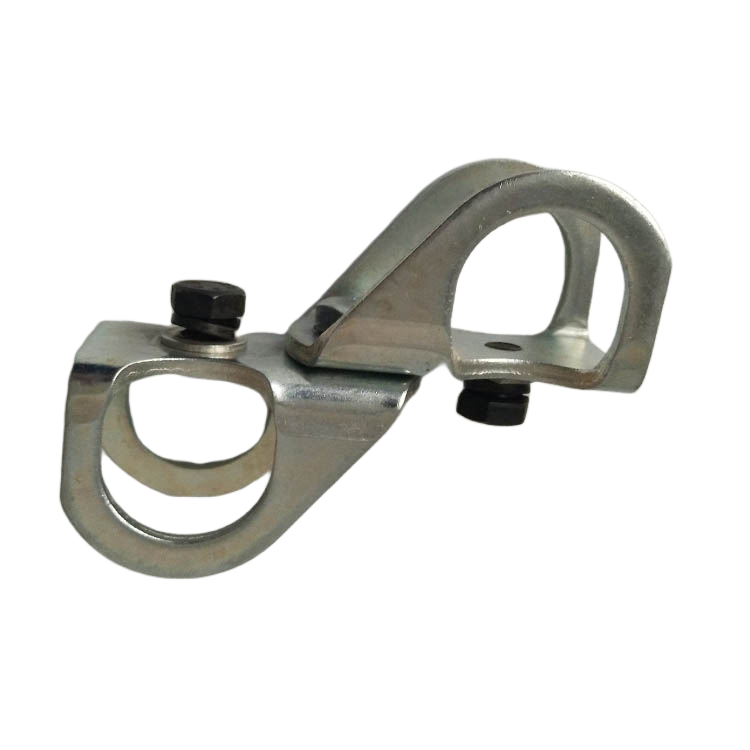

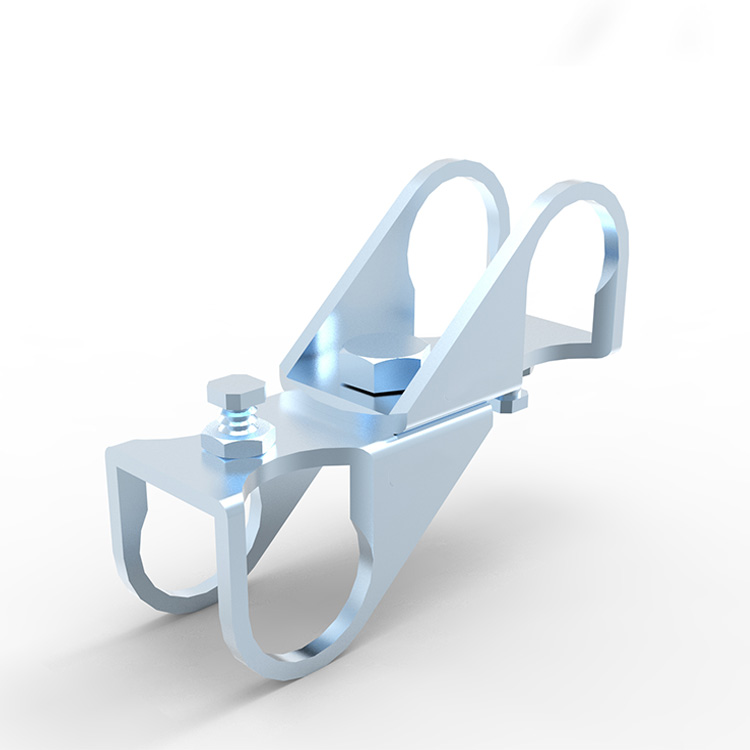

4 way adapter (2)4 way adapter (5)

Function： Provides longitudinal connection from a lateral one.

Size: 1” SCH40 brace member to load up to maximum 8” pipe.
Finish: Zinc plated or plain
Material: Carbon Steel
Qualification:Comply with NFPA 13 and GB 50981.


微信截图_20250612144839

Brace Member Size

A

B

Max. Design Load

in

mm

mm

lbs. (kN)

1” x 1”

121

95

1000 (4.45)

微信截图_20250805112126

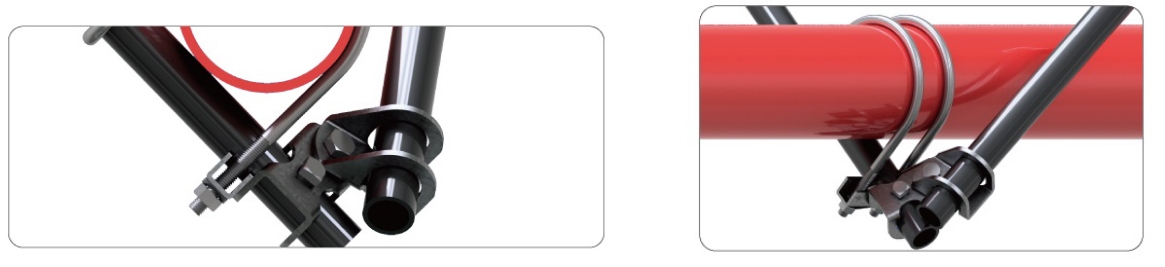

Installation Instructions:

 See illustration picture below, with min 1” extended at the end.
