Seismic safety has always been a non-negotiable design factor for modern buildings across earthquake-prone areas in the United States. Every year, unexpected seismic shocks cause irreversible damage to unprotected fire sprinkler piping, HVAC ducts and electrical cable tray systems, leading to huge property losses and potential safety accidents for building occupants. As a result, local US building codes including NFPA 13, IBC and ASCE 7 strictly mandate the installation of standard-compliant seismic bracing on all commercial, industrial and high-rise constructions. Many project engineers and procurement managers struggle with how to source reliable FM UL certified seismic support that fully meets American construction standards. This complete buying guide elaborates core selection standards, applicable scenarios, material specifications and certified component parameters to help you make informed purchasing decisions.Check our anchor seismic bracing product page
Without properly installed seismic bracing, pipes and ductwork will swing freely during earthquakes. Intense vibration breaks pipe joints, tears off connected equipment and triggers water leakage or fire hazards from damaged sprinkler pipelines. For industrial facilities, broken cable trays further interrupt power supply and halt entire production lines. Local construction inspection departments will reject project acceptance if supporting components lack valid FM UL certification.
Three mainstream specifications dominate US seismic design requirements: NFPA 13 for fire protection piping, IBC for overall building structure rules and ASCE 7 for seismic load calculation. All installed seismic bracing must pass third-party load testing to obtain FM or UL approval before on-site construction. View NFPA compliant seismic fitting page.
Qualified seismic bracing mainly adopts QT450 ductile iron and high-grade carbon steel. Inferior thin steel or low-cost cast iron cannot bear rated dynamic seismic loads and will deform under slight vibration. Two mainstream surface treatments are available: electro-galvanizing for indoor dry environments and hot-dip galvanizing for outdoor or chemical-corrosion industrial sites to achieve long-term anti-rust performance.
Never purchase uncertified pipe clamps or bracing attachments. Formal suppliers can provide original UL and FM test reports with detailed load data under different installation angles from 30° to 90°. Uncertified products fail site inspection and bring massive rework costs for construction teams. Browse UL CE certified seismic attachment page.
Different SCH standard brace pipes correspond to unique maximum allowable loads. For example, 1 inch SCH4 bracing pipe owns 1885lbs UL max load while 6 inch SCH4 reaches 1370lbs under vertical installation. Load value drops obviously when installing at small angles like 30°~44°, so parameter matching is essential during design.
Fire sprinkler piping: The most widely used field following NFPA13 regulation, covering ½ inch~8 inch various sprinkler pipes
HVAC air duct systems: Fix large-size ventilation pipes against lateral and longitudinal seismic shift
Plumbing and water supply pipelines: Prevent pipe fracture caused by seismic sway
Electrical cable tray: Stabilize cable racks to avoid collapse in earthquakes
Application ranges cover commercial malls, factory workshops and high-rise residential buildings across the US.

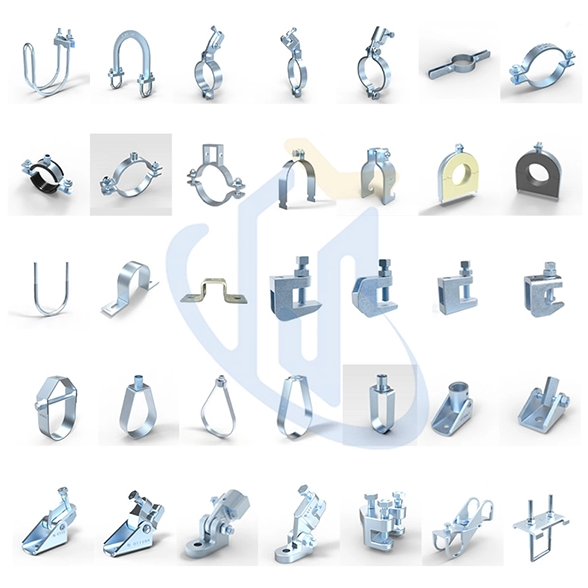

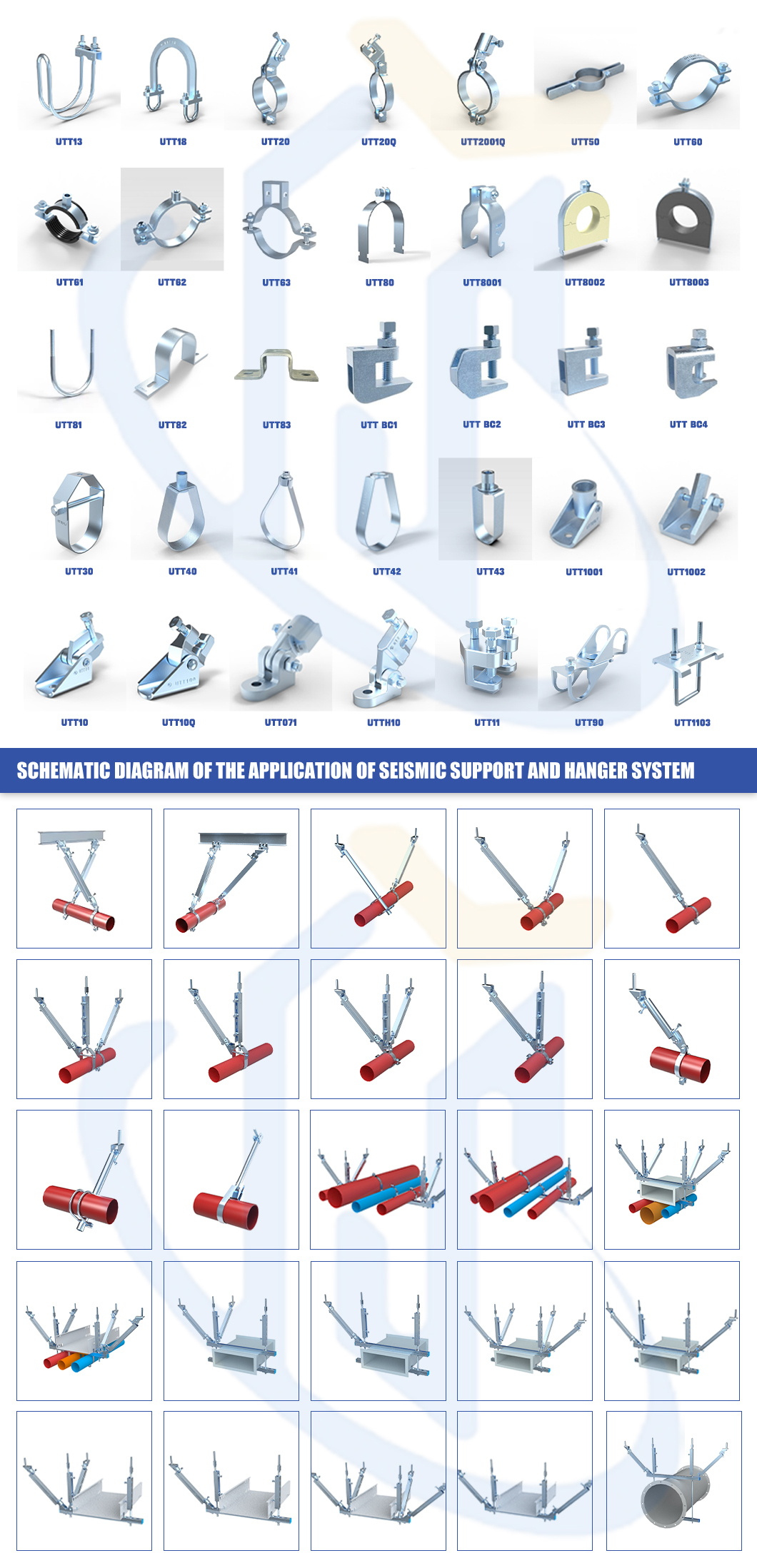

Component | Description | Material | Finish | Size |
|---|---|---|---|---|
Seismic Attachment | Universal Swivel / C‑Clamp | Carbon Steel / Ductile Iron | Electro‑galvanized / HDG | Up to 8 inch |
Pipe Clamp | Standard / Two‑piece / Insulated | Carbon Steel | Electro‑galvanized | ½–8 inch |
Hanger | Clevis / Adjustable / Roller | Carbon Steel | HDG | ½–12 inch |
Strut Channel | Standard / Double‑joint | Carbon Steel | HDG | 41×21–72 mm |
Fastener | Threaded Rod / Bolt / Nut | Carbon Steel | HDG | M6–M24 |
Brace Pipe | UL Max Load | FM (30°–44°) | FM (45°–59°) |
|---|---|---|---|
1 inch SCH40 | 1,885 lbs (8.38 kN) | 1,490 lbs (6.62 kN) | 1,980 lbs (8.80 kN) |
2 inch SCH40 | 680 lbs (3.02 kN) | 590 lbs (2.62 kN) | 840 lbs (3.73 kN) |
4 inch SCH40 | 680 lbs (3.02 kN) | 540 lbs (2.40 kN) | 770 lbs (3.42 kN) |
6 inch SCH40 | 1,370 lbs (6.09 kN) | 270 lbs (1.20 kN) | 390 lbs (1.73 kN) |
✅ Full FM UL CE global certification conforming to US construction codes
✅ QT450 ductile iron & high strength carbon raw material
✅ Two anti-corrosion surface options: electro/ hot-dip galvanized
✅ Fits standard American pipe sizes from ½ inch to 8 inch
✅ Large bearing capacity and outstanding anti-corrosion performance
✅ Flexible OEM & ODM customization service with fast lead time
✅ Free CAD and BIM technical drawing support for all clients .Check customized seismic bracing solution.

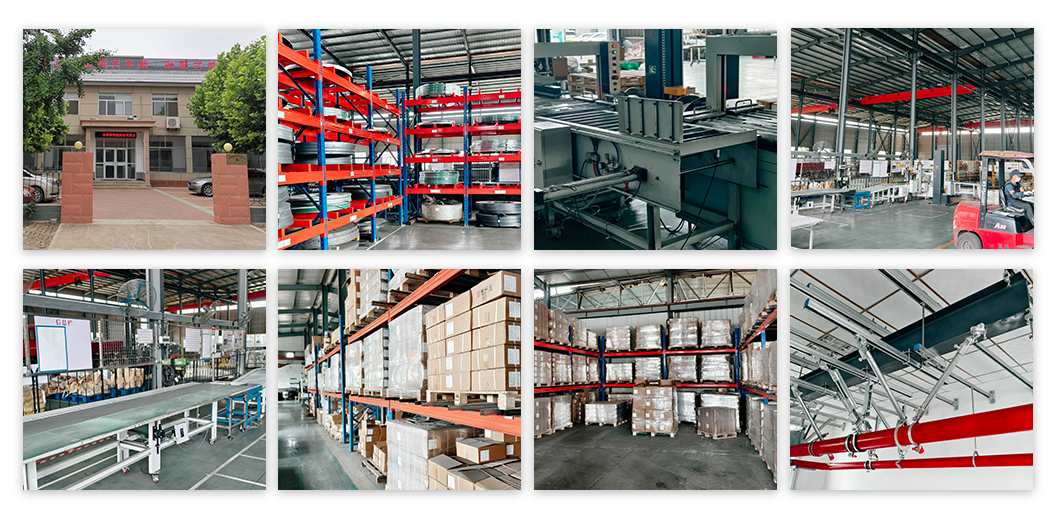

Utterly TY Intelligent Technology Co., Ltd is a specialized MEP seismic bracing manufacturer focusing on US and global market demand. Our factory equips complete production and inspection equipment, all finished seismic support products pass strict cyclic load, salt spray and metallographic testing before delivery. Relying on complete UL FM CE certification documents, our products are widely exported to North America, Middle East and Southeast Asia. We provide all-round pre-sales design, after-sales technical guidance and 24-hour online service to solve customers’ seismic bracing matching troubles for various construction projects. Visit company homepage & download catalog.
Selecting qualified FM UL certified seismic bracing is the key to meet US seismic construction laws and protect long-term building safety. Focus on certification, material and load parameter during your procurement work. Utterly TY’s full-series certified seismic pipe clamps, hangers and structural attachments can satisfy diverse project demands from commercial to industrial buildings in the United States.
