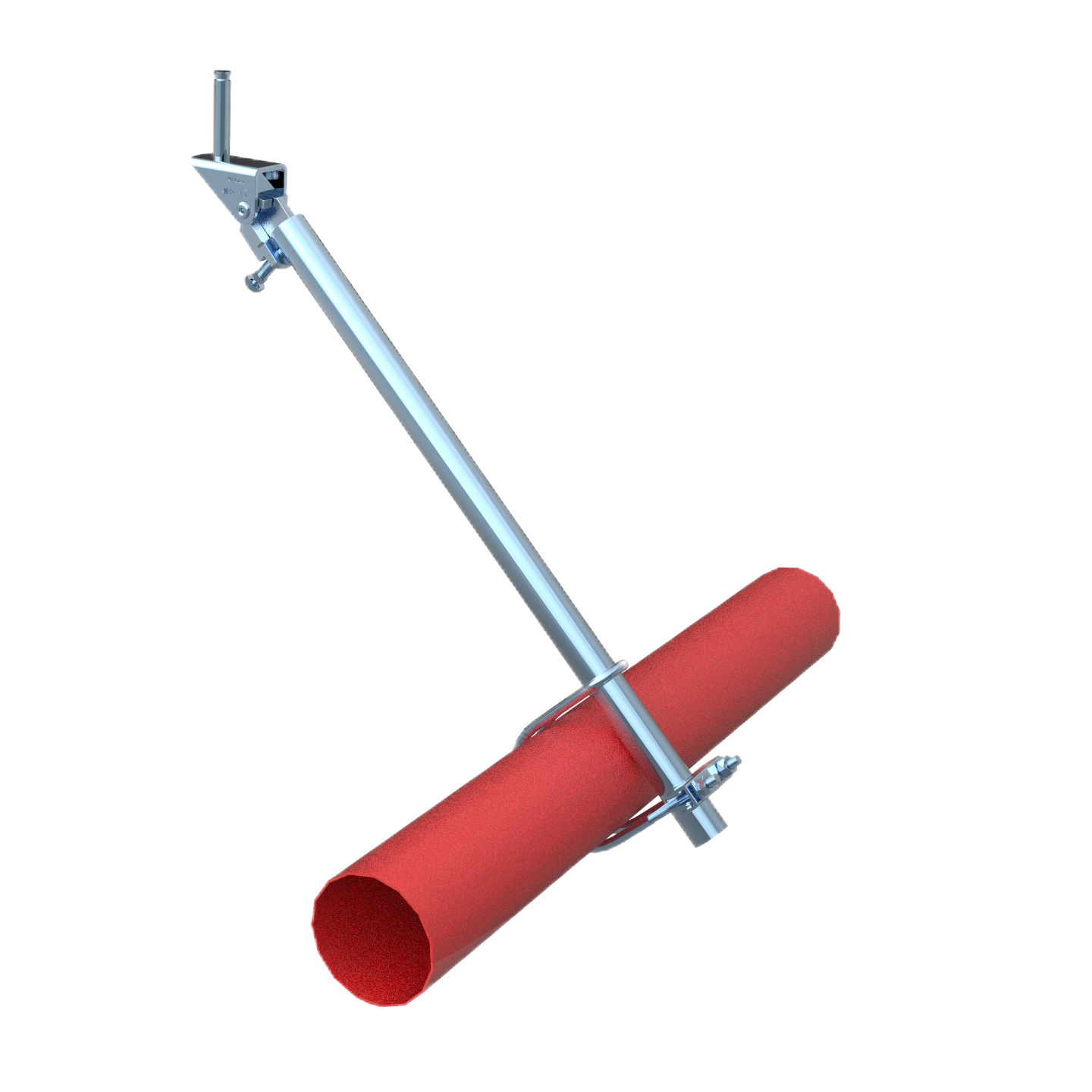

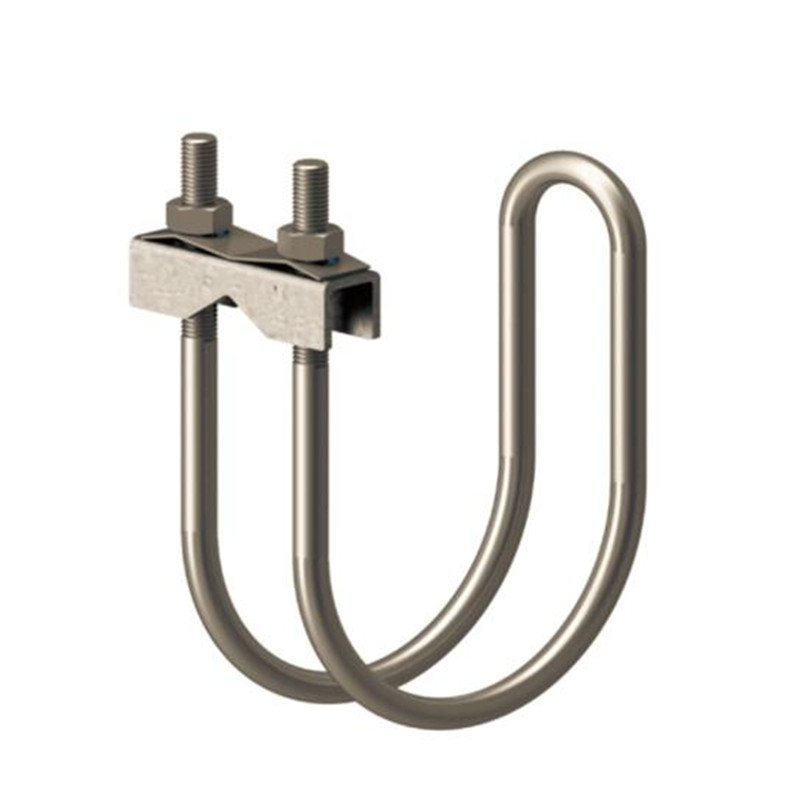

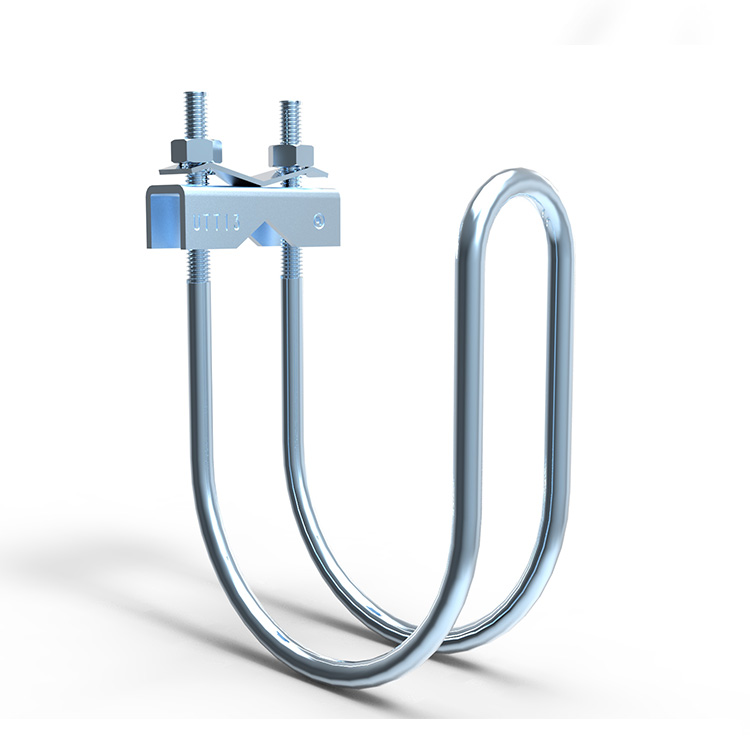

Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions.
Type:Sprinkler Pipe Sch 10,Sch 40,GB/T 3091,JIS G3454
Size: Pipe size 1＂(25)thru 8＂(200)
Material: Carbon steel
Finish: Electro-galvanized
Approvals:
UL:pipe size 1＂(25)thru 8＂(200);
FM:pipe size 2＂(50)thru 8＂(200)
UL Maximum Design Load | |||||
Pipe Size | lbs. | kN | Wt. Each | ||
1＂(25mm) Brace Pipe | |||||
lb. | kg | ||||
1 | （25） | 680 | (3.02) | 0.71 | (0.35) |
1¼ | （32） | 680 | (3.02) | 0.81 | (0.37) |
1½ | （40） | 680 | (3.02) | 0.86 | (0.39) |
2 | （50） | 680 | (3.02) | 0.92 | (0.42) |
2½ | （65） | 680 | (3.02) | 1.01 | (0.46) |
3 | （80） | 680 | (3.02) | 1.08 | (0.49) |
4 | （100） | 680 | (3.02) | 1.21 | (0.55) |
5 | （125） | 1090 | (4.84) | 1.37 | (0.62) |
6 | （150） | 1370 | (6.09) | 1.52 | (0.69) |
8 | （219） | 1370 | (6.09) | 1.81 | (0.82) |
FM Maximum Design Load | |||||||
Pipe Size | Horizontal load ratings installation angle 30°-44° | Horizontal load ratings installation angle 45°-59° | Wt. Each | ||||
1＂(25mm) Brace Pipe | |||||||
Ibs. | kN | Ibs. | kN | lb. | kg | ||
2 | （50） | 590 | (2.62) | 840 | （3.73） | 0.92 | (0.42) |
2½ | （65） | 710 | (3.15) | 1010 | （4.49） | 1.01 | (0.46) |
3 | （80） | 540 | (2.40) | 770 | （3.42） | 1.08 | (0.49) |
4 | （100） | 540 | (2.40) | 770 | （3.42） | 1.21 | (0.55) |
6 | （150） | 270 | (1.20) | 390 | （1.73） | 1.52 | (0.69) |
8 | （200） | 210 | (0.93) | 290 | （1.28） | 1.81 | (0.82) |
Step 1（1~6″） | Step 2（1~6″） | Step 3（1~6″） |
 |  |  |
Step 1（8″） | Step 2（8″） | Step 3（8″） |
 |
|  |
Install:
Place over the pipe to be braced, adjust brace angle, and insert bracing pipe through opening leaving a minimum of 1＂(25.4) extending from attachment. Brace pipe can be installed on top or bottom of pipe to be braced but must be a minimum of 6＂ (152.4) away from a pipe joint. Tighten nuts down evenly until 30~35N·M to make all green making lines visible. | ||
