Choosing the right Pipe Saddle Clamps for your project is crucial to ensure long-lasting, efficient, and safe pipe connections. These clamps serve an essential purpose in various industries, from water distribution systems to agricultural irrigation networks. They provide an easy and secure way to attach a branch pipe to the main pipeline without cutting or welding. At Utterlyty, we design high-quality Pipe Saddle Clamps that are tailored to meet different operational needs. This article will guide you through the selection process, helping you make an informed choice for your project.
When it comes to Pipe Saddle Clamps, selecting the right one is more than just a matter of ensuring a connection; it’s about the long-term performance and safety of your entire system. Here’s why it matters:
Performance and Leak Prevention: The wrong Pipe Saddle Clamp can lead to leaks, which can cause significant damage to the system and its surroundings. A poor seal can allow fluids or gases to escape, compromising the system’s integrity and resulting in costly repairs.
System Reliability: The choice of a clamp directly impacts the reliability of the pipeline. If the wrong clamp is used, the entire pipeline could be at risk of failing under pressure. Proper selection ensures that the pipe is securely fastened and capable of withstanding the pressures it will face.
Durability and Maintenance: Using high-quality, well-matched Pipe Saddle Clamps means fewer maintenance calls and a longer lifespan for your piping system. The right clamp ensures that your system remains functional without frequent replacements.
Selecting the right material for your Pipe Saddle Clamps is crucial for performance, especially considering the specific requirements of your system. Different materials offer distinct benefits depending on the environment and usage.
Plastic Pipe Saddle Clamps:
Plastic clamps are lightweight and corrosion-resistant, making them ideal for use in environments where the risk of rust or other forms of corrosion is high. They are often used in water systems and underground applications where moisture or chemical exposure is prevalent. The main advantage of plastic is its ability to resist a variety of chemicals and extreme temperatures without deteriorating over time.
Best Use Scenarios:
Water supply and drainage systems
Irrigation networks
Low-pressure environments

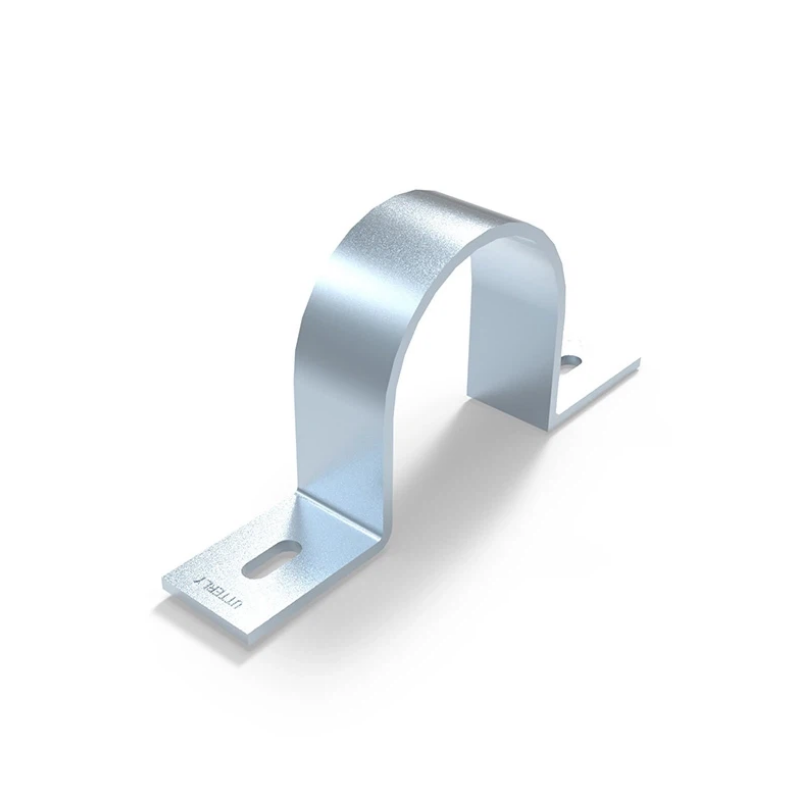

Metal Pipe Saddle Clamps:
Metal clamps, typically made from stainless steel or galvanized steel, offer strength and durability. They are perfect for high-pressure applications or where heavy-duty performance is required. However, they can be susceptible to corrosion in certain environments, and extra care should be taken to prevent rusting.
Best Use Scenarios:
High-pressure systems
Gas pipelines
Industrial applications
The gasket is an integral part of the Pipe Saddle Clamp because it ensures the pipe remains leak-free. The quality of the gasket material is just as important as the clamp itself.
EPDM Rubber Gaskets:
EPDM (Ethylene Propylene Diene Monomer) rubber is one of the most common gasket materials. It is ideal for outdoor use, offering excellent resistance to ozone, weathering, and chemicals. EPDM is a go-to choice for water distribution systems due to its excellent sealing properties.
Other Seal Types:
Other types of gaskets, such as nitrile, silicone, or fluorosilicone, may be used depending on the nature of the pipe’s contents. For example, fluorosilicone gaskets are used for high-temperature applications, while nitrile is used for oil-resistant seals.
The quality of the gasket is crucial for ensuring a secure, leak-proof seal and maintaining system performance over the long term.
One of the most important aspects of selecting the right Pipe Saddle Clamp is ensuring that it fits the pipe’s outer diameter (OD) perfectly. A correct fit ensures that the clamp will work effectively and provide a secure connection.
Importance of Correct Outside Diameter Fit:
If the clamp is too small, it may not secure the pipe properly, leading to leaks or even failure of the system. If the clamp is too large, it may not seal effectively, compromising the integrity of the connection. Therefore, matching the clamp’s size to the pipe’s exact diameter is crucial.
How to Measure and Choose the Correct Size:
Measure the pipe’s outer diameter (OD) accurately using a tape measure or caliper. Once you have the correct measurement, you can choose a Pipe Saddle Clamp that matches the pipe’s size. It’s also a good idea to consult manufacturer datasheets to confirm the exact specifications for the clamp you intend to use.
For example, if your pipe has a diameter of 4 inches, a 4-inch Pipe Saddle Clamp would be appropriate. If your pipe size falls between standard sizes, custom clamps may be required.
Different Pipe Saddle Clamps are designed to handle different pressure ratings. Choosing the correct clamp for the system’s pressure requirements ensures that the system can operate safely and efficiently.
Low Pressure vs High Pressure:
Low-pressure systems require clamps that can hold the pipe securely without needing to withstand high internal pressure.
High-pressure systems require Pipe Saddle Clamps that are designed for high-stress environments, such as industrial pipelines or gas transportation systems. These clamps must be rated for higher PSI and more demanding applications.
Checking Manufacturer Datasheets and Ratings:
Always check the datasheets provided by the manufacturer to verify the pressure rating of the Pipe Saddle Clamp. This ensures that the clamp you select is suitable for the system’s operating conditions and that it will perform as expected without fail.
Proper installation is key to ensuring the clamp functions properly. There are a few factors that may affect the installation process, including the tools required and the environmental conditions in which the clamp will be used.
Torque Requirements: Depending on the material and size of the clamp, you will need a specific amount of torque to properly tighten the bolts. Always refer to the manufacturer’s instructions for the proper torque specifications.
Drill Bits: If installation requires creating additional holes for the clamp, it’s important to use the right size drill bit to match the clamp’s requirements.
Wet Environments: If the clamp will be used in wet conditions, such as in water pipelines, corrosion-resistant materials like plastic or stainless steel should be selected.
Corrosive Media: For systems handling chemicals or harsh substances, ensure the clamp and gasket materials are compatible with the media to prevent degradation.
Temperature Extremes: If the system will experience extreme temperatures, select Pipe Saddle Clamps made from materials designed to withstand those conditions.
Selection Factor | Standard Saddle Clamp | With Valve | With Flow Meter |
Control Capability | Basic | Yes | Yes |
Monitoring | No | No | Real-time |
Installation Level | Simple | Moderate | Moderate |
Consider a scenario where a commercial plumbing system needs to be upgraded to add new connections for additional fixtures. Choosing the correct Pipe Saddle Clamp for this task ensures minimal disruption to the existing system while still providing secure, leak-proof connections.
By selecting the right clamp size, material, and gasket, the plumbing system can be modified quickly, reducing downtime and cost. This process improves the service life of the system and ensures long-term reliability.
Selecting the right Pipe Saddle Clamps for your project is more than just a technical decision; it’s an investment in the efficiency and longevity of your system. With the right material, size, and application ratings, you ensure that your pipes are securely connected and that your system operates smoothly for years to come. At Utterlyty, we offer a variety of Pipe Clamps designed to meet all your needs. Explore our product offerings today and choose the best clamp for your project.
For more information or to place an order, feel free to contact us directly!
Q1: Can I use any clamp for high-pressure systems?
No, high-pressure systems require specific Pipe Saddle Clamps designed for higher PSI to ensure safety and durability.
Q2: How do I know which size clamp to choose?
You should measure the pipe's outer diameter and select a clamp that matches. Be sure to check the manufacturer's sizing guide for accuracy.
Q3: Are there different gasket options available?
Yes, different gaskets are available depending on the chemical and temperature conditions of the system. EPDM rubber is commonly used for water systems, while other materials may be used for more demanding applications.
Q4: How do Pipe Saddle Clamps help with installation?
Pipe Saddle Clamps significantly reduce installation time by eliminating the need for pipe cutting. They allow you to add connections or make repairs with minimal disruption to the system.
