When engineers, contractors, and project managers discuss structural support systems, one component frequently comes into the conversation: Gauge Strut Channel. In our daily production and project collaboration experience, we see that this versatile metal framing system plays a vital role in supporting mechanical, electrical, and structural installations across commercial, industrial, and infrastructure projects. Understanding what Gauge Strut Channel is used for helps decision-makers choose a support solution that balances strength, flexibility, and installation efficiency.
At Utterly TY Intelligent Technology Co., Ltd., we manufacture and supply strut channel systems for a wide range of industries. Over the years, we have worked closely with customers who require dependable structural framing for cable trays, piping systems, HVAC equipment, solar installations, and custom industrial supports. This article explains how Gauge Strut Channel functions, where it is commonly applied, and why it has become a standard component in modern construction and industrial assembly.

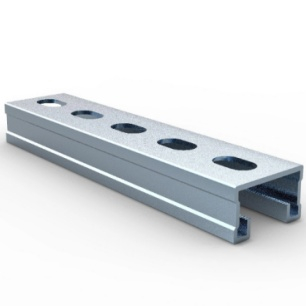

Gauge Strut Channel is a standardized metal framing component typically made from steel and formed into a C-shaped profile. The “gauge” refers to the thickness of the steel, which determines its load-bearing capacity and structural performance.
Strut channels are usually manufactured with pre-punched holes or slots, allowing for adjustable connections using bolts, nuts, and specialized fittings. This modular design enables quick assembly without the need for welding in many applications.
We produce different gauges and finishes to meet diverse project requirements, including:
Light-duty channels for electrical and cable management
Medium-duty channels for mechanical supports
Heavy-duty channels for industrial structural framing
Galvanized or coated finishes for corrosion resistance
The flexibility of this system is the reason it has become widely adopted in both indoor and outdoor projects.
The gauge of a strut channel directly affects its mechanical performance, safety margin, and long-term durability. In practical terms, “gauge” refers to the thickness of the steel used to manufacture the channel. Even small differences in thickness can significantly change how the channel performs under load. Thicker gauges offer higher load capacity and improved resistance to bending, while thinner gauges are lighter, easier to transport, and often more cost-effective for lighter-duty applications. Understanding this balance is essential when specifying Gauge Strut Channel for real-world projects.
Different installations demand different structural strength levels. The load a strut channel must carry depends not only on the weight of the supported system but also on span length, dynamic forces, and safety factors.
For example:
Cable trays typically require moderate support, especially when supporting communication cables or light electrical wiring.
Large piping systems carrying water, gas, or industrial fluids impose higher static and sometimes dynamic loads.
HVAC equipment frames must handle both equipment weight and vibration forces during operation.
Selecting the correct gauge ensures that the channel can safely support the intended load without excessive deflection. Over-specifying the gauge may increase material costs unnecessarily, while under-specifying it can compromise safety and long-term reliability.
Thicker gauge channels resist bending and deformation more effectively under sustained loads. In industrial environments where equipment vibration is common, structural rigidity becomes even more critical. Continuous vibration can amplify stress on thinner materials, potentially leading to fatigue over time.
A properly selected Gauge Strut Channel provides stable support, maintaining alignment for mechanical and electrical systems. This stability is especially important in installations where precise positioning is required, such as in HVAC duct alignment or heavy pipeline routing.
While heavier gauges provide more strength, they also increase material weight. This can affect handling, transportation, and installation time. Heavier channels may require additional manpower or lifting equipment on site.
Balancing strength and ease of installation is critical. In many projects, engineers aim to choose a gauge that satisfies load requirements while minimizing unnecessary weight, ensuring both structural safety and operational efficiency.
Below is a simplified comparison:
Gauge Level | Typical Thickness | Common Application | Load Capacity |
Light Gauge | Thinner steel | Cable trays, light brackets | Low to medium |
Medium Gauge | Moderate thickness | Piping supports, HVAC frames | Medium |
Heavy Gauge | Thick steel | Industrial frames, heavy equipment | High |
Choosing the appropriate Gauge Strut Channel ensures both structural safety and cost efficiency across different applications.
One of the most common applications of Gauge Strut Channel is in construction projects. Its modular design and standardized dimensions make it suitable for a wide range of structural support needs.
Mechanical systems such as piping networks, air ducts, and HVAC components require secure and adjustable structural support. Strut channels provide flexible framing solutions that allow contractors to position and align equipment precisely. Because the channels are pre-punched, installers can easily adjust mounting points during installation without welding or cutting.
In electrical installations, strut channels are widely used to support cable trays, conduit systems, junction boxes, and lighting fixtures. The pre-slotted design simplifies mounting and repositioning when project layouts change. This adaptability makes Gauge Strut Channel especially valuable in commercial buildings and industrial facilities where electrical systems evolve over time.
In commercial and office buildings, strut channels often serve as part of suspended support frameworks above ceilings. They create stable mounting points for lighting, ventilation systems, and fire protection components. Because the system is modular, additional equipment can be added later without dismantling the entire structure.
Industrial environments demand durability, flexibility, and safety. Gauge Strut Channel supports a wide range of heavy-duty applications.
Manufacturing facilities often require custom frames for machinery. Instead of welding fixed steel structures, many engineers use strut channel systems to create modular frames that can be adjusted or expanded.
Solar installations require structural systems that can handle environmental exposure while maintaining alignment. Galvanized strut channels are commonly used for mounting solar panels in both rooftop and ground-mounted systems.
Strut channel systems allow flexible positioning of conveyor systems, safety barriers, and auxiliary equipment in production lines.
The modular nature of Gauge Strut Channel provides several operational advantages.
Unlike welded frames, strut channel assemblies can be modified on-site. Components can be repositioned without cutting or welding.
Pre-punched holes and compatible fittings significantly reduce installation time. This improves project efficiency.
Standardized components simplify inventory management and reduce material waste.
From our experience working with contractors, the ability to assemble and adjust support structures quickly often leads to measurable labor savings.
Strut channels are often exposed to moisture, outdoor environments, or corrosive industrial conditions.
Common surface treatments include:
Pre-galvanized coating
Hot-dip galvanizing
Powder coating
Stainless steel options
Choosing the correct finish ensures longevity and safety, especially in outdoor or humid environments.
Environment Type | Recommended Finish |
Indoor Dry Areas | Pre-galvanized |
Outdoor Installations | Hot-dip galvanized |
Corrosive Environment | Stainless steel or heavy coating |
Decorative Visible Areas | Powder-coated |
At Utterly TY Intelligent Technology Co., Ltd., we provide multiple finishing options to meet different environmental conditions.
Gauge Strut Channel is widely used across multiple industries:
Commercial building construction
Industrial manufacturing
Energy and utilities
Solar power installations
Data centers
Transportation infrastructure
Its universal compatibility with bolts, brackets, and fittings makes it adaptable across sectors.
Structural support components must meet engineering and safety standards. Proper load calculation, spacing, and fastening methods are essential.
We always recommend that project engineers evaluate:
Load distribution
Span length
Seismic requirements
Environmental exposure
A well-designed strut channel system ensures long-term structural integrity.
Gauge Strut Channel is used across construction, industrial, electrical, and energy applications because it provides a reliable, adjustable, and efficient structural support solution. Its gauge thickness determines load capacity, while its modular design allows flexible installation and long-term adaptability. From mechanical system supports to solar mounting structures, this framing system plays a critical role in modern infrastructure.
At Utterly TY Intelligent Technology Co., Ltd., we specialize in producing high-quality strut channel systems tailored to diverse project needs. If you are planning a construction or industrial installation and require dependable support components, we welcome you to contact us for detailed technical information and product consultation.
1. What is Gauge Strut Channel mainly used for?
Gauge Strut Channel is primarily used for supporting mechanical, electrical, and structural systems such as piping, cable trays, HVAC units, and solar panels.
2. How does gauge thickness affect strut channel performance?
Thicker gauge channels provide higher load capacity and better structural rigidity, while thinner gauges are lighter and suitable for lighter-duty applications.
3. Can Gauge Strut Channel be used outdoors?
Yes, with appropriate surface treatments such as hot-dip galvanizing, it can perform well in outdoor environments.
4. Is welding required when installing strut channel systems?
In many applications, welding is not necessary because the modular system uses bolts and fittings for assembly, allowing flexible adjustments.
