Seismic hangers and supports represent anti-seismic facilities firmly attached to building primary structures, which take seismic force as their primary applied load. A complete assembly comprises anchors, reinforcing threaded rods, seismic connecting components and seismic bracing members. Suitable accessories are indispensable for proper seismic bracing installation. Without matching hardware, it is impossible to assemble a compliant and functional seismic bracing system. This article outlines the core accessory categories required for typical seismic bracing projects.
Accessory Category | Function & Key Points |
C-channel steel & threaded-rod hardware | Primary load-bearing elements for uprights, bracing, longitudinal diagonal braces and cross beams; serrated curled edges and slotted back-face mounting holes allow free interfacing with all dedicated seismic-bracing fittings. |
Wall brackets & pre-embedded channels | Mounting points for wall-mounted arrangements and cross beams holding ductwork, cables and cable trays; built-in oval holes permit length adjustment to suit site dimensional variations. |
Seismic hinges | Connection interfaces between bracing members and building substrates, or between portal-style brackets and main structures; hinge mechanism allows flexible angle adjustment. |
Pipe clamps (suspension / double-vertical / Omega) | Secure piping for single-rod lateral hangers, single-rod longitudinal hangers and portal-style bracing units; all three styles incorporate inert rubber gaskets. |
Fastener assemblies | Join all seismic-bracing components for firm, stable connections; mitigate electrochemical corrosion at contact points and torque every joint to design-specified values. |
Material compliance & procurement | Materials must meet applicable national or industrial standards; qualified products shall carry factory certificates and official test reports from authorised inspection bodies. |

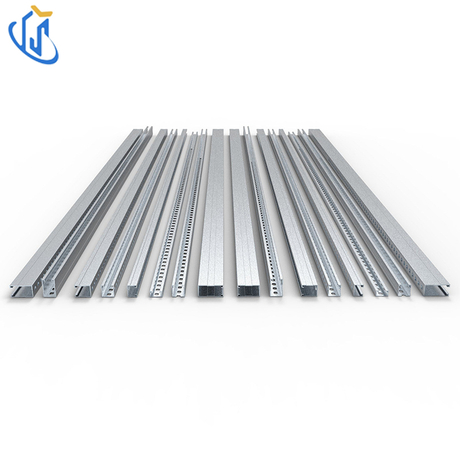

C-channel steel and threaded rods function cooperatively as primary load-bearing elements for uprights, bracing, longitudinal diagonal braces and cross beams. The profile features serrated curled edges and slotted mounting holes along its back face. All dedicated seismic-bracing fittings can freely interface with this channel profile, enabling flexible on-site positioning and adjustment throughout installation. Threaded-rod splice nuts are used to extend threaded-rod segments where additional rod length is required on-site.
Wall brackets provide mounting points for wall-mounted support arrangements and may act as cross beams to hold ductwork, cables and cable trays. Built-in oval-shaped holes permit length adjustment during assembly, allowing hardware to adapt to real-world site dimensional variations.
Pre-embedded channels serve medium-duty fastening applications for a wide range of installations including ventilation ducts, HVAC piping, water supply piping and floor grating systems. As factory-prefabricated parts, they offer robust corrosion-resistance and reliable dynamic-load capacity while streamlining field-erection workflows.
Seismic hinges serve as connection interfaces between seismic bracing members and building substrates, or between portal-style brackets and main building structures. Their hinge-based mechanism permits flexible adjustment of installation angles in response to actual site constraints and project design requirements. This adaptability resolves many fitting challenges created by complex overhead MEP layouts.
Three primary pipe-clamp types are widely deployed within seismic bracing assemblies: suspension pipe clamps, double-vertical pipe clamps, and Omega pipe clamps.
– Suspension pipe clamps secure piping for single-rod lateral seismic hangers.
– Double-vertical pipe clamps hold pipes in place for single-rod longitudinal seismic hangers.
– Omega pipe clamps are engineered for pipe-fixing applications on portal-style seismic bracing units.
All three clamp styles incorporate inert rubber gaskets. These gaskets deliver insulation performance, damp mechanical vibration and suppress operational-system noise for suspended piping networks.
Specialised fastener hardware joins all seismic-bracing components together to achieve firm, stable connections across the whole support framework.
Additional best-practice rules apply while assembling major seismic-bracing components. First, appropriate measures shall be taken to mitigate electrochemical corrosion at contact points between hardware and piping. Second, every connection joint must be torqued strictly in accordance with design-specified values to prevent loosening triggered by long-term vibration or seismic excitation.
To guarantee overall safety and long-term reliability of seismic hangers and supports, every adopted material must satisfy performance requirements defined within applicable national or industrial standards. Qualified seismic bracing products shall be accompanied by factory certificates and official test reports issued by authorised inspection bodies.
When sourcing seismic brackets and matching accessories, specifiers and contractors are advised to select reputable established manufacturers. Sourcing from reliable producers greatly reduces product-quality risks and helps deliver fully compliant MEP seismic-protection installations.
