In modern commercial buildings, industrial facilities and public infrastructures across seismic zones, mechanical, electrical and plumbing (MEP) systems including fire sprinkler piping, HVAC ductwork and cable trays rely heavily on seismic bracing systems to resist earthquake forces. Without code-compliant seismic supports, pipes and ducts may shift, rupture or collapse during seismic activities, triggering fire spread, water leakage and power outages, which pose severe threats to building safety and property assets. In the United States and many global regions, NFPA 13, IBC and ASCE 7 standards strictly mandate the installation of certified seismic bracing for all life-safety related MEP components.
Many project engineers, contractors and procurement staff face challenges in selecting suitable seismic bracing accessories: confusing lateral and longitudinal bracing, ignoring load rating standards, or choosing uncertified products that lead to inspection failures. This comprehensive guide elaborates on core selection criteria, installation rules, material requirements and certified product solutions. It helps you make professional decisions for fire protection, HVAC and industrial piping projects. We will also introduce our full series of FM & UL certified seismic bracing products and one-stop service solutions at the later part.

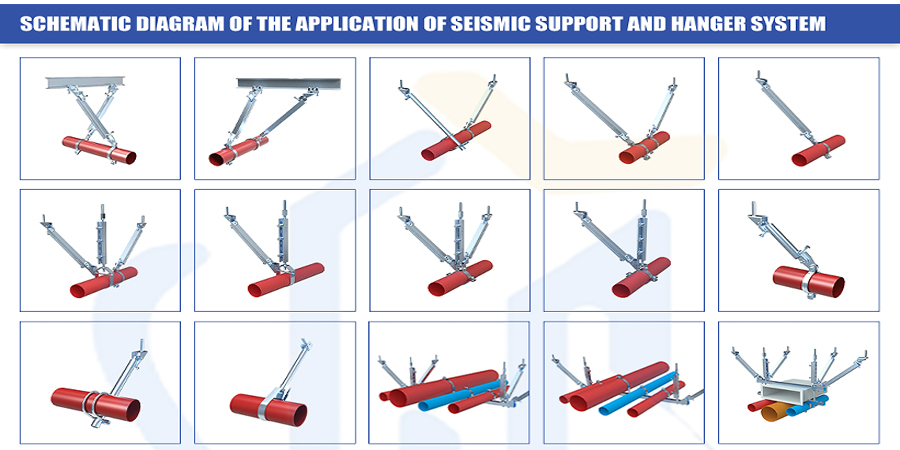

Seismic bracings are divided into two core categories based on installation direction and force bearing mode: lateral seismic bracing and longitudinal seismic bracing. They work together to restrict multi-directional displacement of MEP systems during earthquakes, and their functional differences determine different installation layouts and matching fittings.
Lateral bracing is installed perpendicular to the running direction of pipes or ducts. Its main function is to limit horizontal side-to-side sway caused by seismic waves. When an earthquake occurs, pipelines tend to swing like a pendulum, which will crack pipe joints and damage connected equipment. Lateral supports lock the horizontal displacement effectively. This type of bracing is the most widely used accessory for fire sprinkler systems, large HVAC ducts and general industrial piping in North American projects view lateral seismic bracing accessories.
Longitudinal bracing is mounted parallel to the pipe centerline, designed to withstand front-and-rear axial tension and compression. Under seismic loads, unbraced pipes will stretch or shrink along the axis, resulting in permanent deformation and medium leakage. For four-way seismic restraint systems, lateral and longitudinal fittings must be installed at the same anchor point to form an all-round protection structure view four-way seismic bracing assemblies.
Installation angle and spacing are two critical factors affecting load capacity and compliance. All FM & UL certified fittings have clear load data corresponding to different angles. The allowable load of a bracing component decreases as the installation angle becomes smaller. Meanwhile, NFPA 13 sets rigid spacing limits for adjacent bracings, which is a common reason for project inspection rejection.
The table below summarizes the standard installation parameters for two main bracing types:
Bracing Type | Standard Installation Angle | Recommended Spacing (Sprinkler Pipes) | Main Applicable Scenarios |
|---|---|---|---|
Lateral Seismic Bracing | 45° ~ 90° | Shorter interval | Small-diameter sprinkler pipes, HVAC ducts |
Longitudinal Seismic Bracing | 30° ~ 60° | Longer interval | Large-diameter industrial pipes, main pipeline trunks |
Certification and raw materials are the fundamental guarantees of seismic bracing quality. Products used for U.S. MEP projects must pass FM, UL and CE certifications and fully comply with NFPA 13 and IBC building codes. Non-certified products will be directly rejected during official inspections.
UL Certification: Verifies the maximum vertical and horizontal load capacity of bracing components under static and dynamic tests.
FM Certification: Focuses on seismic performance under simulated earthquake conditions, which is a must for fire protection system accessories.
CE Certification: Meets European safety standards for products exported to Europe and the Middle East.
High-strength materials and anti-corrosion treatments ensure long-term service life in complex indoor and outdoor environments. Two mainstream material combinations are widely adopted by qualified manufacturers:
QT450 Ductile Iron + High-strength Carbon Steel: Combines high toughness and compressive resistance, suitable for heavy-load seismic connections.
Pure Carbon Steel: Lightweight and cost-effective, ideal for medium and light-load pipe bracing.
Two anti-corrosion options are available for all metal parts:
Electro-galvanized: Good anti-rust performance for indoor dry environments.
Hot-dip galvanized: Superior corrosion resistance, suitable for humid workshops, outdoor pipe racks and coastal areas.
Load data is the core technical basis for model selection. The following table shows the standard UL and FM load ratings for common SCH40 steel pipes, which can be used for quick product matching in design work:
SCH4 Pipe Size | UL Max Vertical Load | FM Load (30°-44°) | FM Load (45°-59°) |
|---|---|---|---|
1 inch | 1885 lbs (8.38kN) | 1490 lbs (6.62kN) | 1980 lbs (8.80kN) |
2 inches | 680 lbs (3.02kN) | 590 lbs (2.62kN) | 840 lbs (3.73kN) |

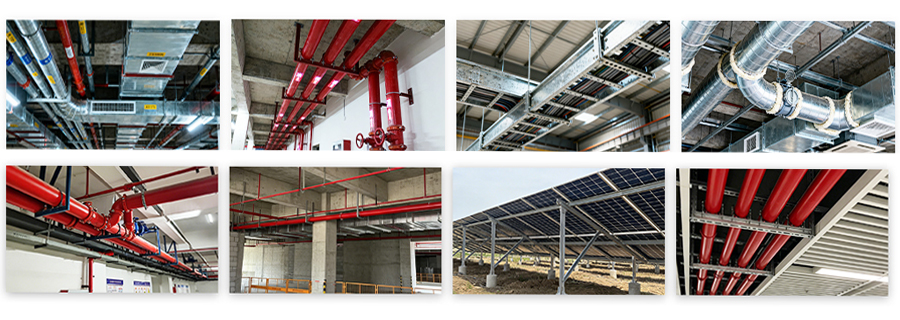

Seismic bracing accessories are customized for different MEP systems. Reasonable matching of components can optimize installation efficiency and seismic performance. We classify mainstream application scenarios and corresponding standard part combinations:
As the highest safety-level system regulated by NFPA 13, sprinkler pipes (1/2 ~ 8 inches) need complete sets of seismic components.

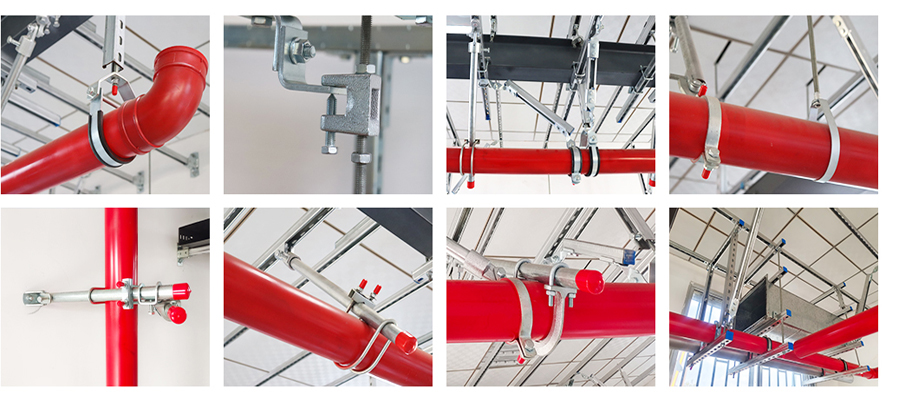

Matched components: Universal swivel hinges, C-type structural connectors, standard pipe clamps, longitudinal in-line fittings view standard pipe clamps.
Typical projects: Shopping malls, office buildings, hospitals, residential communities.

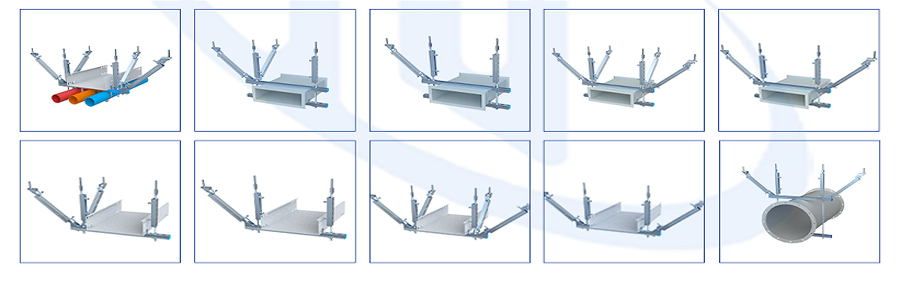

Large and medium-sized HVAC ducts require lateral and longitudinal combined bracing to prevent overall displacement.
Matched components: Beam clamps, swing brace connectors, multi-fastener adapters.
Typical projects: Industrial workshops, data centers, large stadiums.
Civil and industrial cold/hot water pipelines and electrical cable trays have moderate load requirements. Standard seismic hangers and clamps are sufficient.
Matched components: Adjustable band hangers, roller hangers, cantilever brackets.
Many project failures stem from improper product selection and layout. Summarized frequent mistakes for your reference:
Confusing lateral and longitudinal fittings: Using longitudinal parts for lateral bracing will cause insufficient horizontal load capacity.
Ignoring angle load attenuation: Choosing oversized angles without recalculating load will lead to hidden safety hazards.
Using uncertified cheap products: Cannot pass NFPA and site inspections, resulting in project delays.
Unreasonable spacing: Too large spacing cannot meet seismic resistance requirements; too small increases construction costs.
Utterly TY Intelligent Technology Co., Ltd. is a professional manufacturer integrating R&D, production and sales of seismic bracing systems. Our full range of products has obtained FM, UL and CE certifications, fully complying with NFPA 13, IBC and other U.S. building codes.
✅ Dual raw material options: QT450 ductile iron & high-strength carbon steel.
✅ Verified load data for 30°/45°/90° multiple installation angles.
✅ Dual anti-corrosion processes: Electro-galvanized & hot-dip galvanized.
✅ Support OEM & ODM customized services for special project demands.
✅ Complete pre-delivery tests: Cyclic load test and salt spray test to ensure quality.

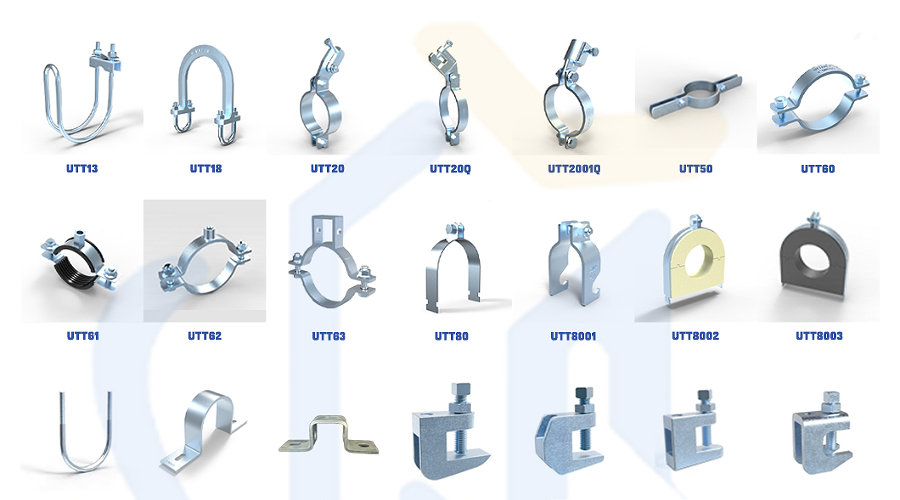

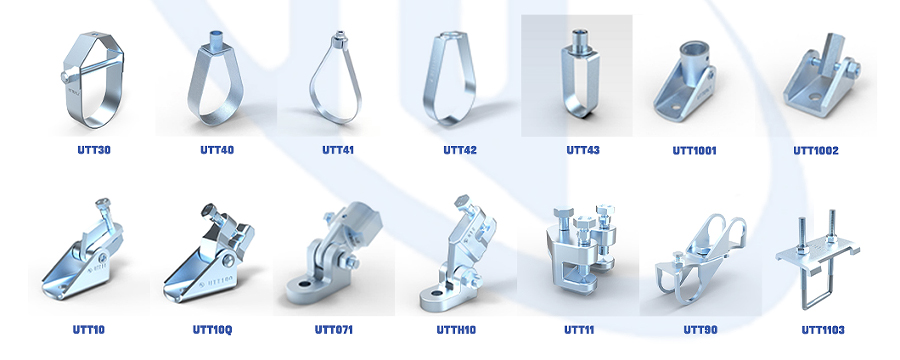

Our product line covers all seismic accessories required for MEP systems, including seismic attachments, pipe clamps, hangers, beam clamps, strut channels and fasteners view full product catalog. All products have complete test reports and certification documents, which can be directly used for bidding, design and inspection of North American, European and Middle Eastern projects.
