Seismic events generate dynamic, multi-axial forces across structural environments. For MEP and fire protection systems, failing to account for multi-directional sway can lead to catastrophic system failure. Earthquakes simply do not respect linear pathways, demanding highly responsive restraint solutions.
While engineers calculate lateral (perpendicular) and longitudinal (parallel) loads separately, the physical installation often relies on a single, adaptable component: the seismic bracing connection hinge. Historically, rigid brackets forced installers to fabricate exact fits. These fixed angles wasted time when unpredictable field conditions inevitably changed.
This guide examines how universal hinged connections adapt to different bracing angles, handle bi-directional loads, and simplify compliance with stringent seismic codes (like NFPA 13) during the procurement and installation phases. You will discover the core mechanics behind these essential components. We will also explore actionable strategies to ensure your next project remains structurally sound and fully compliant.
Directional Adaptability: High-quality seismic hinges allow continuous angle adjustment, effectively managing both perpendicular (lateral) and parallel (longitudinal) pipe movements.
Code Compliance Baseline: Selecting hinges with clear FM Approvals and UL Listings mitigates liability and simplifies NFPA 13 and OSHPD compliance.
Implementation Efficiency: Universal hinge designs reduce on-site inventory variations and prevent installation delays caused by rigid, angle-specific brackets.
Load Rating Variables: A hinge's maximum allowable load is not static; it fluctuates based on the installed brace angle and the substrate material.
Understanding seismic forces requires breaking down complex energy waves into manageable engineering vectors. Earthquakes push and pull buildings in unpredictable patterns. MEP (Mechanical, Electrical, and Plumbing) systems require robust defense mechanisms against these chaotic movements. Engineers typically isolate these forces into two primary directions to design effective restraint systems.
Lateral Loads: These forces act perpendicular to the primary pipe run. When a building shakes side-to-side, lateral forces attempt to swing the pipe horizontally across the ceiling. Lateral bracing stops this destructive pendulum effect. It keeps the pipe securely within its designated spatial corridor.
Longitudinal Loads: These forces act parallel to the pipe run. They push and pull the pipe along its own axis. Without longitudinal bracing, pipes thrust forward and backward. This violent thrusting easily shears couplings, shatters fittings, and causes immediate system depressurization.
For decades, contractors relied heavily on rigid, fixed-angle brackets. This approach looked perfectly fine on drafting tables. In reality, it created immense friction during the installation phase. Fixed brackets demanded precise, factory-level pre-fabrication. Installers needed specific brackets for 45-degree angles and entirely different ones for 60-degree angles.
Field conditions rarely match the blueprint perfectly. An unexpected HVAC duct or an oversized electrical tray often blocks the intended brace path. When structural interference occurred, rigid brackets became completely useless. Installers had to halt work, order new custom angles, and endure severe project delays. Inventory costs skyrocketed as contractors stockpiled dozens of highly specific bracket variations just in case.
Modern engineering frequently encounters situations demanding multi-directional restraint in tightly confined spaces. A 4-way bracing configuration happens when lateral and longitudinal braces anchor near the same junction. You must restrain the pipe against side-to-side and front-to-back motion simultaneously.
Proprietary, single-use hardware makes 4-way configurations needlessly complex. However, specifying an adaptable hinge changes the equation. Installers can easily attach multiple hinges to a single riser clamp or structural attachment point. They adjust the individual swing angles to clear local obstructions. This method provides true 4-way stability using standard, universal hardware.

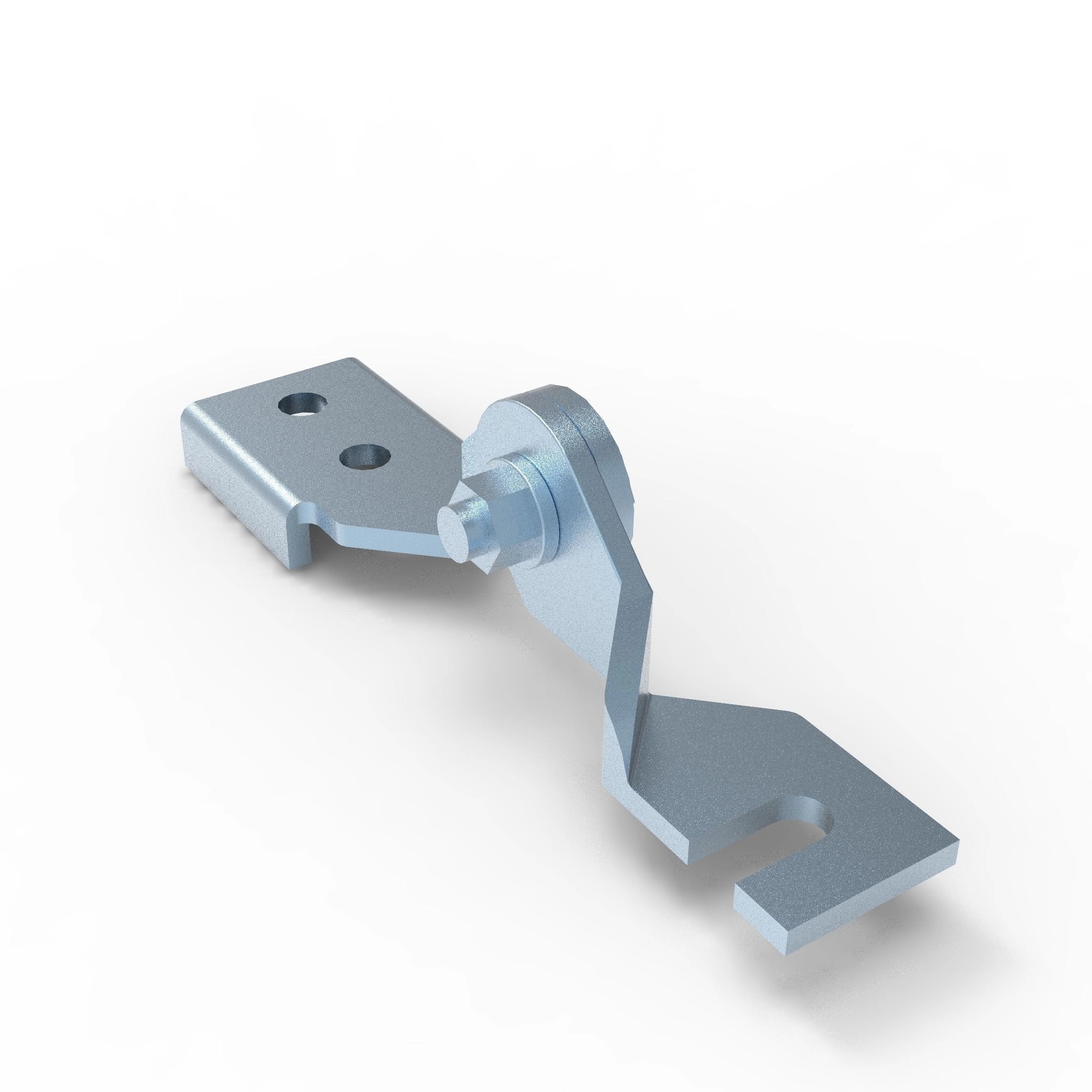

To understand why a hinge outperforms a static bracket, you must examine its physical anatomy. The component relies on simple but highly effective mechanical principles. It transforms a rigid structural connection into an adaptable, pivoting joint.
The defining feature of this connector is its central pivot pin. This heavy-duty steel pin connects the attachment base to the brace-receiving channel. Because of this pin, the brace member—whether rigid schedule 40 pipe or strut channel—can swing freely before the final tightening process.
Installers can fluidly adjust the brace angle from a shallow 30° all the way to a steep 90° relative to the mounting surface. If an obstruction blocks the 45° path, they simply adjust the swing to 60° and secure the fastener. This continuous angle adjustment eliminates the need for complex field-bending or custom hardware orders.
Seismic restraints only work if they successfully transfer kinetic energy out of the suspended pipe and into the primary building structure. Any weak link breaks the entire chain. A highly engineered Seismic Bracing Connection Hinge ensures absolute load path continuity.
Energy Transfer Flow Chart
Step | Component | Function in Load Path |
|---|---|---|
1 | MEP Pipe / Conduit | Generates dynamic kinetic energy during a seismic event. |
2 | Sway Brace Clamp | Grips the pipe securely and transfers energy into the brace member. |
3 | Brace Pipe / Strut Channel | Carries the force linearly toward the structural ceiling or wall. |
4 | Connection Hinge | Receives the linear force and channels it cleanly through the pivot pin into the backplate. |
5 | Structural Substrate | Absorbs and dissipates the seismic energy safely into the building frame. |
Earthquakes do not apply static, one-way pressure. They generate dynamic, cyclical loading. The brace experiences intense pushing (compression) followed immediately by intense pulling (tension). Hinged connectors must survive this punishing cycle without tearing apart.
High-quality hinges feature thick steel construction and reinforced pivot joints. They maintain structural integrity regardless of the force direction. The central pin resists shearing under extreme tension. Simultaneously, the hinge housing resists buckling or deformation when the brace thrusts forward in compression.
Not all seismic connectors provide identical performance. Procurement teams and engineering managers must evaluate hinges based on scalability, compatibility, and geometric alignment. Making the right choice early prevents massive cost overruns during the installation phase.
Selecting a universal hinge significantly improves project ROI. Universal hinges accommodate multiple brace pipe sizes natively. For example, a single universal hinge might accept 1", 1-1/4", 1-1/2", and 2" Schedule 40 brace pipes. They also frequently accept standard unistrut channels.
This versatility drastically reduces inventory complexity. Contractors no longer need to audit exact pipe sizes before ordering brackets. Instead, they buy one universal Seismic Bracing Connection Hinge in bulk. This unified procurement approach lowers upfront costs, simplifies site logistics, and empowers installers to adapt instantly.
Comparison: Universal Hinge vs. Fixed Bracket
Criteria | Universal Hinged Connector | Fixed Angle Bracket |
|---|---|---|
Angle Adjustability | Continuous (typically 30° to 90°) | None (fixed at factory) |
Inventory Management | Minimal SKUs required on site | High SKU complexity (many variations) |
Field Adaptability | High (bypasses structural obstacles easily) | Low (requires clear, exact pathways) |
Labor Efficiency | Fast installation, no custom fabrication | Slow, often requires re-ordering parts |
A hinge is strictly as reliable as its anchor. The backplate design matters immensely. You must evaluate hinge backplates for broad substrate compatibility. Do they mount flush against concrete ceilings using wedge anchors? Can they bolt securely onto steel beam clamps? Do they support lag screws for heavy timber or wood joist attachments?
The best hinges feature wide, flat mounting bases. This distributes the load evenly across the substrate surface. It prevents the anchor point from crushing softer materials like wood or tearing out of older concrete.
Concentric loading represents a non-negotiable engineering standard. The hinge design must keep the load path perfectly aligned with the structural anchor bolt. If the pivot point sits too far away from the anchor bolt, it creates eccentric loading.
Eccentric loading applies off-center, prying forces onto the fastener. This significantly degrades the overall capacity of the assembly. A prying action can easily pull a concrete anchor right out of the ceiling. Always select hinges designed to keep the pivot axis tightly aligned over the fastener hole.
Fire protection and MEP bracing operate under rigorous legal frameworks. Designing a theoretical restraint system means very little without formal compliance. You must navigate stringent codes to ensure life safety and pass rigorous inspections.
Relying solely on a manufacturer claiming their product is "tested" is legally dangerous. Procurement teams must demand verified, third-party certifications. The industry universally recognizes UL (Underwriters Laboratories) Listings and FM (Factory Mutual) Approvals as the gold standard.
UL and FM subject these hinges to brutal cyclical testing regimens. They push the hardware beyond its stated limits to find the actual breaking point. Selecting FM Approved or UL Listed components instantly mitigates liability. It guarantees the hardware will perform exactly as advertised during an actual seismic event.
Many engineers mistakenly assume a hinge carries a static load rating. In reality, the maximum allowable load fluctuates dramatically based on the installation angle. Physics dictates this reduction. As the brace angle flattens out, the mechanical advantage decreases.
For example, a hinge installed straight down at a 90° angle might easily support 1,500 lbs of force. However, if you install that exact same hinge at a shallow 30° angle, its capacity might drop to just 700 lbs. You must consult the manufacturer's specific certification tables for the exact angle you plan to use.
Example Load Capacity Variance
90° Installation: 100% of maximum rated capacity.
60° Installation: Approximately 80-85% of maximum rated capacity.
45° Installation: Approximately 65-70% of maximum rated capacity.
30° Installation: Approximately 45-50% of maximum rated capacity.
The AHJ (Authority Having Jurisdiction) holds the final approval power for any seismic installation. Inspectors will not take your word for the structural integrity of a brace. They require hard, verifiable proof.
Selecting hinges backed by published, third-party-verified load tables streamlines this approval process completely. Installers simply hand the AHJ the official data sheet showing the UL/FM approvals. They point to the specific angle used and highlight the corresponding load rating. Clear documentation transforms a stressful, hours-long inspection into a quick, routine sign-off.
Even the most perfectly engineered system can fail due to human error. Field installation presents unique challenges. Addressing these friction points ensures the system performs as designed when the ground starts moving.
The most common failure point in any seismic bracing connection is improper fastener torque. A loose bolt allows the pivot mechanism to rattle, eventually shearing the pin under dynamic load. Conversely, an over-tightened bolt stresses the steel housing and strips the threads.
Common Mistakes Regarding Torque:
Relying on "feel" rather than using a calibrated torque wrench.
Failing to tighten the set screws gripping the rigid brace pipe.
Ignoring the manufacturer's specific foot-pound requirements.
Forgetting to re-check bolts after the initial pipe alignment.
You can eliminate torque guesswork by specifying advanced hinges. Modern designs increasingly incorporate visual torque indicators or break-off bolts. A break-off bolt features a specialized head designed to snap off completely once the installer reaches the exact required torque.
These features speed up the entire workflow. The contractor knows instantly when the joint is secure. More importantly, the AHJ inspector can visually verify correct installation from the ground. If the bolt head is gone, the torque is correct. This completely eliminates the need to physically re-test every connection on a ladder.
New construction allows open access to ceilings. Retrofitting older buildings presents a nightmare of congestion. Installers must navigate around existing ductwork, overlapping plumbing, and fragile data trays.
Compact hinge designs excel in these tight spaces. They require minimal clearance for the pivot swing. Furthermore, hinges utilizing single-tool tightening mechanisms reduce labor significantly. If an installer only needs one standard socket size to secure the brace channel, adjust the angle, and lock the pivot pin, they work much faster. This reduces arm fatigue and keeps the project timeline intact.
The right seismic hinge elegantly bridges the massive gap between complex engineering calculations and unpredictable field realities. It translates multi-directional load requirements into a simple, highly adjustable physical connection. By moving away from rigid brackets, contractors dramatically improve their installation speed and reduce costly field errors.
To implement these solutions effectively, take these actionable next steps:
Audit your current supplier's load tables to fully understand capacity drops at shallower installation angles.
Verify that every component carries active FM Approvals or UL Listings to satisfy AHJ requirements immediately.
Request physical samples of universal hinges to evaluate the torque mechanisms and overall contractor usability.
Standardize your inventory around multi-size, highly adjustable connectors to lower supply chain complexity.
A: Yes. A highly adjustable hinge can be oriented perpendicular or parallel to the pipe run, provided the load ratings match the specific angle of installation.
A: Load capacities generally decrease as the installation angle flattens (moves closer to 30°). Always consult the manufacturer's certification tables for angle-specific limits.
A: Most connection hinges are designed specifically for rigid bracing (strut or schedule 40 pipe). Cable bracing utilizes different anchor mechanisms designed purely for tension loads.
A: Installers must provide the manufacturer's technical data sheets showing UL/FM approvals, confirm the specific installation angle, and verify that the required torque was applied to the hinge fasteners.
