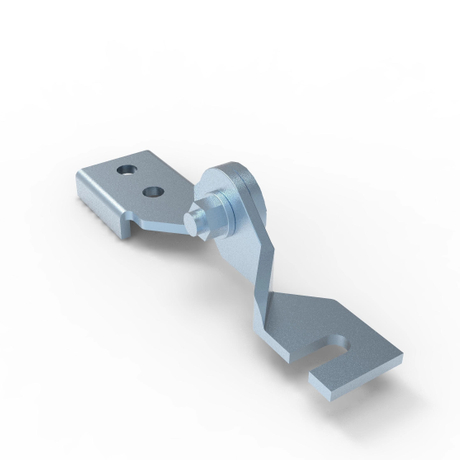

Selecting the right Industrial Pipe Clamp is rarely a matter of simple preference. It acts as a critical engineering decision dictating the structural integrity, acoustic performance, and code compliance of a piping system. Every installation relies on these structural anchor points to function safely over decades of continuous use.
A mismatch in material, load capacity, or environmental tolerance causes immediate and severe problems. You risk triggering galvanic corrosion, experiencing thermal expansion failure, or facing costly code violations during building inspections. Relying purely on nominal catalog sizes without understanding the physical dynamics of your specific pipeline leaves vital infrastructure vulnerable.
This guide breaks down the essential technical evaluation criteria required to specify the correct pipe supports for commercial and industrial applications. You will learn how to evaluate static versus dynamic loads, ensure strict material compatibility, verify load ratings, and implement disciplined installation practices. We move beyond basic hardware catalogs to address actual deployment realities on the job site.
Load Dynamics Matter: Specification must account for thermal expansion and vibration, requiring a clear choice between static supports (like clevis hangers) and dynamic supports (like roller or spring hangers).
Material Compatibility is Non-Negotiable: Directly pairing dissimilar metals (e.g., plain galvanized clamps on copper piping) triggers galvanic corrosion; lined clamps or exact material matching is mandatory.
Compliance Drives Procurement: Shortlisting should strictly follow load testing standards (e.g., RAL-GZ 655/B, ASTM) and acoustic noise reduction requirements (e.g., DIN 4109).
Installation Integrity: Field failures are frequently caused by improper torque discipline, where over-tightening restricts flow or damages the pipe structure, particularly in softer PVC or copper lines.
Identifying the physical forces acting on a pipeline is your first critical step. You must determine whether the pipeline requires rigid stabilization or needs to accommodate movement. Mechanical vibration and thermal expansion introduce significant stress into any plumbing or industrial network. Categorizing your system into static or dynamic load profiles dictates every subsequent hardware choice.
Static systems experience minimal movement. They carry stable fluids at consistent temperatures, meaning the support hardware only needs to manage the dead weight of the pipe and its contents. We rely on rigid fixtures to hold these systems securely in place.
Clevis & Split Ring Hangers: These serve as the baseline for suspended heavy-duty piping. Engineers best deploy them where loads remain strictly vertical and stationary. A split ring hanger tightly grips the pipe near the ceiling, while a clevis hanger allows for slight vertical adjustment during installation. They are staples in standard indoor plumbing routing.
Riser Clamps: High-rise plumbing and fire suppression systems depend heavily on these units. Riser clamps firmly grip vertical pipes running between floors. They transfer the immense vertical weight of the water-filled pipeline directly onto structural floor slabs. This prevents the entire column from collapsing under its own gravity.
Dynamic pipelines move. Pumping stations create aggressive vibration, while steam or chilled water lines expand and contract as temperatures fluctuate. Rigid clamps in these environments will eventually fracture the pipe or tear the support directly from the ceiling.
Roller Hangers & Sliding Saddles: We engineer these for infrastructure systems experiencing high-temperature fluctuations. As a steel pipe heats up, it elongates. Roller hangers feature a small cylindrical wheel. The pipe rests on this wheel, allowing it to glide forward and backward. This low-friction design effectively mitigates sheer stress caused by thermal expansion and contraction.
Spring Hangers (Variable vs. Constant): Extreme industrial environments require specialized intervention. Heavy machinery transmits powerful vertical displacement through the pipeline. Variable spring hangers compress and expand to absorb these shocks. Constant spring hangers maintain an exact, unchanging support force throughout their entire range of motion. They prevent mechanical vibration from fracturing delicate connecting equipment like turbine valves.
Procurement must move beyond basic diameter matching. Relying on rough visual estimates guarantees failure. Professional specification requires verified load-bearing performance and strict regulatory compliance to ensure safety.
You must match your clamp to the exact Outer Diameter (OD) of the pipe, rather than just the nominal pipe size. Nominal sizes act as industry shorthand, but they do not reflect the physical exterior dimensions. A 2-inch nominal pipe often possesses an actual OD of 2.375 inches. If you specify an Industrial Pipe Clamp based purely on the nominal label, it will not fit correctly. A clamp that is too large allows micro-movements and rattling. A clamp that is too small creates point-loading, which crushes the pipe wall over time.
Never guess a support bracket's strength. Procurement teams should rely strictly on technical size charts featuring Maximum Recommended Loads. You must ensure the specified hardware meets or exceeds international testing guidelines. Standards like RAL-GZ 655/B and ASTM provide rigorously documented safety margins. A standard residential clamp cannot survive the dynamic force of a commercial main line.
Pipe OD Range (mm) | Max Recommended Load (kN) | Recommended Support Type | Primary Standard Compliance |
|---|---|---|---|
15 - 22 mm | 0.80 - 1.20 kN | Lined Split Ring | DIN 4109 (Acoustics) |
25 - 50 mm | 1.50 - 2.50 kN | Clevis Hanger | RAL-GZ 655/B |
65 - 100 mm | 3.00 - 5.00 kN | Heavy-Duty Two-Bolt | ASTM F708 |
150 - 250 mm | 8.00 - 12.00 kN | Roller Hanger / Sliding Saddle | ASME B31.1 |
Noise travels efficiently through rigid metal building frames. For HVAC and residential high-rise projects, you must evaluate clamps against noise attenuation standards. DIN 4109 represents the benchmark for acoustic isolation in building construction. Rubber or EPDM-lined clamps absorb sound waves before they enter the structural walls. They provide documented decibel reduction, often achieving up to -18dB(A) of noise suppression. This prevents the hum of a commercial water pump from echoing through residential apartments.
Preventing premature system degradation requires an understanding of chemistry. Chemical reactions between the pipe, the clamp, and the surrounding environment rapidly destroy piping infrastructure. You must control these interactions through proper material selection.
Galvanic corrosion occurs when two different metals come into direct physical contact in the presence of an electrolyte, like ambient humidity or condensation. One metal acts as an anode and corrodes rapidly, while the other acts as a cathode. The strict industry rule is clear: never use an unlined plain steel or zinc clamp on a bare copper pipe. The steel will quickly deteriorate the copper, leading to pinhole leaks, catastrophic water damage, and complete system failure.
Choosing between lined and unlined hardware directly impacts system longevity. Each serves a distinct engineering purpose.
Lined (EPDM/Rubber): These are strictly mandatory for vibration dampening and electrical insulation. The thick rubber barrier prevents direct metal-to-metal contact, completely neutralizing the threat of galvanic corrosion. You should always specify lined clamps for soft materials like copper, CPVC, and standard PVC.
Unlined: These components are perfectly suitable for non-critical, rigid installations. However, you must ensure the pipe and clamp materials exactly match. Pairing a stainless steel clamp with a stainless steel pipe creates a stable, corrosion-free joint ideal for sterile environments.
You must carefully evaluate the deployment environment. The ambient atmosphere dictates your required surface treatment. Specify Hot-Dipped Galvanized (HDG) or Stainless Steel (304/316) for outdoor applications, marine environments, or highly corrosive industrial sites. HDG provides a thick, resilient zinc barrier against harsh weather. Stainless steel resists chemical exposure. Conversely, standard zinc-plated options offer minimal environmental protection. You must restrict them entirely to dry, climate-controlled interiors.
Different industries pose entirely different operational demands. Narrowing down structural choices requires mapping your hardware directly to the sector's specific physical stressors.
HVAC & Commercial Plumbing: These systems face constant thermal cycling and condensation. Engineers focus heavily on cushion clamps, interlocking split rings, and clevis hangers. Cushion clamps manage refrigerant line vibration effectively. EPDM-lined split rings prevent chilled water lines from sweating onto the steel hardware, stopping surface rust. Clevis hangers provide the necessary pitch for efficient gravity drainage routing.

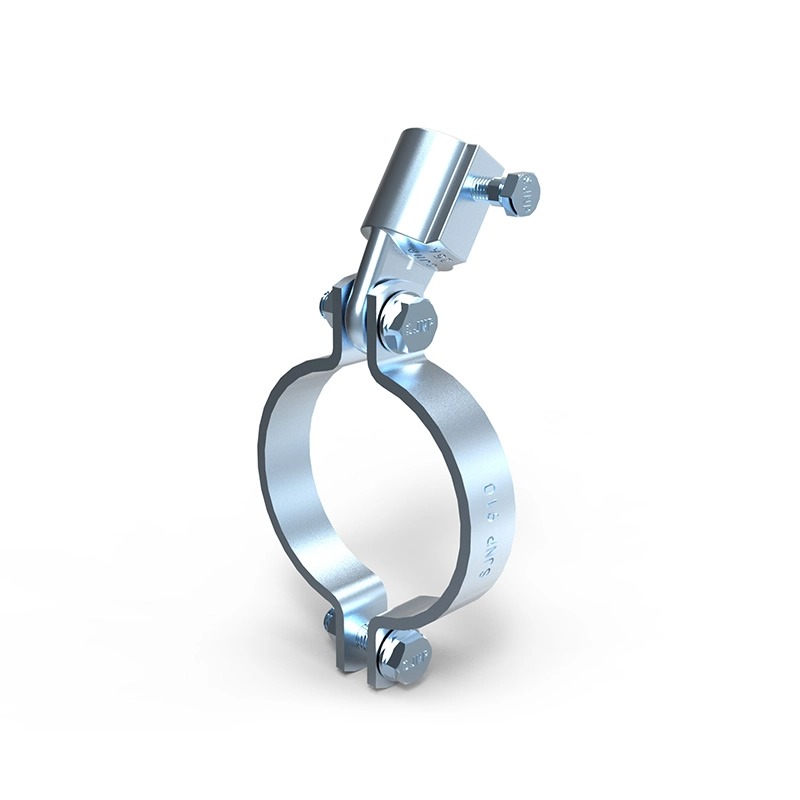

Heavy Industrial, Oil & Gas: Safety margins dominate this sector. Pipelines transport volatile chemicals under massive pressure. Procurement teams prioritize flat-based clamps and heavy-duty two-bolt configurations. These anchors bolt directly into concrete or massive steel I-beams. They utilize extreme-temperature linings capable of withstanding high-pressure line surges, sudden water hammer effects, and harsh environmental chemical exposures.
Renewable Energy & Electrical: Solar farms and wind installations face relentless outdoor exposure. You must highlight the use of UV-resistant, non-conductive materials. Specialized cable clamps and rubber-isolated structural saddles secure solar framework routing. They stabilize high-voltage conduits against heavy wind shear without risking electrical conductivity to the main mounting structure.
The best engineering specification falls apart if contractors execute it poorly on the job site. You must bridge the gap between theoretical design and practical field installation. Scalability and risk management depend on strict adherence to established best practices.
Improper torque discipline acts as the primary cause of field failure. Installers frequently believe tighter is better. This assumption is dangerous. Over-tightening crushes the pipe. We see abundant evidence that excessive torque leads directly to structural deformation. This restricts internal fluid flow and creates stress risers in the material. Over time, these stress risers evolve into micro-fractures. Soft PVC and thin-walled copper are highly susceptible to this damage. Contractors must use calibrated torque wrenches and follow the manufacturer's exact specifications.
Standardizing hanger spacing isn't just a friendly best practice; local building codes mandate it. Proper spacing prevents sagging, which creates fluid pooling and trapped air pockets. It ensures an even load distribution across the ceiling structure.
Common Spacing Best Practices Include:
Placing supports within 18 inches of any directional change or heavy fitting.
Restricting horizontal PVC support intervals to a maximum of 4 feet to prevent bowing.
Supporting horizontal steel pipes every 10 to 12 feet, depending on their total fluid weight.
Improper spacing guarantees failed municipal inspections and forces massive rework labor.
Modern facilities advocate for a documented, highly structured preventative maintenance schedule. Ignoring pipe supports until they fail introduces unacceptable operational risk. Emerging industry trends dictate replacing severely degraded clamps immediately rather than attempting to reuse fatigued hardware. A rusted clamp loses its original load rating entirely. Furthermore, we are witnessing the slow integration of "smart clamps" equipped with IoT sensors. These devices monitor vibration spikes and thermal changes, providing critical predictive maintenance data for vulnerable infrastructure.
Shortlisting the perfect structural support requires a logical decision matrix. You must start by establishing your strict code requirements and maximum load limits. Then, carefully match the exact outer diameter and verify material compatibility to prevent chemical degradation. Finally, finalize your hardware choice based on your specific acoustic isolation or dynamic movement needs. Rigid plumbing needs static hanging, while thermal infrastructure demands sliding low-friction hardware.
We encourage engineers and contractors to take immediate action during the procurement phase. Request comprehensive dimensional sizing charts in PDF format directly from manufacturers. Always verify standard certifications like ASTM and DIN before purchasing. Finally, consult directly with structural engineers before finalizing high-load infrastructure orders to guarantee absolute site safety.
A: We generally discourage reusing hardware in high-stress or dynamic environments. Once a clamp has been subjected to extreme thermal fatigue, its maximum load bearing capacity decreases. Environmental corrosion and physical stress compromise its structural integrity. Always install fresh, fully rated hardware during system upgrades.
A: This is a classic symptom of over-tightening rigid, unlined clamps. Installers often apply too much torque. PVC requires padded or plastic-specific clamps. It also needs exact torque control to allow for natural thermal expansion. If the clamp grips too tightly, the expanding plastic fractures against the steel.
A: Hot-Dipped Galvanized (HDG) offers a highly durable and cost-effective solution for general outdoor use. However, Stainless Steel (specifically the 316 grade) is strictly required for marine environments, chemical plants, or areas with high ambient salt exposure. Stainless steel ensures long-term stability where standard zinc coatings would fail.
