| Quantity: | |
|---|---|

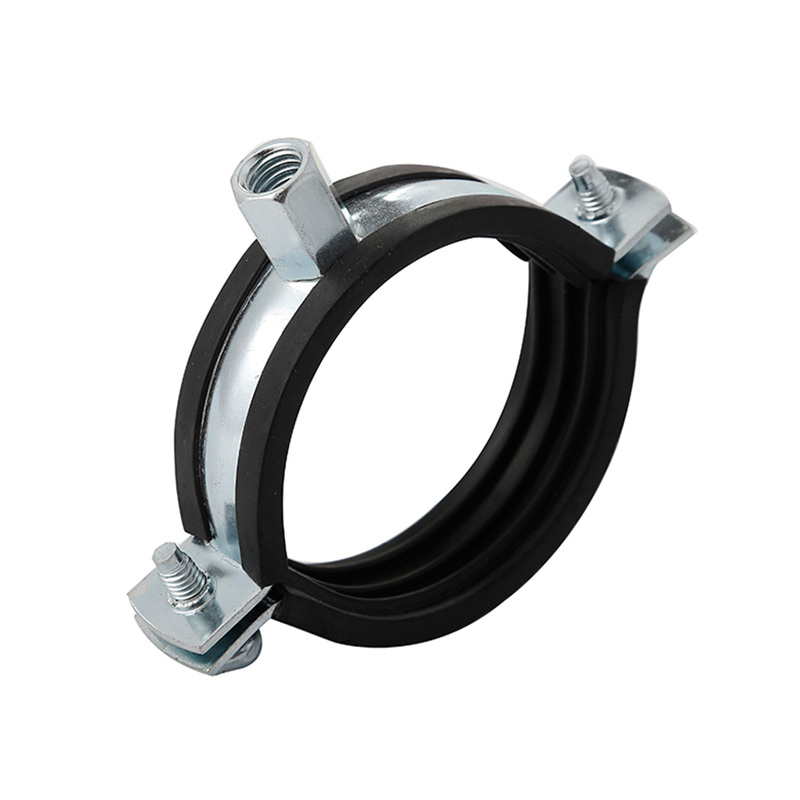

Material: High-quality carbon steel ensuring strength and durability.
Surface Finish: Electro-galvanized for enhanced corrosion resistance.
Size Range: Available from 1/2" to 8" to suit various applications.
Rubber Lining: EPDM rubber lining provides excellent flexibility, oil and acid resistance, and chemical resistance.
Design Options:
With or without EPDM lining.
Plastic anti-loss washer included.
Optional nuts for side screws.
Choice between reinforced or flat surface.
UNC or BSW thread top nuts available.
Construction: Six-point welding for enhanced strength and reliability.
Customization: Other thicknesses and widths available upon request.
Our rubber hose clamps are available in various sizes to accommodate different pipe diameters. Below is a detailed specification table:
| Trade Size | Diameter (Dmm) | Thread | A*B (mm) |
|---|---|---|---|
| 3/8" | 15-19 | M8+M10 | 20*1.5 |
| 1/2" | 20-25 | M8+M10 | 20*1.5 |
| 3/4" | 26-30 | M8+M10 | 20*1.5 |
| 1" | 32-36 | M8+M10 | 20*1.5 |
| 1 1/4" | 38-43 | M8+M10 | 20*1.5 |
| 1 1/2" | 47-51 | M8+M10 | 20*1.5 |
| 53-58 | M8+M10 | 20*1.5 | |
| 2" | 60-64 | M8+M10 | 20*1.5 |
| 68-72 | M8+M10 | 20*1.5 | |
| 2 1/2" | 75-80 | M8+M10 | 20*1.5/2.0 |
| 80-86 | M8+M10 | 20*1.5/2.0 | |
| 3" | 87-92 | M8+M10 | 20*1.5/2.0 |
| 3 1/2" | 94-100 | M8+M10 | 20*1.5/2.0 |
| 102-114 | M8+M10 | 20*1.5/2.0 | |
| 4" | 110-115 | M8+M10 | 20*1.5/2.0 |
| 118-125 | M8+M10 | 20*1.5/2.0 | |
| 123-137 | M8+M10 | 20*1.5/2.0 | |
| 5" | 128-145 | M8+M10 | 20*1.5/2.0 |
| 143-150 | M8+M10 | 20*1.5/2.0 | |
| 6" | 152-163 | M8+M10 | 20*1.5/2.0 |
| 160-172 | M8+M10 | 20*1.5/2.0 | |
| 175-184 | M8+M10 | 20*1.5/2.0 | |
| 195-198 | M8+M10 | 20*1.5/2.0 | |
| 8" | 215-217 | M8+M10 | 20*1.5/2.0 |
Rubber hose clamps are versatile components widely used across various industries due to their ability to securely fasten hoses and pipes while minimizing vibrations and noise. Key applications include:
Automotive Industry: In vehicles, rubber hose clamps are essential for securing fuel lines, coolant hoses, and air intake systems. Their vibration-damping properties help reduce noise and wear, contributing to the longevity of the vehicle's components.
Industrial Machinery: These clamps are used to hold hydraulic and pneumatic hoses in place, ensuring efficient operation of machinery. The rubber lining protects hoses from abrasion and prevents leaks that could lead to equipment failure.
Plumbing Systems: In residential and commercial buildings, rubber hose clamps secure water and gas pipes, providing a leak-proof seal and reducing pipe movement that could cause joint stress or disconnections.
HVAC Systems: Heating, ventilation, and air conditioning systems utilize these clamps to secure ductwork and piping, ensuring optimal airflow and system efficiency.
Marine Applications: Due to their corrosion-resistant properties, especially when electro-galvanized, rubber hose clamps are ideal for securing hoses in marine environments where exposure to moisture is prevalent.
By effectively securing hoses and pipes, rubber hose clamps play a crucial role in maintaining the safety, efficiency, and reliability of various systems and equipment.
Enhanced Vibration Damping: The EPDM rubber lining absorbs shocks and vibrations, making it ideal for systems with dynamic or high-frequency operations.
Corrosion Protection: The electro-galvanized carbon steel provides strong resistance to rust and corrosion, even in humid or chemically exposed environments.
Secure and Tight Fit: The six-point welding and precisely manufactured structure ensure a firm grip on pipes, preventing slippage or leaks under pressure.
Noise Reduction: By isolating the hose or pipe from the mounting surface, the rubber lining helps reduce operational noise, especially in HVAC and plumbing systems.
Versatile Installation: Designed with combination thread (M8+M10), these clamps are compatible with a wide range of mounting accessories and support systems.
Custom Options Available: Whether you need a specific thread type, nut configuration, or rubber-free version, we offer tailored solutions to fit your technical needs.
At Utterly TY, we take pride in being a reliable manufacturer and supplier of high-performance pipe clamp solutions in China. Our rubber hose clamps are manufactured using advanced production equipment and strict quality control processes to meet the highest industry standards.
Whether you're an industrial distributor, system integrator, or an end-user seeking durable and affordable pipe support accessories, Utterly TY’s clamps are the trusted choice. We also offer OEM & ODM customization, fast delivery, and responsive after-sales support.
Interested in our customized rubber hose clamp or need assistance selecting the right size? Contact our sales team today for:
Free technical consultation
Competitive wholesale pricing
Custom product specifications
Fast shipping options
Contact Us or send an inquiry via email: sinotianying@163.com
