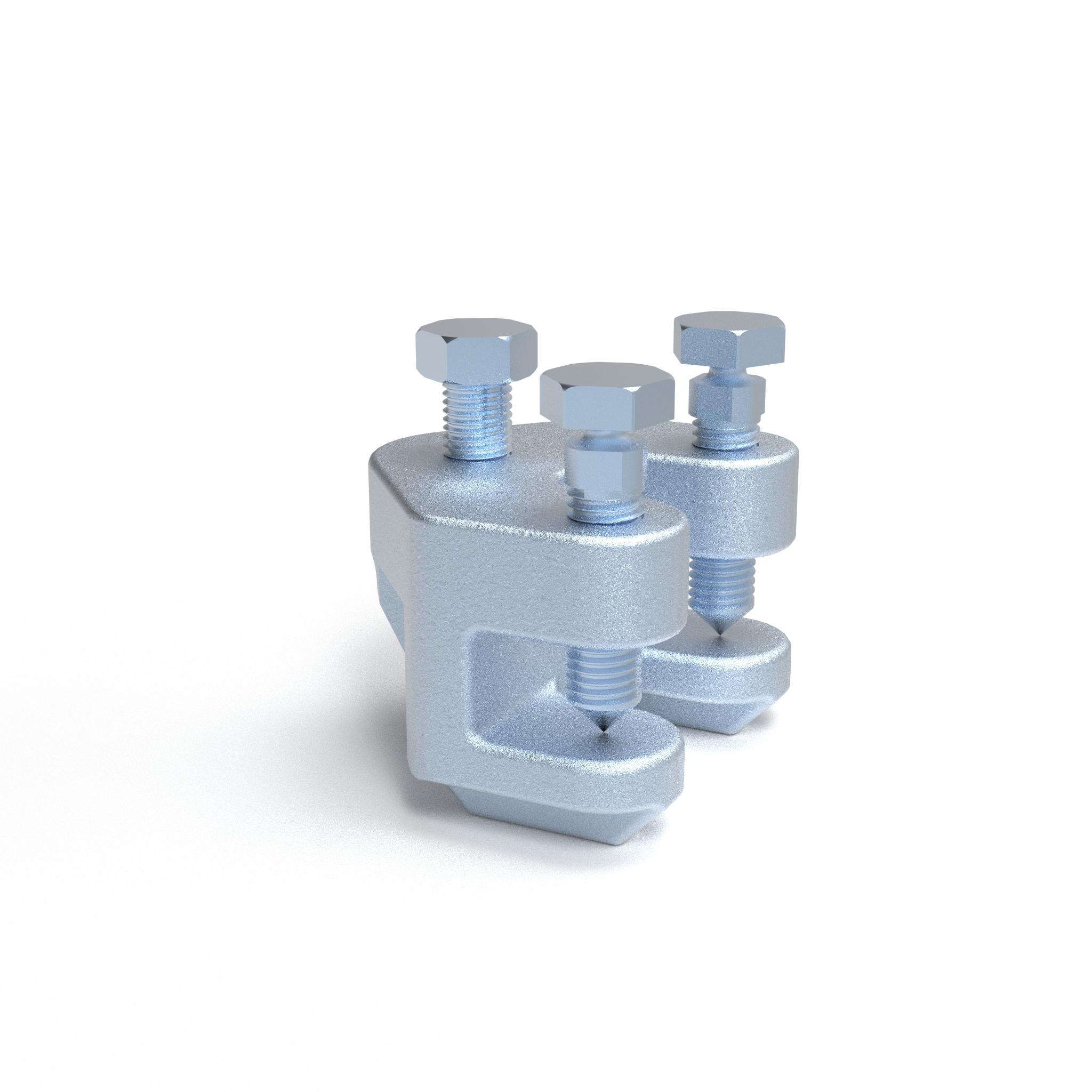

UTT11
UTTERLY
Availability: | |
---|---|
Quantity: | |
Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions.
Type: Sprinkler Pipe Sch 10,Sch 40,GB/T 3091,JIS G3454
Size: One size fits braced pipe up to 8",with 1/2"bolt hole for structure.
Approvals:
FM Maximum Design Load | ||||||
Brace Member | Horizontal load ratings installation angle 30°-44° | Horizontal load ratings installation angle 45°-59° | Wt. Each | |||
Ibs. | kN | Ibs. | kN | lb. | kg | |
1" SCH40 pipe | 970 | (4.31) | 1660 | (7.38) | 1.94 | (0.88) |
UL Maximum Design Load | ||||
Brace Member | lbs. | KN | Wt. Each | |
lb. | kg | |||
1” SCH40 pipe | 1090 | (4.84) | 1.94 | (0.88) |
Step 1 | Step 2 | Step 3 |
![]() | ![]() | ![]() |
Install:
The installation procedure of UTT11 accessories as shown in the figure, the connecting accessories use the UTT10, the installation torque of bolt is 50~65N·M.Tighten the shear bolt until heads break off after gripping the H steel. The maximum thickness of H steel is 16mm. |
