Beam Clamp BC3

The UTT11 Series Unistrut Beam Clamp is a high-strength, heavy-duty clamp designed to securely attach Unistrut channels to I-beams, bar joists, and structural steel. Built from durable carbon steel or ductile iron, it supports up to 1000 lbs, making it ideal for HVAC, electrical, and piping systems. This universal beam clamp offers a fast, drill-free installation for a variety of strut-to-beam clamp applications.

Compatible with standard Unistrut channels, it ensures stability and long-term performance. Perfect for industrial and commercial settings, the UTT11 is a reliable choice for any Unistrut beam clamp installation.

Quantity:
Availability:





Inquire Add to Basket

Product Description

UTT BC3 Beam Clamp

Function: Structural attachment to top or bottom ofmetal beams, purlins,channel,or angel iron

Size: 3/8" /M10 or 1/2" /M12

Material: Ductile iron QT450

Finish: Black or Galvanized

※Set screw must be tightened and torqued onto the sloped side of the I-beam

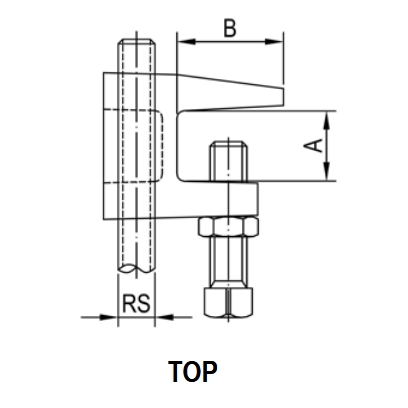

微信截图_20250609154801

Size	A	B	C	D	E	F	RS	Max.Rec.Load
in	in	in	in	in	in	in	in	Ibs	KN
BC3-3/8°	0.29	0.94	0.8	1.59	0.78	1.91	3/8°		6.8
BC3-1/2°	0.39	1.07	0.8	1.79	0.98	2.22	1/2		18.1
mm	mm	mm	mm	mm	mm	mm	mm	Ibs	KN
BC3-M10	7.4	24.0	20.2	40.3	19.8	48.5	M10		6.8
BC3-M12	10	27.3	20.2	45.5	25	56.4	M12		18.1
