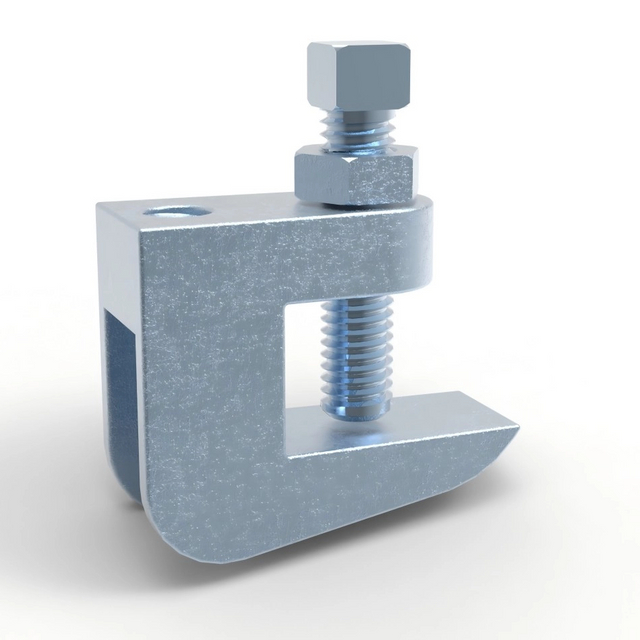

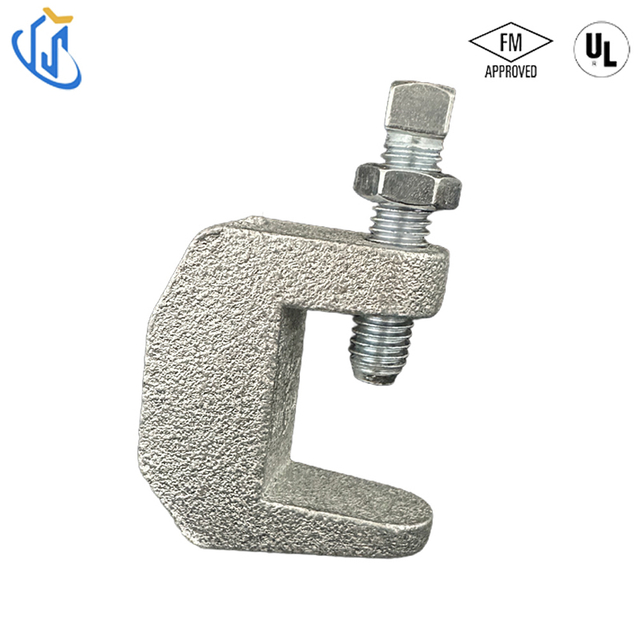

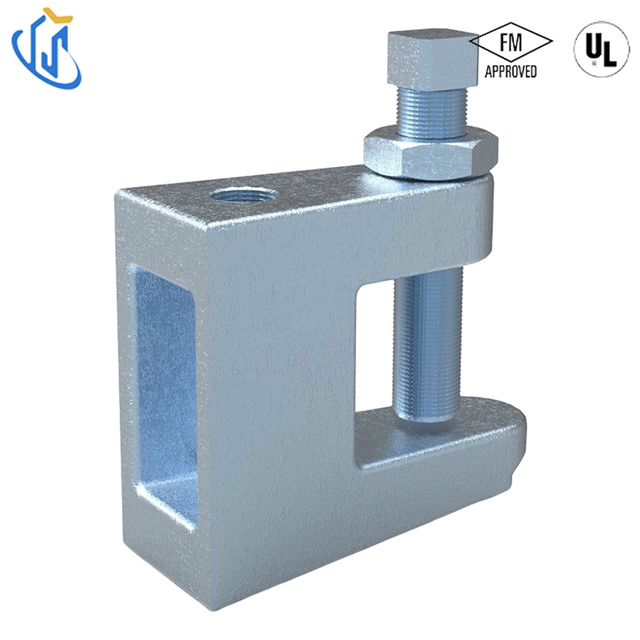

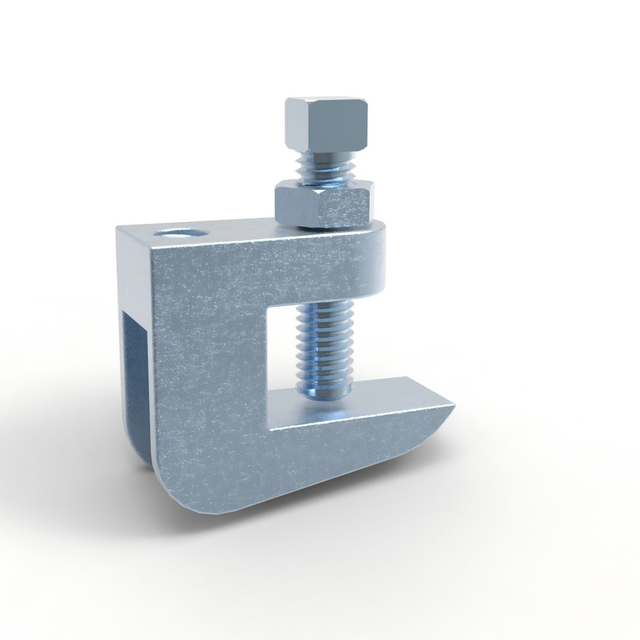

UTT BC2 is UL and FM certified structural attachment made of carbon steel and QT450 ductile iron with black or galvanized finishes. Complying with WW-H-171, ANSI/MSS-SP-58 and ANSI/MSS-SP-69 standards, it comes in M10 and M12 sizes with multiple dimensional specifications. It is designed for installation on top and bottom of metal beams, purlins, channel steel and angle iron, and the setscrew shall be torqued firmly against the sloped side of I-beams.

UTT60 UL & FM certified split standard pipe clamp complies with A-A-1192A & MSS SP-58/SP-69 Type8, three optional finishes(black/painted/galvanized), carbon steel construction sized DN15~DN200(1/2''~8''), plain steel up to 650°F & galvanized up to 450°F, matched with weldless eye nut/eye rod for horizontal steel pipe suspension.

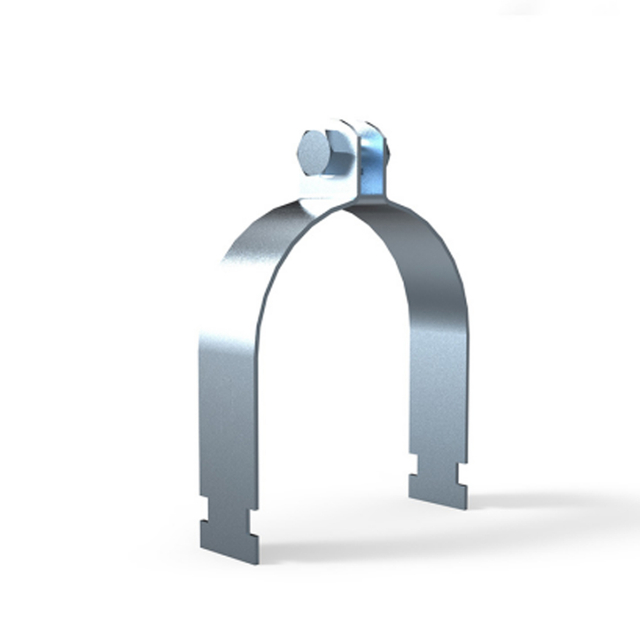

UTT80 galvanized two-piece split pipe clamp made of carbon steel, designed for fast fixing DN25~DN200 pipelines onto C-channel for seismic bracing, 32×2.0mm band specification, applicable to compact dense piping layout with optional customized surface treatments.

UTT13 UL & FM certified electro-galvanized carbon steel U-type quick lateral clamp, fits 1''~8'' Sch10/Sch40 sprinkler pipe for NFPA13 compliant seismic sway bracing assembly.

UTH10 structural attachment is designed for bracing fire sprinkler pipes against seismic movement and mechanical sway. It works together with a structural fitting and a brace pipe to form a complete sway brace assembly. The unit carries UL and CE certifications and meets the installation requirements of NFPA 13. One size fits braced pipe up to 8 inches, covering Sch 10, Sch 40, GB/T 3091 and JIS G3454 standards. Made from ductile iron QT450 with electro-galvanized finish, this attachment holds up well in indoor and semi-outdoor environments. Maximum load capacity reaches 1,885 lbs when paired with 1-inch SCH40 brace pipe. Installation is straightforward with shear bolt torque control and standard M12x60 bolts. Suitable for commercial buildings, industrial plants, hospitals and other facilities where seismic protection is required.

UTT11 is UL/FM/CE certified seismic structure attachment made of QT450 ductile iron with electro-galvanized finish, fits up to 8” pipe for fire sprinkler and MEP seismic sway restraint.

UTT20 is UL/FM/CE certified seismic pipe clamp sized 2”-8”. Electro-galvanized carbon steel build secures sprinkler pipes against seismic sway, installed with specified torque for code-compliant bracing.

UTT10 is a UL/FM/CE certified seismic structure attachment for sprinkler pipes up to 8 inches. Made of electro-galvanized carbon steel, it resists sway and seismic disturbance with easy shear-bolt installation.

The UTT20 Longitudinal "In-Line" Sway Bracing Attachment is a critical component of seismic sway brace systems for fire sprinkler piping. Designed specifically for bracing pipe against sway and seismic disturbances, this attachment works in conjunction with a UTT Manufacturing structural attachment fitting and a bracing pipe element to form a complete sway brace assembly. Manufactured from carbon steel with an electro-galvanized finish, it offers excellent corrosion resistance and durability. Compatible with Sch 10, Sch 40, GB/T 3091, and JIS G3454 pipes, it accommodates pipe sizes from 2" (50mm) through 8" (200mm). Certified to UL and FM standards, all assemblies must be installed in accordance with NFPA 13 and the manufacturer's installation instructions.

The UTT1102 Beam Adapter is a heavy-duty structural connector designed to securely attach sway bracing and hanger assemblies to steel open web members such as bar joists and trusses. Manufactured from high-strength carbon steel with an electro-galvanized finish, it offers excellent corrosion resistance and long-term durability. Compatible with Sch 10, Sch 40, GB/T 3091, and JIS G3454 sprinkler pipes, this adapter supports horizontal design loads up to 1330 lbs (5.91 kN) depending on brace angle. Ideal for fire sprinkler, seismic bracing, and MEP support systems in commercial and industrial projects.

At Utterly TY, we offer the 1/2" carbon steel rubber hose clamp, designed for secure hose fixing in industrial piping, HVAC, mechanical equipment, and plumbing applications. Featuring rubber lining, this clamp helps reduce vibration and noise while maintaining stable connections between hoses and fittings. OEM/ODM customization is available for different project requirements EPDM Rubber Lining: Provides vibration absorption, noise reduction, and protection against pipe surface damage.
Durable Carbon Steel Construction: Ensures reliable mechanical strength and long-term performance.
Electro-Galvanized Surface Finish: Improves corrosion resistance for humid and demanding environments.
Wide Size Range: Available from 1/2" to 8" to accommodate different pipe diameters.
Six-Point Welding Structure: Enhances overall strength and connection reliability.
Flexible Installation Options: Available with M8+M10 combination thread for compatibility with various mounting systems.
OEM Customization Available: Customized thickness, width, thread type, and rubber lining options according to project requirements.
