Function:
· Designed for chilled water pipe work and fire fighting systems
· Design permits vertical adjustment of pipe after installation
· Hanger load nut above clevis must be tightened securely to ensure proper hanger performance
Service Pipe Size: 1/2" - 12", DN15-DN300
Material:Carbon steel
Finish:Black,Pained or galvanized
Approval:

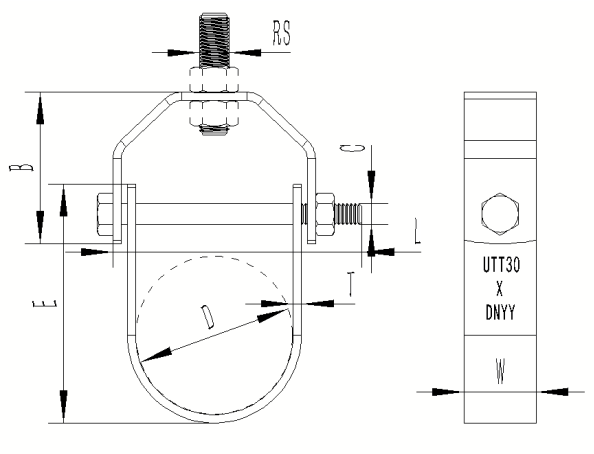

| Size | B | C | D | W | T | L | RS | Max. Rec. Load | |||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | lbs | KN |
| 1/2" | DN15 | 1.57 | 39.4 | 1/4" | M6 | 1/2" | 21.3 | 0.87 | 22 | 0.1 | 2.5 | 2.17 | 55 | 3/8" | M10 | 750 | 3.34 |
| 3/4" | DN20 | 1.57 | 39.4 | 1/4" | M6 | 3/4" | 26.7 | 0.87 | 22 | 0.1 | 2.5 | 2.17 | 55 | 3/8" | M10 | 750 | 3.34 |
| 1" | DN25 | 1.62 | 40.6 | 1/4" | M6 | 1" | 33.4 | 0.87 | 22 | 0.1 | 2.5 | 2.36 | 60 | 3/8" | M10 | 750 | 3.34 |
| 1-1/4" | DN32 | 2.13 | 53.5 | 1/4" | M6 | 1-1/4" | 42.2 | 0.87 | 22 | 0.1 | 2.5 | 3.15 | 80 | 3/8" | M10 | 750 | 3.34 |
| 1-1/2" | DN40 | 2.13 | 53.5 | 1/4" | M6 | 1-1/2" | 48.3 | 0.87 | 22 | 0.1 | 2.5 | 3.15 | 80 | 3/8" | M10 | 750 | 3.34 |
| 2" | DN50 | 2.13 | 53.5 | 1/4" | M6 | 2" | 60.3 | 0.98 | 25 | 0.12 | 2.5 | 3.54 | 90 | 3/8" | M10 | 750 | 3.34 |
| 2-1/2" | DN65 | 2.45 | 61.5 | 3/8" | M10 | 2-1/2" | 73 | 0.98 | 25 | 0.12 | 2.5 | 4.72 | 120 | 1/2" | M12 | 850 | 3.78 |
| 3OD | 2.45 | 61.5 | 3/8" | M10 | 76 | 0.98 | 25 | 0.12 | 2.5 | 4.72 | 120 | 1/2" | M12 | 850 | 3.78 | ||
| 3" | DN80 | 2.69 | 67.5 | 3/8" | M10 | 3" | 88.9 | 1.18 | 30 | 0.12 | 3 | 4.72 | 120 | 1/2" | M12 | 1050 | 4.67 |
| 3-1/2" | DN90 | 2.87 | 72 | 3/8" | M10 | 3-1/2" | 101.6 | 1.18 | 30 | 0.16 | 3 | 5.51 | 140 | 1/2" | M12 | 1250 | 5.56 |
| 4" | DN100 | 3.31 | 83.2 | 1/2" | M12 | 4" | 114.3 | 1.18 | 30 | 0.16 | 3 | 5.91 | 150 | 5/8" | M16 | 1500 | 6.67 |
| 5" | DN125 | 4.16 | 104.5 | 1/2" | M12 | 5" | 141.3 | 1.57 | 40 | 0.2 | 5 | 7.09 | 180 | 5/8" | M16 | 2000 | 8.9 |
| 6" | DN150 | 5.17 | 129.8 | 1/2" | M12 | 6" | 168.3 | 1.57 | 40 | 0.2 | 5 | 8.66 | 220 | 3/4" | M20 | 2650 | 11.79 |
| 8" | DN200 | 5.64 | 141.6 | 5/8" | M16 | 8" | 219.1 | 1.57 | 40 | 0.2 | 5 | 11.02 | 280 | 3/4" | M20 | 4050 | 18.02 |
| 10" | DN250 | 6.01 | 150.8 | 3/4" | M20 | 10" | 273 | 1.97 | 50 | 0.24 | 6 | 13.39 | 340 | 7/8" | M22 | 5850 | 26.02 |
| 12" | DN300 | 6.14 | 154 | 3/4" | M20 | 12 | 323.9 | 1.97 | 50 | 0.24 | 6 | 14.96 | 380 | 7/8" | M22 | 7900 | 35.14 |
