Specifying a coating for high-load structural hardware requires a difficult balance. You must weigh long-term corrosion resistance against precise mechanical tolerances. Engineers cannot afford to compromise on seismic integrity. The wrong coating choice can cause hardware seizure or catastrophic failure during an earthquake. This engineering dilemma regularly affects commercial infrastructure projects worldwide.
Two dominant zinc-coating methods exist to solve this problem. These are Hot-Dip Galvanizing (HDG) and Electro-Galvanizing (EG). Both methods protect vital structural components from premature decay. However, they perform very differently in the field. Procurement decisions must align strictly with environmental realities.
Our objective is to provide an evidence-based comparison of these two coatings. We will evaluate their lifespan, environmental suitability, and mechanical impact. This guide will help engineers and procurement teams make risk-averse decisions. You will learn exactly when to specify each process for maximum safety and reliability.
Lifespan Winner: Hot-Dip Galvanizing unequivocally offers a longer lifespan (often 50+ years outdoors) due to a significantly thicker, metallurgically bonded zinc layer.
Tolerance Winner: Electro-galvanizing provides a thin, uniform coating that will not interfere with the tight clearances required for the moving parts of a seismic hinge.
Material Synergy: A carbon steel galvanized seismic hinge relies on the zinc coating as a sacrificial anode; if the coating fails, the high-strength carbon steel becomes vulnerable to rapid oxidation, compromising seismic integrity.
The Decision Rule: Specify HDG for outdoor, high-humidity, or industrial environments (while modifying hinge tolerances). Specify EG for climate-controlled, indoor environments where standard machining clearances are required.

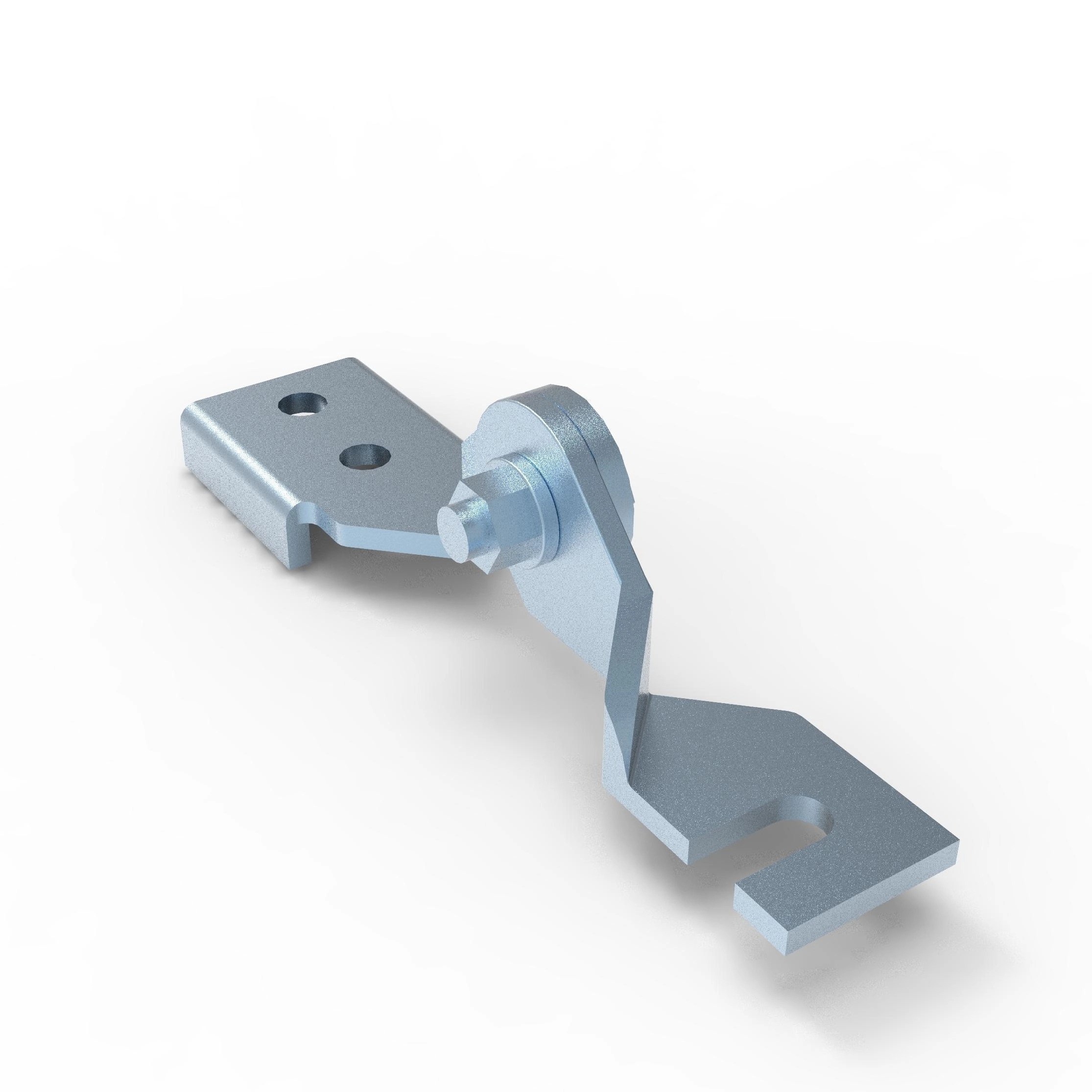

A Carbon Steel Galvanized Seismic Hinge serves a critical purpose in modern construction. We must first examine the structural requirements of these components. Carbon steel is the preferred base material for seismic applications. It offers exceptionally high tensile strength. It also provides vital ductility. During an earthquake, structural supports experience immense dynamic loads. The carbon steel yields under stress rather than snapping. This load-bearing capacity prevents sudden, catastrophic structural collapse.
However, carbon steel possesses a severe vulnerability. Untreated steel is highly susceptible to atmospheric corrosion. Oxygen and airborne moisture cause rapid iron oxidation. This rust eats away at the metallic structure. It silently destroys the load-bearing capacity of the hinge over time.
Zinc coatings solve this problem through two specific mechanisms. First, zinc provides barrier protection. It blocks harmful moisture from reaching the vulnerable steel beneath. Second, zinc offers cathodic protection. It acts as a sacrificial anode. The zinc corrodes before the steel does. It sacrifices its own electrons to protect the carbon base.
If this coating fails prematurely, the consequences are disastrous. Rust can fuse the hinge barrel to the internal pin. This fusion causes hinge seizure. A seized hinge loses its required articulation. During a seismic event, it cannot absorb or pivot with the movement. This mechanical failure transfers destructive energy directly into the rigid building framework.
Hot-Dip Galvanizing provides unmatched protection against severe weather. The process involves multiple stages of intense chemical cleaning. First, you clean the steel using caustic solutions. Then, you pickle the hardware in dilute acid. Finally, you submerge the carbon steel hinge completely in molten zinc. This liquid bath sits at approximately 830°F (443°C). The extreme heat causes a reaction between the zinc and the iron. It creates a series of tightly bonded metallurgical alloy layers.
The resulting lifespan and durability are exceptional. HDG produces a very thick coating. It typically ranges from 2.0 to 4.0 mils (or more) in thickness. Baseline longevity models validate this performance. For example, ISO 9223 classifications and Galvanizers Association of Australia (GAA) data confirm its strength. HDG hardware easily delivers decades of maintenance-free life. It survives continuous exposure in highly corrosive, wet, and harsh environments.
However, engineers must manage specific implementation risks. We call this the "tolerance catch." The reality of HDG is that the coating goes on thick. It can also dry unevenly. Molten zinc can pool in small crevices. It often creates zinc buildup or dross.
This buildup creates a major mechanical risk. Excess zinc can "gunk up" the hinge pin. It fills the clearance inside the hinge barrel. This immediately causes structural seizure. You cannot force the hinge to move without damaging the part.
Best Practices for HDG Hinges
Over-tapping: Always specify over-tapped female threads prior to galvanizing.
Clearance Adjustments: Use undersized hinge pins to accommodate the thick zinc layers.
Post-galvanizing Machining: Drill out the internal hinge barrel after the dipping process to ensure smooth movement.
Common Mistakes
Specifying standard machining tolerances for HDG parts. They will not fit together.
Failing to communicate articulation requirements to the galvanizer.
Electro-Galvanizing utilizes a completely different chemical approach. It operates at room temperature. You place the hardware into a specialized chemical bath. This bath contains a zinc saline solution. You then introduce a direct electric current into the liquid. The steel hinge acts as a cathode. Zinc ions migrate through the solution. They deposit themselves directly onto the steel surface as pure zinc.
This electroplating process delivers a massive mechanical advantage. The resulting coating is ultra-thin and perfectly uniform. It typically measures between 0.2 and 0.5 mils in thickness. This precision is exactly why EG is preferred for complex hardware. It causes absolutely zero interference with tight hinge clearances. It will not clog threads or restrict moving parts. Engineers can utilize standard machining tolerances safely. The parts will articulate flawlessly straight out of the box.
You must, however, acknowledge the lifespan limitations. There is a distinct engineering tradeoff. A thinner barrier means a significantly shorter lifespan. In corrosive environments, the EG layer sacrifices itself quickly. Once the thin zinc depletes, the carbon steel rusts rapidly.
EG is highly reliable for specific scenarios. It excels in indoor, dry, or climate-controlled commercial infrastructure. It works perfectly inside sealed ceiling plenums. However, you must avoid it outdoors. An EG hinge will fail very quickly in marine environments or heavy industrial zones.
Best Practices for EG Hinges
Use EG strictly for interior architectural applications.
Specify additional chromate conversion coatings to slightly boost the corrosion resistance of the EG layer.
Common Mistakes
Assuming "galvanized" automatically implies outdoor suitability. EG will not survive exterior rain exposure.
Selecting the correct Carbon Steel Galvanized Seismic Hinge depends on a rigid evaluation framework. Engineers must align the coating properties with the specific site conditions. The following decision matrix chart provides a direct comparative overview.
Specification Variable | Hot-Dip Galvanizing (HDG) | Electro-Galvanizing (EG) |
|---|---|---|
Application Method | Molten zinc bath (830°F) | Electric current in saline bath |
Metallurgical Bond | Yes (Zinc-Iron alloy layers) | No (Pure zinc surface deposition) |
Mechanical Interference | High (Requires tolerance adjustments) | None (Maintains original tolerances) |
Primary Use Case | Outdoor, structural, harsh weather | Indoor, climate-controlled, precision parts |
You must compare the thickness directly using mils or microns. The rule of corrosion protection is simple. Thicker zinc equals a longer time to first rust. HDG lays down a barrier that is up to ten times thicker than EG. This massive sacrificial capacity is why HDG dominates exterior construction. EG provides a minimal sacrificial barrier. It serves merely as a temporary defense against light ambient humidity.
The International Organization for Standardization (ISO) defines environmental corrosivity categories. These guidelines dictate your coating choice definitively.
C1 / C2 (Indoors & Mild): These categories represent heated buildings with clean atmospheres. Examples include offices, schools, and dry warehouses. EG is entirely sufficient here. It provides a cost-effective, precise solution.
C3 (Medium Corrosivity): This covers urban and industrial atmospheres with moderate sulfur dioxide levels. HDG becomes necessary to prevent premature oxidation.
C4 / C5 (High & Extreme Corrosivity): These environments include coastal areas, chemical plants, and heavy industrial zones. High moisture and heavy salt content destroy thin coatings instantly. HDG is strictly required by engineering codes.
The visual appearance differs drastically between the two methods. HDG prioritizes function over form. It usually presents a matte, spangled, or dull gray finish. It can look rough or textured. Over time, it weathers to a uniform dark gray.
Conversely, EG prioritizes a clean aesthetic. It produces a bright, shiny, and perfectly smooth finish. This makes EG superior for architecturally exposed interior applications. If the structural hardware remains visible to building occupants, EG provides a much more pleasing visual appearance.
Once you determine the appropriate environmental category, you must finalize the procurement specifications. You cannot leave the details vague on purchase orders. Ambiguity leads to incorrect manufacturing. Follow these specific steps to ensure your hardware meets structural safety codes.
First, verify compliance with recognized industry standards. Not all galvanizing is equal. You must ensure the supplier coats the hinges to strict regulations. For HDG hardware, explicitly demand compliance with ASTM A153. This standard governs zinc coating on iron and steel hardware. For electrodeposited zinc, specify ASTM B633. These standards guarantee the minimum required thickness and proper adhesion protocols.
Second, confirm the hinge functionality directly with the manufacturer. If you shortlist HDG, you must ask how they handle the pin clearances. Do they drill out the barrel post-dip? Do they intentionally use undersized pins? If the supplier cannot answer these questions clearly, you risk receiving seized hardware. A reputable manufacturer has established protocols for ensuring HDG articulation.
Third, request actual testing data from the supplier. Do not rely on marketing claims. Ask for salt spray test results. The ASTM B117 salt spray test provides a standardized measure of corrosion resistance. Ensure the submitted test data aligns with your specific project environment. Reviewing these documents provides a final layer of engineering confidence before installation.
Evaluating seismic hinge coatings relies strictly on the application environment. There is no absolute "better" coating overall. There is only the correct specification for your specific site conditions.
For raw longevity and severe environmental protection, Hot-Dip Galvanizing easily wins. It offers an unbeatable, thick metallurgical bond. For mechanical precision, tight tolerances, and indoor use, Electro-Galvanizing wins. It guarantees smooth articulation without costly secondary machining.
As a final step, we advise all readers to audit their project's environmental exposure rating. Check your ISO category carefully. Review your clearance tolerances with the design team. Take these actions before placing any bulk orders for seismic hardware. Proper specification ensures your structural components will perform perfectly when the next earthquake strikes.
A: Yes. You can paint both coatings to extend longevity. This creates a highly durable duplex system. However, proper surface preparation is mandatory. Standard paint will not adhere to raw zinc. For HDG, you must use a wash primer or perform light sweep blasting. EG requires a chemical conversion coating before painting. Always follow manufacturer guidelines for surface profiling to prevent flaking.
A: No, it does not weaken standard carbon steel. However, high-strength steels face specific risks. The acid pickling stage introduces hydrogen into the metal. This can cause hydrogen embrittlement, making the steel prone to snapping under stress. Quality manufacturers mitigate this easily. They bake the hinges immediately after plating. Baking safely releases trapped hydrogen gas. Always verify supplier de-embrittlement protocols.
A: EG is generally cheaper per unit. It uses less zinc volume. It also requires lower processing energy. HDG carries a higher initial purchase price. However, HDG provides a significantly longer lifespan in outdoor environments. It resists aggressive weather for decades. Frequent hardware replacement is expensive. Therefore, budget decisions must prioritize the environmental exposure rating rather than just the initial purchase price.
