Engineers demand verifiable, high-yield static load capacities like 7300N for robust seismic bracing design. Field contractors, however, require multi-angle articulation to bypass unexpected on-site MEP clashes. This creates a challenging structural dilemma. The Strut Channel Adjustable Seismic Hinge acts as the critical juncture point in these complex support systems. It links rigid steel networks together while allowing essential field movement. Balancing immense static force requirements against dynamic adjustability presents a difficult engineering conflict. In this guide, we analyze how to evaluate, specify, and calculate safe working loads for adjustable hinges. You will learn to navigate practical hardware failure points. We explore nut slip risks versus theoretical steel ratings. We also outline clear guidelines to preserve structural integrity. By following these principles, you ensure strict building code compliance across every installation. Properly specified systems prevent catastrophic failures during critical seismic events.
The Hardware Bottleneck: A 7300N (approx. 1640 lbs) capacity rating relies heavily on fastener torque and shear strength; "nut slip" typically causes system failure long before the channel or hinge steel deforms.
Angle Variables: Field adjustability introduces lateral and axial load shifts. Working loads must be recalculated based on the specific installation angle (usually between 30° and 60°).
Material Synergies: Achieving maximum rating requires pairing the hinge with the correct strut channel profile (e.g., 12-gauge, 1-5/8" solid or minimally slotted channels).
Compliance is Non-Negotiable: Validating components against MFMA, ASTM, and specific seismic building codes ensures the 7300N rating is a reliable engineering assumption, not just a marketing claim.
High-capacity rigid connections offer maximum strength. Welded gussets define this category well. They provide absolute rigidity but zero field tolerance. Installers cannot easily adjust rigid joints around unexpected pipe runs or HVAC ducts. Adjustable hinges solve this routing problem. They offer rapid installation speed. However, they introduce moving parts into the load path. Pivot bolts and interlocking teeth inherently alter how forces transfer through the steel.

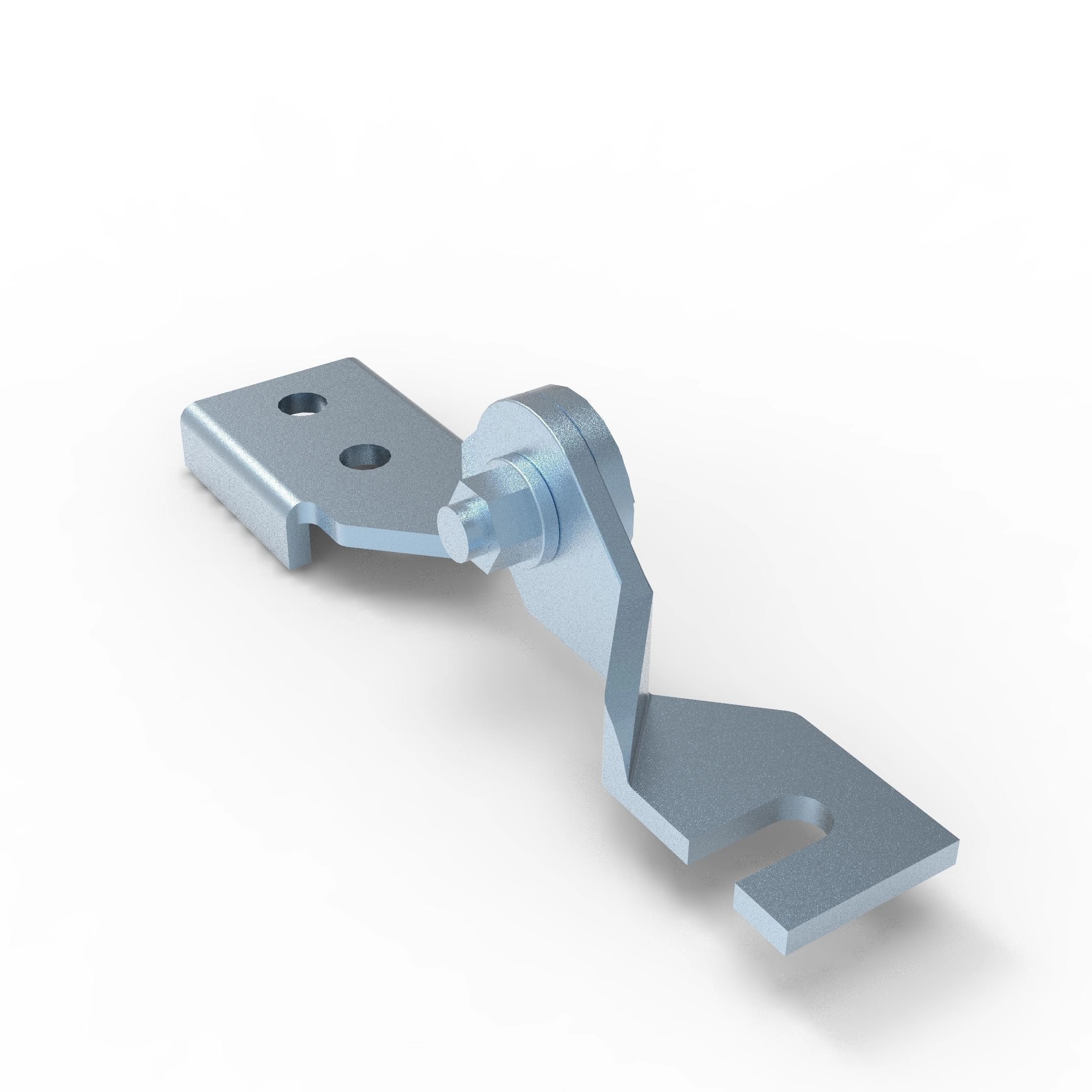

Understanding hinge anatomy helps pinpoint structural limitations. You must evaluate three core components:
Base plate thickness and hole configurations: The hinge base must sit flush against the strut. Standard hole spacing ensures compatibility with standard 1-5/8" framing. Thick base plates distribute compression forces evenly.
Pivot mechanism: Smooth friction joints rely entirely on bolt tension to resist movement. Serrated locking mechanisms provide physical interlocking teeth. Serrations resist shear forces far better under dynamic shaking.
Hardware grade: The pivot bolt carries immense stress. Manufacturers specify Grade 5 or Grade 8 pivot bolts. They also mandate hardened channel nuts. Soft hardware shears quickly during sudden lateral loads.
Manufacturers often market a 7300N capacity rating. This equals approximately 1640 pounds of force. You must distinguish between the ultimate failure load and the safe working load. Allowable Stress Design (ASD) methodologies dictate how we treat this number. Engineers never design systems to operate at the ultimate failure point. Industry standards typically apply a safety factor of 1.68. A hinge rated for an ultimate failure of 7300N provides a safe working load of roughly 4345N (976 lbs). Understanding this mathematical baseline prevents dangerous overloading in the field.
Connection Type | Field Adjustability | Load Transfer Mechanism | Primary Weakness |
|---|---|---|---|
Rigid Welded Gusset | None (Fixed Angle) | Direct Material Continuity | Inflexible during MEP clashes |
Smooth Friction Hinge | High (360° rotation) | Bolt Tension & Surface Friction | Prone to slipping under vibration |
Serrated Locking Hinge | Moderate (Locked increments) | Mechanical Interlocking Teeth | Requires precise torque application |
Theoretical capacity rarely dictates field performance. Real-world seismic events expose specific bottlenecks in adjustable assemblies. Recognizing these weak points allows you to engineer safer bracing systems.
Evidence shows a consistent failure pattern in adjustable seismic setups. The channel nut often slides inside the strut lip under axial tension. We call this phenomenon "nut slip." It is almost always the first point of failure. Fastener friction gives way long before the structural steel yields. Standard 12-gauge strut channel measures 0.109 inches thick. Standard 14-gauge measures 0.075 inches thick. Both gauges possess tremendous tensile strength. The physical grip of the channel nut dictates the actual threshold of the system. Inadequate torque directly causes premature nut slip.
The single point of articulation handles intense forces. The hinge bolt must absorb combined shear and tensile stresses during a seismic event. Tensile load attempts to pull the assembly apart. Shear force attempts to slice the bolt in half. Dynamic shaking constantly alternates these forces. A Grade 8 bolt handles shear stress admirably. However, poor thread engagement or loose tolerances will amplify shear forces exponentially.
Hinges attached to solid channels perform optimally. Solid steel distributes stress evenly across the entire profile. Attaching a heavily loaded hinge to slotted or pierced channels changes the math. You must apply a reduction factor.
Best Practice: Always consult the manufacturer's beam loading tables for hole reduction factors.
Common Mistake: Treating a slotted channel as identical to a solid channel.
Heavy duty slotted holes (often called DS holes) remove significant steel mass. You must calculate the system at approximately 70% of its base capacity. Standard slots (T/SL patterns) usually require an 85% capacity calculation. Ignoring these reduction factors creates a false sense of security.
The flexibility of an adjustable hinge introduces complex trigonometry. The installation angle fundamentally alters the mathematical capacity of the bracing system. You must account for these shifts during the design phase.
A 45° angle represents the standard for seismic bracing. It balances compressive and tensile forces symmetrically. Installers often face obstacles requiring different angles. The operational window usually falls between 30° and 60°.
When the angle deviates from 45°, loads transition rapidly. Steeper angles increase axial forces. Shallower angles increase lateral shear forces. Structural engineers must evaluate the vector forces at the exact installation angle.
Seismic Hinge Angle Load Distribution Chart
Installation Angle | Dominant Stress Type | Impact on Axial Capacity | System Recommendation |
|---|---|---|---|
30° (Shallow) | High Shear / Lateral | Significantly Reduced | Use serrated pivots to resist shear slip. |
45° (Standard) | Balanced | Optimal Baseline | Standard ASD load calculations apply. |
60° (Steep) | High Compressive / Tensile | Moderately Reduced | Monitor channel nut torque closely. |
Field adjustability remains safe only if locked down correctly. You must establish strict torque protocols. Calibrated torque wrenches are an absolute necessity. Impact drivers cannot guarantee precise tension. Improper torque allows micro-movements during cyclical seismic loading. These tiny shifts degrade the mechanical lock over time. A properly torqued nut bites into the inturned lips of the strut channel. This physical indentation resists sliding forces effectively.
Engineers must warn against offset or eccentric loading on the hinge. Loads must align symmetrically with the center of the strut channel profile. Eccentric loading induces heavy torsional stress. It twists the connected strut channel. Standard C-channel profiles resist bending well but handle torsion poorly. Twisting forces pry the channel lips apart. This releases the channel nut entirely and causes catastrophic system failure.
Standardizing your calculation method prevents dangerous estimation errors. Follow this four-step sequence to determine the true safe working load of any adjustable hinge assembly.
Step 1: Baseline Verification. Identify the manufacturer's maximum allowed load for the specific hinge assembly. Ensure this baseline rating reflects direct axial pull under controlled laboratory conditions.
Step 2: Material Matching. Determine the yield strength of the mating strut channel. A hinge rated for 7300N will fail prematurely if attached to thin 16-gauge light-duty strut. The system requires minimum 12-gauge solid channel to utilize the full 7300N limit.
Step 3: Apply Angle & Hole Reduction Factors. Multiply the baseline load by the cosine or sine of the field installation angle. Next, apply the manufacturer’s specific derating coefficient for slotted channels. For example, multiply the result by 0.85 for standard slotted backs.
Step 4: Establish the Net Allowable Load. Subtract the dead weight of the strut run itself. Finally, divide the remaining figure by the industry-standard safety factor (usually 1.68). This finalizes the maximum safe payload the hinge can support during a seismic event.
Procuring reliable hardware requires strict evaluation criteria. You cannot rely on broad catalog descriptions. You must scrutinize material science and mechanical design closely.
You must assess corrosion resistance early in the design phase. Ensure the hinge finish matches the strut channel finish perfectly. Mixing dissimilar metals causes galvanic corrosion. This corrosion eats away at the hinge base over the building's lifespan. Hot-Dip Galvanized (HDG) hinges pair with HDG channels. Electro-galvanized components belong strictly indoors in controlled environments. Specify 316 Stainless Steel for harsh industrial or coastal applications.
When selecting a high-performance Strut Channel Adjustable Seismic Hinge, prioritize mechanically interlocking pivot joints. Friction-tightened bolts rely entirely on clamping force. Seismic vibrations loosen standard bolts rapidly. Serrated pivots feature stamped teeth on the mating faces. Once torqued, these teeth lock together physically. They provide a positive stop against rotation. Mission-critical 7300N applications mandate serrated technology to guarantee position retention.
Look past internal marketing tests. You must demand objective structural data. Request third-party Finite Element Analysis (FEA) reports for heavy-duty applications. UL listings confirm baseline safety standards. ICC-ES evaluation reports validate hardware specifically for seismic applications. Furthermore, ensure all steel components adhere to Metal Framing Manufacturers Association (MFMA) and ASTM metallurgical standards. Certified steel behaves predictably under extreme stress.
Achieving 7300N load capacity alongside field adjustability is mathematically and structurally possible. Success relies on high-grade hardware, serrated pivot mechanisms, and strict torque protocols.
System-Wide View: Treat the strut channel adjustable seismic hinge as an integrated system, not a standalone component.
Gauge Dependency: The hinge rating remains only as valid as the gauge of the channel it attaches to.
Installation Precision: Field adjustability demands calibrated torque wrenches to prevent devastating nut slip.
Next Action: Always consult the manufacturer's Beam Loading Tables and specific Hinge Data Sheets to verify your angle and hole reduction assumptions before finalizing the Bill of Materials (BOM).
A: Yes. Load capacities are typically rated for direct axial pull. Lateral angles introduce shear forces that require complex vector calculations. These angled forces shift the stress distribution and inherently reduce the effective working load of the assembly.
A: You can, but the system capacity will be bottlenecked by the 14-gauge slotted steel. The hinge itself may hold 7300N, but the channel lips will likely deform or the nut will slip at a much lower threshold. We recommend 12-gauge solid channel for maximum capacity.
A: Fastener friction is often the weakest link in the system. During dynamic seismic events, inadequate torque allows the channel nut to lose its bite on the strut inturned lips. This lack of friction causes the hinge assembly to slide out of its intended position.
