Ensuring overall building safety and operational continuity in commercial, industrial, and high-spec facilities requires properly designed mechanical, electrical, and plumbing (MEP) pipe support systems. Beyond carrying dead weight, piping networks must withstand operational vibrations, thermal movement, pressure surges, and seismic activity.
Here is a quick breakdown of how to select and deploy pipe clamps, hangers, and seismic sway bracing for modern MEP installations.

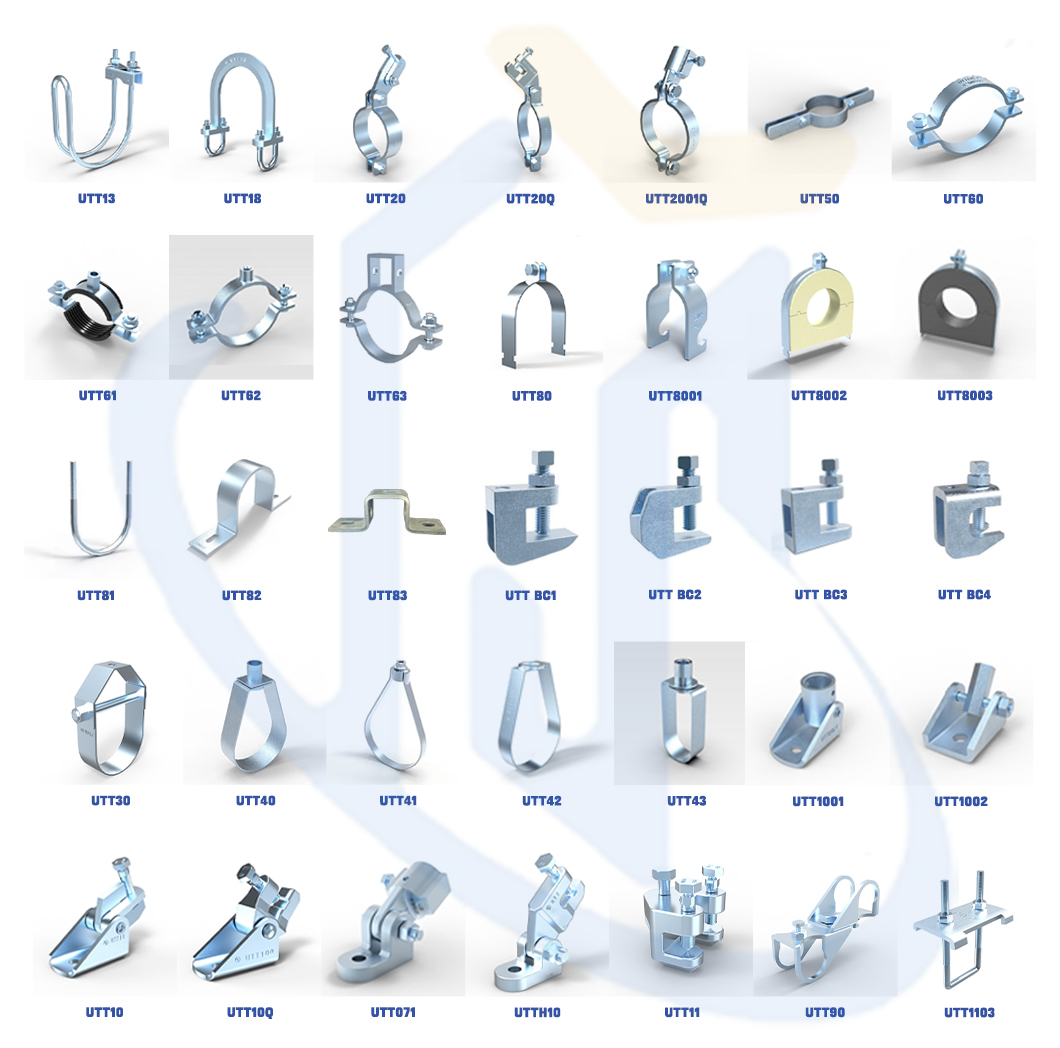

A complete pipe support assembly typically combines multiple structural elements to manage both vertical and lateral forces:
· Pipe Clamps & Hangers: Provide direct support or attachment to the pipeline.
· Threaded Rods & Hardware: Suspend piping from overhead structural points.
· Seismic Attachments & Sway Braces: Restrain pipeline displacement during seismic movement.
· Structural Connection Fittings & Anchors: Secure the entire assembly to concrete, steel beams, or structural substrates.
Selecting the right pipe clamp depends on the specific operating environment and functional requirements of your piping system:
Clamp Type | Ideal Applications | Key Benefits |
Standard Steel Clamps | General plumbing, fire sprinklers, HVAC | Cost-effective vertical weight support; available in electro-galvanized, zinc-plated, or hot-dip galvanized finishes. |
Rubber-Lined Clamps | Pump discharges, compressors, mechanical rooms | Cushions the pipe to attenuate noise and mechanical vibration, preventing stress buildup at joints. |
Insulated Support Clamps | Chilled water lines, low-temperature systems | Combines rigid structural support with polyurethane/insulation cores to prevent thermal bridging. |
Seismic Pipe Clamps | Fire protection, code-mandated seismic zones | Engineered to pair with seismic braces and transfer lateral/longitudinal earthquake loads to the building structure. |
Understanding the difference between standard load-bearing hangers and seismic sway bracing is crucial for code compliance and risk mitigation:
· Standard Pipe Supports: Engineered primarily for vertical loads (dead weight of pipes, fluids, insulation, and inline valves). Common options include clevis hangers, loop hangers, and standard clamps.
· Seismic Sway Bracing: Engineered for dynamic horizontal/lateral forces. They control both lateral (perpendicular to pipe) and longitudinal (parallel to pipe) movement to prevent swaying, joint detachment, or collapse during seismic events.
Note: Standard vertical hangers should never be assumed to satisfy seismic restraint requirements without proper seismic bracing components.
Seismic connection fittings attach the brace assembly to the building's primary structure. Matching the fitting to your substrate ensures full load transfer capability:

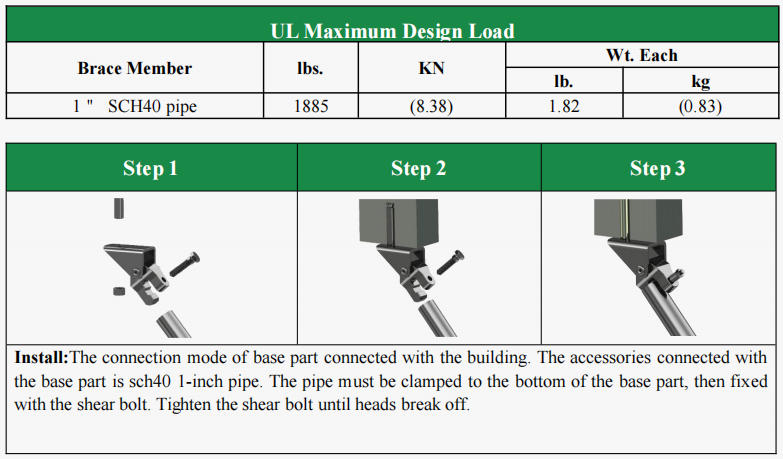

Steel Structure Applications (such as the UTT10Q Series): Featuring a steel beam clamp design, these fittings can be directly secured to the flange of structural steel beams without welding or drilling, preventing damage to the original steel structure.

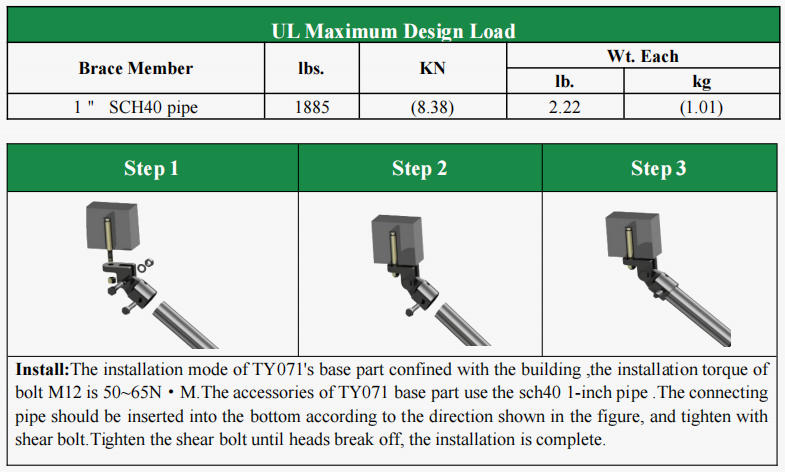

Concrete Applications (such as the UTT071 Series): Featuring a flat-base connection design and used with seismically certified concrete anchors, these fittings are securely mounted to concrete slabs or concrete beams.

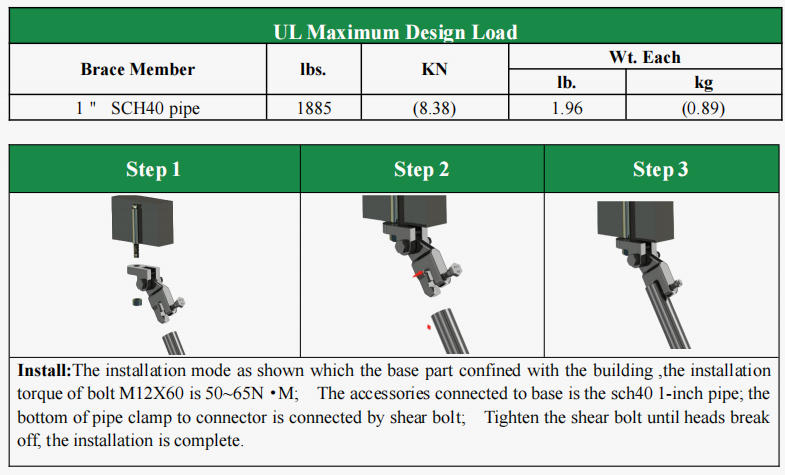

Variable-Angle Installation Applications (such as the UTTH10 Series): Equipped with adjustable-angle connectors, these fittings are suitable for suspended ceiling installations where MEP pipelines are densely arranged and support installation angles are complex.
· Torque Control: Over-tightening can crush thin-walled or plastic piping and ruin protective coatings, while under-tightening leads to slipping and clamp displacement. Always follow specified installation torques.
· Brace Angles: Ensure seismic sway braces are installed within manufacturer-specified angle ranges relative to the vertical/horizontal plane to maintain structural rating.
· Thermal Expansion: For hot or cold lines, ensure clamps and supports allow for controlled axial expansion and contraction to prevent stress buildup on equipment nozzles.
· Interference Checks: Utilize BIM coordination prior to installation to ensure seismic bracing members do not conflict with adjacent cable trays, ductwork, or structural clearances.
