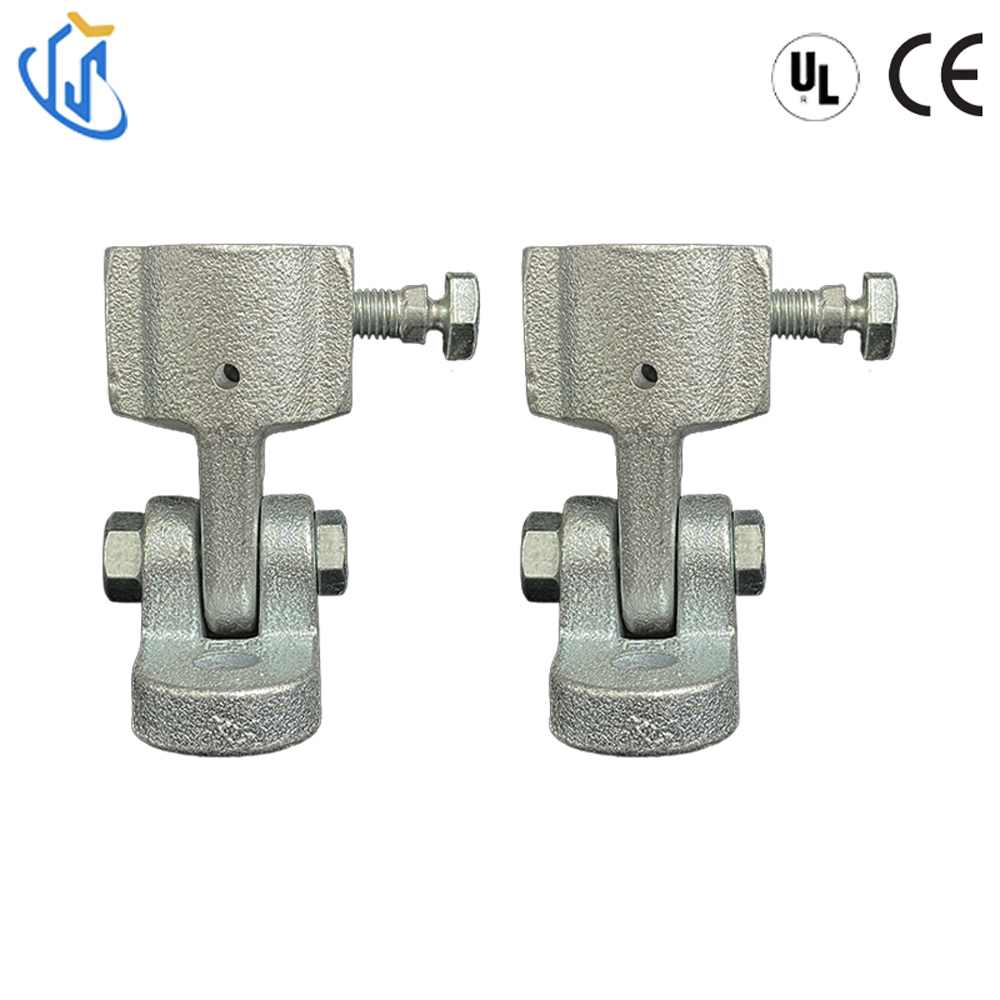

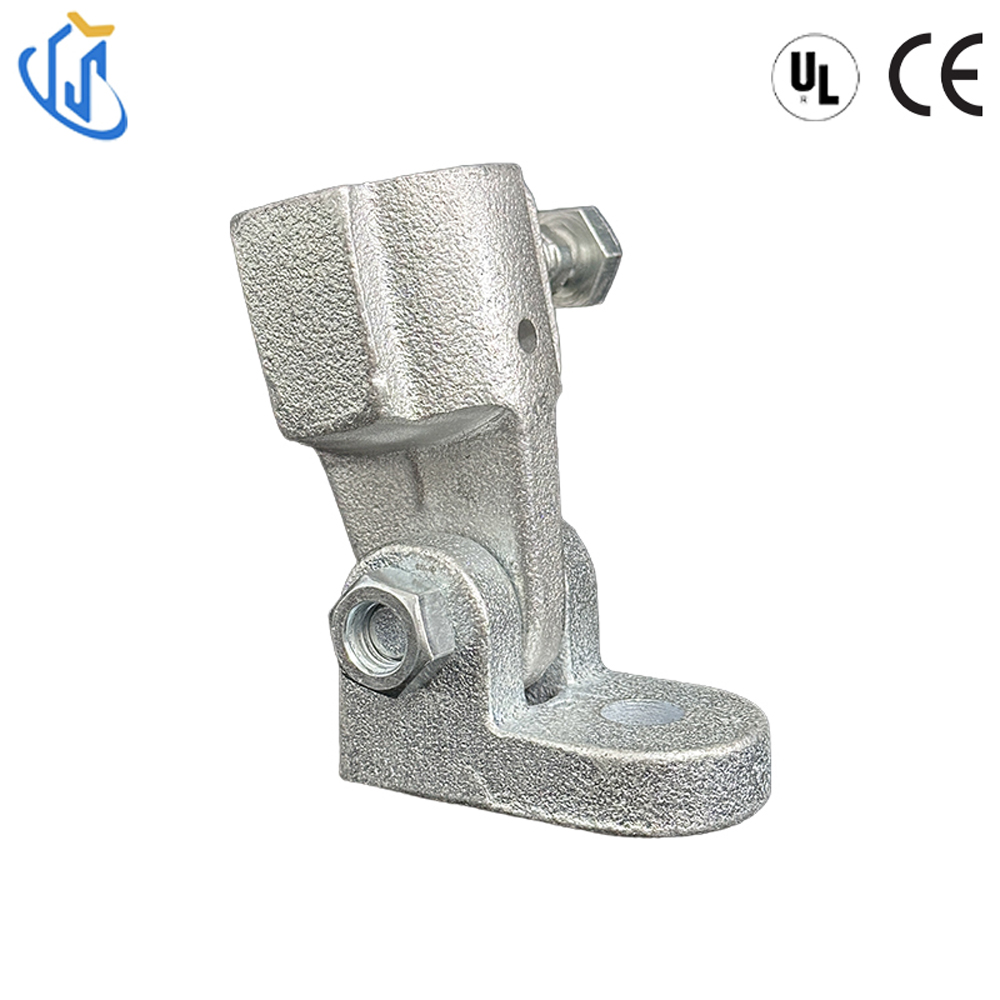

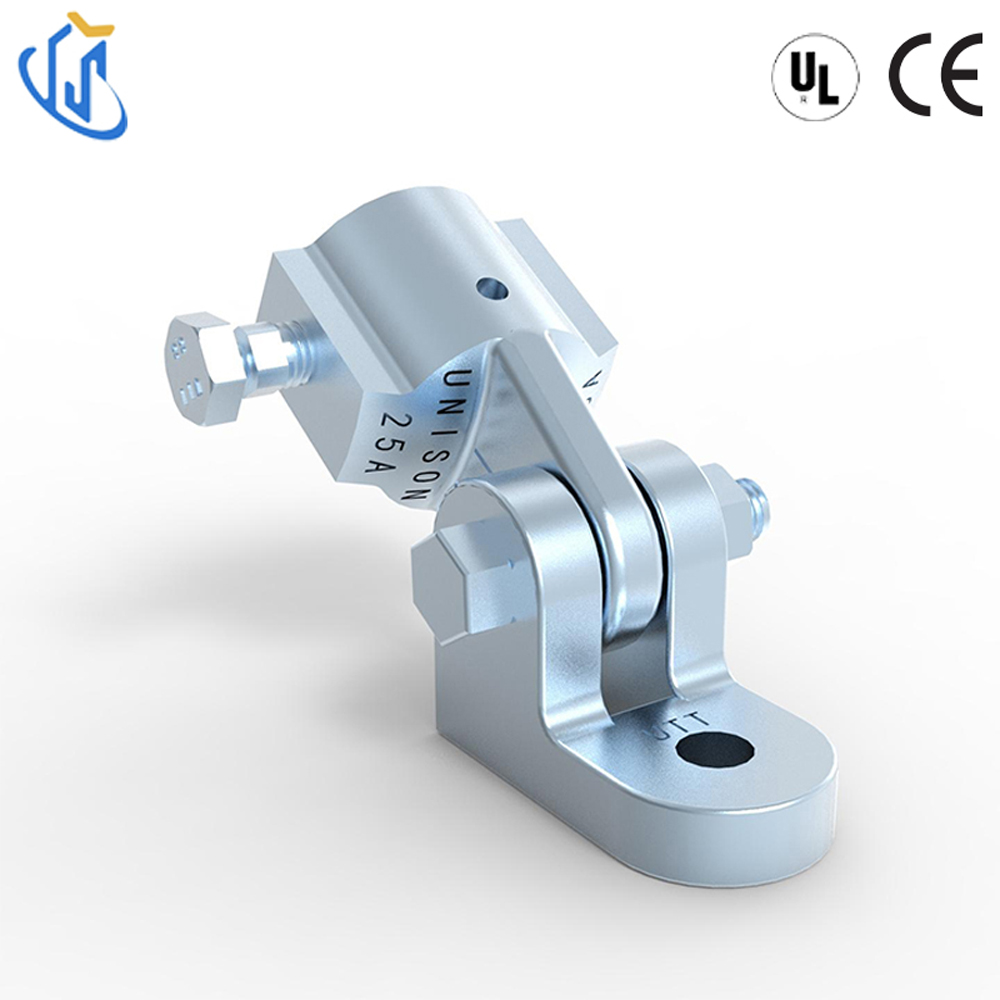

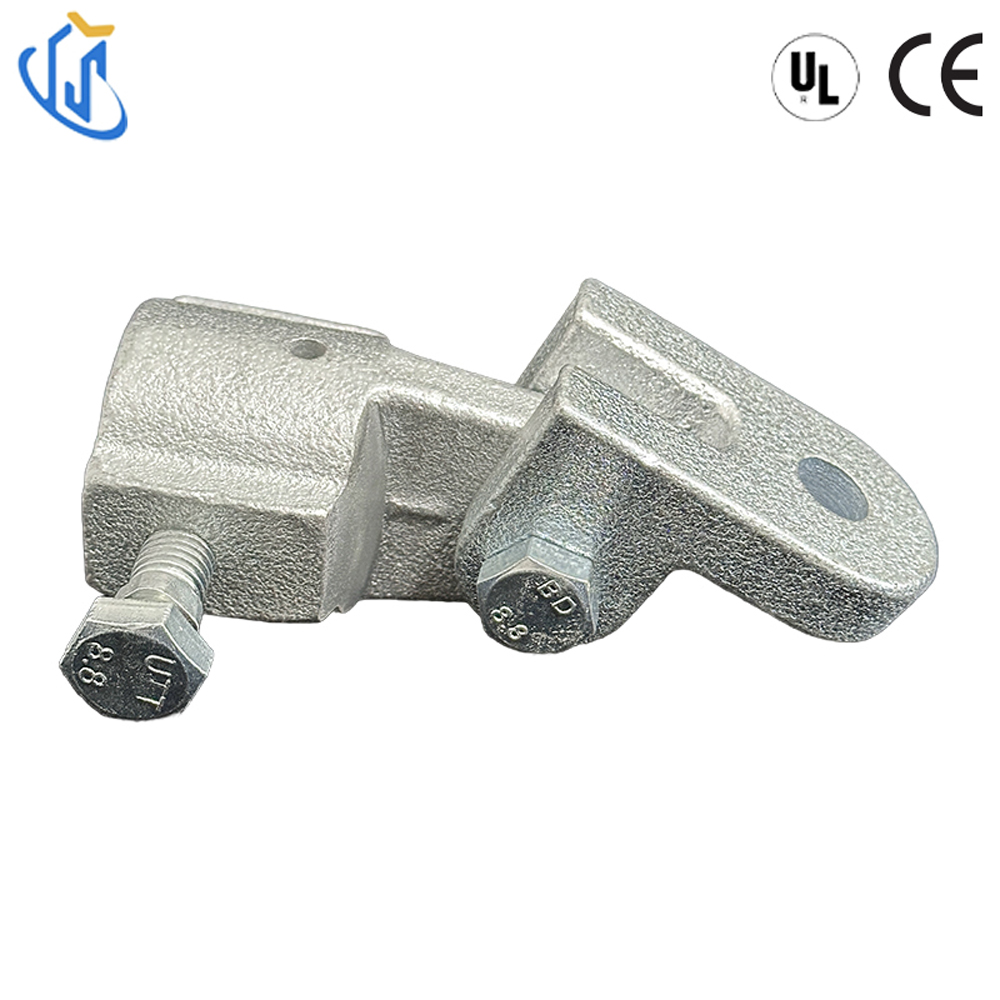

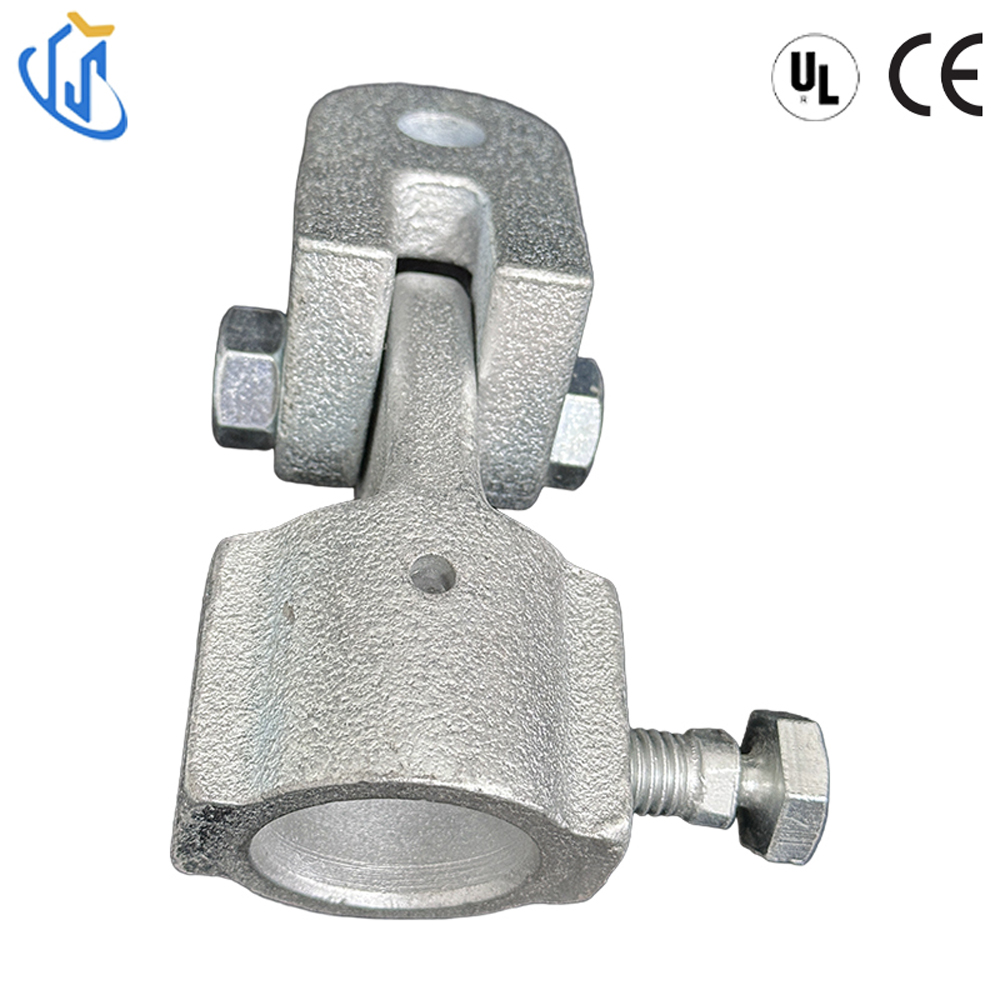

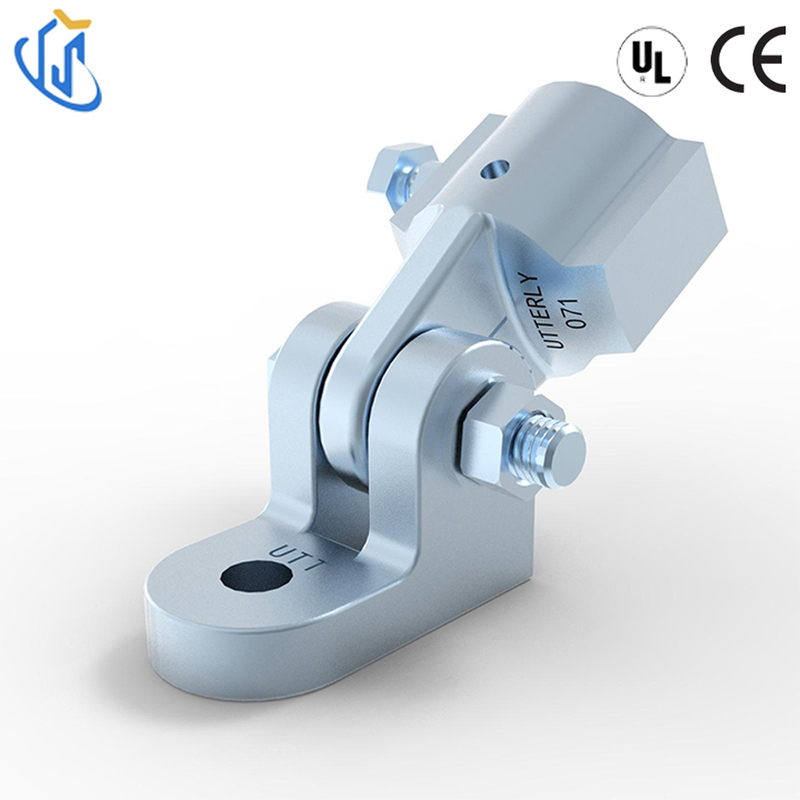

Overview
This Structural Attachment is professional seismic structural fitting dedicated to fire sprinkler and MEP pipeline lateral anti-sway & seismic restraint. It matches Sch10, Sch40, GB/T3091, JIS G3454 standard sprinkler pipes, pairs with brace pipe and series pipe clamps to assemble full NFPA13-compliant seismic bracing set, widely applied in commercial buildings, industrial plants and high-standard construction projects.
Key Features
Core Function: Connect building structure and bracing pipe to restrict pipeline seismic lateral displacement & sway
Compatible Pipe: Universal design suits braced pipe max up to 8”; fit Sch10/Sch40/GB/T3091/JIS G3454 steel pipe
Mount Hole: 1/2” bolt hole for structural fixing installation, M12 mounting bolt with torque 50~65N·M
Raw Material: QT450 solid ductile iron
Surface Finish: Electro-galvanized coating for long-term anti-corrosion
Certifications: UL & CE certified, comply with NFPA13, IBC & ASCE7 North American seismic codes
Installation Spec: Fixed by shear bolt, tighten until bolt head breaks off for locking
Product Parameter Table
| Item | Specification |
| Raw Material | QT450 ductile iron |
| Surface Treatment | Electro-galvanized zinc coating |
| Applicable Supported Pipe | Max 8”, Sch10/Sch40/GB/T3091/JIS G3454 |
| Mount Bolt Hole | 1/2” |
| UL Rated Load(1” Sch40 brace pipe) | 1885 lbs (8.38 kN) |
| Unit Weight | 2.22 lbs (1.01 kg) per piece |
| Compliance | UL/CE certified, NFPA13, IBC, ASCE7 |
| Sample Supply | Free test samples available before bulk purchase |
Application Scenarios
Fire Protection Sprinkler Systems
Specialized seismic bracing for fire sprinkler piping to meet NFPA13 requirements, avoid pipeline deformation and offset under seismic shock. MEP & HVAC Engineering
Restrain cold/hot water, drainage and HVAC pipeline lateral shift for high-rise, shopping mall and residential construction. Critical Industrial Facilities
Matching pipeline support for hospital, data center and chemical factory projects with high seismic design category D/E.

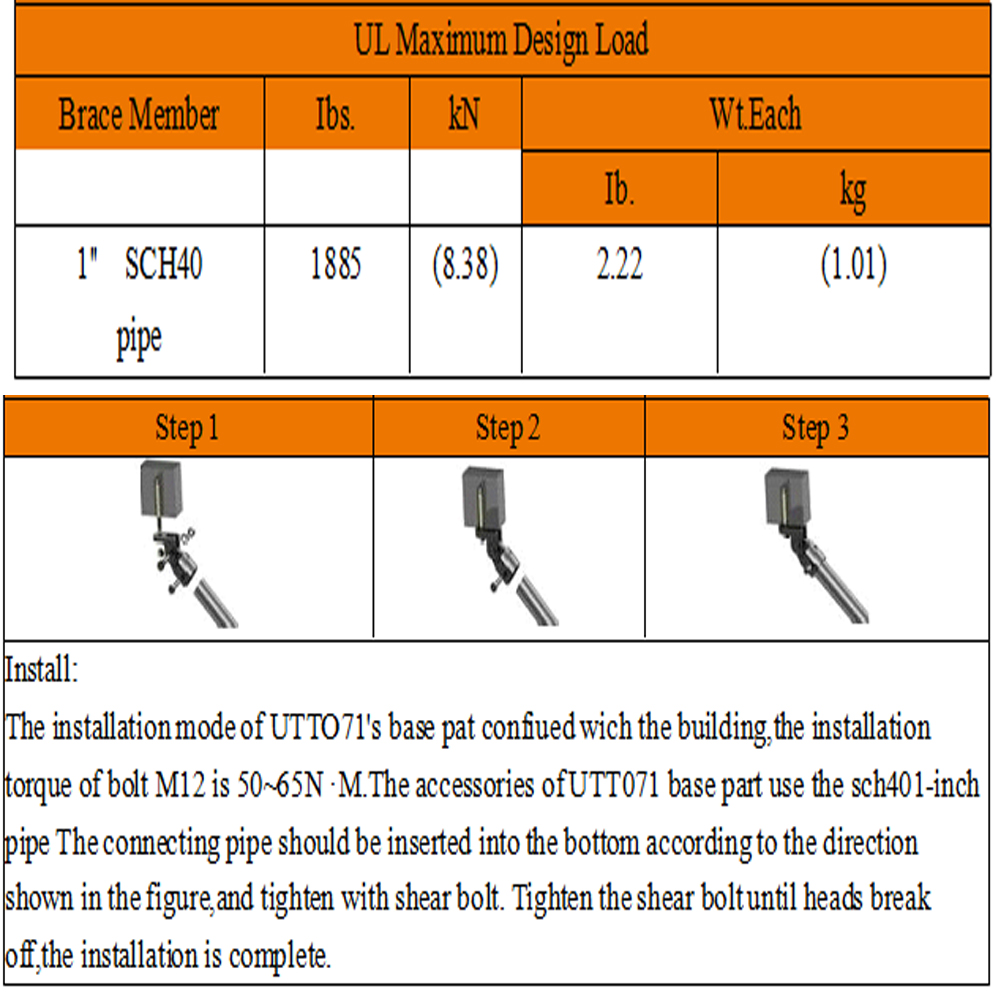

Step-by-Step Installation Guide

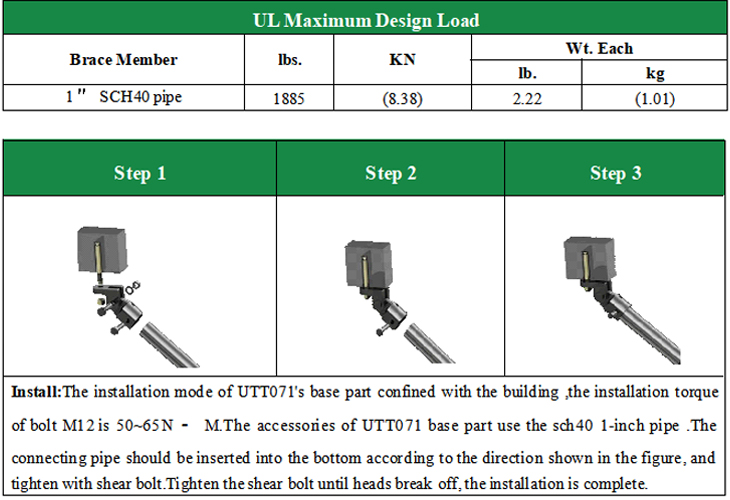

Secure base tightly onto building structural member with M12 bolt and control tightening torque within 50~65N·M.
Put 1” Sch40 standard bracing pipe into the bottom clamping slot following specified installation direction.
Install specified shear bolt and keep tightening until bolt head breaks to complete fixed locking.

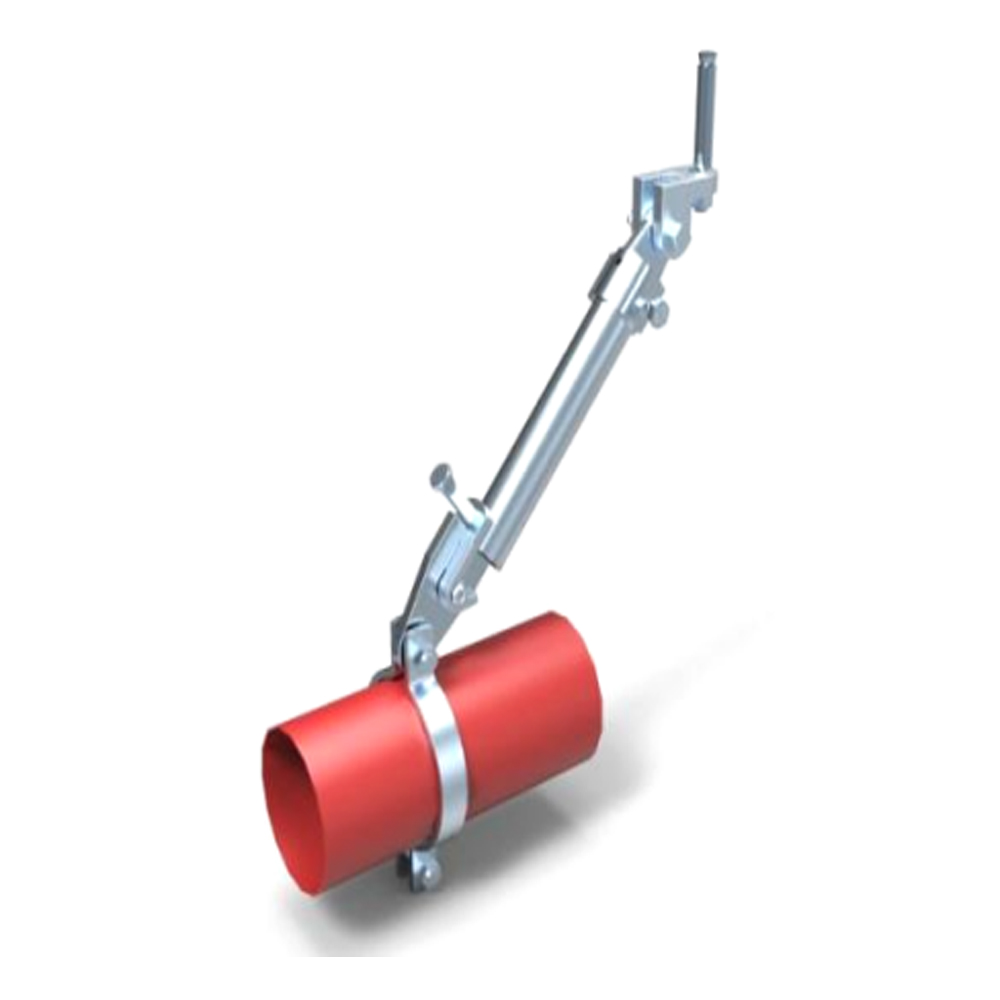

Connect the other end of bracing pipe with series pipe clamp mounted on outer pipe wall.
Inspect all connecting tightness before pipeline hydraulic pressure test.
Note: Perfectly matched with full series pipe clamps, hinges and strut accessories for complete seismic bracing system.
Industry Certifications
UL & CE authoritative product certification approved
Fully comply with NFPA13, IBC and ASCE7 North American building seismic specifications
Electro-galvanized coating meets ASTM B633 anti-corrosion industry standard
Every production batch completes factory load inspection and dimensional check
Core Product Advantages Authorized UL&CE Global Certification
UL+CE dual certification satisfies US and international fire & seismic acceptance standards for engineering projects.
High Toughness QT450 Ductile Iron
Excellent tensile strength and anti-shock performance, crack-resistant under intense seismic load.
Verified UL Rated Load Data
UL certified load value via independent third-party lab testing, reliable for project engineering submittal.
Uniform Electro-Galvanized Anti-Rust Layer
Dense zinc layer isolates moisture erosion, stable anti-corrosion performance for long indoor service.
Wide Universal Pipe Matching
Single specification covers all common pipes up to 8 inch with multiple international standard steel pipe types.
Standardized Torque & Shear Bolt Mounting
Fixed M12 bolt torque plus break-off head shear bolt realizes visual installation qualification control, uniform construction quality on site.
Full System Compatibility
Interchangeable with various series seismic fittings for one-stop pipeline supporting solution.
FAQ Q1: What is UTT071 used for?
A1: Certified seismic structural connector to fasten bracing pipe to building structure for fire and MEP pipeline anti-seismic sway protection.
Q2: What’s the maximum applicable pipe size?
A2: Fits braced pipe up to 8 inch, compatible with Sch10/Sch40 multi-standard steel pipe.
Q3: What certifications does UTT071 own?
A3: It has UL and CE certification and conforms to NFPA13, IBC, ASCE7 seismic regulations.
Q4: What is the product raw material?
A4: Made of solid QT450 ductile iron with electro-galvanized finish.
Q5: Can customers get free pre-order samples?
A5: Free quality inspection samples can be supplied before bulk order confirmation.
