UTT10
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface: | |
| Quantity: | |

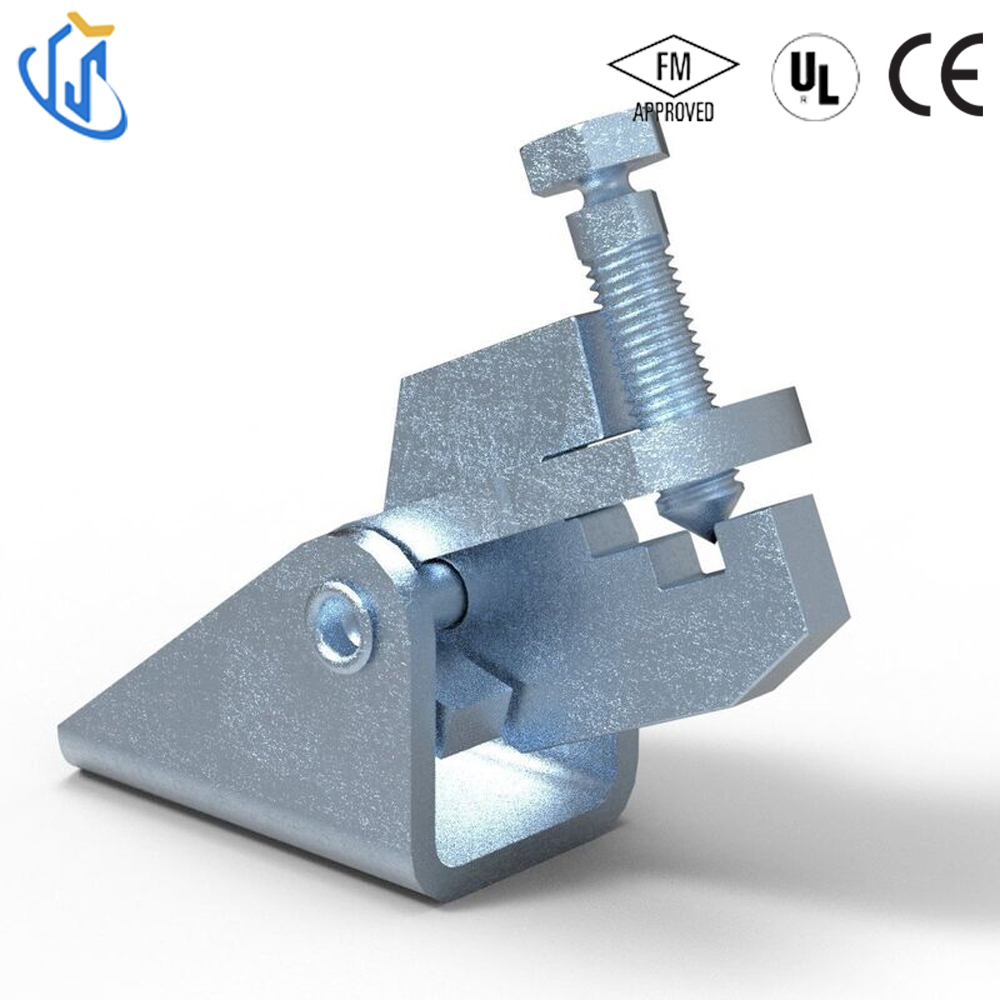

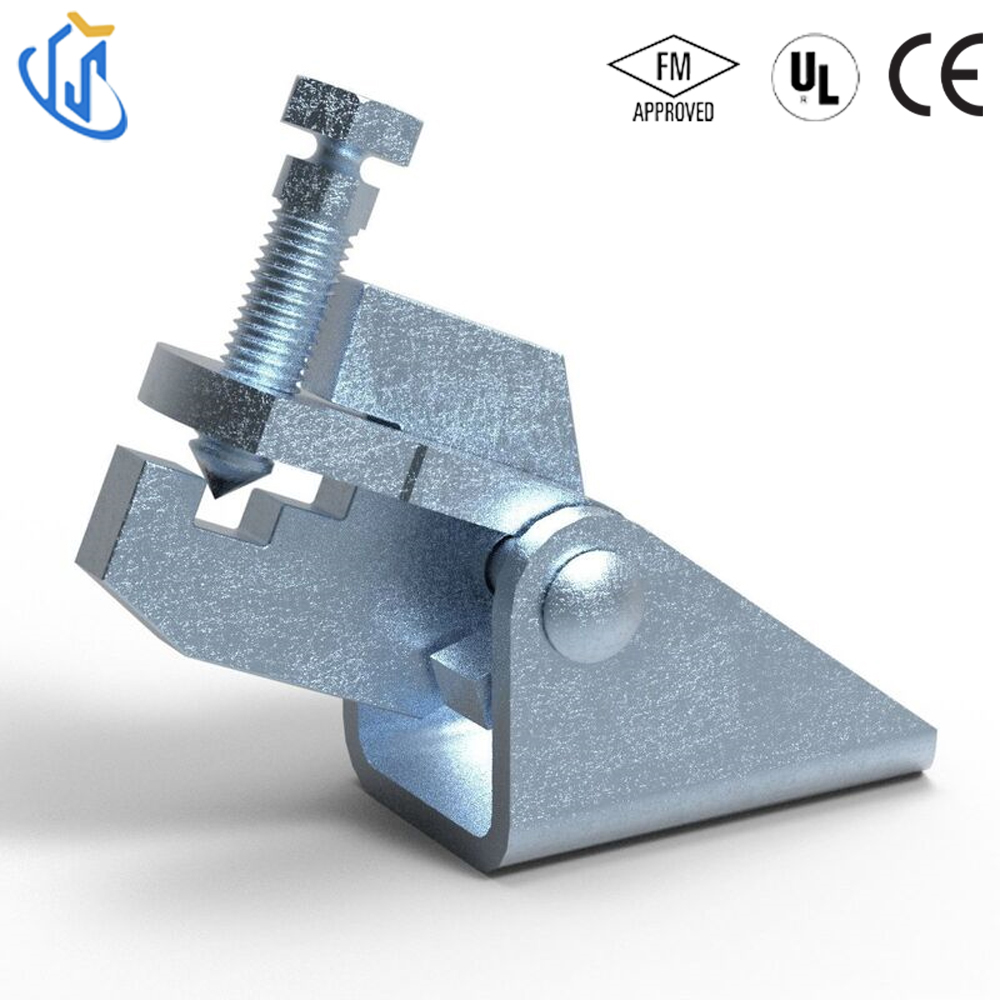

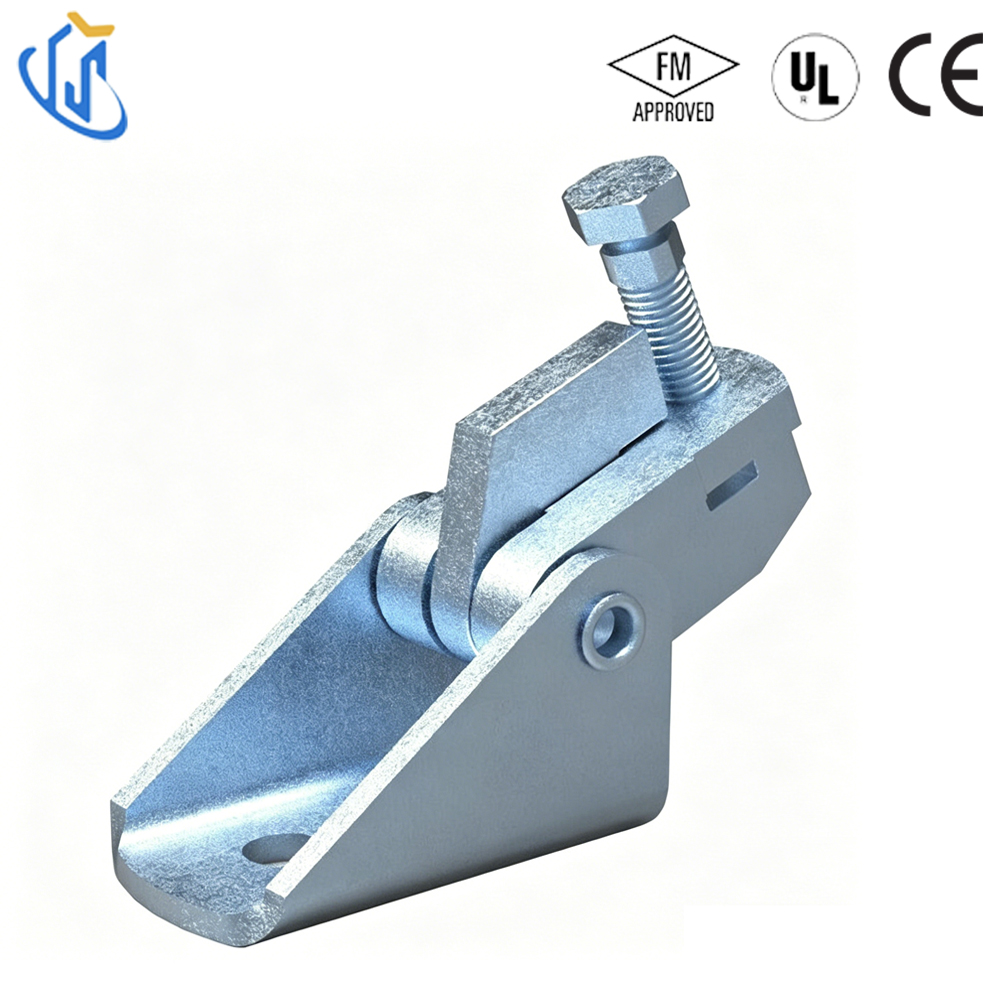

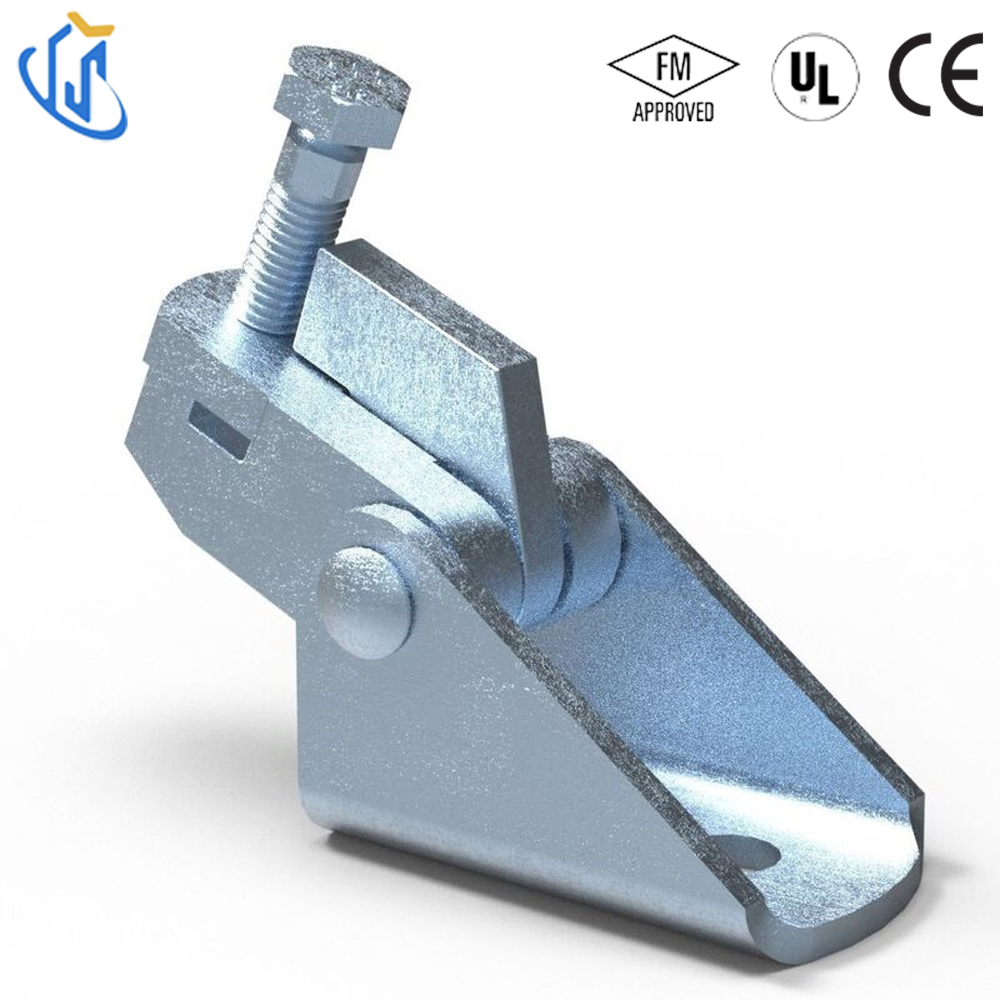

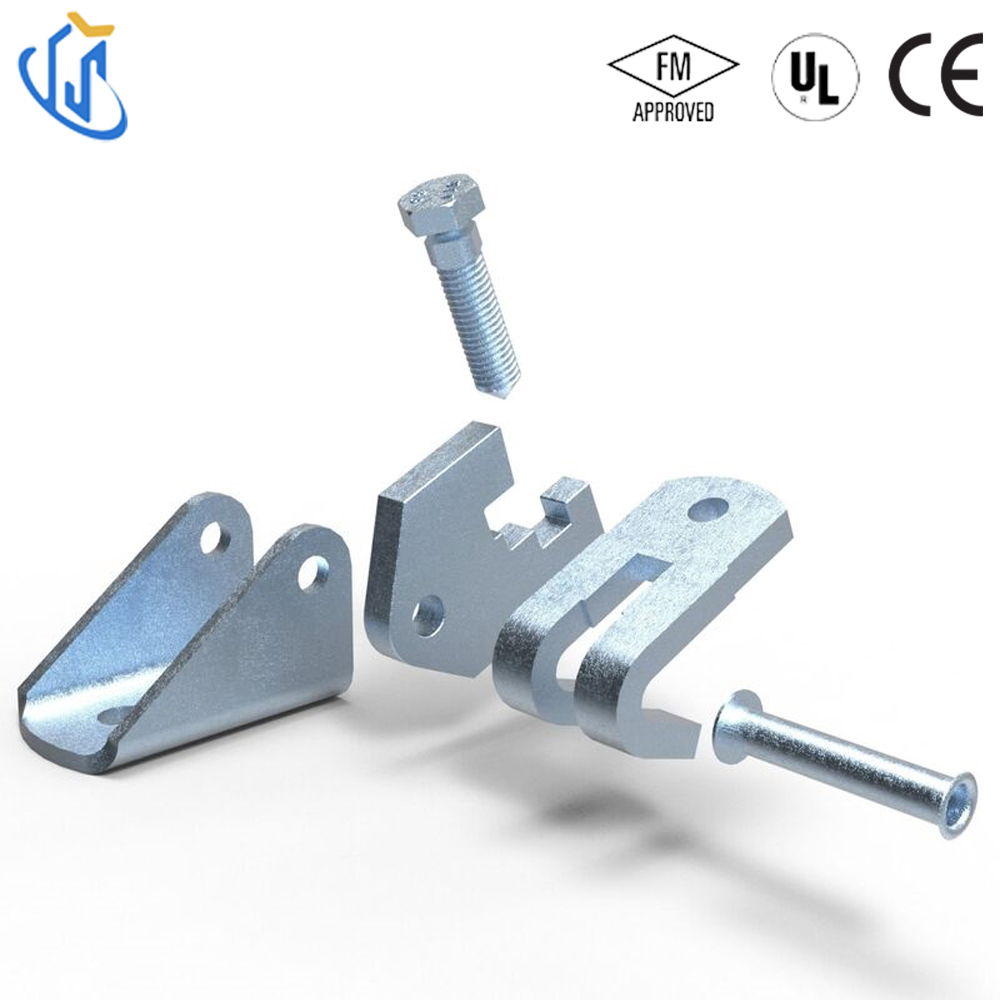

UTT10 Structure Attachment is a core seismic bracing component designed to secure piping systems against lateral sway and seismic disturbance. It is widely used in fire sprinkler, MEP, and HVAC systems, compatible with Sch 10, Sch 40, GB/T 3091, and JIS G3454 pipes. Engineered for high load capacity and code compliance, it ensures pipeline safety under dynamic and seismic loads.
Function: Secures pipes against sway and seismic disturbance
Compatibility: Fits braced pipes up to 8”, supports Sch 10, Sch 40, GB/T 3091, JIS G3454
Connection: 1/2” or M12 bolt hole for structural mounting
Material: High-strength carbon steel
Finish: Electro-galvanized for corrosion resistance
Certification: UL, FM, CE approved; meets NFPA 13 standards
Installation: Shear-bolt design with break-off head for secure locking

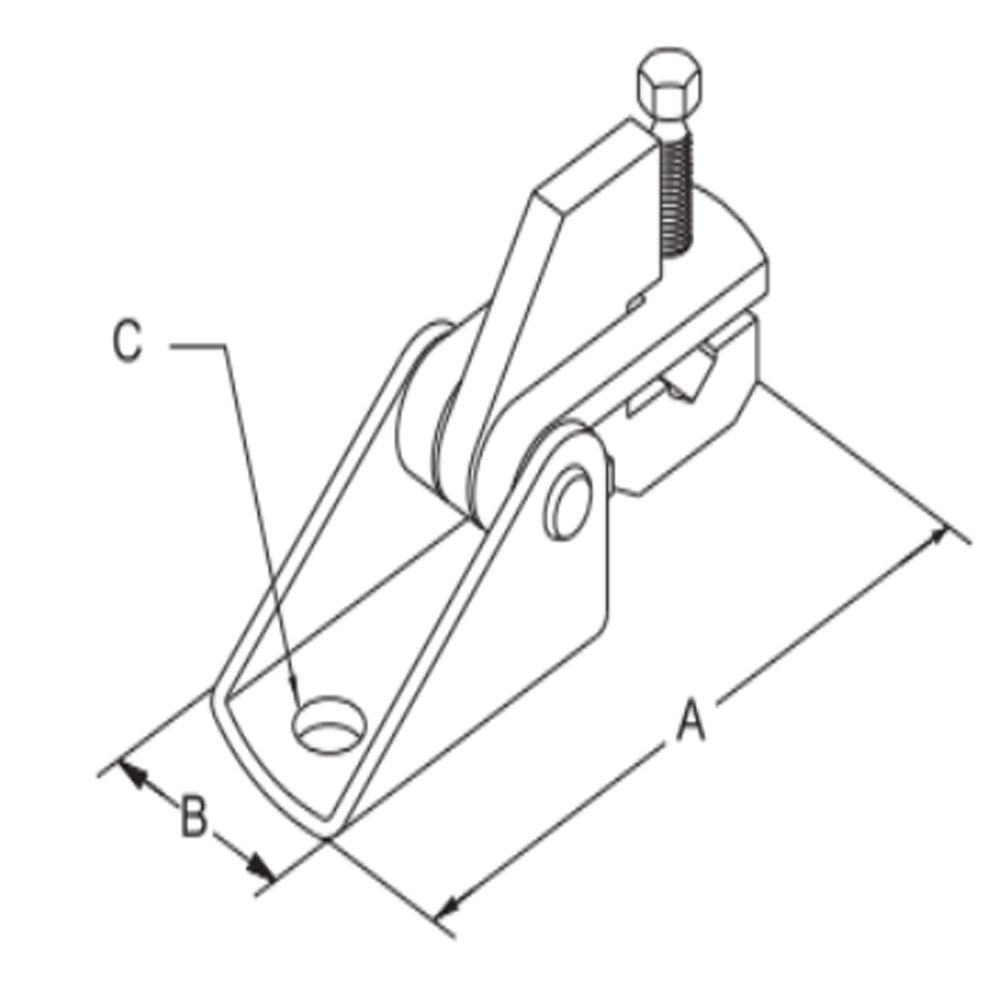

Item | Specification |
|---|---|
Model | UTT10 |
Raw Material | High-quality carbon steel |
Surface Treatment | Electro-galvanized zinc coating |
Compatible Pipe | Up to 8” pipe; Sch 10, Sch 40, GB/T 3091, JIS G3454 |
Bolt Hole | 1/2” or M12 for structural connection |

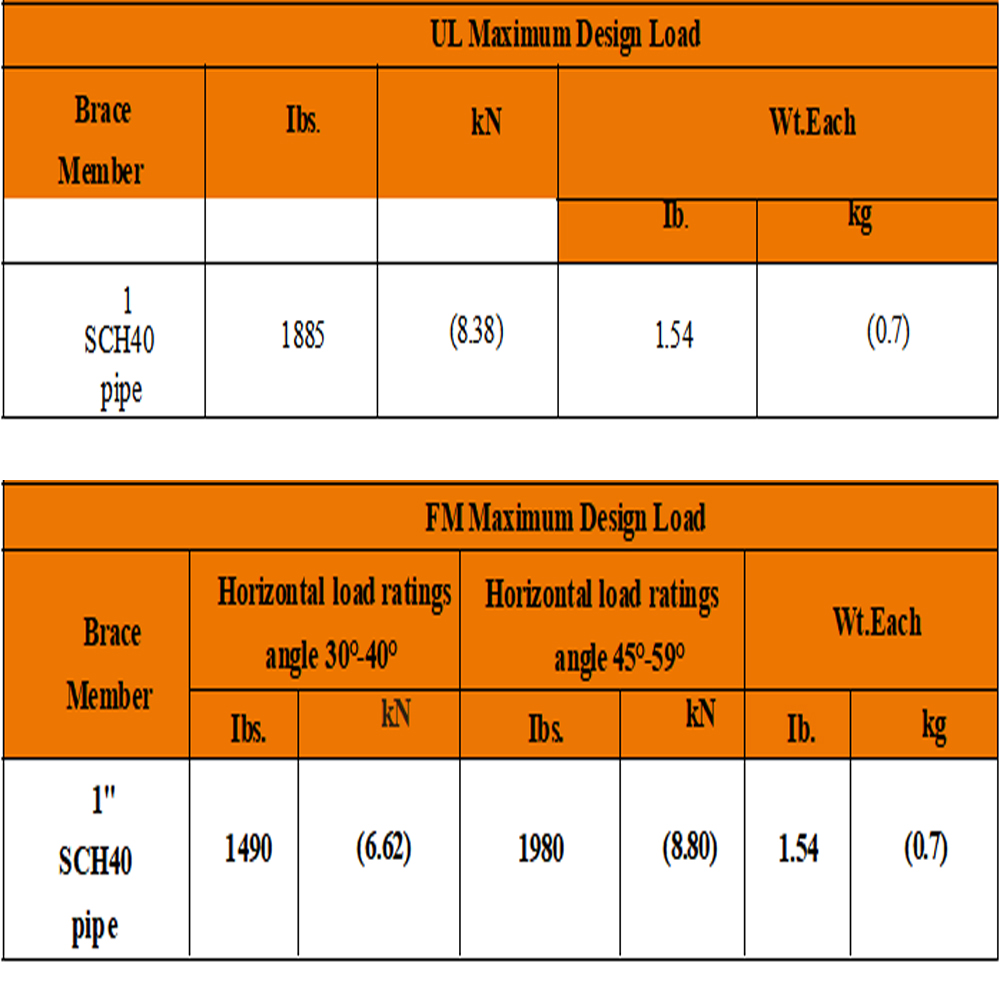

UL Load (1” Sch40 pipe) | 1885 lbs (8.38 kN) |
FM Load (30°–40°) | 1490 lbs (6.62 kN) |
FM Load (45°–59°) | 1980 lbs (8.80 kN) |
Net Weight | 1.54 lbs (0.7 kg) per piece |
Application | Fire sprinkler, MEP, HVAC seismic bracing |
Certification | UL, FM, CE; NFPA 13 compliant |
Sample Supply | Free samples for quality verification |

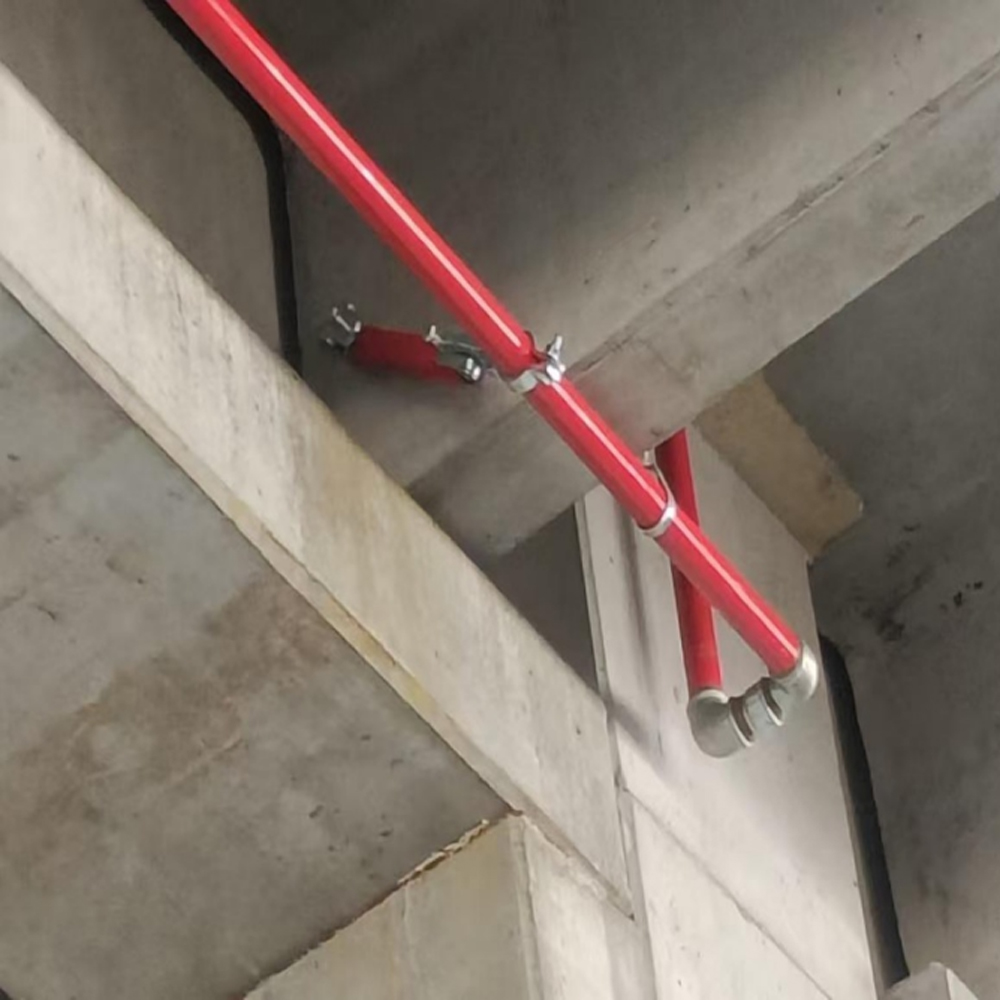

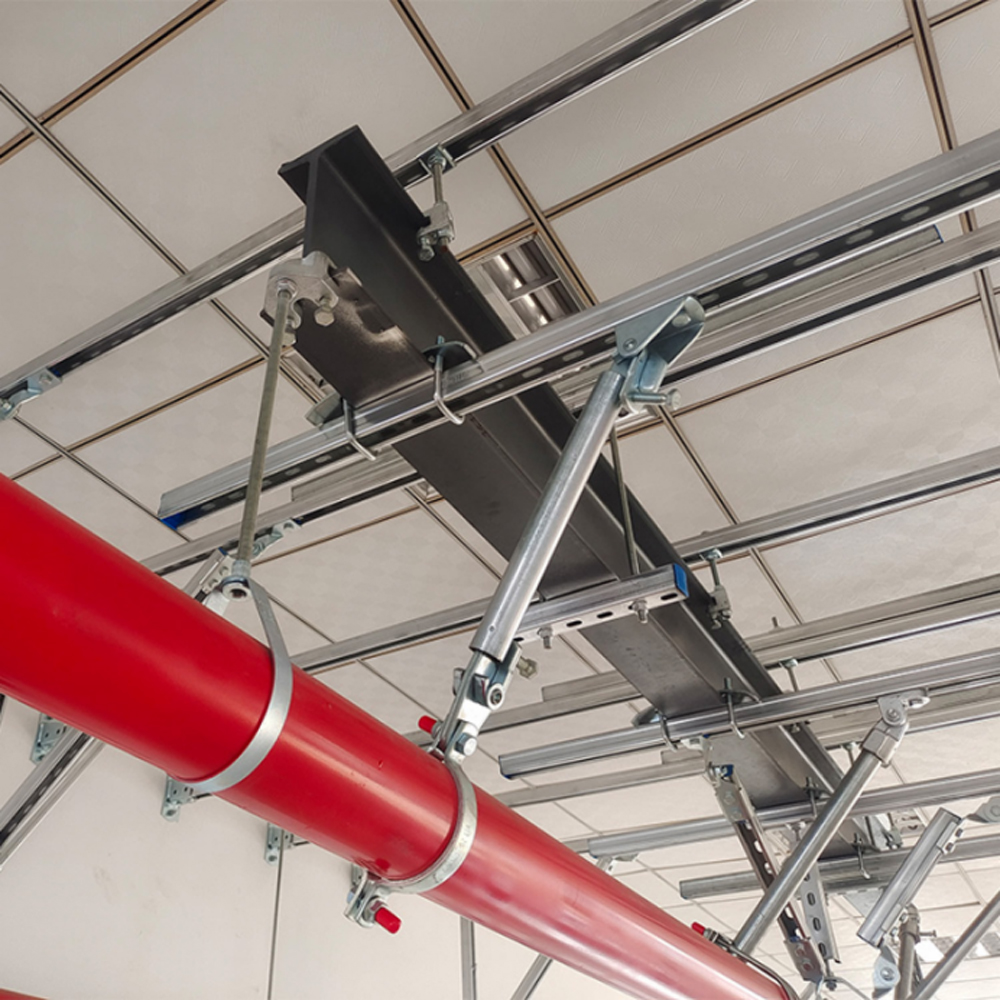

Ideal for seismic bracing of fire sprinkler pipelines to meet NFPA 13 requirements, preventing pipe failure and ensuring system integrity during earthquakes.
Provides reliable seismic restraint for water, drainage, and HVAC piping in commercial and residential buildings, enhancing overall structural safety.
Suitable for hospitals, data centers, factories, and high-rises, delivering stable performance in critical seismic zones.

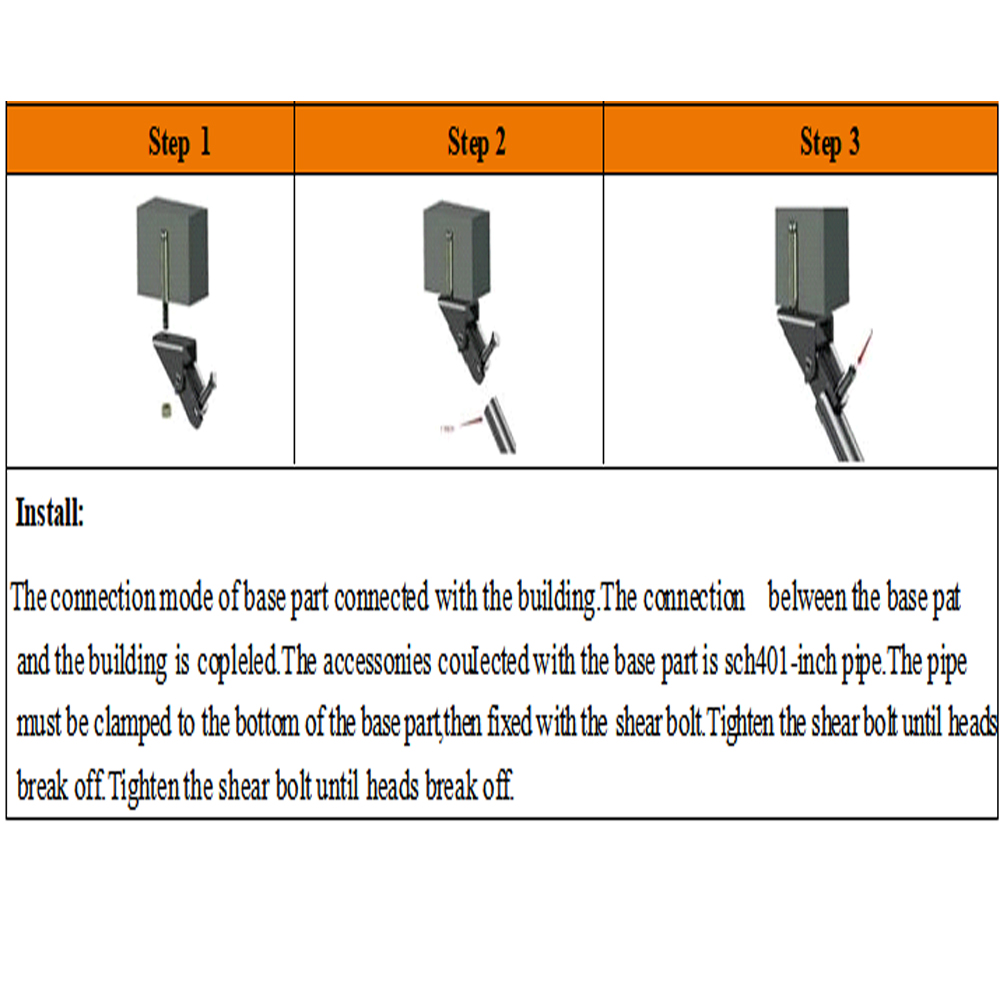

Secure the UTT10 base firmly to the building structure.
Insert 1” Sch40 bracing pipe into the bottom of the base assembly.
Fasten using the specified shear bolt; tighten until the bolt head breaks off.
Adjust the brace to the required angle and confirm all connections.
Inspect the assembly to ensure compliance with seismic standards.

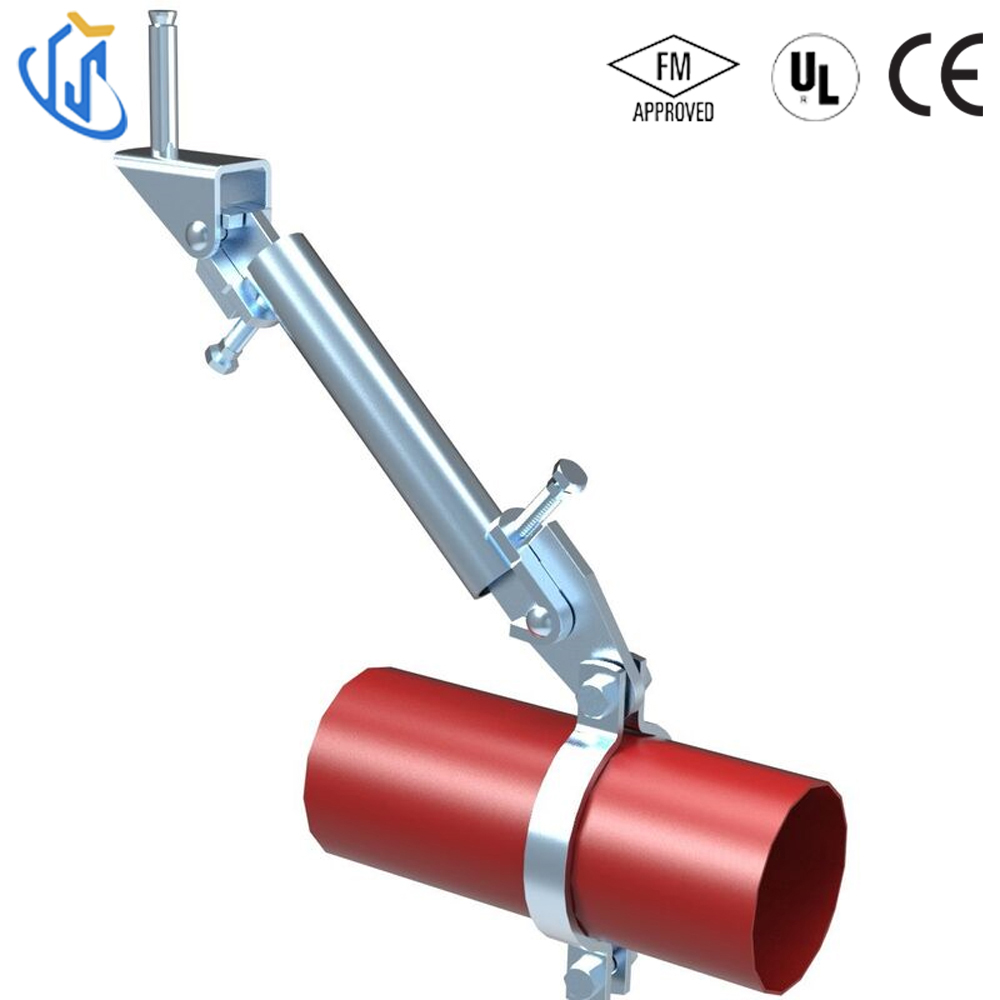

Note: UTT10 works with standard bracing pipes and forms a complete seismic sway brace system.
UL 2039, FM 1621, CE certified
Complies with NFPA 13, IBC, and ASCE 7 seismic standards
Electro-galvanized finish meets industrial corrosion requirements
Factory-tested for load capacity and seismic performance
Full certifications ensure code compliance and reliable performance in seismic applications.
Engineered for strong horizontal and seismic load resistance with certified load ratings.
Uniform zinc layer provides long-term anti-corrosion for indoor and humid environments.
One size fits pipes up to 8”, supporting multiple international pipe standards.
Shear bolt with break-off head ensures proper torque and visual installation verification.
Pairs with UTT brand pipe clamps, strut channels, and hinges for full seismic support solutions.
Q1: What is UTT10 Structure Attachment used for?
A1: It is a seismic sway brace for fire sprinkler and MEP pipes, resisting lateral movement and seismic disturbance.
Q2: What pipe sizes does UTT10 support?
A2: It fits braced pipes up to 8” and works with Sch 10, Sch 40, GB/T 3091, JIS G3454.
Q3: Is UTT10 code compliant?
A3: Yes, it is UL/FM/CE certified and meets NFPA 13, IBC, and ASCE 7 standards.
Q4: How is UTT10 installed?
A4: Mount to structure, insert 1” Sch40 pipe, tighten shear bolt until head breaks off.
Q5: Can I get free samples?
A5: Yes, free samples are available for quality verification before bulk orders.
