Overview

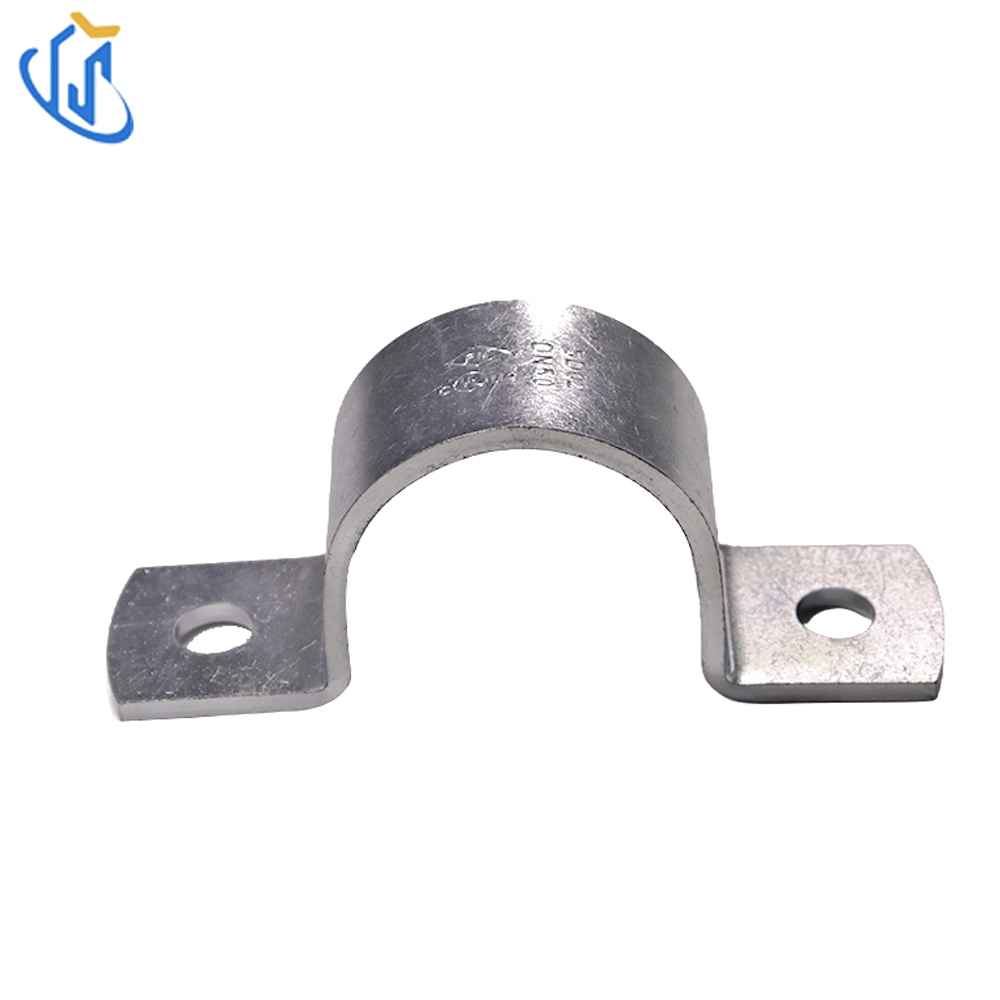

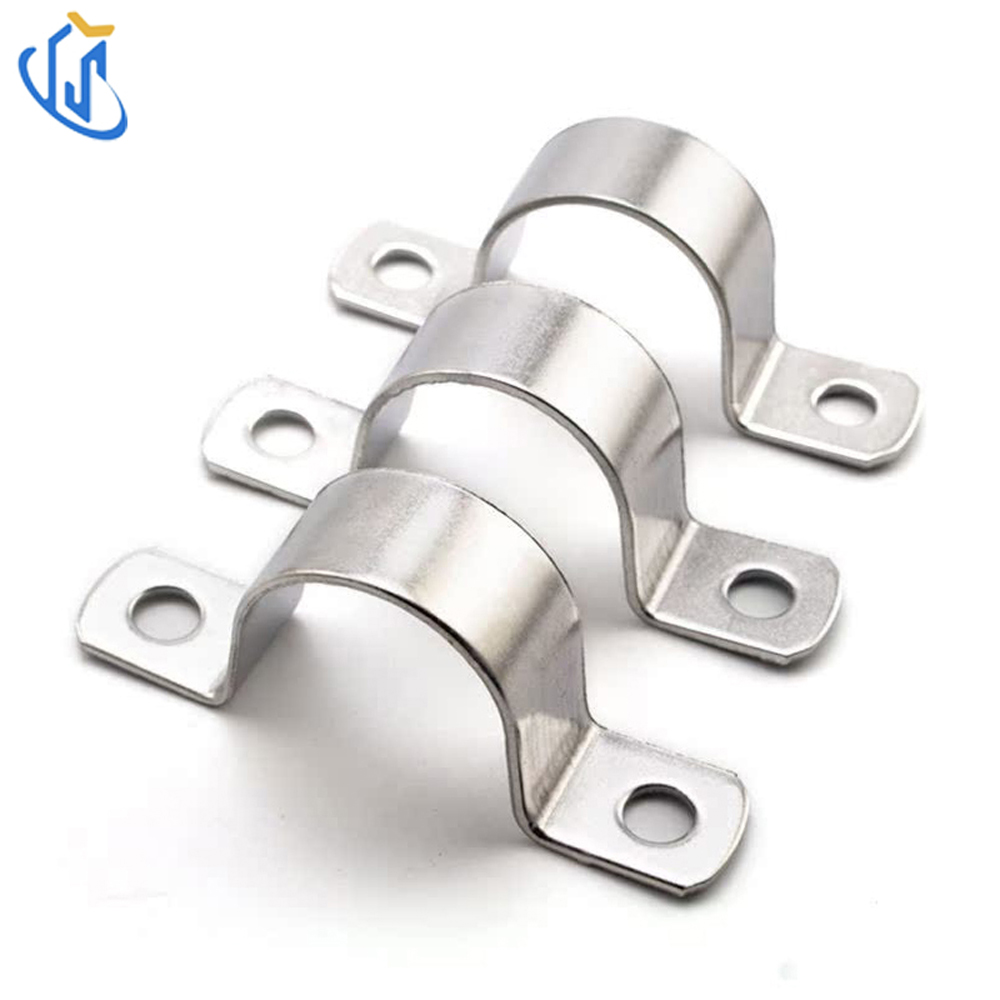

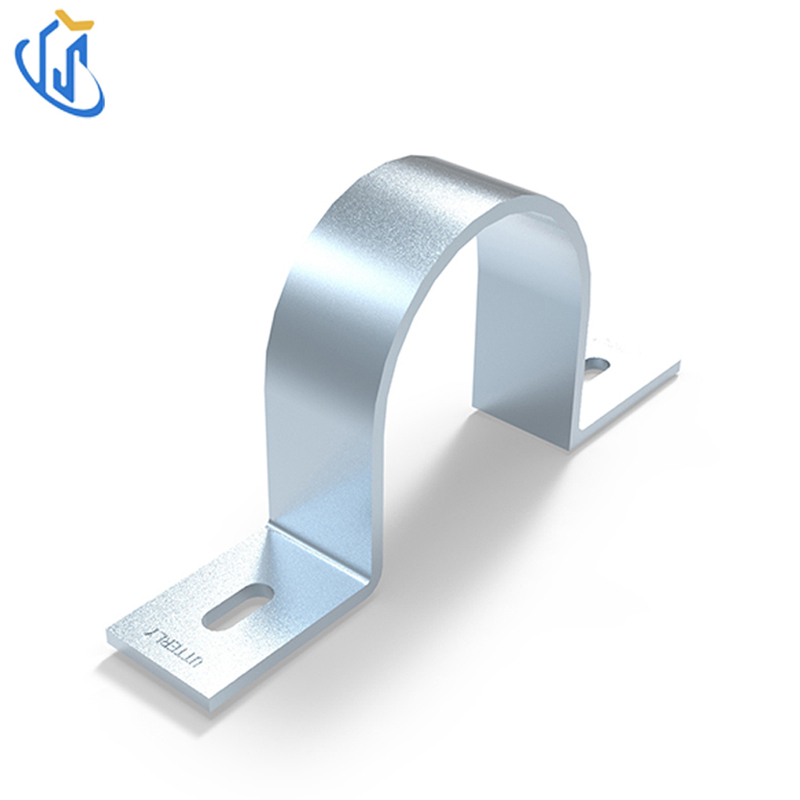

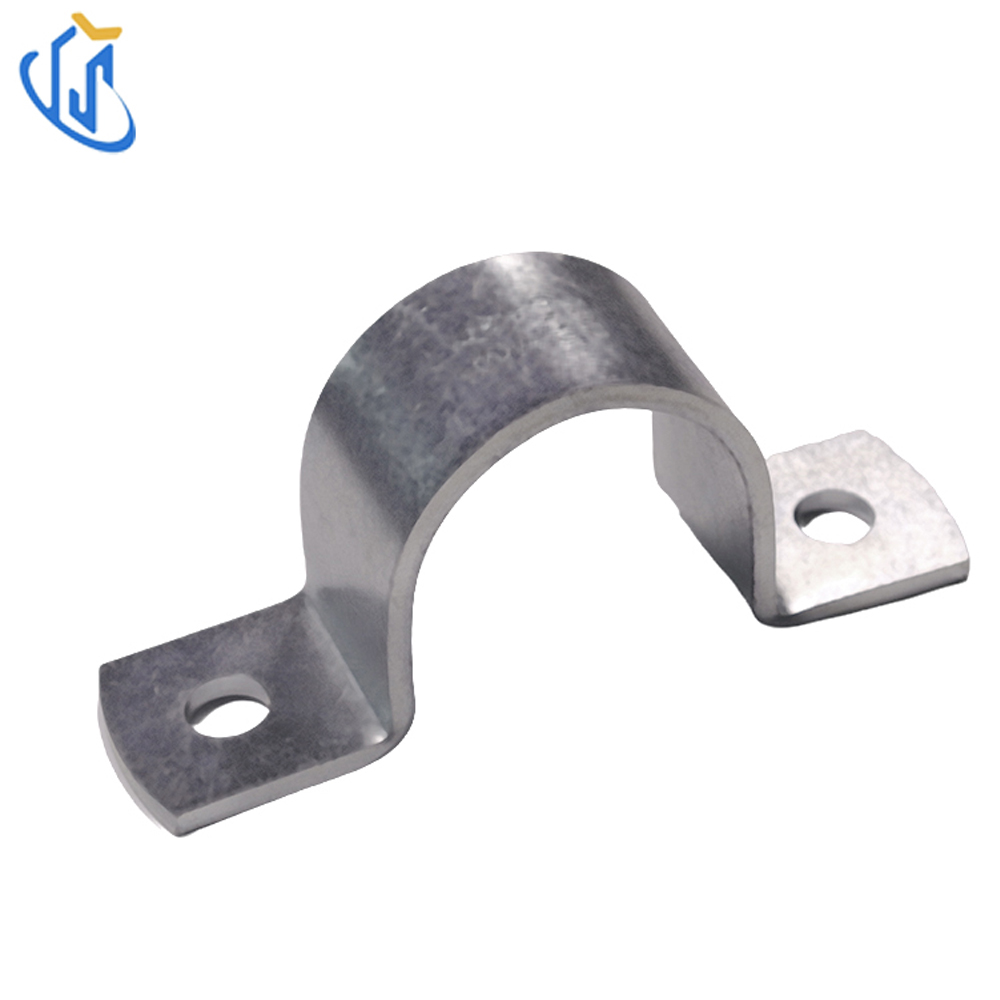

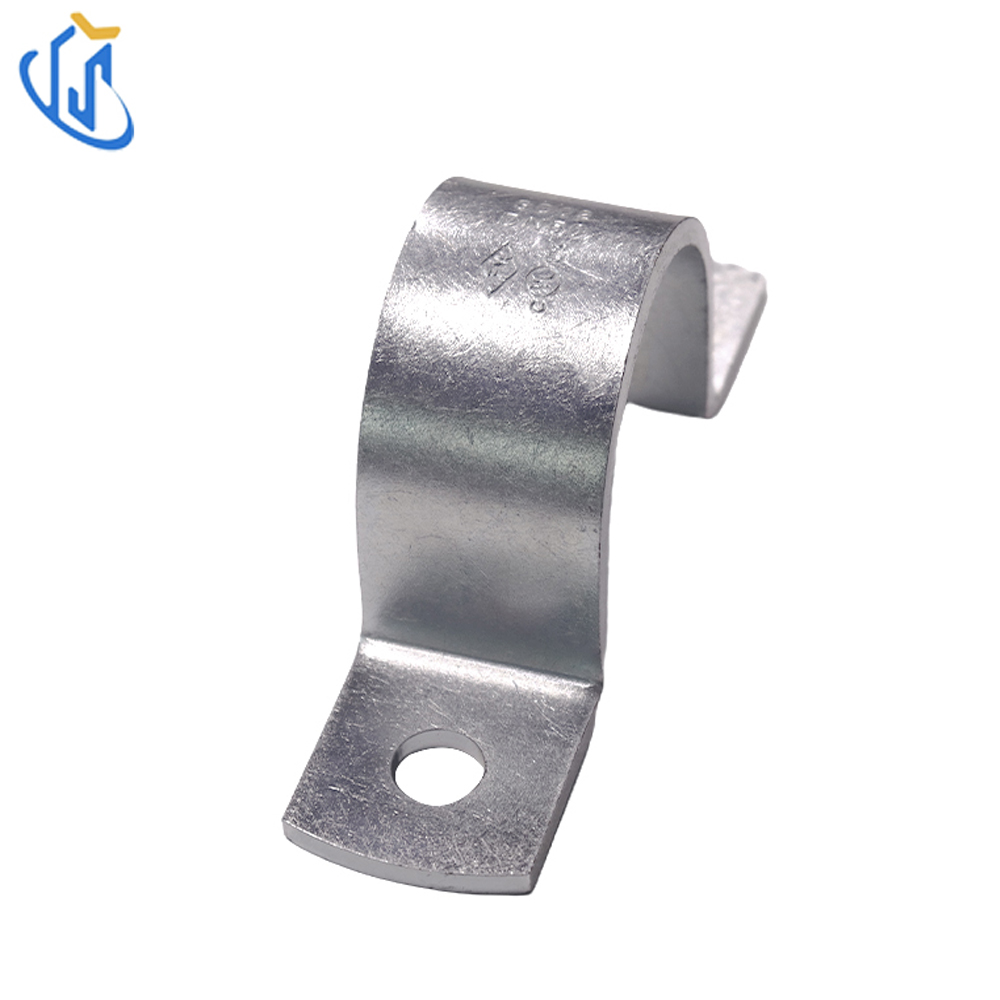

The UTT82 Standard Saddle Clamp is a robust carbon steel component engineered for securing pipes to C‑channel steel in multi‑pipe systems. With a zinc‑plated (galvanized) finish, it delivers excellent rust protection and stable performance in both indoor and humid environments. Designed for quick installation in dense or limited‑space areas, it supports the entire piping network’s seismic resistance, widely used in MEP, HVAC and fire protection projects.
Key Features
Material: High‑quality carbon steel
Finish: Zinc‑plated (electro‑galvanized), anti‑rust and durable
Function: Fastens pipes to C‑channel; provides seismic bracing for multi‑pipe systems
Size Range: 1/2" (DN15) to 8" (DN200)
Design: Compact, space‑saving for dense piping layouts
Installation: Quick and simple with standard tools
Certification: ISO 9001 certified; complies with MEP seismic standards

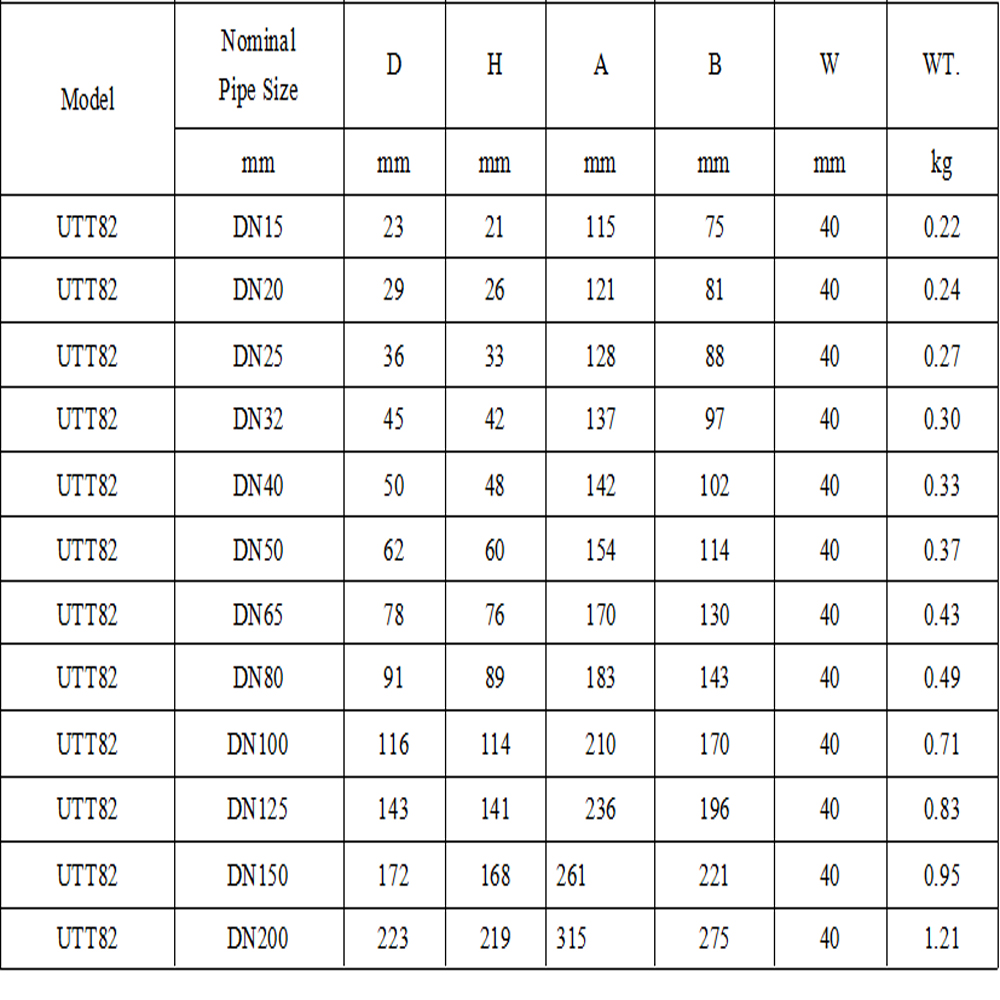

Product Parameters
| Item | Specification |
| Model | UTT82 |
| Material | Carbon Steel |
| Surface Finish | Zinc‑plated (Electro‑galvanized) |
| Pipe Size | 1/2" (DN15) – 8" (DN200) |
| Application | Multi‑pipe system fastening, seismic bracing, MEP/HVAC/fire protection supports |
| Customization | Available |
| Sample | Free of charge |
Application Scenarios
-
MEP & HVAC Systems
Ideal for securing hot/cold water pipes, ventilation ducts and electrical conduits in commercial and residential buildings; perfect for tight, crowded installation spaces.
-
Fire Protection Piping
Reliably holds fire sprinkler and standpipe lines, ensuring seismic stability and meeting fire safety codes.
-

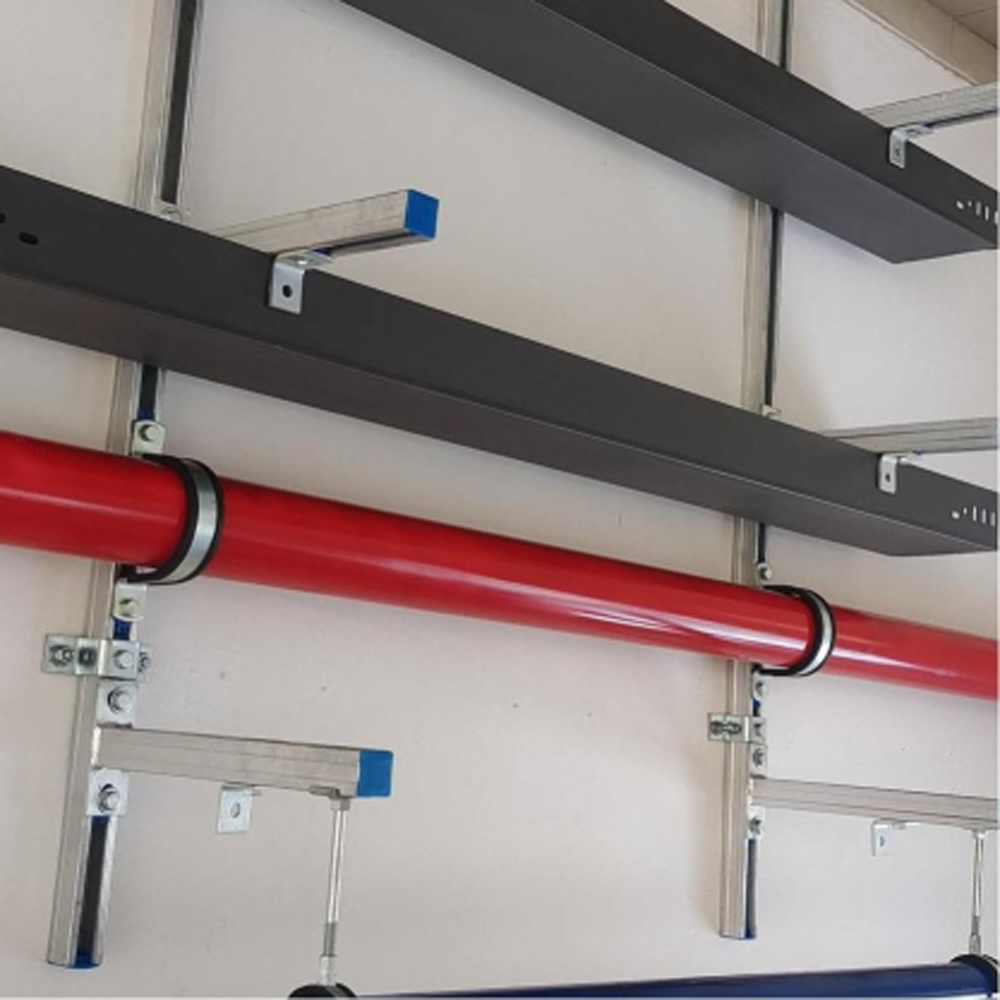

Industrial Multi‑Pipe Racks
Suitable for chemical, pharmaceutical and manufacturing facilities; fastens multiple parallel pipes to C‑channel steel for organized, vibration‑resistant layouts.
Installation Guide

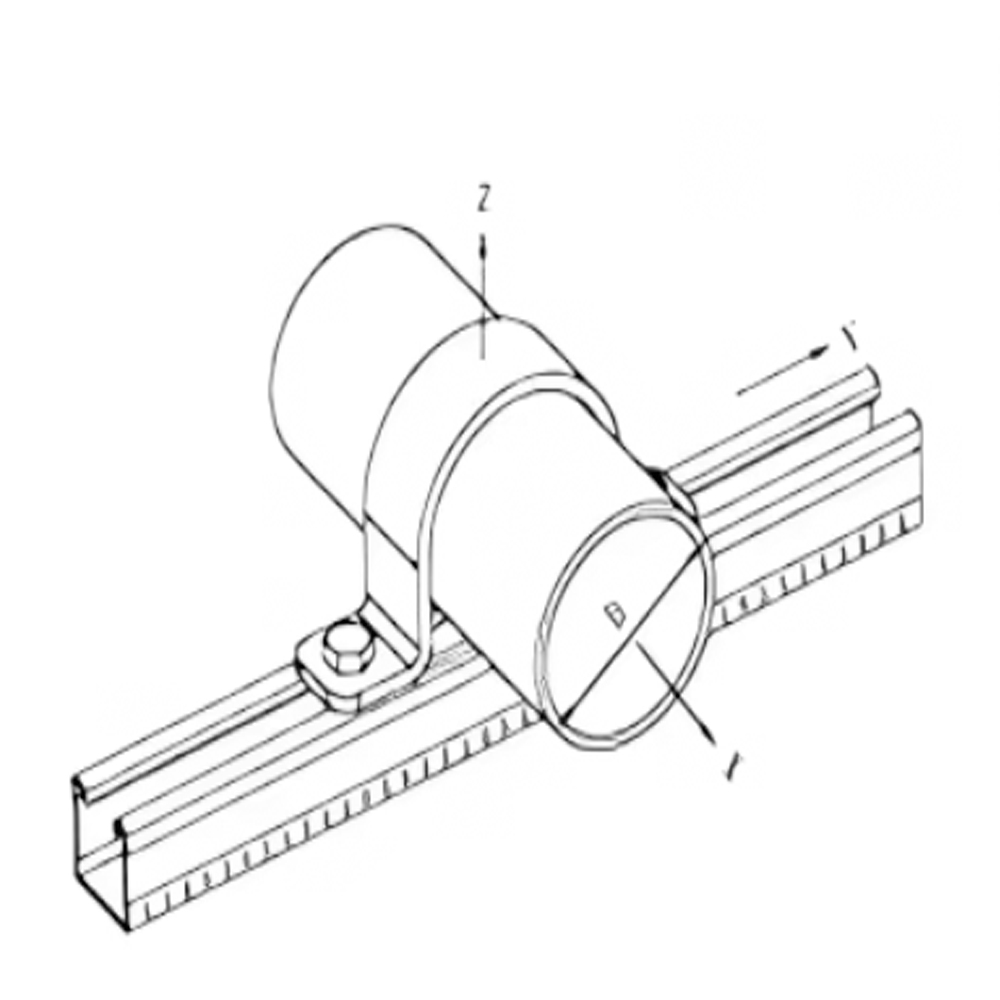

Place the UTT82 saddle clamp over the target pipe.
Align the clamp holes with the pre‑mounted C‑channel steel.
Insert bolts and tighten evenly to secure the clamp firmly.
Ensure the pipe is stable and aligned with adjacent supports.
Verify all connections are tight before system commissioning.
Note: Tool‑free quick installation; compatible with standard C‑channel seismic bracing systems.
Industry Certifications
Complies with national seismic design codes for building MEP systems
ISO 9001 Quality Management System certified
Zinc‑plated finish meets construction hardware anti‑corrosion standards
Factory tested for load capacity, clamping force and seismic performance
Key Advantages
-
Heavy‑Duty Carbon Steel Build
High load capacity and rigidity, resistant to deformation under dynamic or seismic loads.
-
Zinc‑Plated Corrosion Protection
Reliable rust resistance for long‑term use in indoor, humid or mild outdoor environments.
-
Space‑Saving Compact Design
Fits densely packed pipe layouts; ideal for installation in limited‑space areas.
-

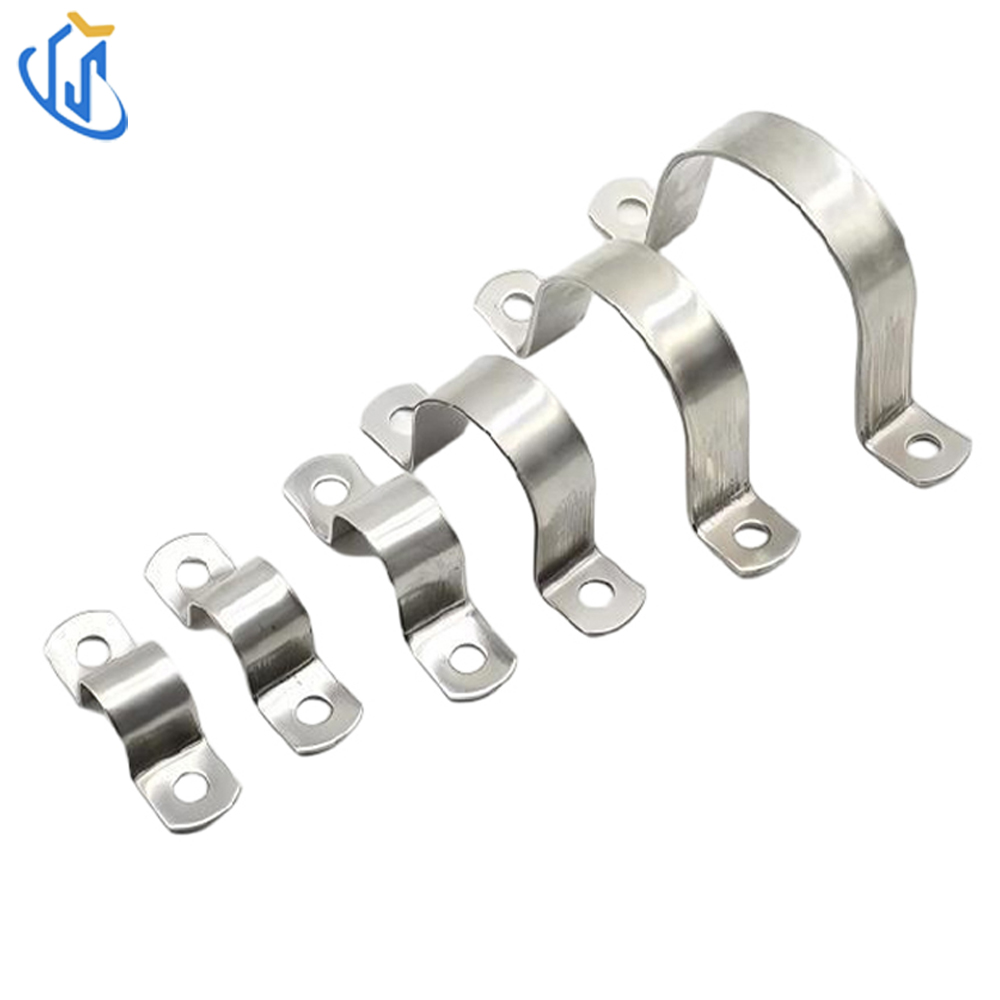

Wide Size Compatibility
Covers 1/2" to 8" pipes (DN15–DN200), meeting most MEP, HVAC and fire protection requirements.
-
Quick & Easy Installation
Fastens pipes to C‑channel in minutes; reduces on‑site labor time and costs.
-
Free Sample & Custom Service
Free quality‑check samples provided; custom sizes and designs available for special projects.
FAQ (Frequently Asked Questions)
Q1: What is the UTT82 saddle clamp used for?
A1: It is a carbon steel pipe clamp for securing multi‑pipe systems to C‑channel steel and providing seismic bracing.
Q2: What pipe sizes does the UTT82 fit?
A2: It supports pipe sizes from 1/2" (DN15) up to 8" (DN200).
Q3: Is the zinc‑plated finish durable for humid areas?
A3: Yes, the electro‑galvanized coating offers good rust and corrosion resistance for indoor and humid environments.
Q4: Can I get a free sample of the UTT82 saddle clamp?
A4: Yes, free samples are available for quality testing before bulk purchase.
Q5: Is the UTT82 suitable for dense piping layouts?
A5: Absolutely. Its compact design is optimized for quick installation in tight, crowded spaces.
