Overview

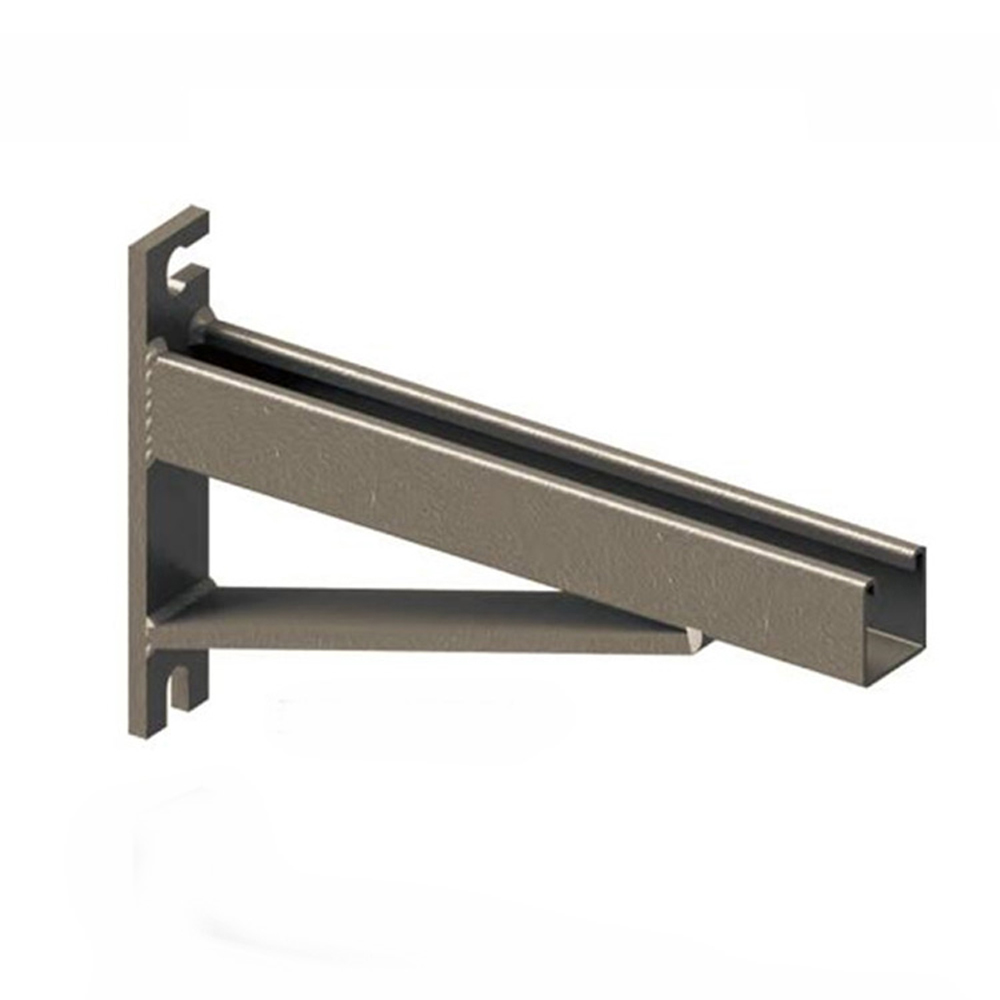

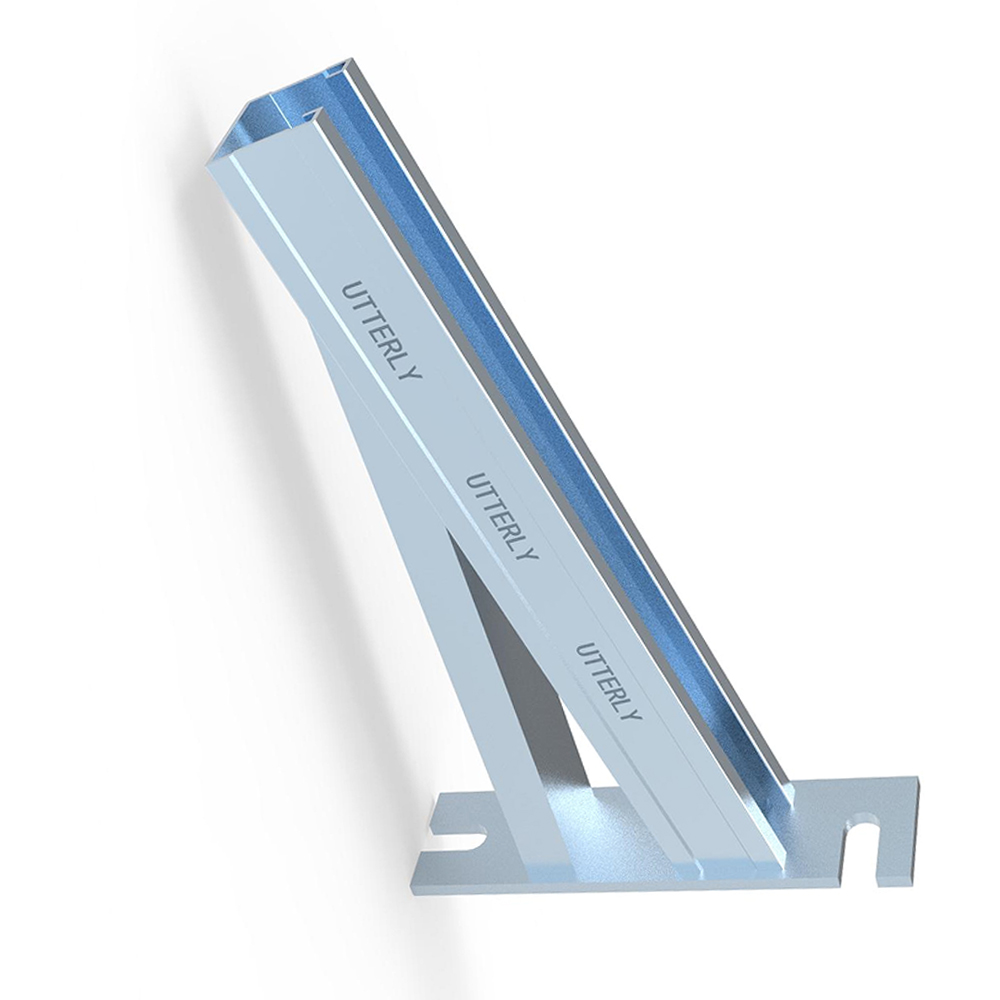

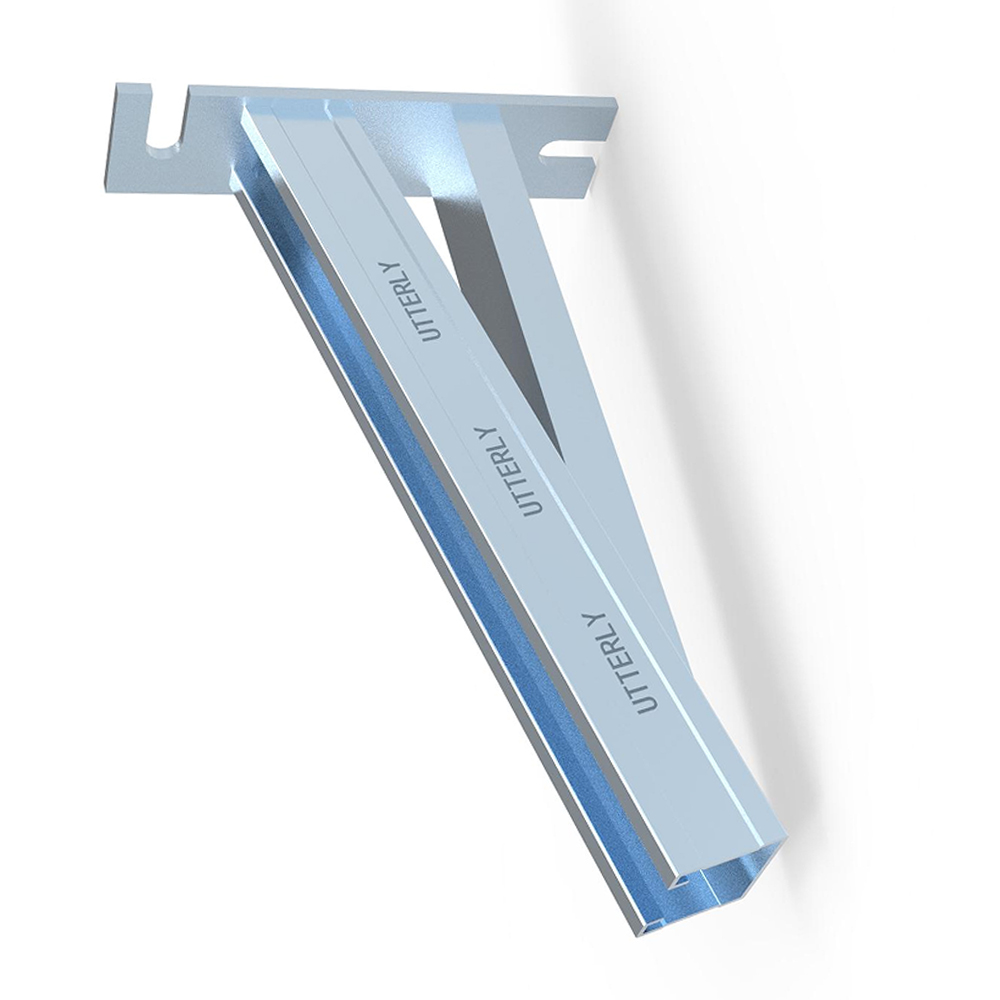

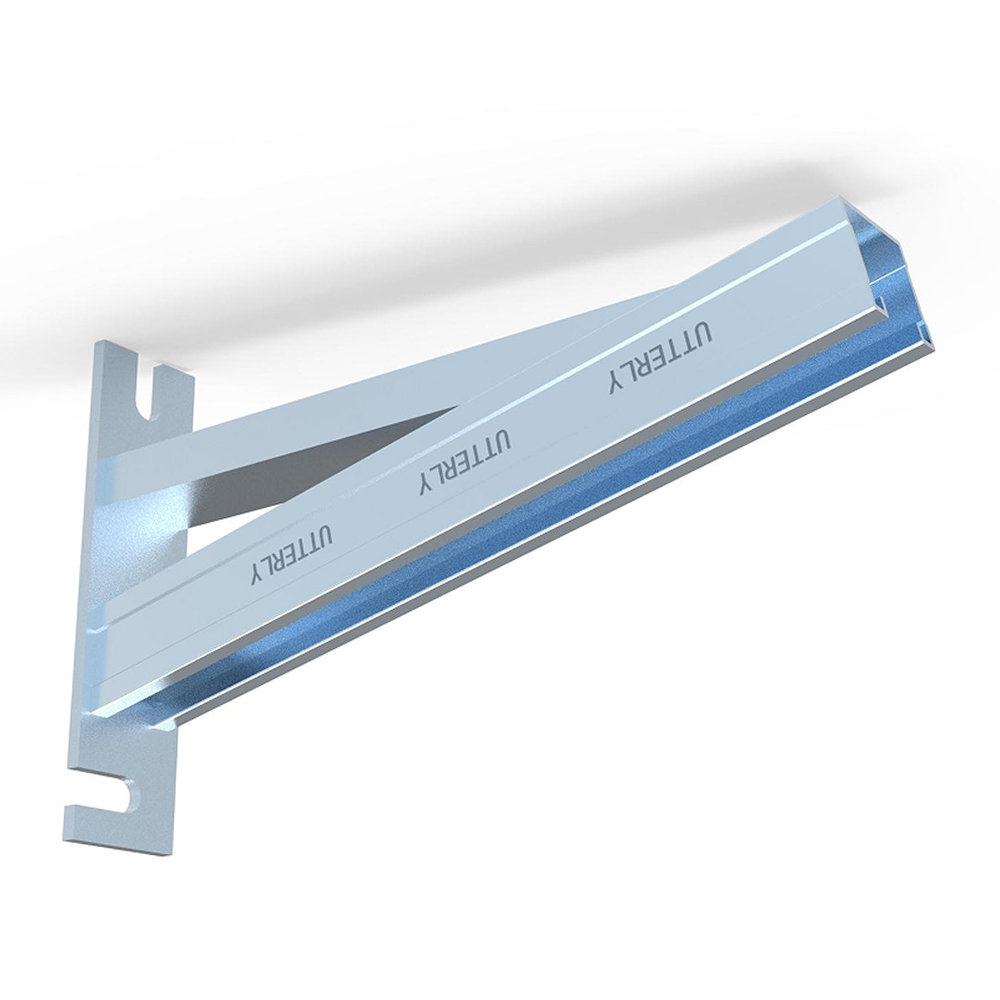

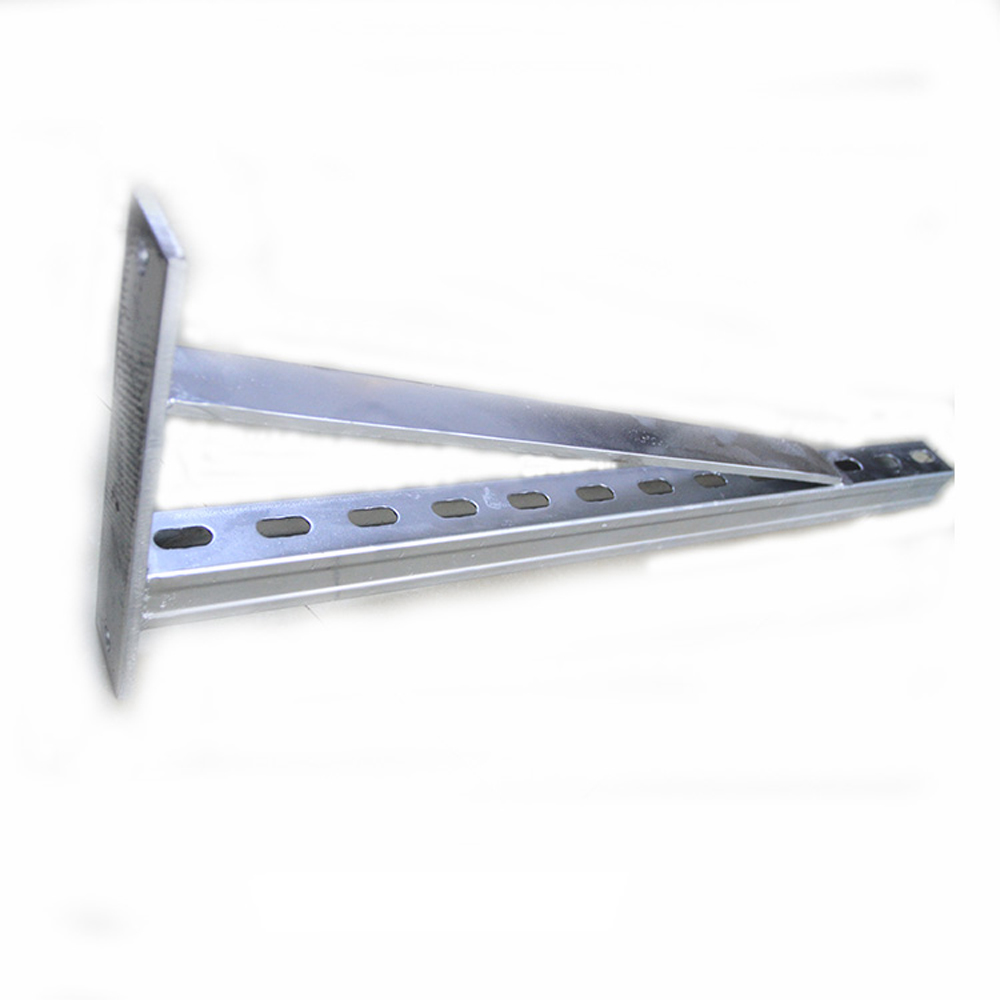

The UTT7241B cantilever bracket is a robust carbon steel wall-mounted support customized to fit standard strut channel systems. With full electro-galvanized surface treatment, it provides outstanding anti-rust performance and stable load capacity for long-term indoor construction use. Its integrated triangular reinforcement structure effectively disperses vertical and seismic loads, widely adopted in MEP, HVAC and fire protection pipeline projects to build tidy pipe racks.
Key Features
Material: High strength carbon steel
Surface Finish: Electro-galvanized, anti-corrosion & rust-proof
Reinforcement Design: Built-in triangular support for enhanced load resistance
Matching Accessory: Compatible with all standard gauge strut channels
Installation: Quick wall-mounted fixing with standard construction bolts
Certification: ISO 9001 factory certified, complies with MEP seismic support standards
Product Parameter Table
| Item | Specification |
| Model | UTT7241B |
| Raw Material | High-quality carbon steel |
| Surface Treatment | Electro-galvanized zinc coating |
| Compatible Channel | Standard solid & slotted strut channel |
| Load Feature | Triangular reinforced, anti-seismic load dispersion |
| Application Scenarios | MEP/HVAC/Fire protection pipe rack wall support |
| Custom Service | Custom length, thickness & coating available |
| Sample Supply | Free samples for quality verification |
Application Scenarios
1. MEP & HVAC Engineering

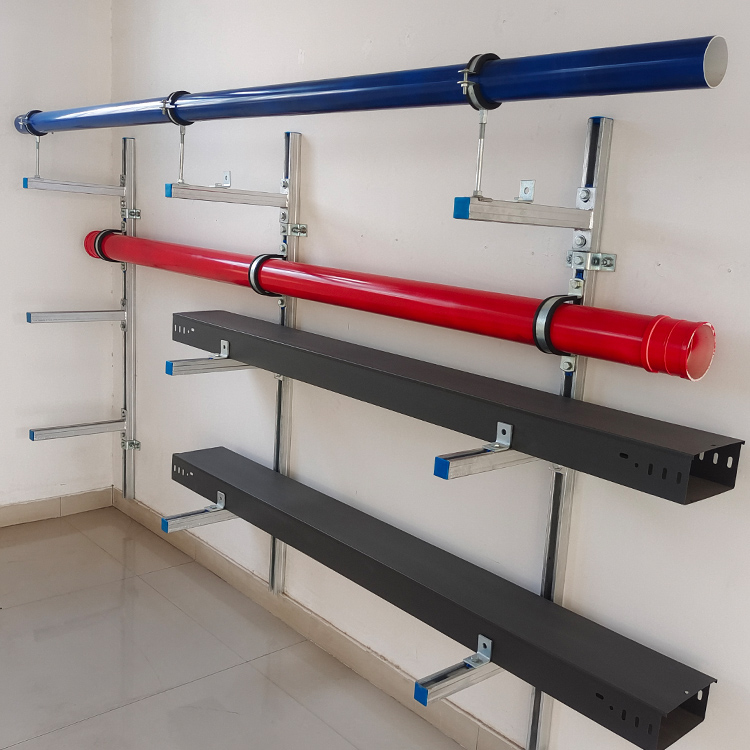

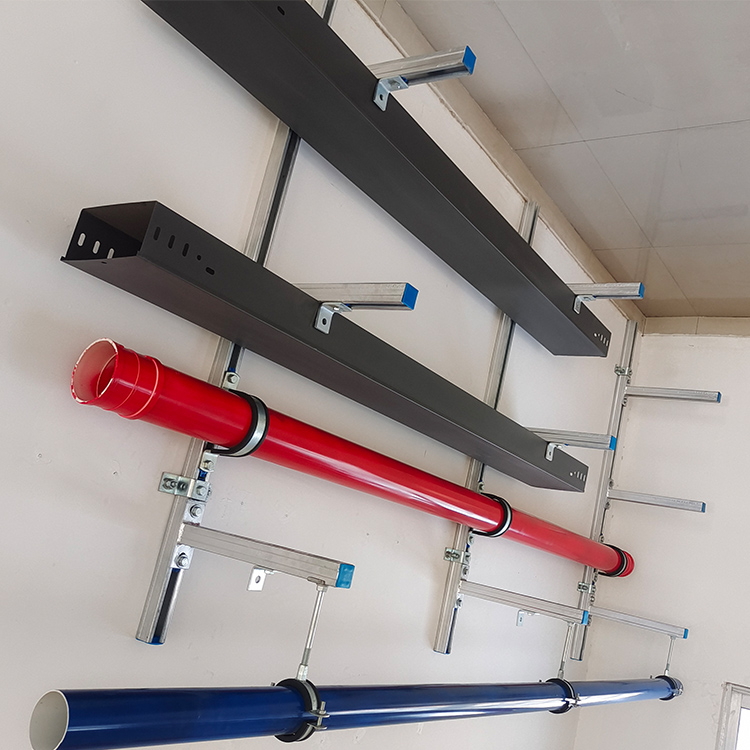

Perfect for constructing wall-mounted pipe racks for cold/hot water pipes, ventilation ducts and electrical conduits in commercial and residential buildings. The compact triangular structure saves ceiling and wall space.
2. Fire Protection Sprinkler Systems
Supports fire sprinkler pipeline racks firmly, offsets pipeline vibration and seismic displacement, fully meets fire protection construction codes.
3. Factory Industrial Pipeline Layout
Ideal for chemical, pharmaceutical and manufacturing workshops, organizes dense parallel pipelines neatly and withstands long-term dynamic loads.
Step-by-Step Installation Guide
Mark fixed hole positions on the wall according to bracket size;
Drill holes and install expansion bolts to lock the UTT7241B bracket on wall;
Align standard strut channel into the bracket front groove and fasten with bolts;
Mount pipe clamps and pipelines on the strut channel;
Double-check all bolts to ensure stable bearing before pipeline commissioning.
Note: Compatible with all our brand strut channel and seismic pipe clamps, forming a complete pipeline support system.
Industry Certifications
Complies with international MEP seismic bracing design standards
ISO 9001 Quality Management System factory certification
Electro-galvanized coating meets construction hardware anti-corrosion industry standards
Each batch passes factory load capacity and vibration resistance testing
Core Product Advantages
Heavy-Duty Carbon Steel Structure
High tensile strength carbon steel resists bending and deformation under heavy vertical loads or seismic shocks.
Full Electro-Galvanized Anti-Rust Coating
Uniform zinc layer blocks moisture erosion, maintaining long service life in humid indoor environments.
Triangular Reinforced Load Dispersion Design
Built-in triangular rib structure evenly distributes pipeline weight, greatly improving overall bearing capacity compared to flat brackets.
Universal Strut Channel Matching
Standard front groove design fits all solid & slotted gauge strut channels, no customized processing required on site.
Time-Saving Wall Mount Installation
Only common expansion bolts needed for wall fixing, cutting field installation labor time and construction cost.
Free Samples & Customized Support
Free test samples available for bulk order quality inspection; custom bracket length, thickness and surface coating can be made for special engineering projects.
FAQ
Q1: What is the UTT7241B cantilever bracket used for? A1: It is a wall-mounted carbon steel support for building strut channel pipe racks, supporting MEP, HVAC and fire protection pipelines.
Q2: Which strut channels are compatible with this bracket? A2: It matches all standard solid and slotted gauge strut channels on the market.
Q3: Will the electro-galvanized coating rust easily in humid spaces? A3: No, the dense electro-galvanized zinc layer provides reliable anti-corrosion performance for long-term indoor humid use.
Q4: Can I get free samples of UTT7241B? A4: Yes, we supply free samples for all buyers to check product quality before bulk purchase.
Q5: Can this bracket be customized for special projects? A5: Custom length, steel thickness and surface finishes are supported to satisfy unique engineering requirements.
