What Is The Difference Between Lateral And Longitudinal Seismic Bracing?

Views: 0 Author: Site Editor Publish Time: 2026-06-05 Origin: Site

Inquire

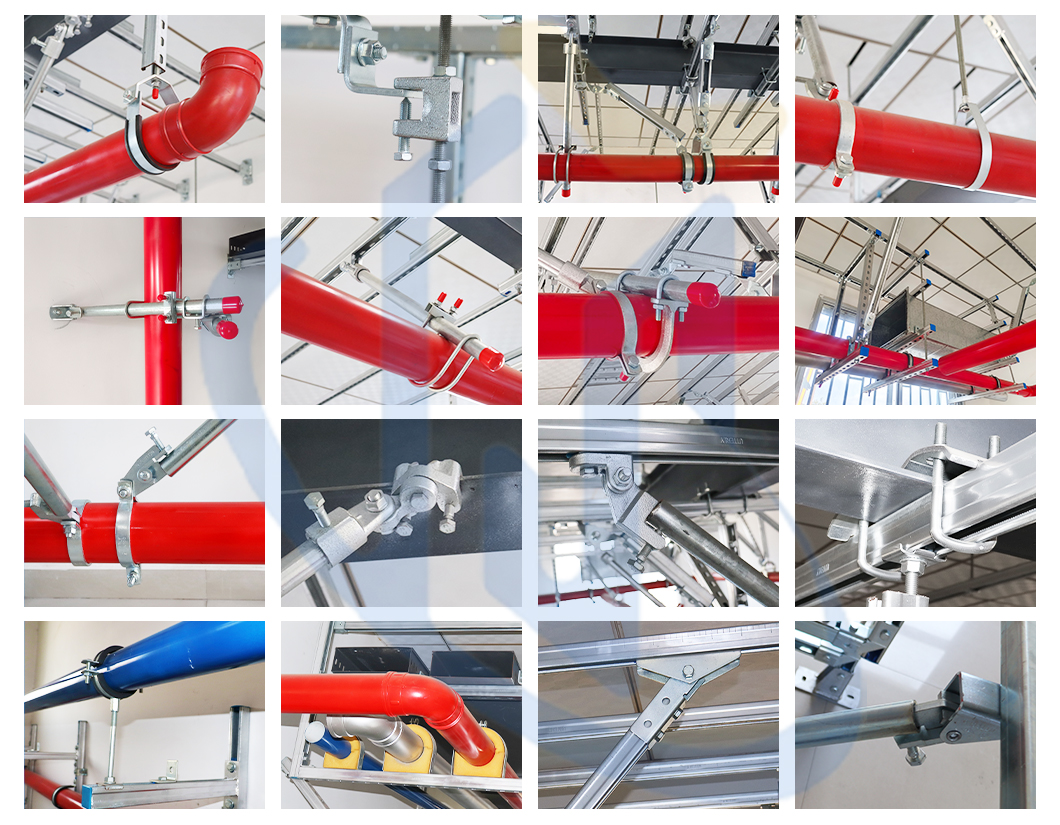

Seismic bracing is split into two core categories including lateral bracing and longitudinal bracing per NFPA 13 and US building codes. Most mechanical engineers and installers often confuse these two installation types during on-site layout, which may lead to unqualified construction and inspection failure. Lateral and longitudinal supports undertake different stress directions when earthquakes occur, so matching the correct fittings directly decides the whole pipeline's anti-seismic performance. This article details their definition, load features, installation differences, applicable pipelines and matching certified components to help you arrange bracing design properly. View lateral & longitudinal bracing fittings. 应用图-1

Definition & Force Bearing Principle

Lateral Seismic Bracing

Lateral bracing is installed perpendicular to the running direction of pipes or ducts, designed to restrict horizontal side-to-side sway caused by seismic shocks. Earthquake waves push pipelines left and right, and lateral supports lock the lateral displacement to avoid pendulum-style shaking that tears pipe joints. It is the most widely used bracing type for fire sprinkler, HVAC and plumbing systems across American projects.

Longitudinal Seismic Bracing

Longitudinal bracing runs parallel with pipeline centerline to resist front and back axial pulling force. Without qualified longitudinal restraints, pipes will stretch or compress along their own axis under seismic load, resulting in pipeline burst and medium leakage. Four-way bracing needs both lateral and longitudinal fittings fixed near one same anchor point. 4-way seismic attachment product page.

Key Differences In Installation & Design Standard

Installation Angle Requirement

Lateral bracing commonly adopts 45°~90° installing angle relative to pipes, while most longitudinal in-line connectors are designed for 30°~60° layout. The allowable load of every FM UL certified fitting declines when the installation angle becomes smaller, which must be calculated during design.

Spacing Specification Per NFPA 13

US NFPA 13 has clear limit on maximum spacing of two adjacent braces. Lateral supports usually need shorter installation spacing than longitudinal ones for small-bore sprinkler pipes. Improper spacing is one of the top reasons for inspection rejection in US commercial buildings.

Matching Certified Components For Two Bracing Types

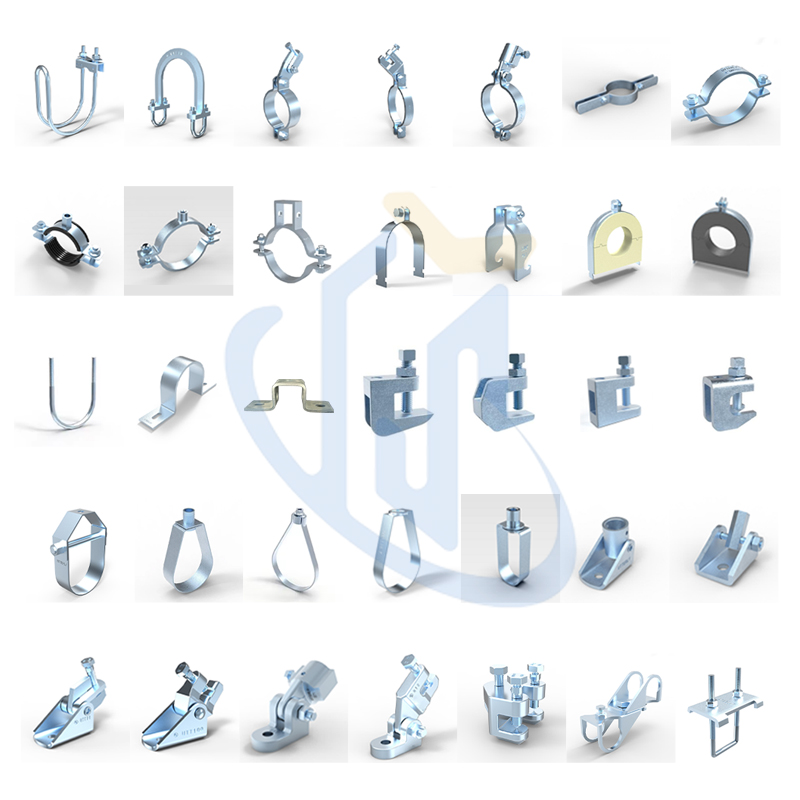

Lateral bracing: Universal swivel hinge, C-type structural attachment, standard pipe clamps

Longitudinal bracing: In-line longitudinal sway brace attachments, straight connection fittings

All matching parts from our factory pass FM UL certification with complete load test data. Longitudinal in-line brace clamp.

Two Core Specification Tables

Table1: Lateral & Longitudinal Fitting Basic Specification

Item	Component	Material	Surface Finish	Available Size
Lateral Fitting	Swivel Seismic Hinge	QT450 Ductile Iron / Carbon Steel	Electro-galvanized	Up to 8 inch
Longitudinal Fitting	In Line Straight Attachment	High-strength Carbon Steel	Electro-galvanized	2~8 inch
Support Carrier	C-shaped Steel Connector	Carbon Steel	Hot-dip Galvanized	41×21mm standard strut

Table2: SCH40 Support Pipe FM UL Rated Load Reference

SCH40 Pipe Size	UL Max Vertical Load	FM Load(30°-44°)	FM Load(45°-59°)
1 inch	1885 lbs(8.38kN)	1490 lbs(6.62kN)	1980 lbs(8.80kN)
2 inch	680 lbs(3.02kN)	590 lbs(2.62kN)	840 lbs(3.73kN)

Product Core Advantages

✅ FM UL CE certified compliant with NFPA & IBC US building codes

✅ Dual raw material: QT450 ductile iron and high strength carbon steel

✅ Angle adjustable design fits both lateral & longitudinal layout demands

✅ Load data verified under 30°/45°/90° different installation angles

✅ Electro/Hot dip galvanized dual anti-corrosion treatment option

✅ Custom OEM ODM available for special US project demands .Custom seismic fittings solution.

Suitable Application Scenarios

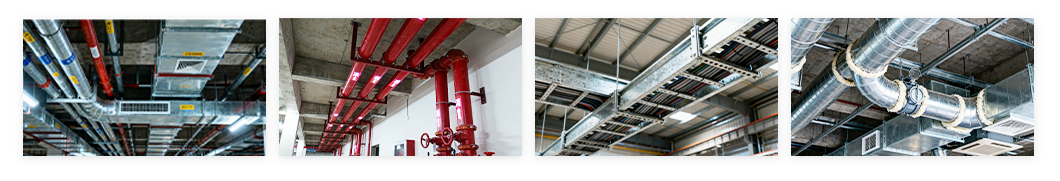

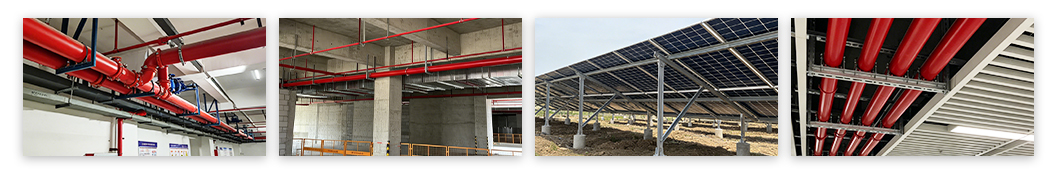

Fire protection sprinkler pipeline systems (1/2~8in US standard pipe)Large size HVAC ventilation duct lateral & longitudinal fixingDomestic and industrial cold/hot water piping layoutElectrical cable tray anti-seismic restraint installationApplicable for shopping malls, factory plants and high-rise buildings all over USA.

产品应用

产品应用1

About Utterly TY Factory

We specialize in manufacturing lateral and longitudinal seismic bracing accessories with full set of FM UL CE certification documents. All items undergo cyclic load test and salt spray inspection before shipment. Our technical team can provide free CAD/BIM drawing to help engineers finish bracing layout quickly. Products sell to North America, Middle East and many other global regions.Company official catalog download.

Conclusion

Distinguishing lateral and longitudinal seismic bracing is the foundation of qualified pipeline anti-seismic design. Confirm force direction, installation angle and matching certified parts before construction. Utterly TY's full range lateral & longitudinal certified fittings can satisfy all kinds of US project bracing configuration needs.
