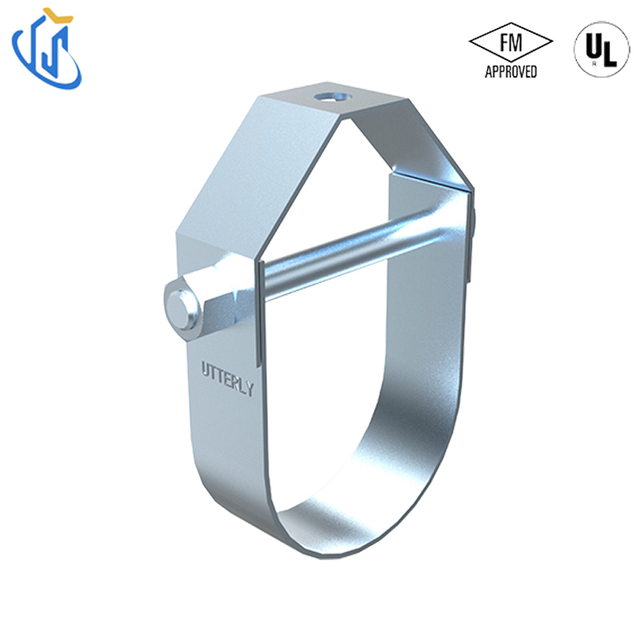

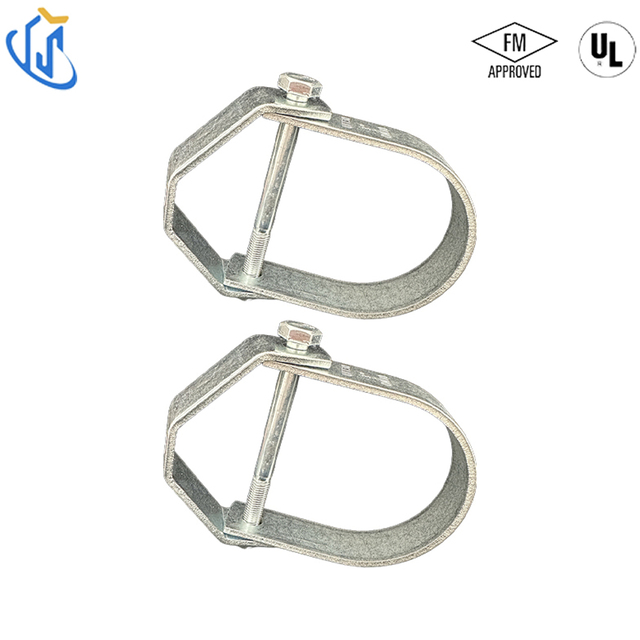

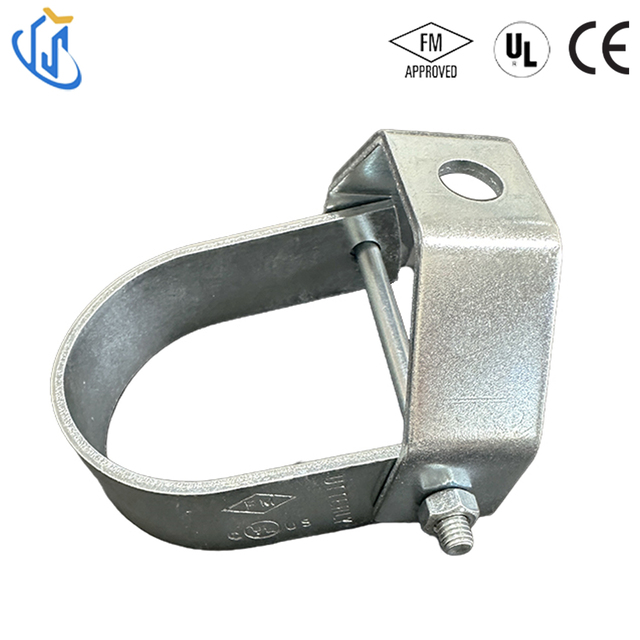

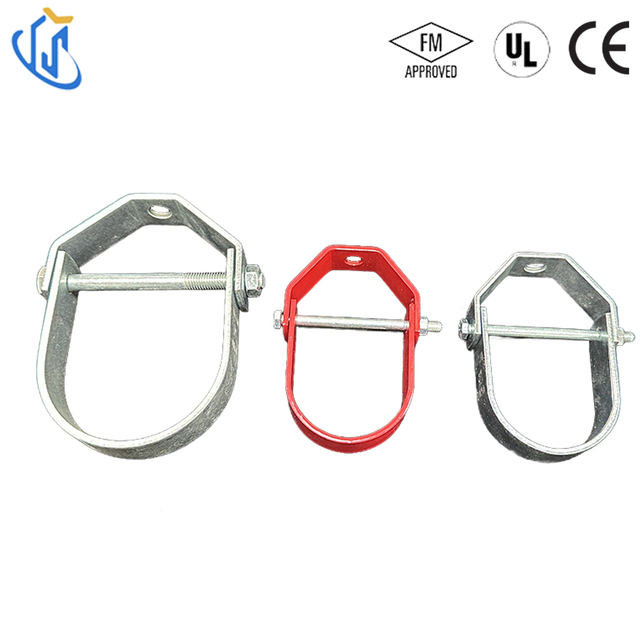

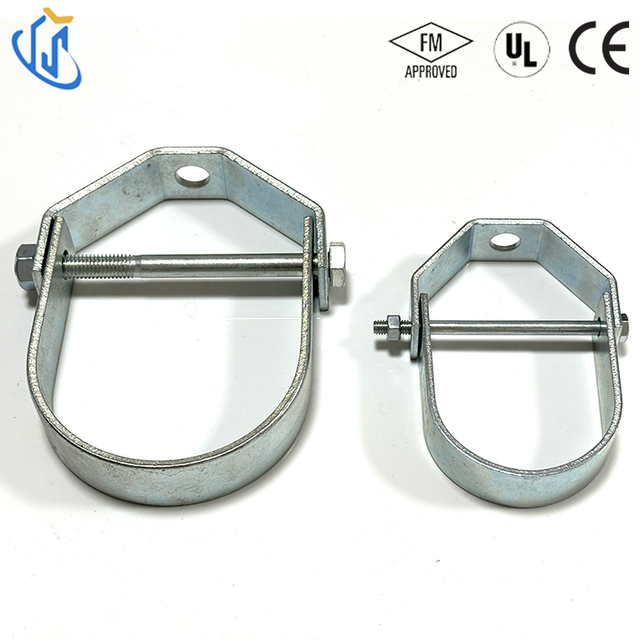

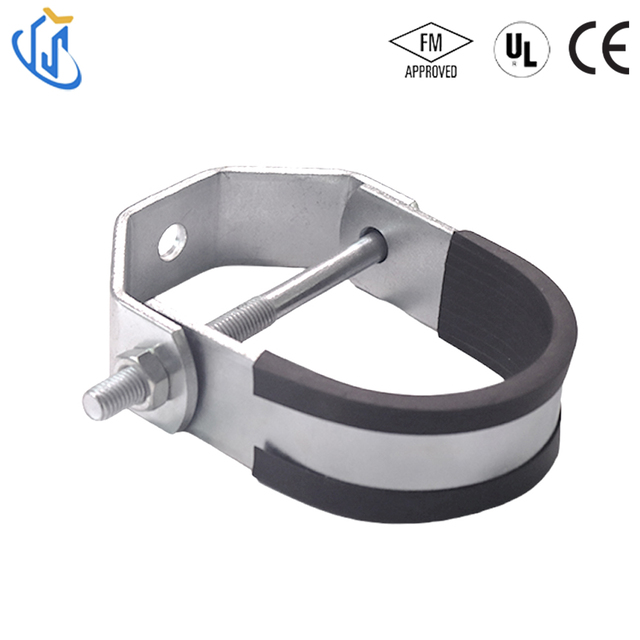

UTT30 Clevis Hanger is a heavy-duty adjustable pipe support designed for suspended piping in fire sprinkler, MEP, HVAC and industrial systems. It allows vertical height adjustment after installation and meets strict industry standards. Built from carbon steel with zinc plating, it provides reliable long-term support for pipes ranging from 1/2” to 12”.
Allows vertical pipe height adjustment after installation
Max temperature: Plain 650°F, Galvanized 450°F
Conforms to WW-H-171 (Type 1) & MSS SP-69 (Type 1)
Size range: 1/2” through 12” (DN15–DN300)
Material: Carbon steel, pre-galvanized
Finish: Zinc plate for corrosion resistance
Certifications: FM & UL approved
Recommended for insulated and non-insulated pipes
Item | Specification |
|---|---|
Model | UTT30 |
Raw Material | Carbon steel, pre-galvanized |
Surface Treatment | Zinc plate |
Size Range | 1/2” – 12” (DN15 – DN300) |
Max Temp (Plain) | 650°F |
Max Temp (Galvanized) | 450°F |
Standards | WW-H-171 Type 1, MSS SP-69 Type 1 |
Certification | FM, UL |
Max Recommended Load | 750–7900 lbs (3.34–35.14 kN) |
Application | MEP, fire sprinkler, HVAC, industrial piping |

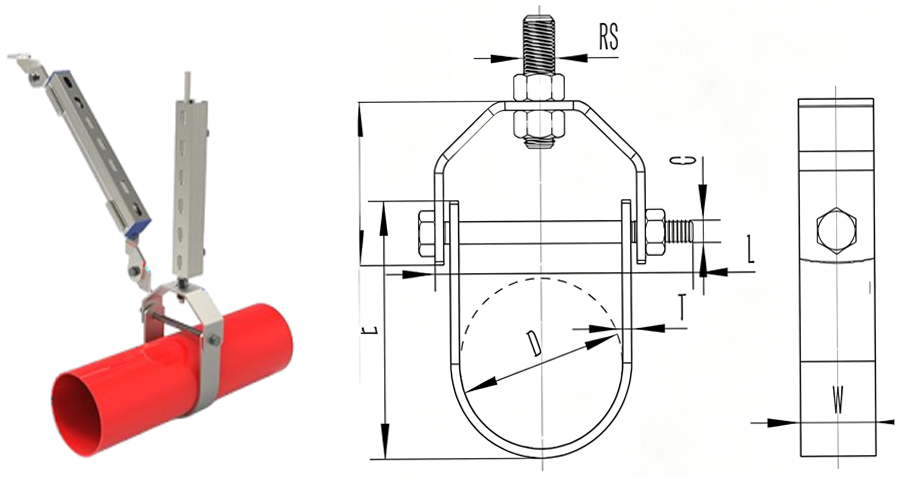

Size | B | C | D | W | |||||
in | mm | in | mm | in | mm | in | mm | in | mm |
1/2" | DN15 | 1.57 | 39.4 | 1/4" | M6 | 1/2" | 21.3 | 0.87 | 22 |
3/4" | DN20 | 1.57 | 39.4 | 1/4" | M6 | 3/4" | 26.7 | 0.87 | 22 |
1" | DN25 | 1.62 | 40.6 | 1/4" | M6 | 1" | 33.4 | 0.87 | 22 |
1-1/4" | DN32 | 2.13 | 53.5 | 1/4" | M6 | 1-1/4" | 42.2 | 0.87 | 22 |
1-1/2" | DN40 | 2.13 | 53.5 | 1/4" | M6 | 1-1/2" | 48.3 | 0.87 | 22 |
2" | DN50 | 2.13 | 53.5 | 1/4" | M6 | 2" | 60.3 | 0.98 | 25 |
2-1/2" | DN65 | 2.45 | 61.5 | 3/8" | M10 | 2-1/2" | 73 | 0.98 | 25 |
3OD | 2.45 | 61.5 | 3/8" | M10 | 76 | 0.98 | 25 | ||
3" | DN80 | 2.69 | 67.5 | 3/8" | M10 | 3" | 88.9 | 1.18 | 30 |
3-1/2" | DN90 | 2.87 | 72 | 3/8" | M10 | 3-1/2" | 101.6 | 1.18 | 30 |
4" | DN100 | 3.31 | 83.2 | 1/2" | M12 | 4" | 114.3 | 1.18 | 30 |
5" | DN125 | 4.16 | 104.5 | 1/2" | M12 | 5" | 141.3 | 1.57 | 40 |
6" | DN150 | 5.17 | 129.8 | 1/2" | M12 | 6" | 168.3 | 1.57 | 40 |
8" | DN200 | 5.64 | 141.6 | 5/8" | M16 | 8" | 219.1 | 1.57 | 40 |
10" | DN250 | 6.01 | 150.8 | 3/4" | M20 | 10" | 273 | 1.97 | 50 |
12" | DN300 | 6.14 | 154 | 3/4" | M20 | 12 | 323.9 | 1.97 | 50 |
Size | T | L | RS | Max. Rec.Load | |||||
in | mm | in | mm | in | mm | in | mm | lbs | KN |
1/2" | DN15 | 0.1 | 2.5 | 2.17 | 55 | 3/8" | M10 | 750 | 3.34 |
3/4" | DN20 | 0.1 | 2.5 | 2.17 | 55 | 3/8" | M10 | 750 | 3.34 |
1" | DN25 | 0.1 | 2.5 | 2.36 | 60 | 3/8" | M10 | 750 | 3.34 |
1-1/4" | DN32 | 0.1 | 2.5 | 3.15 | 80 | 3/8" | M10 | 750 | 3.34 |
1-1/2" | DN40 | 0.1 | 2.5 | 3.15 | 80 | 3/8" | M10 | 750 | 3.34 |
2" | DN50 | 0.12 | 2.5 | 3.54 | 90 | 3/8" | M10 | 750 | 3.34 |
2-1/2" | DN65 | 0.12 | 2.5 | 4.72 | 120 | 1/2" | M12 | 850 | 3.78 |
3OD | 0.12 | 2.5 | 4.72 | 120 | 1/2" | M12 | 850 | 3.78 | |
3" | DN80 | 0.12 | 3 | 4.72 | 120 | 1/2" | M12 | 1050 | 4.67 |
3-1/2" | DN90 | 0.16 | 3 | 5.51 | 140 | 1/2" | M12 | 1250 | 5.56 |
4" | DN100 | 0.16 | 3 | 5.91 | 150 | 5/8" | M16 | 1500 | 6.67 |
5" | DN125 | 0.2 | 5 | 7.09 | 180 | 5/8" | M16 | 2000 | 8.9 |
6" | DN150 | 0.2 | 5 | 8.66 | 220 | 3/4" | M20 | 2650 | 11.79 |
8" | DN200 | 0.2 | 5 | 11.02 | 280 | 3/4" | M20 | 4050 | 18.02 |
10" | DN250 | 0.24 | 6 | 13.39 | 340 | 7/8" | M22 | 5850 | 26.02 |
12" | DN300 | 0.24 | 6 | 14.96 | 380 | 7/8" | M22 | 7900 | 35.14 |

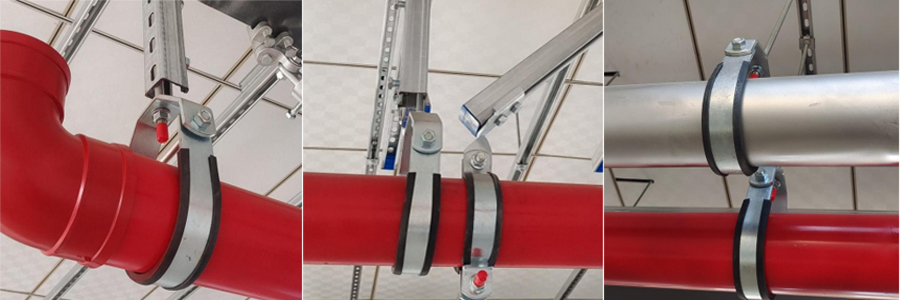

Fire Sprinkler Systems
Reliable vertical support for fire protection pipes in compliance with NFPA and FM standards.
MEP & HVAC Installations
Ideal for water, drainage, air conditioning and mechanical piping in commercial and residential buildings.
Industrial & Infrastructure
Suitable for factories, utilities, hospitals, data centers and high-rise constructions.

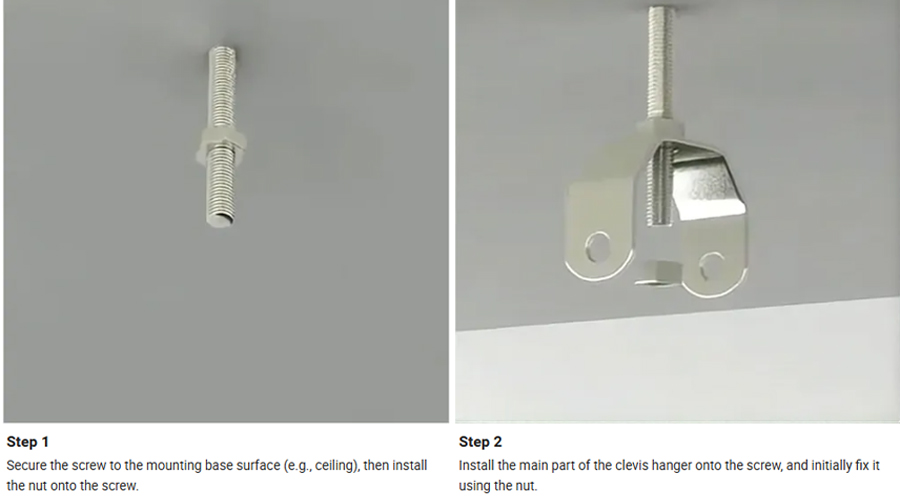

Secure the threaded rod to the ceiling or structural base.
Install a nut onto the threaded rod.
Attach the UTT30 clevis hanger body to the rod and secure with a second nut.
Adjust the hanger height to align with the pipeline.

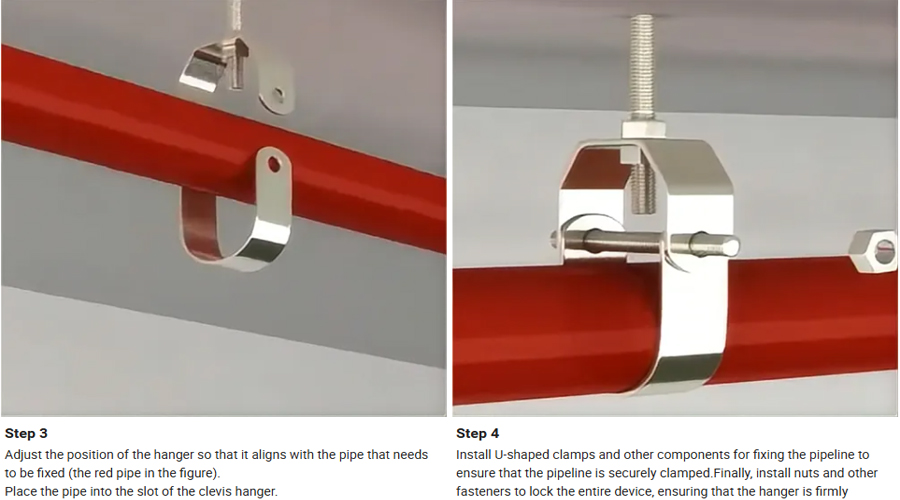

Place the pipe into the hanger slot.
Install the U-strap and fasteners, then tighten all nuts to lock the assembly.
FM & UL certified
Complies with Federal Specification WW-H-171 (Type 1)
Complies with MSS SP-69 (Type 1)
Factory load-tested for safety and reliability
Allows height adjustment after installation without removing the pipe.
Suitable for hot piping systems up to 650°F (plain finish).
Carbon steel construction with zinc plating provides strength and corrosion protection.
Meets strict US and international piping support standards.
Covers all common pipe sizes from 1/2” to 12”.
Simple bolt-on design reduces labor time and improves installation efficiency.
Q1: What is the function of UTT30 Clevis Hanger?
A1: It supports suspended pipes and allows vertical height adjustment after installation.
Q2: What pipe sizes does UTT30 fit?
A2: It fits pipes from 1/2” up to 12” (DN15–DN300).
Q3: Is UTT30 certified?
A3: Yes, it is FM and UL certified and meets industry standards.
Q4: What material is UTT30 made of?
A4: Carbon steel, pre-galvanized with zinc plate finish.
Q5: Can it be used on insulated pipes?
A5: Yes, select the appropriate size based on outer diameter and use insulation shields.
