UTT40
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface: | |
| Quantity: | |

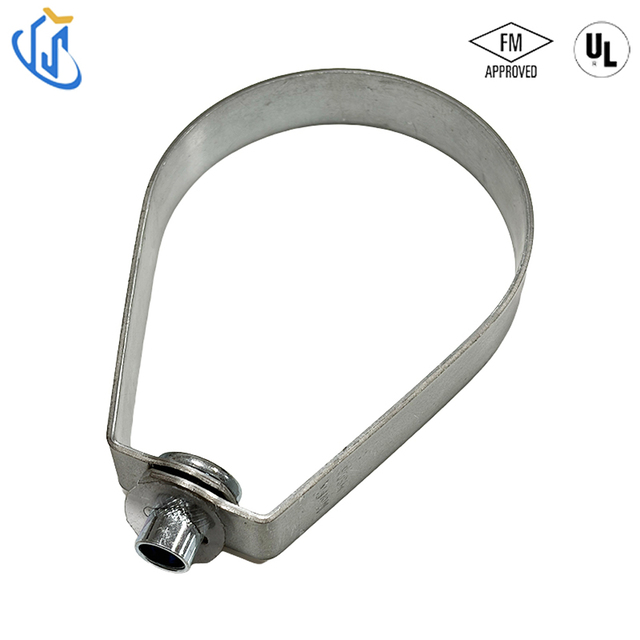

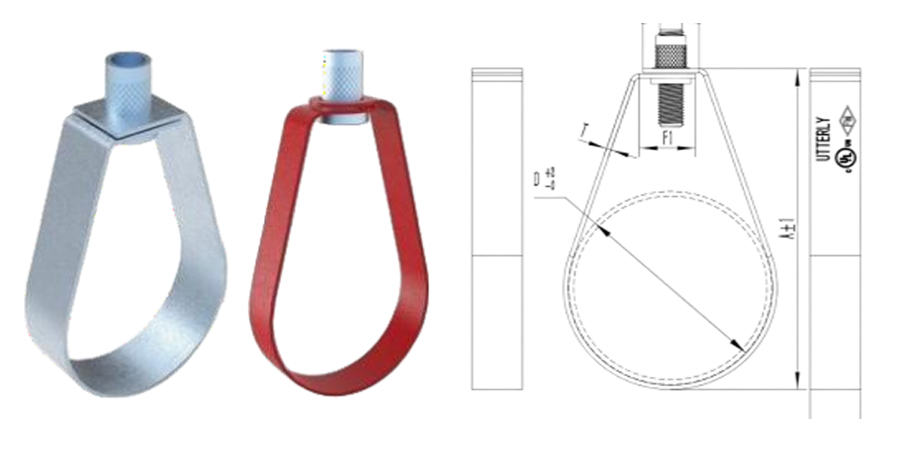

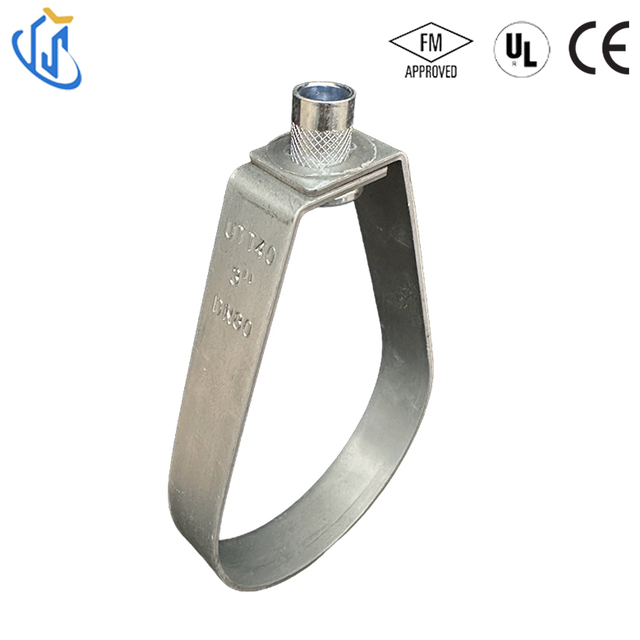

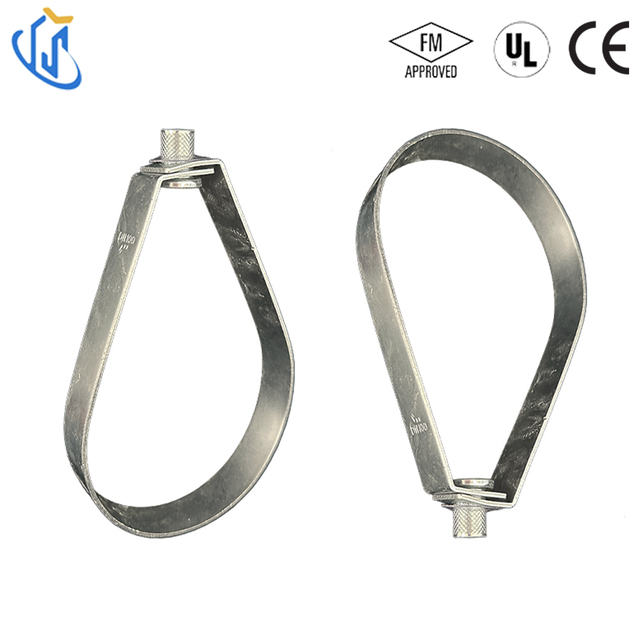

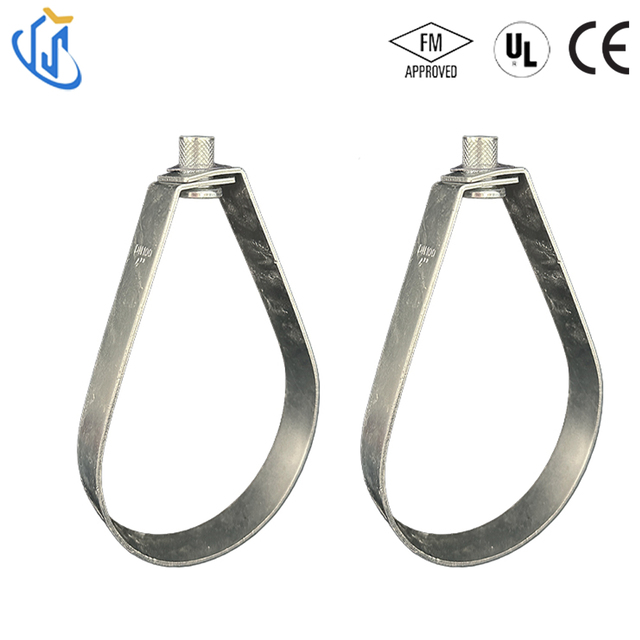

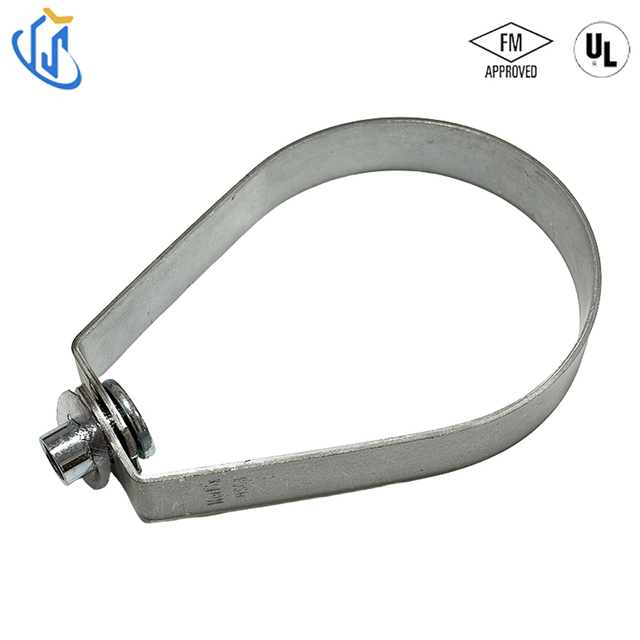

UTT40 Swivel Band Hanger is a heavy-duty pipe suspension fitting designed for stationary non-insulated pipelines in fire sprinkler, MEP, HVAC and industrial systems. It features a keyed insert nut to keep components secured together and meets strict US industry standards. Built from carbon steel with zinc plating, it provides reliable long-term support for pipes ranging from 1/2” to 12”.
Recommended for suspension of stationary non-insulated pipelines
Equipped with keyed insert nut to keep hanger and nut assembled
Insert nut is removable if required
Complies with A-A-1192A (Type10) & MSS SP-36 (Type 10)

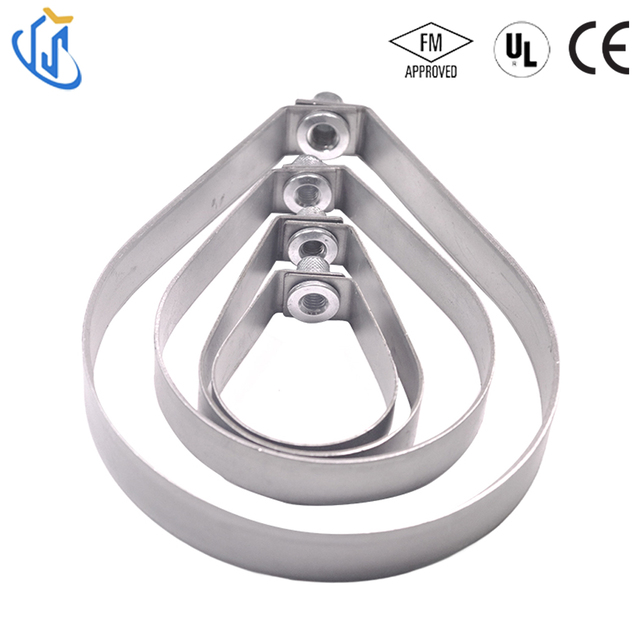

Size range: 1/2” through 12” (DN15–DN250)
Material: Carbon steel
Finish: Zinc plate for corrosion resistance
Certifications: FM & UL approved
Item | Specification |
|---|---|
Model | UTT40 |
Raw Material | Carbon steel |
Surface Treatment | Zinc plate |
Size Range | 1/2” – 12” (DN15 – DN250) |
Application | Suspension of stationary non-insulated pipelines |
Standards | A-A-1192A Type10, MSS SP-36 Type 10 |
Certification | FM, UL |

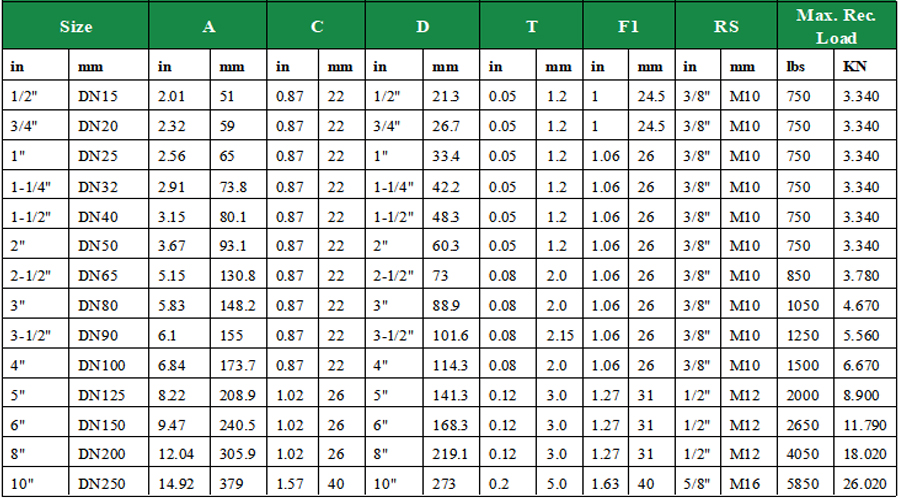

Max Recommended Load | 750–5850 lbs (3.34–26.02 kN) |
Design Feature | Keyed insert nut, removable if needed |

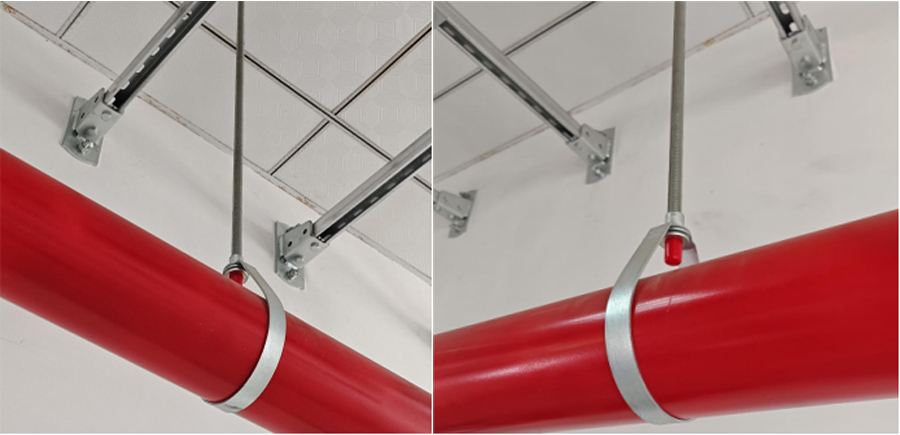

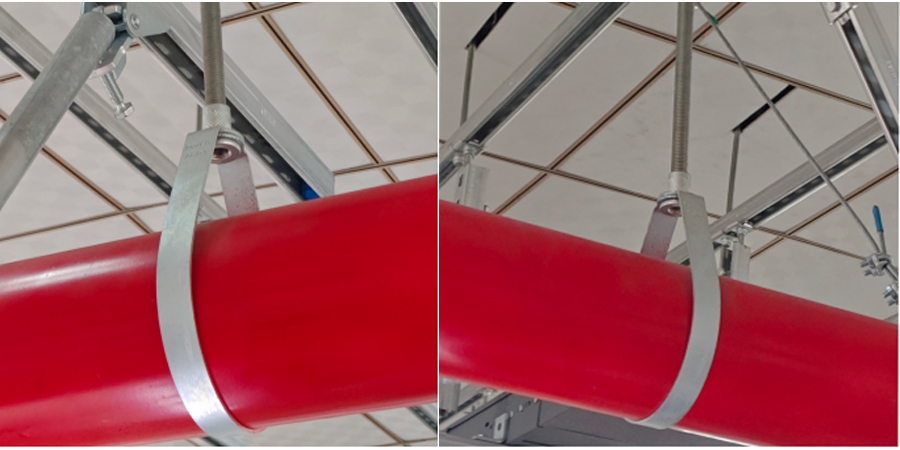

Fire Sprinkler Systems
Stable vertical suspension for fire protection pipes in compliance with FM/UL standards.
MEP & HVAC Installations
Ideal for stationary non-insulated water, drainage and mechanical piping in commercial and residential buildings.
Industrial & Infrastructure
Suitable for factories, utilities, hospitals, data centers and high-rise constructions.

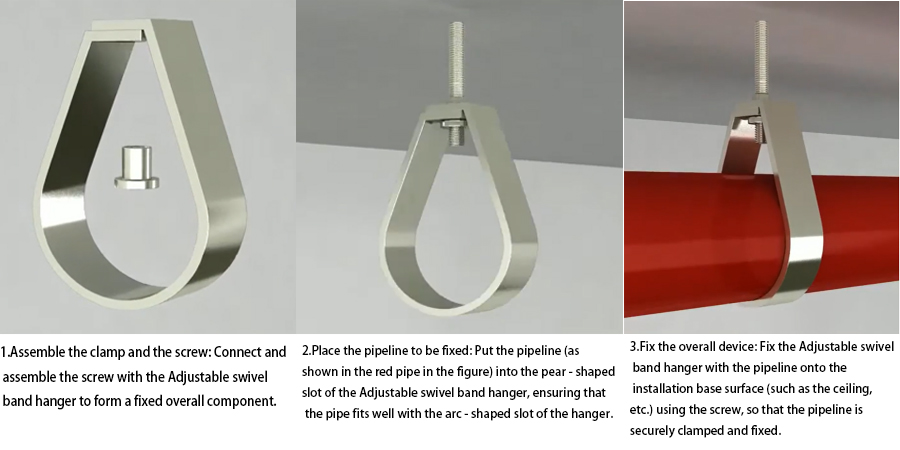

Assemble the threaded rod with the UTT40 swivel band hanger to form a complete assembly.
Place the pipeline into the pear-shaped slot of the hanger, ensuring full contact with the arc seat.
Mount the assembled hanger and pipe to the ceiling or structural base using the threaded rod.
Tighten all fasteners to secure the pipeline firmly in place.
FM & UL certified
Complies with Federal Specification A-A-1192A (Type10)
Complies with MSS SP-36 (Type 10)
Factory load-tested for safety and reliability
Keyed insert nut ensures the hanger and nut stay connected, preventing separation during installation.
Carbon steel body with zinc-plated finish provides strength and long-term rust protection.
Meets strict US and international piping support standards for code-ready installation.
Covers all common pipe sizes from 1/2” to 12”.
Simple structure enables quick on-site assembly, reducing labor time.
Flexible design allows nut removal for special installation needs.
Q1: What is UTT40 Swivel Band Hanger used for?
A1: It is used to suspend stationary non-insulated pipelines in fire, MEP and HVAC systems.
Q2: What pipe sizes does UTT40 fit?
A2: It fits pipes from 1/2” up to 12” (DN15–DN250).
Q3: Is UTT40 certified?
A3: Yes, it is FM and UL certified and meets A-A-1192A and MSS SP-36 standards.
Q4: What material is UTT40 made of?
A4: Carbon steel with zinc-plated finish.
Q5: Can the insert nut be removed?
A5: Yes, the keyed insert nut can be removed if required for specific applications.
