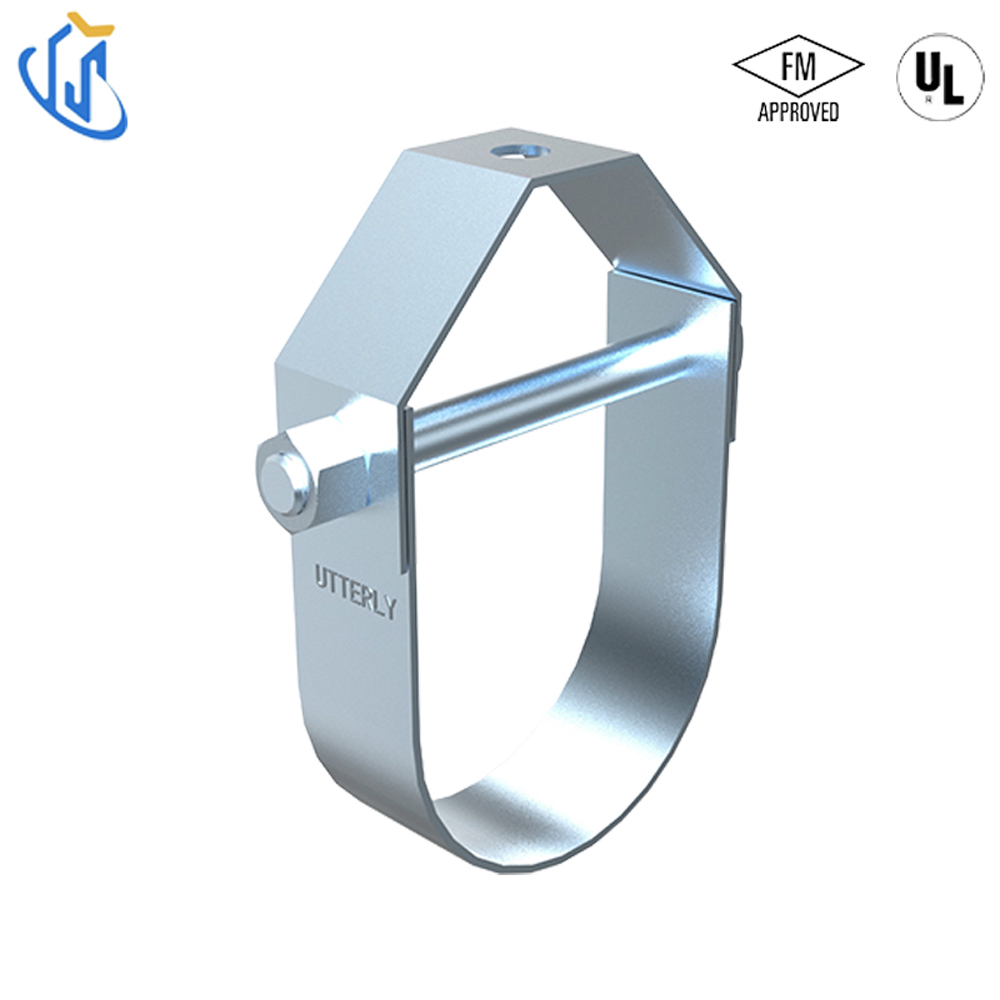

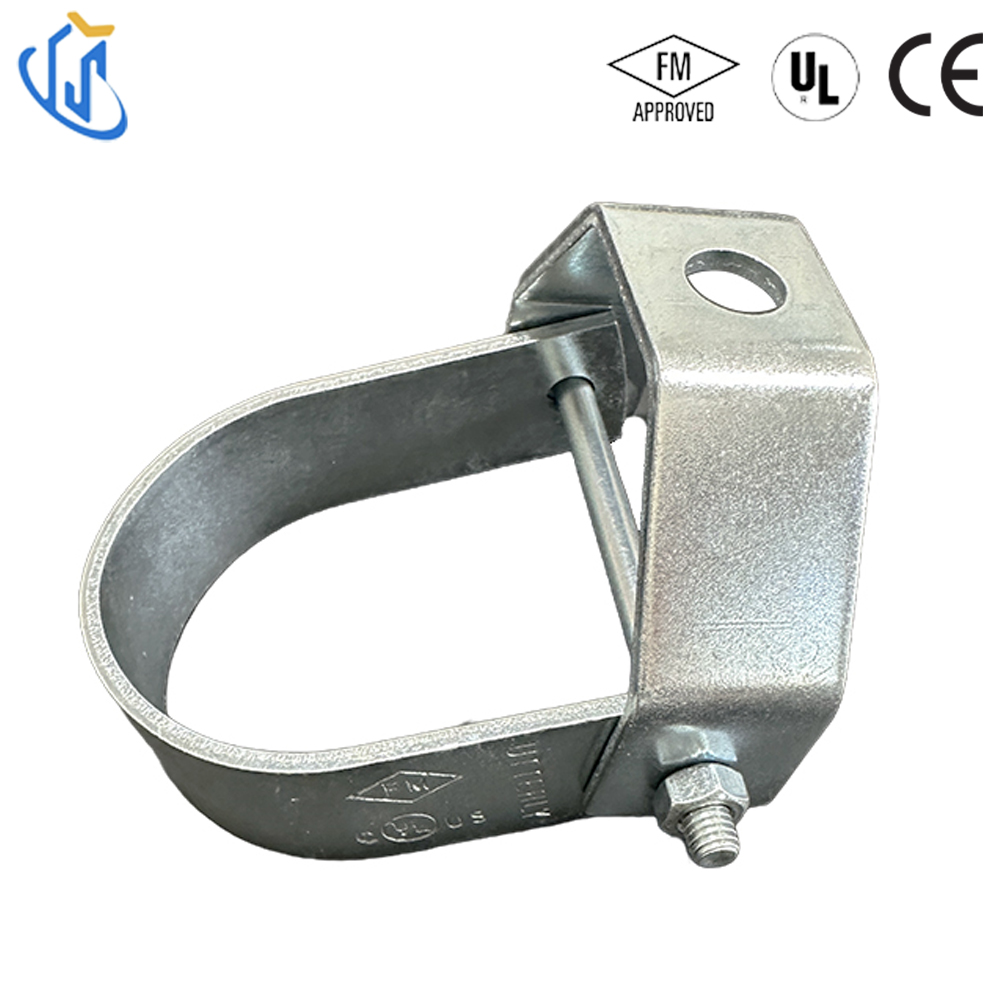

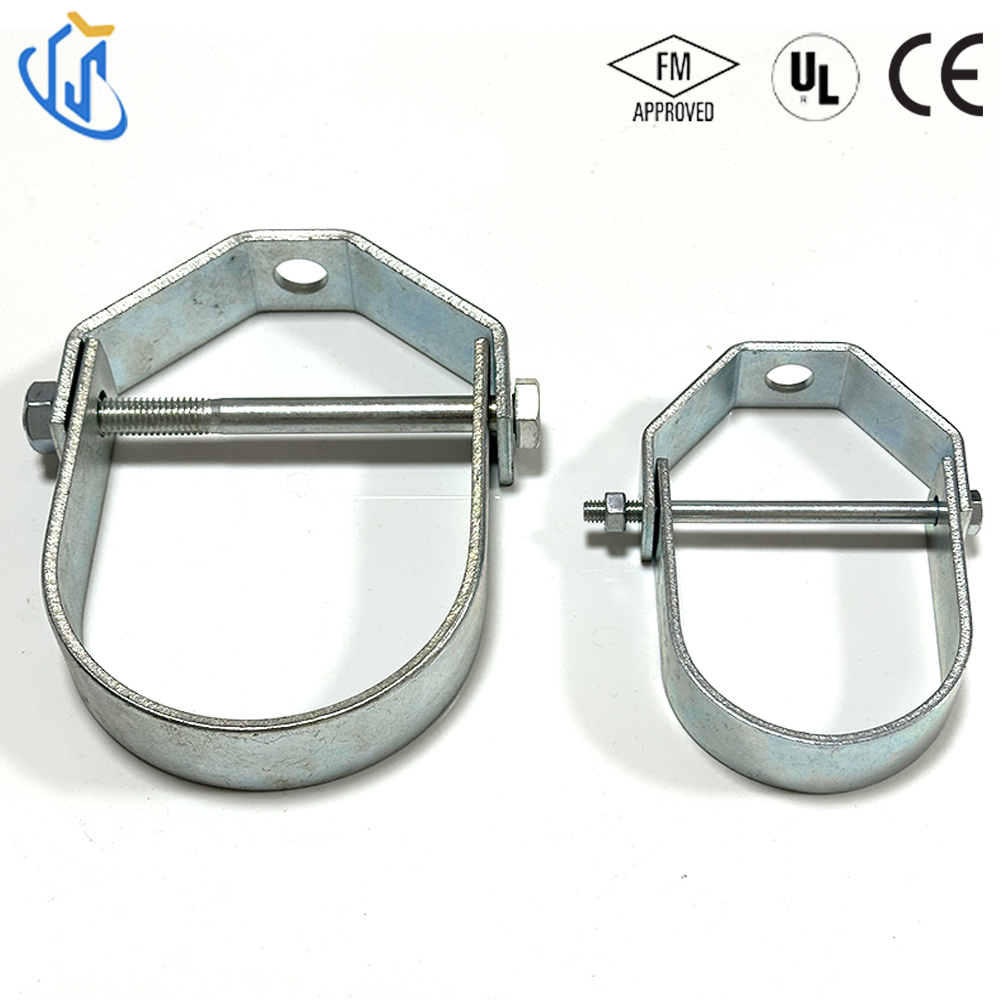

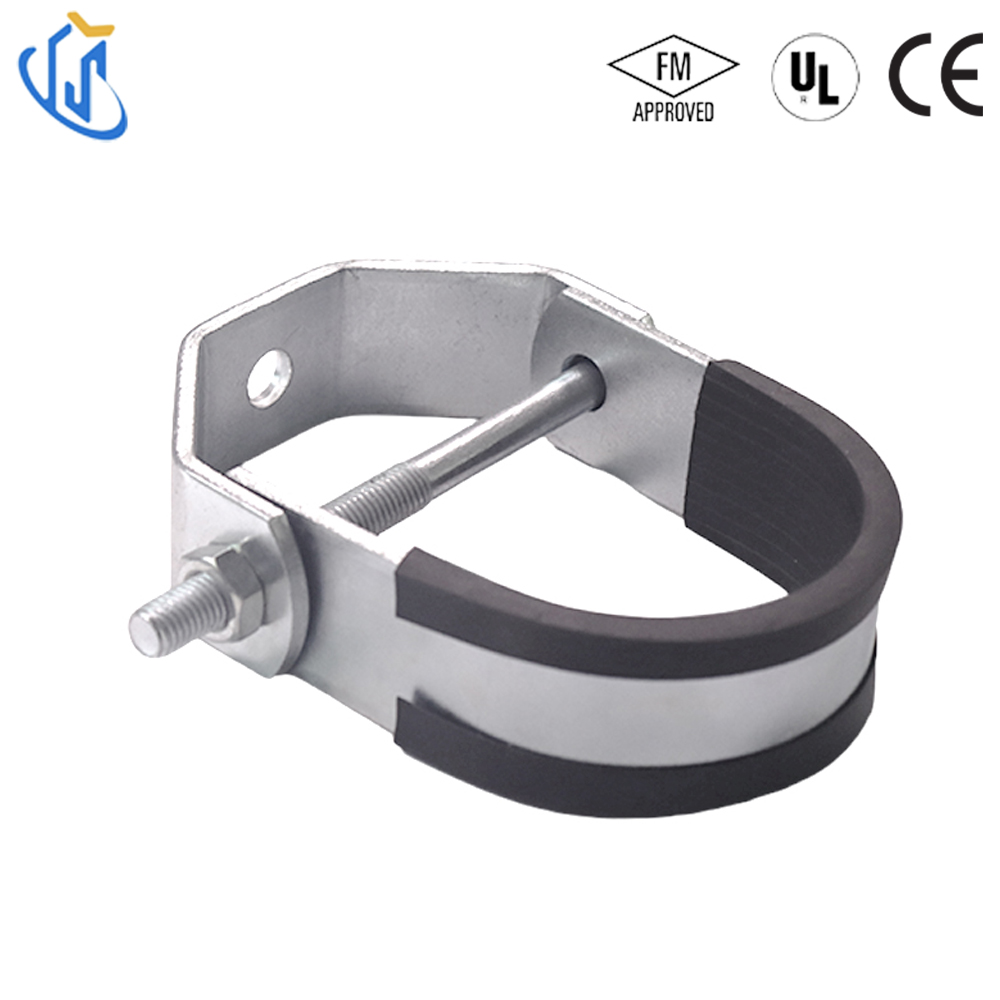

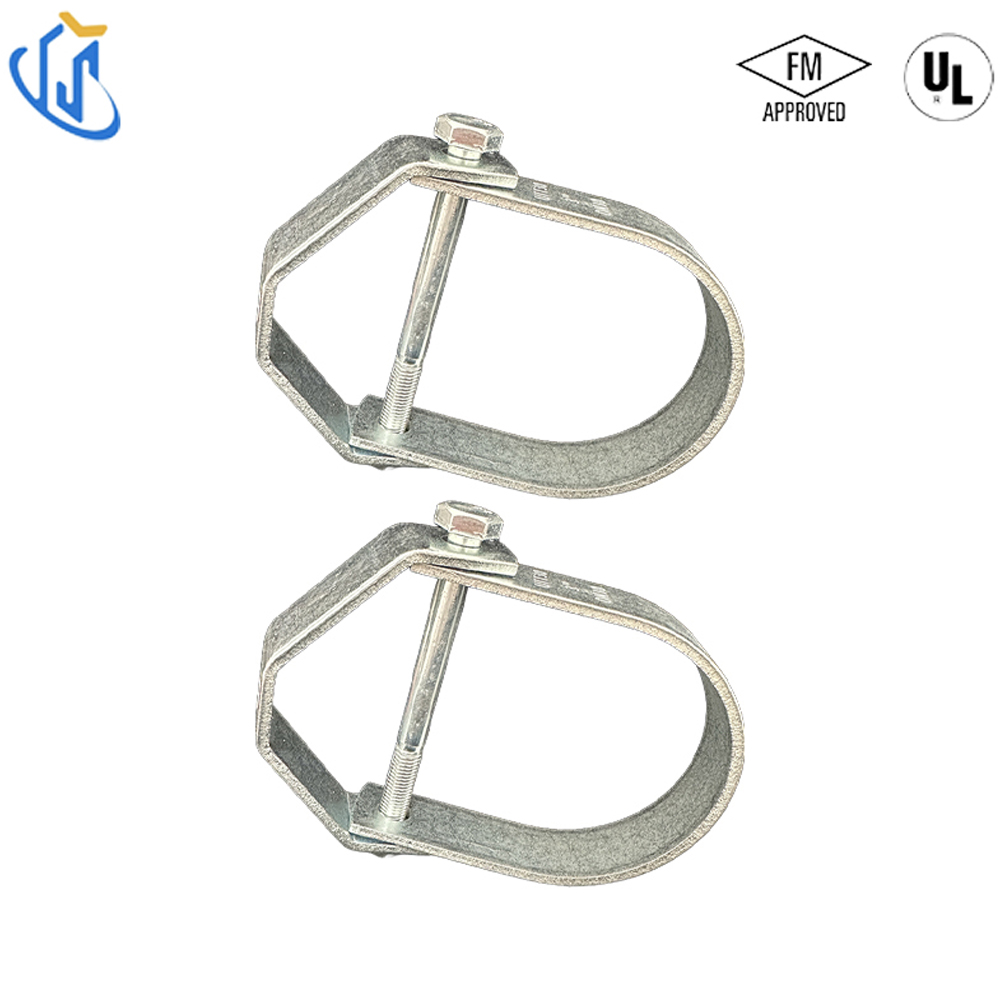

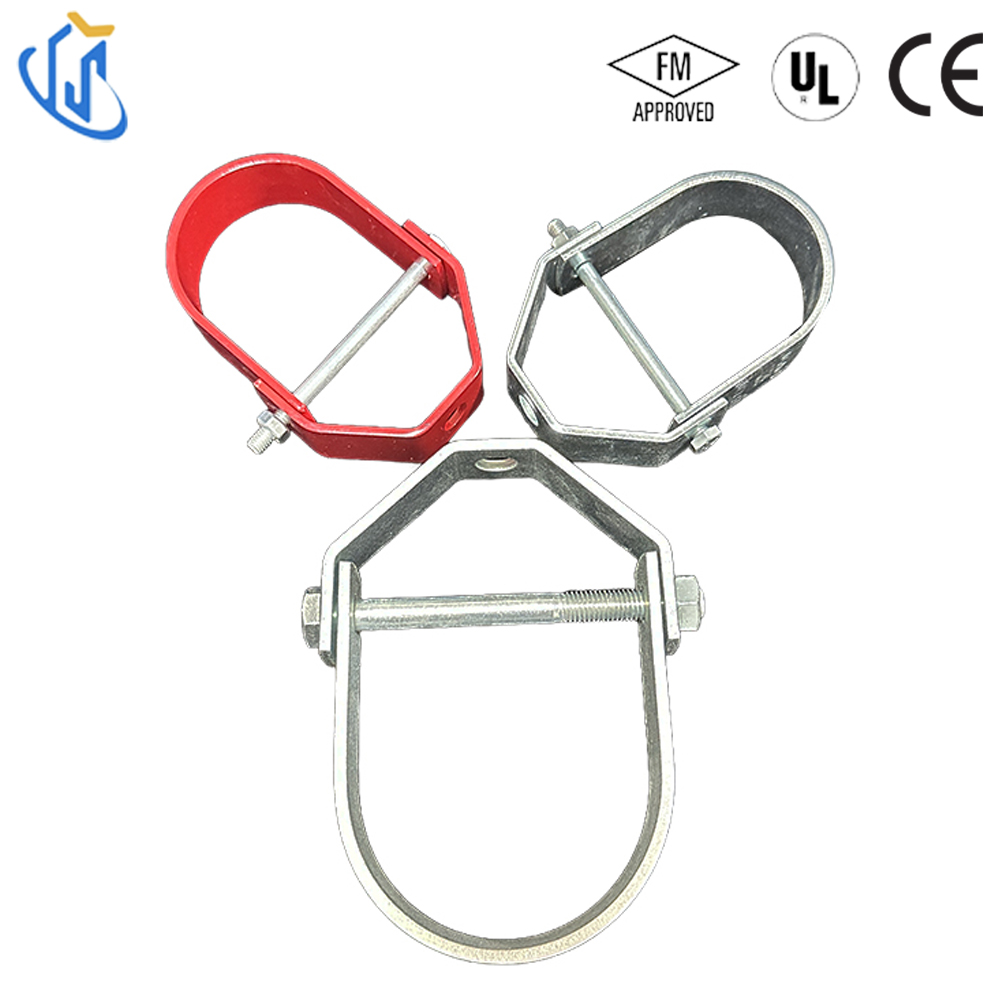

UTT30
UTTERTY
| Color: | |
|---|---|
| Material: | |
| Surface: | |
| Quantity: | |
Allows vertical pipe height adjustment after installation
Max temperature: Plain 650°F, Galvanized 450°F
Conforms to WW-H-171 (Type 1) & MSS SP-69 (Type 1)
Size range: 1/2” through 12” (DN15–DN300)
Material: Carbon steel, pre-galvanized
Finish: Zinc plate for corrosion resistance
Certifications: FM & UL approved
Recommended for insulated and non-insulated pipes

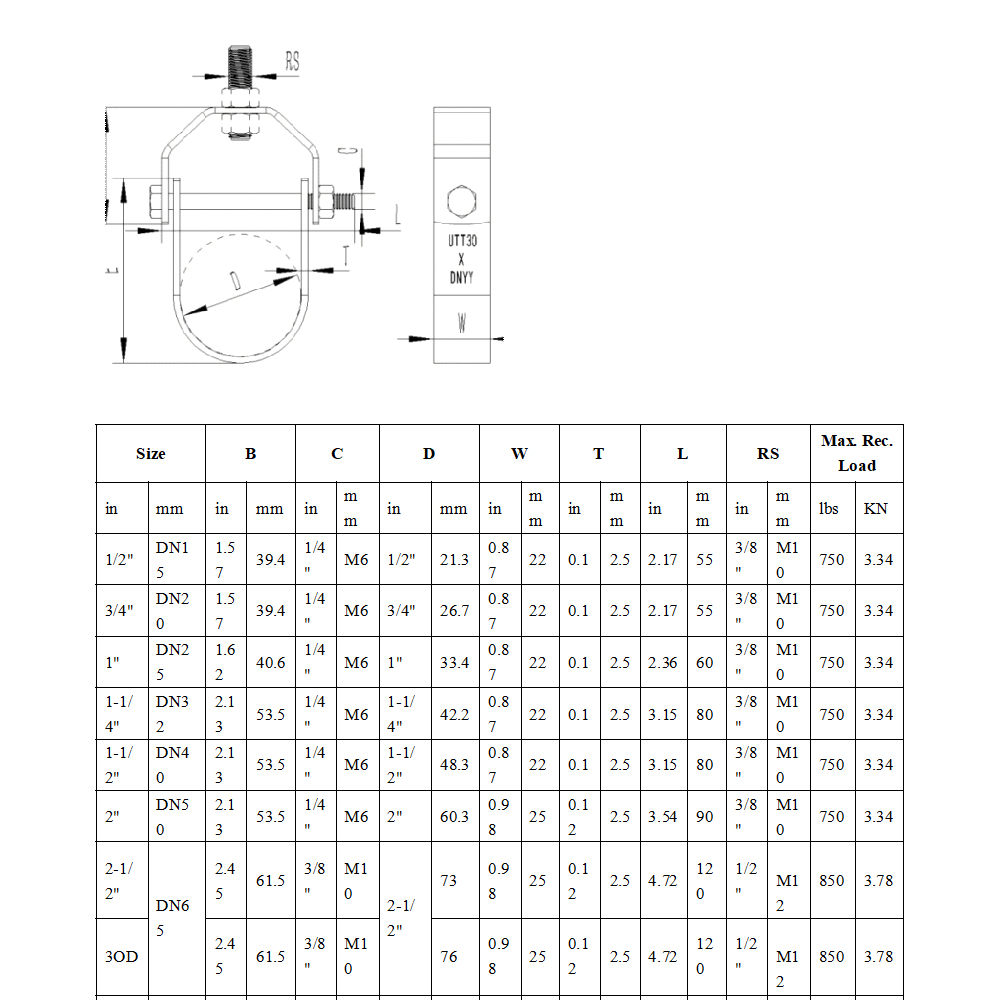

| Item | Specification |
|---|---|
| Model | UTT30 |
| Raw Material | Carbon steel, pre-galvanized |
| Surface Treatment | Zinc plate |
| Size Range | 1/2” – 12” (DN15 – DN300) |
| Max Temp (Plain) | 650°F |
| Max Temp (Galvanized) | 450°F |
| Standards | WW-H-171 Type 1, MSS SP-69 Type 1 |
| Certification | FM, UL |
| Max Recommended Load | 750–7900 lbs (3.34–35.14 kN) |
| Application | MEP, fire sprinkler, HVAC, industrial piping |
Fire Sprinkler Systems
Reliable vertical support for fire protection pipes in compliance with NFPA and FM standards.
MEP & HVAC Installations
Ideal for water, drainage, air conditioning and mechanical piping in commercial and residential buildings.
Industrial & Infrastructure
Suitable for factories, utilities, hospitals, data centers and high-rise constructions.

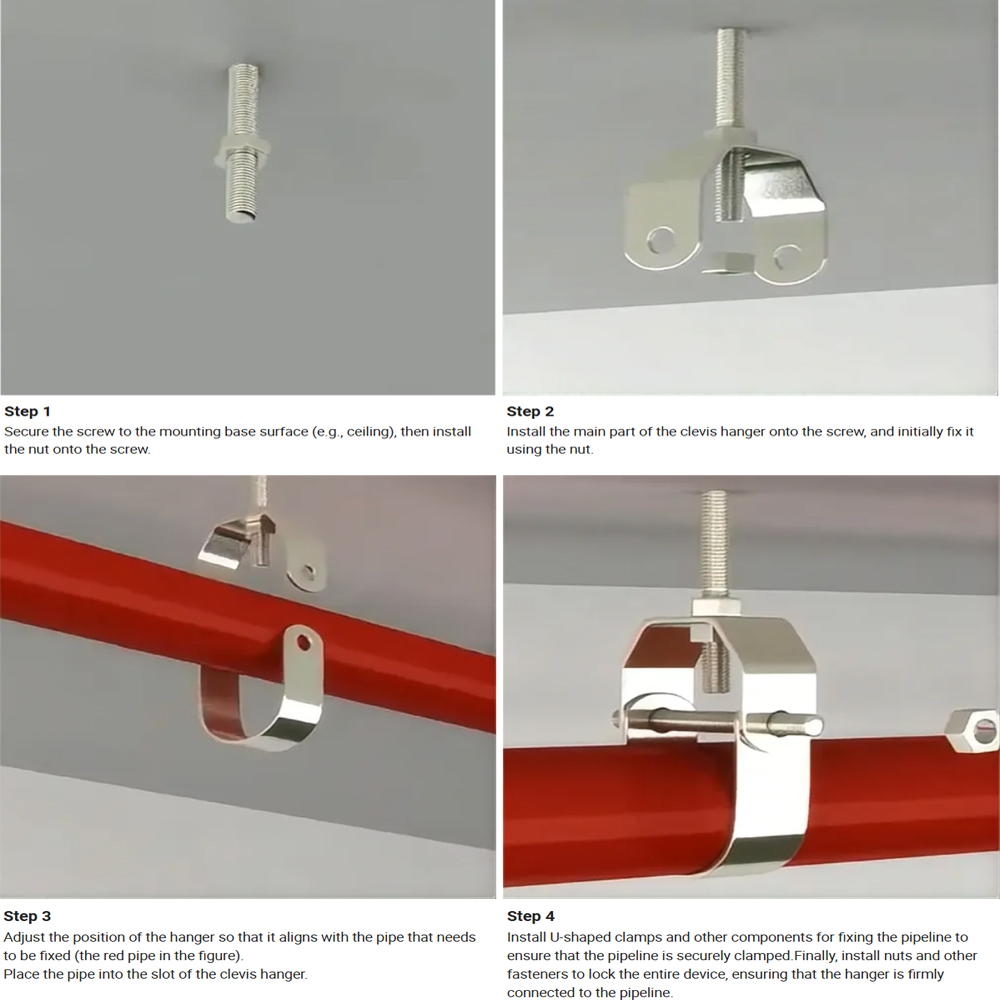

Step-by-Step Installation Guide
Secure the threaded rod to the ceiling or structural base.
Install a nut onto the threaded rod.
Attach the UTT30 clevis hanger body to the rod and secure with a second nut.
Adjust the hanger height to align with the pipeline.
Place the pipe into the hanger slot.
Install the U-strap and fasteners, then tighten all nuts to lock the assembly.
FM & UL certified
Complies with Federal Specification WW-H-171 (Type 1)
Complies with MSS SP-69 (Type 1)
Factory load-tested for safety and reliability
