UTT60
UTTERLY
| Size: | |
|---|---|
| Material: | |
| Approvals: | |
| Sample: | |
| Surface: | |
| Quantity: | |
Function: Designed forsuspension of cold pipe lines or hot lines where no insulation isrequired.
Size: 1/2"Thru 8"
Material:Carbon Steel
Finish:Hot-DipGalvanized, Electro-Galvanized
OrderBy: PartNo. and Pipe size
Approvals:FM CE UL

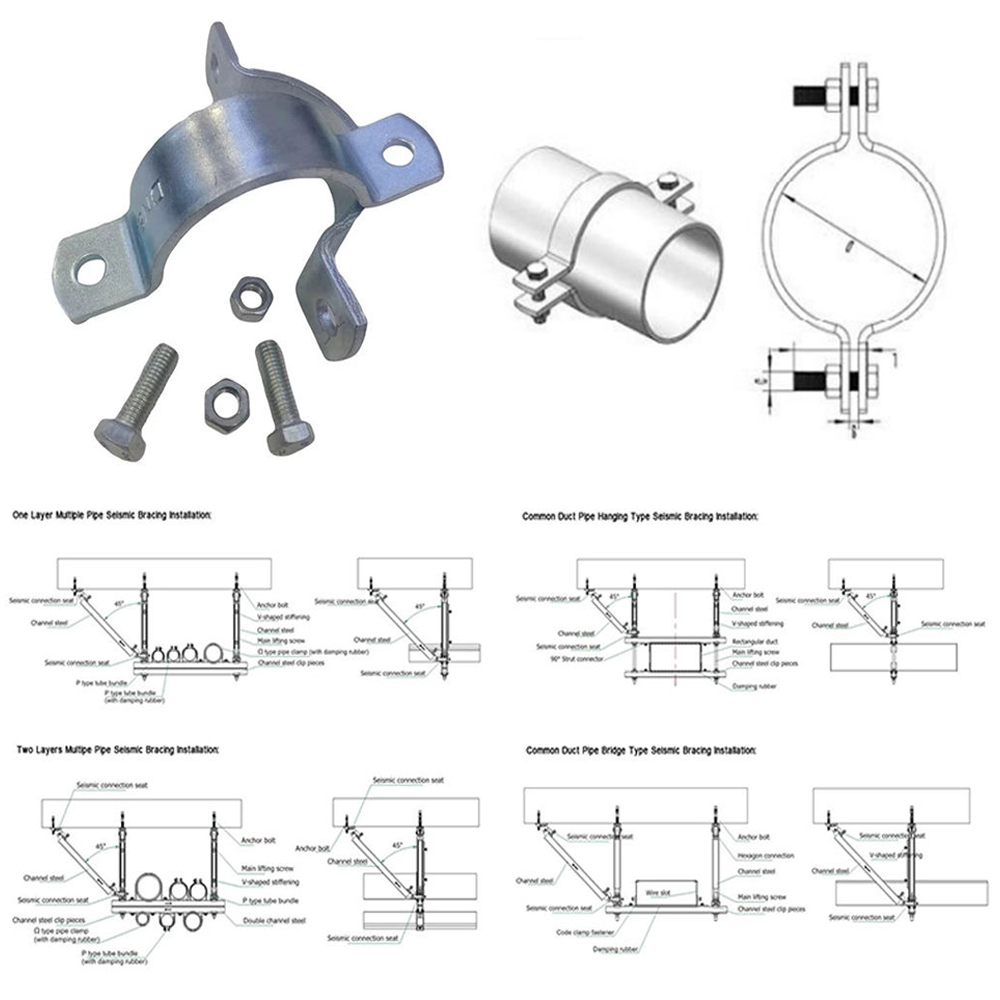

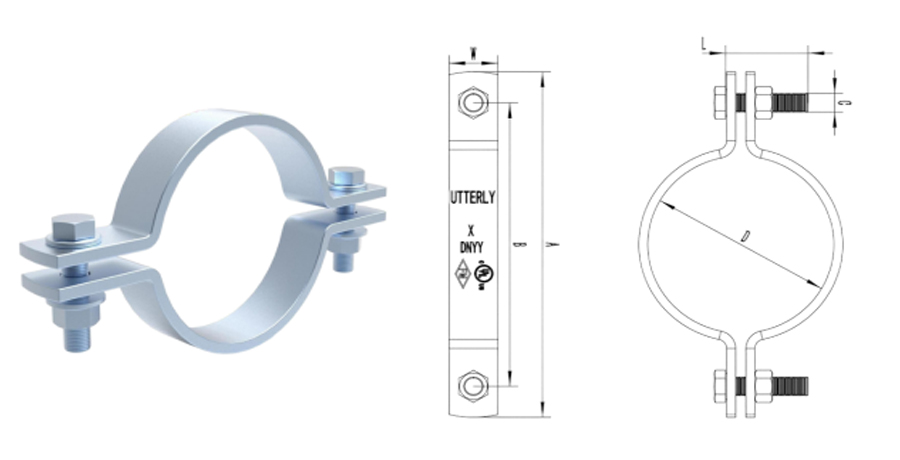

Size | A | B | C | D | T | W | L | Max. Rec. Load | ||||||||||
in | mm | in | m m | in | m m | in | mm | in | m m | in | m m | in | m m | in | m m | lbs | KN | |
1/2" | DN15 | 2.91 | 73 | 2.09 | 53 | 3/8" | M10 | 1/2" | 21.3 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 | |
3/4" | DN20 | 3.07 | 77 | 2.01 | 51 | 3/8" | M10 | 3/4" | 26.7 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 | |
1" | DN25 | 3.31 | 83 | 2.24 | 57 | 3/8" | M10 | 1" | 33.4 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 | |
1-1/4" | DN32 | 3.94 | 99 | 2.87 | 73 | 3/8" | M10 | 1-1/4" | 42.2 | 0.18 | 4.5 | 0.98 | 25 | 1.50 | 38 | 750 | 3.34 | |
1-1/2" | DN40 | 5.22 | 131 | 3.74 | 95 | 1/2" | M12 | 1-1/2" | 48.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 750 | 3.34 | |
2" | DN50 | 5.82 | 146 | 4.33 | 110 | 1/2" | M12 | 2" | 60.3 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 750 | 3.34 | |
2-1/2" | DN65 | 6.29 | 158 | 4.8 | 122 | 1/2" | M12 | 2-1/2" | 73 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 850 | 3.78 | |
3" | DN80 | 7.01 | 176 | 5.51 | 140 | 1/2" | M12 | 3" | 88.9 | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 1050 | 4.67 | |
4" | DN100 | 8.01 | 201 | 6.5 | 165 | 1/2" | M12 | 4" | 114. | 0.22 | 5.5 | 0.98 | 25 | 1.77 | 45 | 1500 | 6.67 | |
5" | DN125 | 9.2 | 231 | 7.68 | 195 | 1/2" | M12 | 5" | 141. | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 2000 | 8.9 | |
6" | DN150 | 10.2 | 256 | 8.66 | 220 | 1/2" | M12 | 6" | 168. | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 2650 | 11.79 | |
8" | DN200 | 12.3 | 309 | 10.75 | 273 | 1/2" | M12 | 8" | 219. | 0.22 | 5.5 | 1.57 | 40 | 1.77 | 45 | 4050 | 18.02 | |

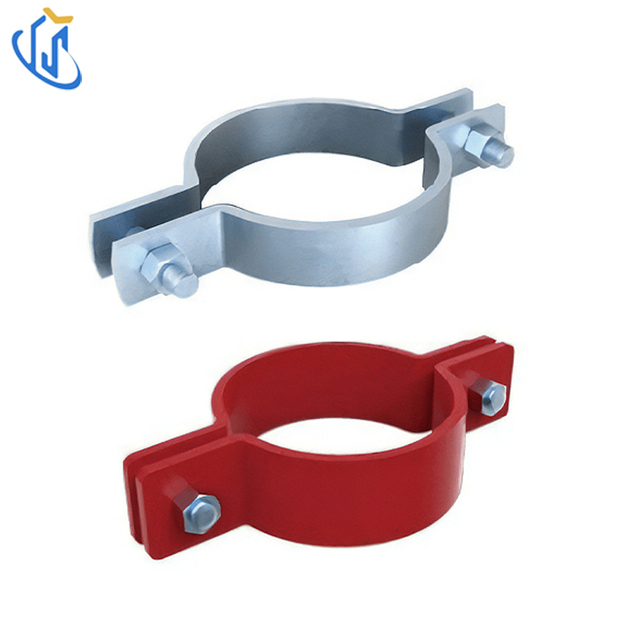

UTT60 double bolt pipe clamp is a certified overhead pipeline suspension fitting designed to meet North American construction MEP and fire protection industry standards. All finished products obtain dual FM and UL safety certification, which can be directly used for bidding projects with strict pipeline support load inspection requirements.
We adopt integrated stamping one-piece forming technology without welding seams on the clamp body, greatly improving overall structural rigidity. The inner arc is smooth and burr-free, closely fitting the outer wall of steel pipes without scratching pipeline coating. The complete specification range covers DN15 to DN200, fully matching most conventional fire sprinkler, domestic water and industrial process pipelines in commercial buildings, hospitals, shopping malls and high-rise residential projects.
Two symmetric hexagon bolts evenly distribute clamping force, eliminate local stress concentration, effectively prevent pipe displacement under static load and building micro-vibration;
Reserved M10/M12 standard thread hole on the top, compatible with full-thread suspender rod and C-shaped strut channel for fast ceiling mounting without extra adapters;
Electro-galvanized for dry indoor environments, hot-dip galvanized for humid basements and underground parking lots, long service life without rust failure;
Consistent dimensional tolerance of all batches, convenient for construction teams to quickly match installation accessories on site.
Every UTT60 specification corresponds to an official UL & FM maximum safe design load value, all test data comes from third-party authoritative laboratories, which can be provided as bidding technical documents. Small size DN15-DN100 matches M10 locking bolts, large size DN125-DN200 uses M12 bolts, unified supporting accessories reduce on-site material preparation cost. Complete dimension drawing and load specification table can be provided free of charge for engineering layout design.

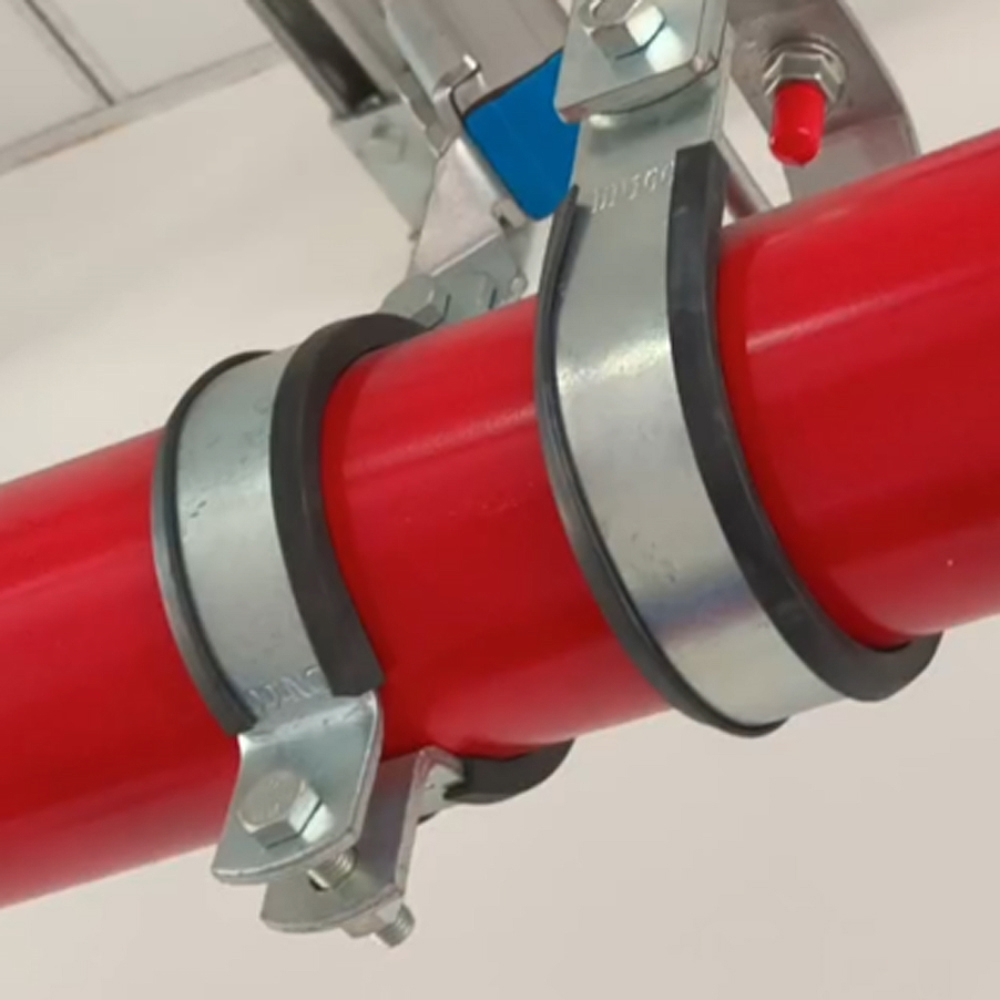

Fire protection sprinkler system: Suspension fixing of red uninsulated fire steel pipes;
Building plumbing system: Overhead support of hot & cold galvanized water supply pipes;
Commercial MEP engineering: HVAC circulating pipeline, compressed air metal pipe fixing;
Industrial factory workshop: Process pipeline suspension for light industrial production lines.
As a professional manufacturer of UL FM certified pipeline fittings, we maintain full stock of all UTT60 sizes to support small batch sample delivery and mass bulk order production. We can provide complete certification reports, material test certificates, dimension drawings and load datasheets. Custom LOGO printing and customized galvanized thickness service are available to meet personalized project demands, with professional technical team offering free pipeline support layout consultation.
Export Standard Packing: Inner plastic bag + carton outer package, heavy orders use wooden case reinforcement to avoid transit deformation;
Stable Delivery Cycle: In-stock specifications deliver within 3-7 working days, customized products arrange production schedule based on order quantity;
Global Logistics Cooperation: Cooperate with professional sea and air freight agents, rich export experience to solve cross-border transportation problems.
