While active fire protection systems extinguish flames, passive systems like seismic bracing ensure those active systems survive the first shockwave of an earthquake. During sudden ground tremors, massive unsupported infrastructure shakes violently and unpredictably. Gravity-based pipe hangers are fundamentally inadequate for resisting these multi-directional seismic forces. For MEP engineers and facility managers, specifying unverified or untested hardware is a direct path to progressive structural collapse. It leads directly to failed building inspections and creates immense financial liability for everyone involved. You simply cannot rely on standard vertical supports to do a dynamic job. Investing in fm ul certified seismic bracing hardware is not just a regulatory checkbox; it is a critical risk-mitigation strategy. This comprehensive guide breaks down exactly how to evaluate, select, and specify fully compliant bracing systems. You will learn how to satisfy strict codes like IBC, ASCE 7, and NFPA 13. Furthermore, we will show you how to minimize costly field installation errors and drastically reduce long-term liability.
Liability Mitigation: Utilizing FM 1950 and UL 203A certified hardware shields contractors and owners from liability by verifying ductility, load capacities, and failure points under third-party testing.
Modernizing Installation: Modern seismic kits reduce labor costs and inspection risks through pre-engineered features like break-off bolts (for visual torque verification) and color-coded, pre-swaged cable assemblies.
Strict Code Adherence: Recent updates in standards (like 2018 IBC / ASCE 19-16) actively prohibit certain field-assembled components (e.g., wedge and clip fittings), making pre-certified modular kits essential for avoiding failed inspections.
Standard commodity materials fail when you need them most. Field-cut unistrut lacks verified ductility. Unrated threaded rods provide zero proven energy dissipation properties. During a seismic event, these commodity materials behave unpredictably. They are highly prone to sudden brittle failure. This rapid structural failure can easily sever fire sprinkler lines. It might also drop heavy HVAC components directly onto the floor below. You must avoid unrated materials entirely to prevent a catastrophic domino effect of falling infrastructure.
Procurement decisions require strict success criteria. A successful procurement strategy prioritizes three specific outcomes:
Zero inspection delays. You must pass Authority Having Jurisdiction (AHJ) reviews on the first try. Failed inspections trigger costly rework and delay building occupancy.
Reduced labor hours per connection. Faster connections keep your project schedules intact. They also lower the overall installation budget significantly.
Proven survival capabilities. Hardware must protect Risk Category 4 facilities like hospitals and emergency centers. These buildings must remain operational after a major seismic event.
We must carefully differentiate between active and passive protection liability. Active systems require robust passive support. If a fire occurs post-earthquake, broken sprinkler lines spell absolute disaster. When inadequate bracing causes this system failure, liability falls heavily on the system specifier. Specifying premium fm ul certified seismic bracing hardware mitigates this immense risk. Certified hardware guarantees the continuous structural integrity of your load path. This ensures your passive defense keeps the active defense fully operational.
Best Practice: Never substitute specified certified anchors for cheaper generic alternatives during value engineering. The slight upfront savings never justify the massive legal exposure.
Not all testing certifications offer equal physical protection. You must understand the specific standards governing seismic supports. Each standard strictly targets unique infrastructure categories and hazard levels.
UL 203A evaluates sway brace devices specifically for fire sprinkler systems. It rigorously measures their ability to resist lateral and longitudinal sway. Hardware lacking this specific certification raises an immediate red flag for inspectors. You simply cannot achieve NFPA 13 compliance without utilizing UL 203A approved components.
UL 2239 serves as the vital baseline standard for electrical systems. It evaluates hardware components supporting conduit, tubing, and heavy cables. This standard ensures complex electrical distribution systems remain intact during seismic events. It prevents live wires from detaching and causing secondary electrical fires.
FM 1950 represents a highly rigorous testing standard. High-risk, high-value environments demand it universally. Data centers and petrochemical plants rely entirely on FM 1950 components. FM Approvals test components for intense cyclic loading using massive shake tables. They simulate actual earthquake reverberations over time rather than just testing simple static pull limits.
Comparison of Key Seismic Hardware Testing Standards | |||
Standard | Primary Focus Area | Key Testing Criteria | Common Application Environment |
|---|---|---|---|
UL 203A | Fire Sprinkler Systems | Lateral and longitudinal sway resistance | NFPA 13 compliant sprinkler lines |
UL 2239 | Electrical & Datacom | Hardware support integrity | Conduit and cable tray distribution |
FM 1950 | High-Risk Environments | Cyclic loading and reverberation simulation | Data centers, Risk Category 4 structures |
Be deeply skeptical of ambiguous supplier marketing claims. Many suppliers claim their products are "designed to meet" these codes. This phrase means absolutely nothing without formal laboratory testing. Look exclusively for products officially listed in the UL Directory. Alternatively, verify them directly in the FM Approval Guide. Authentic third-party verification remains strictly non-negotiable.
Engineers typically select between rigid and flexible cable bracing. Each category serves distinct structural needs and spatial requirements. Making the wrong choice leads to frustrating installation delays.
Rigid bracing systems utilize heavy steel structural members like structural pipes or angle iron. They work best in new construction projects. These projects generally offer ample overhead clearance and clean sightlines.
Strengths: They deliver exceptionally high load capacity. You can rely on them for massive pipe networks. They safely transfer intense lateral loads directly into steel I-beams.
Weaknesses: They cannot bend around existing MEP clutter. Installers must perform precise, time-consuming cutting on site. Rigid pipes often transmit unwanted mechanical vibration unless you properly isolate them.
Cable bracing assemblies provide a highly flexible alternative. They excel in tight retrofits and high-bay environments. You will love their adaptability in congested ceiling plenums.
Strengths: Cables offer reliable multi-directional tension. They adapt instantly to incredibly complex layouts without requiring heavy cutting tools.
Compliance Watchout: You must navigate building codes carefully. ASCE 19-16 explicitly prohibits field-assembled wire rope clips. It also entirely bans wedge-type fittings for seismic bracing. Specifiers must choose factory-swaged (pre-crimped) cable kits. These engineered kits maintain strict code compliance effortlessly.
You must always follow the 5% lateral force rule. Calculations must account for specific regional forces. Connections typically must resist a minimum of 5% of their combined static and live loads. Furthermore, always target optimal installation angles. You should ideally install braces at 45-degree angles relative to the pipe. This geometry prevents excessive cable tension. It also prevents rigid brace buckling during violent tremors. Using flexible fm ul certified seismic bracing hardware helps you meet these exact angles consistently across your entire floor plan.
Common Mistake: Installing cable braces at angles steeper than 60 degrees. This drastic angle exponentially increases cable tension and practically guarantees inspection failure.
The human element causes most mechanical support failures. Even premium components fail if installed incorrectly. Field crews face incredibly difficult working conditions daily. Common field failures include wedge anchor torque inconsistencies. Installers also mistakenly mount heavy hardware to weak substrates. They often try to anchor into thin metal decking instead of primary structural steel.

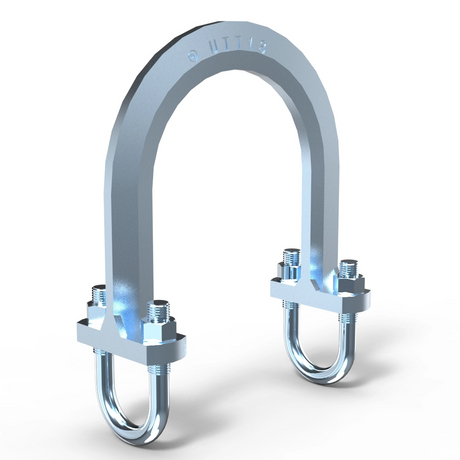

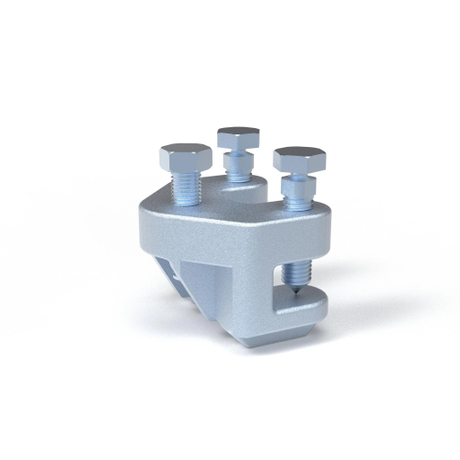

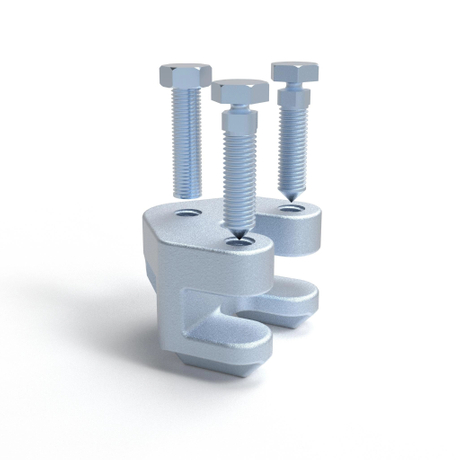

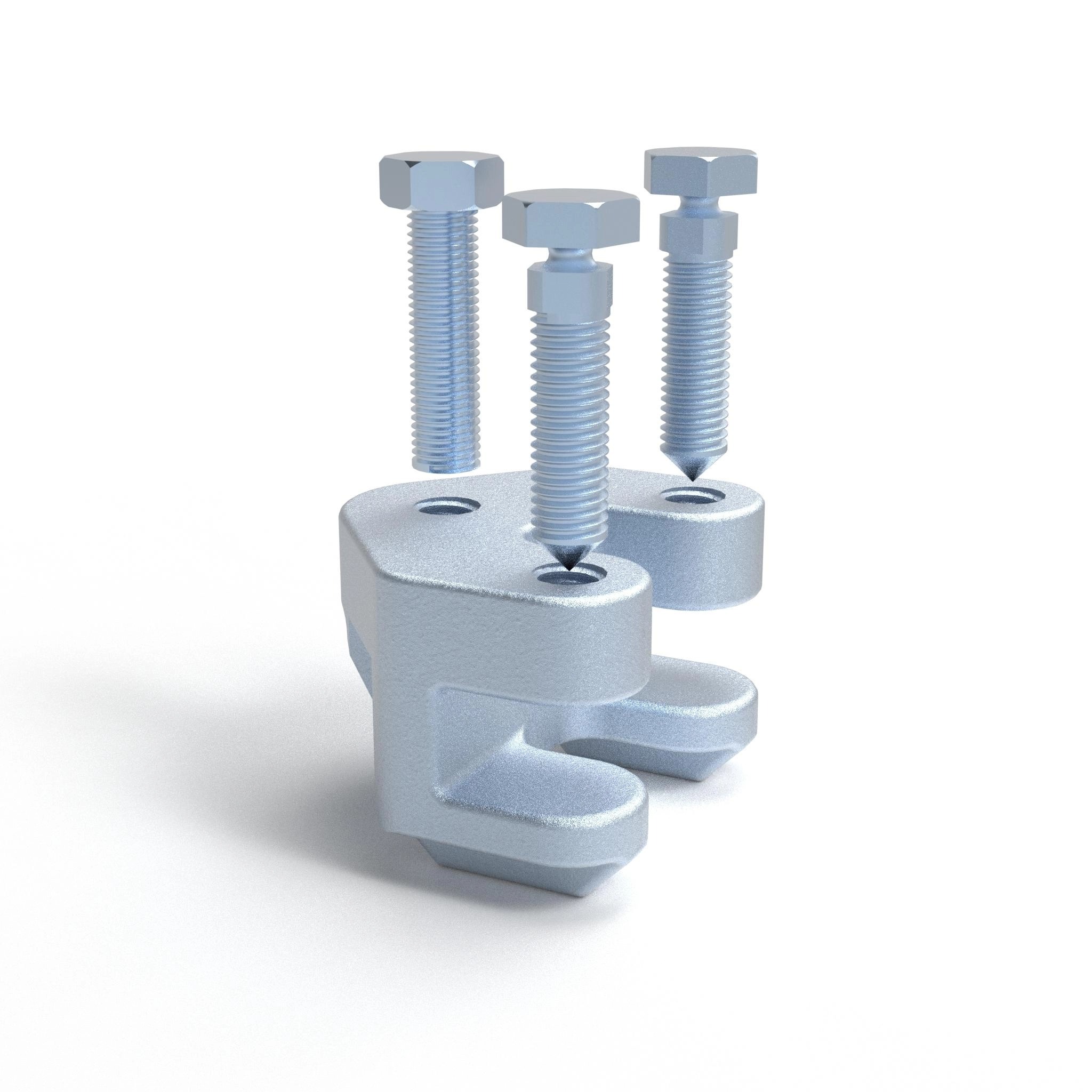

Visual verification technologies eliminate dangerous field guesswork. Specify hardware utilizing engineered break-off bolts. These brilliant fasteners automatically snap their heads off during installation. They only break once the installer reaches the exact required torque threshold. This action provides immediate visual proof for inspectors walking the site. It entirely eliminates the tedious need for manual torque wrench calibration.
Pre-engineered solutions speed up project timelines dramatically. Look closely for tool-free or minimal-tool locking mechanisms. Color-coded cable kits allow inspectors to verify wire capacity at a single glance. These advanced features reduce installation time by up to ten times. More importantly, they remove the terrifying risk of field-swaging errors.
Material compatibility demands your absolute close attention. Ensure your selected hardware is explicitly listed as compatible. You must match the hardware exactly to specific pipe materials. For instance, always check CPVC compatibility lists. Incompatible materials cause severe chemical degradation. Certain rubberized coatings or oils react violently with CPVC plasticizers. This chemical reaction causes progressive mechanical crushing of pipes over time.
Purchasing seismic hardware requires a true engineering partnership. You must move far beyond a simple part number. Hardware should never be evaluated solely on its initial unit cost. You are buying a comprehensive safety ecosystem.
Always ask about dedicated engineering and calculation software. Premium suppliers offer proprietary structural calculation software. This software generates total submittal packages rapidly. It runs complex seismic load calculations automatically based on your zip code. It also creates vital zone-specific reports. This digital support drastically reduces the MEP engineer's daily workload. It also sharply minimizes your professional liability.
BIM and Revit integration are absolutely essential for modern building projects. Your team must insert exact, certified hardware models directly into 3D software. This allows for rigorous clash-detection before physical construction begins. It prevents incredibly expensive on-site rerouting. It also guarantees clear load paths back to the primary structure. Integrating accurate 3D models of fm ul certified seismic bracing hardware ensures total project accuracy.
Local code mastery separates good suppliers from truly great ones. Operating in high-seismic zones like California requires highly specialized knowledge. Shortlist suppliers who possess specific localized pre-approvals. Look specifically for OSHPD or DSA approval numbers. These pre-approved documents exponentially expedite local AHJ sign-offs and prevent last-minute project hurdles.
Selecting fully certified seismic hardware represents the most reliable method to protect high-value infrastructure. It ensures uncompromising life safety during devastating seismic events. It also helps you navigate incredibly complex building codes effortlessly. Codes like ASCE 7 and NFPA 13 demand structural perfection.
Shift your procurement mindset immediately. Stop buying basic hardware and start specifying a fully verifiable support system.
Prioritize pre-engineered, factory-swaged modular kits. Ensure they feature visual torque indicators to entirely eliminate human field variables.
Request comprehensive documentation long before your next project submittal. Demand full UL/FM certification documents and accurate Revit families.
Schedule load-calculation software demonstrations from your shortlisted hardware manufacturers. Guarantee your strict code compliance from day one.
A: Standard hangers only support vertical gravity loads. Seismic braces are engineered to resist multi-directional lateral and longitudinal forces. They provide vital four-way restraint. This specific design safely transfers violent seismic energy back into the building's main structural foundation.
A: No. Recent iterations of the IBC and ASCE 19 strictly prohibit certain field-applied wedge and wire rope clip fittings. Pre-swaged, factory-crimped cable ends are now legally required. They guarantee consistent failure strength and ensure strict structural code compliance.
A: While local AHJ requirements vary based on the exact seismic design category, NFPA 13 dictates clear rules. It generally dictates lateral bracing for branch lines 2.5 inches and larger. It requires longitudinal bracing at maximum intervals of 80 feet. It also requires four-way bracing at the top of system risers exceeding 3 feet in length.
A: Break-off bolts physically separate at a pre-calibrated torque limit during installation. This mechanism leaves a visually distinct, flat bolt head. It allows inspectors to immediately verify correct torque application from a distance. They do not need to manually re-test the hardware. This innovation completely eliminates dangerous human error.
