Seismic Pipe Clamp Selection Guide: Matching The Right Clamp To Your Bracing Requirements

Procuring seismic bracing hardware is rarely about just buying metal. It is about risk mitigation, strict compliance, and passing stringent inspections. You must meet codes like IBC, ASCE 7, and NFPA 13. OSHPD or UFGS inspectors scrutinize every connection before signing off. Selecting incompatible system attachments for mechanical, electrical, and plumbing (MEP) systems invites disaster. We often see failed inspections and crushed pipes. CPVC lines are especially vulnerable to improper clamping. Worse, catastrophic differential settlement can occur during a seismic event. This guide provides engineers, estimators, and project managers a reliable framework. We will help you evaluate and shortlist the correct seismic pipe clamps. You will learn how to match hardware to both rigid and flexible bracing systems. We cover load calculations, material compatibility, and visual verification features. You need evidence-based criteria to make safe, compliant choices.

Key Takeaways

• Hardware selection must align with the specific pipe material—non-ductile materials (like CPVC or cast iron) require specialized clamps to prevent abrasion or crush damage.

• System attachments, such as the standard u shape seismic pipe clamp, must be matched to calculated seismic loads ($F_p$) and specific bracing orientations (transverse vs. longitudinal).

• Visual verification features (e.g., break-off bolts) are critical evaluation criteria that significantly reduce QA/QC labor costs and inspection risks.

• Component approval (cULus, FM) is baseline; true compliance requires PE-stamped spatial layouts that account for building drift and anchor limitations.

The Compliance Imperative: Defining Your Seismic Load and Risk Category

Every bracing project begins with understanding the building environment. You cannot simply order generic clamps and expect them to pass inspection. First, assess the facility risk designations. You must align your procurement strategy with the building’s specific risk category. A standard commercial office building has different requirements than a hospital or military installation. Facilities categorized under UFGS Mission Critical MC-1 or MC-2 demand the highest tiers of structural resilience. Higher tiers dictate stricter component capabilities. They require proven performance data under extreme lateral stress.

Next, you must understand your calculated seismic forces, often denoted as $F_p$. Clamps cannot be selected in a vacuum. Hardware must meet or exceed the working stress design loads calculated for your specific zone. Elevation also plays a major role. A pipe running along a ground-floor slab experiences far less acceleration than a pipe suspended on the top floor of a high-rise. You must evaluate the system weight alongside these variables. Once you know the $F_p$ for a specific pipe run, you can select hardware rated to handle that exact force.

Finally, you must acknowledge the danger of differential settlement. Hardware must account for more than just violent shaking. Buildings move in independent sections across seismic joints. This independent movement causes differential settlement. A rigid clamp holding a pipe across a seismic joint will likely tear the pipe apart during an earthquake. To solve this, engineers often require a hybrid approach. They combine rigid anchors with flexible U-loop expansion joints. This strategy absorbs the independent movement while keeping the primary pipe runs securely anchored to the structure.

System vs. Structural Attachments: Where Clamps Fit in the Load Path

To specify the right hardware, you must understand how forces travel through a building. We can deconstruct the bracing assembly into a clear load path. A complete seismic restraint consists of three distinct zones. A failure in any of these zones compromises the entire system.

1. System Attachments: This is the hardware connecting directly to the MEP system. It grips the pipe, duct, or conduit.

2. Brace Members: This is the transitional body transferring the force. It usually consists of a rigid steel channel or a tension-rated steel cable.

3. Structural Attachments: This is the anchoring point. It connects the brace member solidly to the building's concrete slab, steel I-beam, or wood framing.

Once you understand the load path, you must decide between rigid and cable applications. Each style requires completely different clamping mechanisms.

• Rigid Bracing: This method uses steel channels or struts. It resists both tension and compression forces. Because the forces move in multiple directions, you need heavy-duty pipe clamps capable of multi-directional load transfer. Rigid systems take up more spatial footprint but offer exceptional stability.

• Cable Bracing: This method uses aircraft-grade steel cables. Cables resist tension only. They cannot handle compression. Clamps used here must integrate cleanly with cable sway brace swivels. They must transfer lateral loads without introducing torsional twisting stress onto the pipe body.

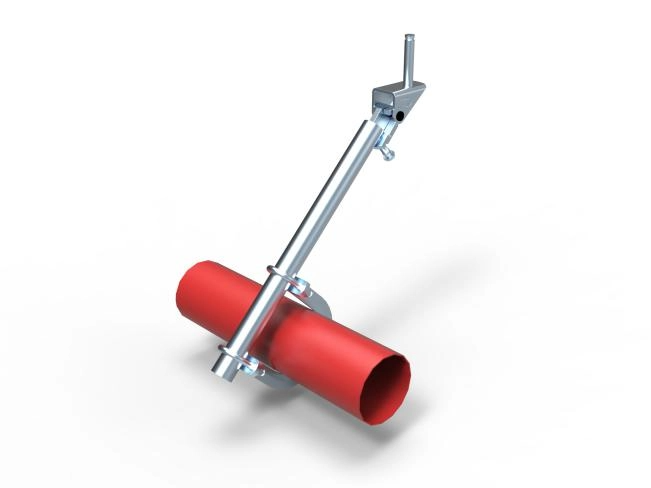

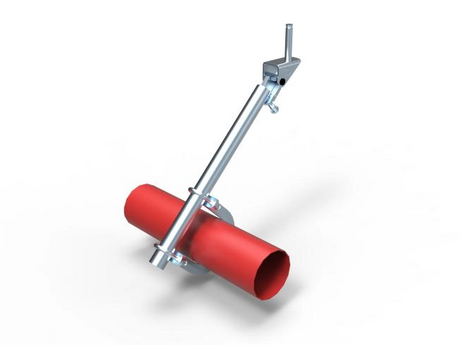

You will often rely on standard, heavy-duty attachments for single runs. The u shape seismic pipe clamp plays a vital role here. It is ideal for securing single pipe runs to structural channels or trapeze hangers. When properly torqued, it offers extremely high load capacities. It also prevents longitudinal slip, which keeps the pipe exactly where the engineers modeled it.

Material Compatibility: Preventing Pipe Failure at the Attachment Point

A clamp is only effective if it protects the pipe it holds. You must understand ductile versus non-ductile piping realities before making a selection. Ductile materials include seamless steel, copper, and aluminum. They bend and flex under stress without shattering. This flexibility allows engineers to use standard spacing rules for seismic braces. Conversely, cast iron and plastics represent non-ductile materials. They are brittle. They will fracture or shatter when subjected to sudden sheer forces. Because of this fragility, non-ductile piping typically requires bracing intervals to be cut in half.

The CPVC challenge is particularly notoriously complex under NFPA 13 rules. The risk is immediate: traditional longitudinal clamps require immense clamping force to prevent slip. If you apply this force to a CPVC pipe, you will easily crush or fracture the plastic wall. You cannot use standard steel grip clamps here. The solution involves evaluating specialized clamps. Look for hardware featuring chamfered or flared edges. These rounded edges prevent pipe gouging during thermal expansion or seismic shaking. They distribute the clamping force over a wider surface area.

Sometimes you face specific design workarounds. A direct longitudinal clamp might still risk CPVC pipe integrity, even with chamfered edges. In these cases, compliant setups often utilize adjacent transverse braces. If you place a transverse brace within 24 inches of the required longitudinal point, codes often allow it to act as a surrogate longitudinal support. This keeps the pipe safe while satisfying the inspector.

Finally, you must implement galvanic corrosion mitigation. When dissimilar metals touch, they react. Placing a raw galvanized steel clamp directly onto a copper pipe creates a battery effect. The moisture in the air causes the copper to corrode the steel, eventually leading to structural failure. You must ensure the clamp material and finish prevent this reaction. Always specify electro-galvanized, copper-plated, or PTFE-lined clamps when securing copper or stainless steel piping.

Key Evaluation Criteria for Shortlisting Seismic Clamps

You need a reliable framework to compare different product submittals. Not all metal brackets perform equally during a seismic event. Begin by verifying certifications and pre-approvals. You should require baseline credentials from your suppliers. Look for cULus Listed and FM Approved stamps. If you work in healthcare or California jurisdictions, demand OSHPD Pre-approved (OPM) documentation. Without these, you cannot prove the hardware meets the required $F_p$ load limits.

Visual torque verification serves as the next critical criterion. Prioritize clamps featuring break-off bolts or nuts. When the installer reaches the exact factory-calibrated torque, the top hex head shears off automatically. The business impact here is massive. It allows inspectors to visually confirm correct installation from the floor. They do not need to perform secondary manual torque-wrench testing across thousands of connection points. This saves significant labor hours and removes the risk of human error during tightening.

You also need to assess multi-directional capability. Evaluate whether the clamp is rated strictly for lateral transverse loads. Some projects require braces handling both longitudinal and lateral forces simultaneously. A 4-way bracing configuration needs hardware specifically engineered to resist multi-axis movement. Do not assume a lateral clamp works for a longitudinal run.

Lastly, determine trapeze versus single pipe efficiency. Your project might consist of many independent pipes. In that case, individual run clamps make sense. However, modern commercial corridors usually feature parallel MEP runs. Here, trapeze hangers offer much better scalability. You can utilize pre-designed load tables and heavy-duty strut clamps to secure multiple pipes to one structural channel. This reduces the total number of structural anchors drilled into the ceiling slab.

Implementation Realities: Layout, Spacing, and Spatial Constraints

Engineering drawings tell one story, but field implementation reveals another. You must follow strict spacing rules dictated by FEMA 414 and NFPA 13. Installers cannot place braces wherever they find convenient anchor points. Transverse braces generally must sit within a specific maximum distance. For standard ductile pipe, this is often 40 feet. You must also place a transverse brace near the end of every pipe run to prevent whipping. Longitudinal bracing intervals are different. They are typically double the allowable transverse distance, often stretching up to 80 feet. You must measure these distances precisely along the pipe path, accounting for any directional changes.

Vertical riser considerations introduce a different set of physics. Pipes running vertically up a building shaft face unique drifting forces. The building sways side to side, and the floors slide horizontally. You must ensure clamps used on vertical runs are placed securely. Always position the clamp above the center of gravity of the pipe segment. This top-heavy hanging approach maintains stability during building drift. If you clamp below the center of gravity, the pipe might act like a pendulum and tear the anchor out.

This brings us to anchor installation risks. Your bracing hardware is only as strong as its anchor. A heavy-duty clamp fails instantly if the ceiling anchor pulls out. Contractors must verify concrete types before drilling. They must avoid post-tensioned slab rebar at all costs. Drilling into a tensioned cable compromises the entire building structure. Furthermore, installers must clear out drill dust. Dust left inside a drilled hole severely degrades wedge anchor pull-out strength. You must vacuum or blow out every hole before setting the anchor.

Conclusion

Navigating seismic bracing requirements demands a systematic approach. You should base your final procurement shortlisting logic on several key factors. Do not rely just on unit cost. Prioritize material compatibility to protect your piping assets. Look for labor-saving QA features like visual torque break-off bolts. Always demand documented, third-party verified load capacities for every attachment.

You must also recognize the limits of hardware. Purchasing the right system attachment is absolutely necessary, but it remains insufficient on its own. True compliance requires you to integrate this hardware into a comprehensive, PE-stamped seismic layout. The layout must account for structural drift, building joints, and precise $F_p$ calculations.

Your next steps should involve proactive planning. Engage with seismic engineering services early in the submittal process. Ask them to generate pre-designed solution tables. Request 3D Revit coordination files to identify spatial clashes before construction begins. Produce a verifiable bill of materials based on these models. This rigorous preparation guarantees your MEP systems will survive the next major seismic event while sailing through mandatory inspections.

FAQ

Q: Can we skip transverse bracing if CPVC pipe is mounted flush to the ceiling?

A: No. NFPA 13 and IBC do not allow exemptions for "flush-mounted" CPVC in high-seismic zones. Standard mounting clips are not rated to resist lateral seismic forces. You must install approved seismic attachments regardless of how close the pipe sits to the structural deck.

Q: How do we verify a clamp is tightened correctly without re-torquing every bolt?

A: Specify clamps with engineered break-off heads. The hex head automatically shears off when the factory-calibrated torque is reached. This leaves a clear visual indicator for inspectors, proving the connection is secure without secondary manual wrench testing.

Q: Is a u shape seismic pipe clamp acceptable for both lateral and longitudinal loads?

A: It depends on the manufacturer's specific listing. Many u-shaped clamps are highly effective for transverse loads. However, longitudinal applications may require additional friction-enhancing features or specific torque requirements to prevent the pipe from sliding through the clamp. Always verify the load data table for the specific orientation.
