During seismic events, structural collapse is rarely the only threat facing commercial buildings. Non-structural components, particularly mechanical, electrical, and plumbing (MEP) systems, present critical vulnerabilities. When suspended piping fails, severe secondary disasters follow quickly. Massive water leaks, electrical fires, and sudden power loss can easily cripple zero-downtime facilities. You need highly reliable structural components to manage these dynamic loads effectively. Enter the engineered u shape seismic pipe clamp. This rigid bracing component manages extreme lateral shear forces while preserving pipe integrity. Selecting the right hardware goes far beyond simply supporting static dead weight. It involves achieving strict regulatory compliance, passing rigorous field inspections, and ensuring life safety. You will learn how these clamps function, evaluate their core material features, and navigate the complex compliance landscape.
Engineered for Shear: A U-shape seismic pipe clamp restricts lateral displacement during seismic events, preserving critical piping networks when building structures undergo differential settlement.
Compliance is Binary: Selection must be driven by strict adherence to IBC, NFPA 13, and OSHPD requirements, validated by UL and FM approvals.
Installation Efficiency Mitigates Cost: Features like torque-off shear bolts and no-thread designs directly reduce labor hours and eliminate torque-verification guesswork during site inspections.
Supply Chain Reliability Matters: Procurement evaluations should weigh vendor engineering support (PE stamping, BIM integration) equally with hardware unit costs.
Earthquakes subject building infrastructures to intense, multi-directional energy. Differential settlement presents a severe engineering problem during these events. Building sections sink or shift at varying rates when the ground liquefies or shakes. This forces suspended piping networks to twist, buckle, or endure catastrophic impact damage. Suspended pipes often cross structural expansion joints. They face massive shear forces as different parts of the building move independently. A highly engineered restraint system becomes absolutely necessary to prevent this destruction.

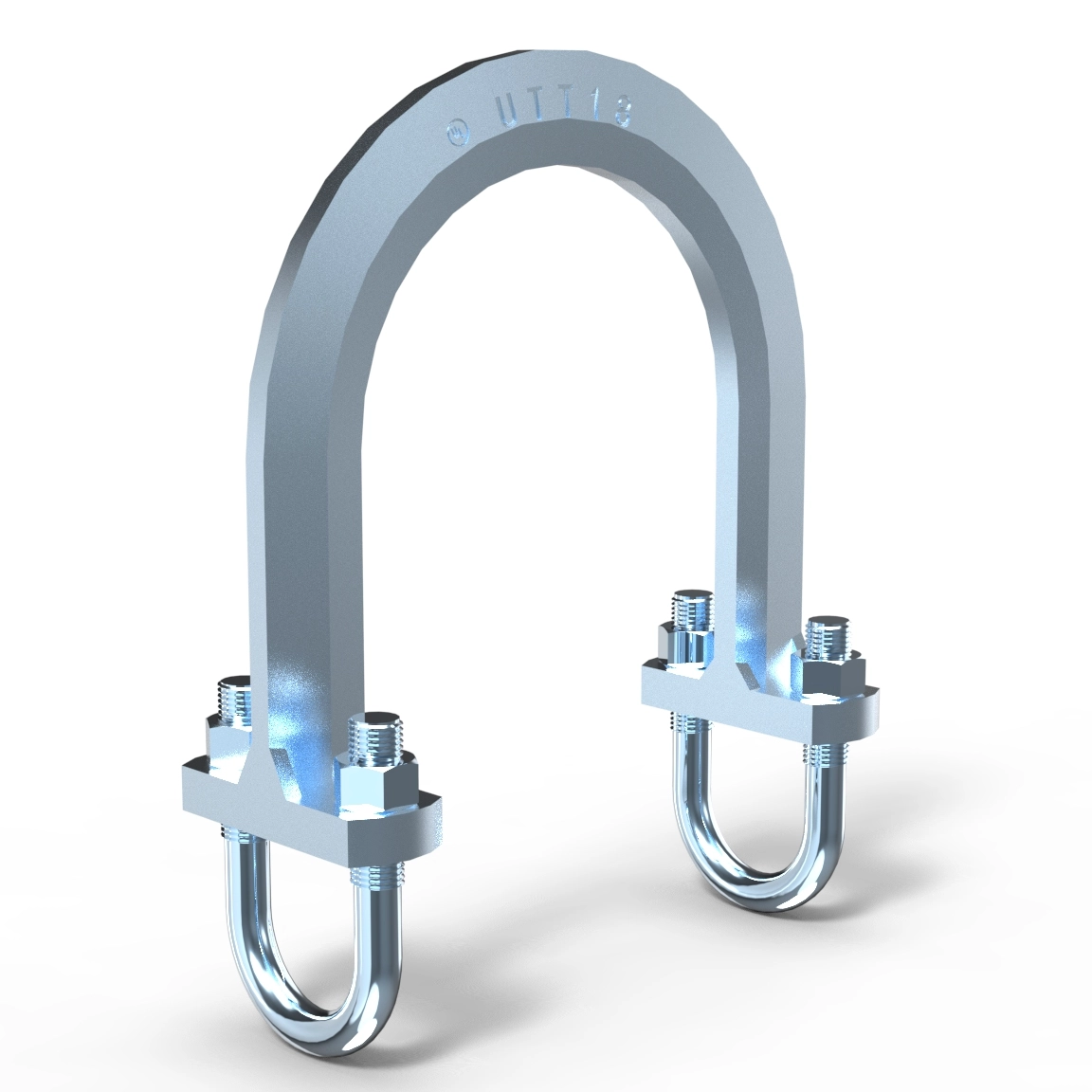

Why do engineers frequently specify a U-shape profile? This geometric design structurally captures the pipe securely. It distributes horizontal stress evenly across the rigid brace or standard strut channel. Instead of applying a single concentrated point load, the U-profile wraps around the pipe radius. It forces sudden seismic shear loads into the stronger structural bracing members. This mechanism prevents the pipe wall from collapsing inward under extreme pressure.
Engineers consistently debate between rigid and cable restraint methods. Cable bracing offers structural flexibility and tension-only support. However, rigid bracing excels in tightly packed environments. A rigid setup handles both compressive and tensile loads efficiently. Dense data center ceiling plenums demand this restricted footprint. Cables allow too much sway. Sway causes pipelines to crash into adjacent cable trays or ventilation ducts. U-clamps thrive in these exact spatial scenarios. They hold pipelines firmly, stopping dangerous lateral sway completely.
Not all bracing hardware performs equally under extreme stress. Material and coating specifications dictate long-term survivability. Manufacturers construct premium clamps using high-yield materials. Ductile iron and carbon steel form the strongest foundations for seismic bracing. Facilities also demand advanced corrosion-resistant finishes. Electro-galvanized (EG) or hot-dipped galvanized (HDG) coatings match different environmental exposures. High-humidity environments require thicker HDG coatings to prevent premature rusting.
Pipe protection integration matters immensely during the selection process. Hard steel edges can score, scratch, or crack sensitive piping over time. Standard designs often incorporate flared or chamfered edges to mitigate this risk. Premium versions feature specialized PTFE (Teflon) linings. These protective layers allow necessary thermal sliding. They maintain rigid seismic restraint without damaging CPVC, copper, or insulated pipes. Point-loading on plastic piping causes dangerous, undetected leaks.
Load capacity requires strict hardware sizing versatility. Modern facilities run highly varied utility lines. You need clamps scaling seamlessly across pipe diameters from 1 inch to 12 inches. They must maintain strictly proportional load ratings across the entire size spectrum.
Material Type | Primary Benefit | Ideal Application Environment | Corrosion Resistance Level |
|---|---|---|---|
Carbon Steel | High tensile strength | Standard commercial interiors | Moderate (requires EG coating) |
Ductile Iron | Superior impact resistance | High-vibration industrial zones | Moderate to High |
Hot-Dipped Galvanized | Thick protective barrier | Outdoor or high-humidity facilities | Very High |
PTFE Lined Steel | Friction reduction | CPVC and chilled water networks | High |
Regulatory baselines frame the entire hardware selection process. You cannot install arbitrary or untested components in essential MEP infrastructure. Hardware capabilities must map directly back to strict safety codes. The International Building Code (IBC) and ASCE 7 outline complex structural force calculations. NFPA 13 dictates mandatory, inflexible bracing rules for fire protection networks. Failing to meet these codes prevents facility occupancy.
Independent approvals mitigate liability significantly. Facility owners depend heavily on these third-party testing laboratories. Acquiring cULus Listings and FM (1950) Approvals is completely non-negotiable. These certifications prove the hardware passed rigorous physical destruction testing on vibration tables. They secure favorable insurance underwriting for the property owner. They confirm the clamps perform exactly as the manufacturer advertises under dynamic loading.
High-risk zones demand even stricter oversight. Healthcare facilities, emergency response structures, and regional data centers require absolute resilience. California's Office of Statewide Health Planning and Development (OSHPD) issues OPM pre-approvals for bracing components. OSHPD represents the absolute gold standard nationally. Specifying OSHPD-approved clamps guarantees top-tier lateral force protection anywhere in the world.
Field installation presents numerous hidden challenges. Labor hours heavily impact overall construction timelines. Visual compliance mechanisms transform how modern contractors work. Engineered clamps often feature shear-off bolts or torque-off set screws. These specialized fasteners snap off automatically at the exact required tension. This completely eliminates manual guesswork. Engineers no longer manually re-torque and verify every connection during QA/QC inspections. This visual confirmation speeds up the entire sign-off process.
Minimizing field modifications reduces human error drastically. Standard bracing sometimes requires on-site threading of the brace pipe. Modern designs utilize a clever "no threading" approach. You slip the pipe into the fitting and tighten the clamp mechanism. This slashes specialized tooling needs on the job site. It keeps installation speeds highly predictable across different contracting teams.
Mitigating installation bottlenecks requires standardized procedures. Let us look at how field teams attach these systems safely:
Assess the primary structural attachment point, such as a concrete anchor or corrugated metal decking.
Position the standard strut channel or rigid brace pipe at the required 45-degree angle.
Attach the engineered U-clamp without threading or modifying the rigid brace pipe.
Tighten the shear bolt systematically until the head snaps, ensuring exact engineered tension.
Misaligned installations create severe structural weak points. Well-designed clamps simplify attachment methods significantly. They securely integrate with standard strut channels to form a continuous load path back to the building skeleton.
Procurement goes far beyond purchasing the physical hardware. Evaluating a u shape seismic pipe clamp requires assessing underlying engineering data. Does the manufacturer supply comprehensive load capacity tables? Do they offer 3D CAD or BIM (Building Information Modeling) integration resources? Look closely at their Professional Engineer (PE) stamping capabilities. Strong vendor engineering support reduces project risk during the submittal phase.
Availability and lead times strongly influence project success. Complex commercial builds cannot wait for slow, unpredictable shipments. You must factor in the distributor’s ability to fulfill bulk orders rapidly. Construction delays trigger cascading scheduling failures across multiple trades. Reliable supply chains keep mechanical teams moving forward efficiently.
Ensure absolute system compatibility before authorizing final purchasing. A holistic seismic support system works together harmoniously. Individual components must not interfere mechanically. You should verify integration across several key areas:
Flawless integration with existing hydraulic thrust restraints.
Sufficient spatial clearances for nested U-loop expansion joints.
Direct compatibility with standard clevis hangers and trapeze hardware.
Alignment with acoustic vibration isolation pads.
Specifying a rigid U-shape clamp remains a strategic, critical project decision. This component perfectly bridges complex structural engineering needs, stringent code compliance, and site-level labor efficiency. They effectively manage dangerous shear forces during unpredictable seismic events. Furthermore, they safeguard critical MEP systems inside high-value, zero-downtime facilities.
Specifiers and contractors must take immediate, action-oriented steps to protect their buildings. Request comprehensive submittal data sheets directly from your vendors today. Verify UL and FM load ratings specifically against your project's distinct seismic design category. Finally, engage a registered Professional Engineer for final system validation and approval. Proactive hardware selection secures building integrity and ultimately protects human lives.
A: The International Building Code (IBC) and ASCE 7 govern structural and non-structural seismic load requirements. For fire protection systems, NFPA 13 dictates strict bracing rules. These codes mandate that critical MEP networks use approved rigid restraints to prevent catastrophic displacement during seismic events.
A: A shear-off bolt snaps off automatically when it reaches the precise engineered torque. This provides an immediate visual indication of proper tension. It saves significant time on QA/QC inspections because inspectors easily verify compliance without manually re-torquing each connection.
A: Yes, but they require specific design modifications. Hardware used on CPVC must feature flared or chamfered edges. Some utilize PTFE linings. These modifications prevent severe point-loading and scratching, which could otherwise compromise the plastic pipe wall during thermal expansion or shaking.
A: OSHPD sets the highest national benchmark for seismic safety, initially designed for California healthcare facilities. Utilizing OSHPD-approved hardware provides exceptional peace of mind. It ensures mission-critical facilities anywhere in the world achieve true resilient operational continuity during severe structural stress.
