Modern MEP projects face immense, compounding pressures on a daily basis. Stricter seismic building codes continue to emerge globally, demanding enhanced structural safety. At the same time, we see a well-documented shortage of skilled engineering and installation labor. You cannot simply rely on traditional, labor-intensive methods anymore. The industry is rapidly shifting away from complex, multi-component pipe supports. Instead, contractors actively favor pre-engineered, quick-install solutions to maintain schedules.
This critical transition demands smarter, highly efficient hardware. We introduce the U-Quick lateral bracing clamp as a verifiable optimization of the standard u shape seismic pipe clamp. It is meticulously designed to streamline field installation for your crews. You get faster assembly without ever compromising lateral stability or load compliance. In this article, you will learn exactly how this design reduces labor bottlenecks. We will explore its engineering mechanics, code compliance considerations, and practical deployment strategies.
Labor Optimization: Pre-assembled U-Quick systems significantly reduce connection times, directly mitigating the impact of skilled labor shortages.
Structural Integrity: Engineered specifically for lateral stability, preventing side-to-side sway under seismic or dynamic loads.
Code Compliance: Meets stringent international evaluation criteria (e.g., NFPA, ASCE, UL/FM) when applied within specified load capacities.
Cost Predictability: Higher upfront component costs are offset by reduced field labor hours and minimized inspection failures.
Contractors navigate a difficult daily reality on the job site. You must balance aggressive project schedules against rigorous seismic bracing requirements. Building codes grow stricter every year to protect infrastructure. Seismic events pose massive risks to suspended mechanical and plumbing systems. Unbraced pipes can sway violently during an earthquake. They damage adjacent structures and cause catastrophic water leaks. Meeting these demands requires robust hardware. Yet, complex systems severely slow down field teams.
The industry faces a severe shortage of qualified tradespeople. Finding skilled installers is harder than it has ever been. Complex, multi-piece bracing systems make this bottleneck much worse. Traditional hardware often involves loose bolts, nuts, and separate saddle washers. Installers frequently drop these small parts from elevated lifts. Error rates climb steadily. Installation times stretch out unnecessarily. We see project margins shrink rapidly as a result.
Decision-stage contractors need exceptionally clear success criteria. You must look for verifiable load ratings first and foremost. Next, demand absolute ease of field execution. Reducing required tooling is crucial for installation speed. Standardized quality control prevents costly inspection failures. A reliable product must check all these boxes effortlessly.

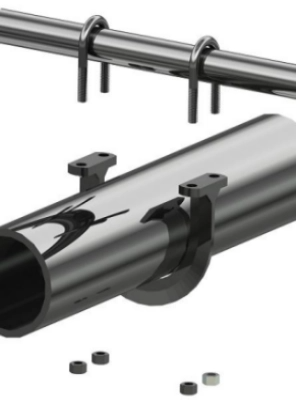

Let us deconstruct the anatomy of this innovative supporting system. A traditional u shape seismic pipe clamp normally requires manual assembly of several loose pieces. The U-Quick design changes this paradigm entirely. We can contrast it directly against conventional saddles and standard beam clamps. Traditional U-bolts provide basic support. However, they lack engineered seismic load distribution. The U-Quick integrates the structural support into a unified, robust body.
The mechanical advantage lies directly in the "Quick" mechanism. Manufacturers use pre-staked nuts and hinged locking designs. You remove on-site friction entirely during assembly. Workers tighten the clamp using a single standard tool. They do not fumble for dropped washers in the dark. This single-tool tightening mechanism speeds up overhead work significantly.
Material and coating specifications matter across global project environments. Climates vary from dry indoors to corrosive coastal regions. We specify electro-galvanized coatings for standard indoor use. Hot-dip galvanized finishes protect against harsh external moisture. Stainless steel options serve cleanrooms and highly corrosive industrial plants.
We must also maintain transparent limitations for proper application. The U-Quick clamp works best for standard MEP pipe runs. It handles typical lateral seismic loads highly efficiently. However, heavy-duty industrial applications often demand different solutions. Massive cooling mains might require custom-engineered K-bracing. Rigid structural struts are necessary for extreme axial loads. Always evaluate the specific application carefully.
Comparison Chart: Traditional U-Bolts vs. U-Quick Clamps | ||
Feature | Traditional U-Bolt Assembly | U-Quick Lateral Bracing Clamp |
|---|---|---|
Component Count | Multiple loose parts (bolt, 2 nuts, washers) | Pre-assembled single unit |
Tooling Required | Multiple wrenches, manual alignment | Single standard socket wrench |
Installation Speed | Slow (high risk of dropping parts) | Fast (hinged lock mechanism) |
Seismic Rating | Basic support; requires supplementary engineering | Engineered specifically for lateral load transfer |
Force dynamics dictate seismic hardware design at every level. We must control lateral loads highly effectively. These forces push perpendicular to the primary pipe run. The U-Quick clamp manages this dangerous stress gracefully. It captures the pipe securely within its housing. Then, it transfers the lateral force through the brace rod. The energy moves safely into the primary building structure. It prevents destructive side-to-side sway.
Third-party validation provides a necessary compliance lens. You cannot rely on unverified manufacturer claims. Look for products featuring UL listing or FM approval. OSHPD pre-approval is absolutely critical for healthcare facilities. A clamp is only as good as its published load data. Engineers require these strict certifications to approve submittals confidently.
Sizing and compatibility form the foundation of structural safety. You must match the clamp size precisely to the pipe diameter. Material compatibility is equally vital. Copper, steel, and CPVC pipes react quite differently to bracing hardware. Rigid clamps might crush softer CPVC under severe seismic stress. You must consult specific lateral load requirements for your seismic zone. Ensure the chosen clamp meets those exact parameters.
Moving from procurement to the job site introduces practical challenges. Field implementation steps must be foolproof and repeatable. We outline a standard operating procedure for installing this hardware. Notice the drastic reduction in steps compared to traditional methods.
Position the pre-assembled U-Quick clamp directly over the pipe.
Snap the hinged locking mechanism securely into place.
Insert the single structural retaining bolt.
Tighten the bolt seamlessly using a standard socket wrench.
Verify the visual torque indicator to ensure proper tension.
Proper torque application remains a strict engineering requirement. U-Quick designs minimize over-torquing risks brilliantly in the field. Many advanced models incorporate clear visual indicators. Some use specialty break-away bolts. The bolt head snaps off cleanly when it reaches optimal torque. This completely eliminates guesswork for the installer. It guarantees structural compliance during visual inspections.
Adoption risks always accompany new hardware rollouts. Crews face a slight learning curve when transitioning. They might initially resist abandoning familiar, traditional U-bolts. You overcome this hesitation through manufacturer-provided field training. Submittal data sheets give field crews immense confidence. Proper training ensures they maximize the promised time-saving benefits.
Selecting a global manufacturer requires careful, structured evaluation. You must assess their production capabilities very deeply. We strongly recommend auditing these critical capabilities before committing to a supplier.
Quality Assurance: Look for consistent QA/QC protocols across their facilities.
Automation: Automated production lines ensure strict dimensional tolerances.
Material Traceability: Raw material tracking protects you from substandard steel batches.
Project engineers need highly accessible technical documentation. They require BIM objects to model spatial clash detection. Load capacity charts are mandatory for structural engineering calculations. Clear installation manuals guide the field teams effectively. You cannot sign off properly without this comprehensive support. A strong supplier provides these crucial assets freely.
Supply chain reliability makes or breaks large-scale deployments. You must factor in delivery lead times carefully. Global distribution networks ensure steady, predictable product flow. Inventory stability matters immensely when specifying proprietary clamps. You do not want a localized stockout to halt your project. Partner only with suppliers offering redundant manufacturing and deep inventory reserves.
Choosing the optimal seismic hardware is a vital risk-management decision. You must carefully balance long-term structural integrity with immediate labor efficiency. The pre-engineered design solves critical field challenges beautifully. It significantly accelerates schedules while maintaining rigorous global safety standards.
Take actionable steps today to evaluate these systems properly. Request physical samples for your field supervisors to test onsite. Download the latest technical data sheets for your engineering department. Schedule a load-calculation consultation with a reputable manufacturer promptly. Moving away from outdated hardware actively protects your projects and your people.
A: Capacity varies significantly depending on pipe size and material thickness. Factors like brace angle and building structure also affect total limits. We strongly advise readers to consult the manufacturer's specific submittal sheet. Always rely on third-party tested data for accurate load calculations.
A: Lateral forces act perpendicular to the pipe run, while longitudinal forces act parallel to it. U-Quick clamps are primarily designed for lateral stability. You must check the manufacturer specifications. Some variants are rated for multi-directional loads, but standard models strictly handle lateral bracing.
A: No. One of the main advantages is the complete lack of specialized or proprietary tools. Installers generally only need standard socket sets or a basic torque wrench. This keeps field execution simple and highly efficient.
A: They perform excellently if specified correctly. However, near heavy rotating equipment, you might need supplementary vibration isolation pads. We recommend adhering strictly to specific torque maintenance schedules. Visual torque indicators help ensure the hardware remains tight despite constant dynamic vibrations.
