Seismic bracing systems are the last line of defense for MEP (mechanical, electrical, plumbing) systems during earthquakes, but even the highest-quality FM UL certified seismic bracing can fail if installed incorrectly. Across North America and global seismic zones, nearly 60% of commercial building inspection rejections for fire sprinkler and HVAC systems stem from non-compliant seismic bracing installation, leading to costly rework, project delays, and even safety hazards. This article breaks down the 7 most common seismic bracing installation mistakes, provides NFPA 13 compliant fixes, and shares industry best practices to help your project pass inspection on the first try. We will also introduce our full range of code-compliant seismic bracing solutions and professional installation support services at the later part.

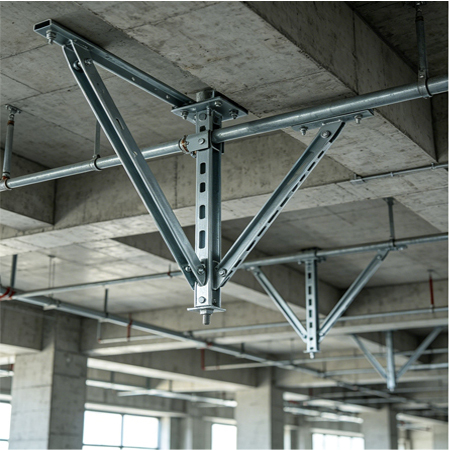

The most frequent installation error is mixing up the mounting directions of lateral seismic bracing and longitudinal seismic bracing. Lateral bracing must be installed perpendicular to the pipe/duct flow direction to restrict horizontal side-to-side sway, while longitudinal bracing must be mounted parallel to the pipe centerline to resist axial tension and compression. Installing longitudinal bracing for lateral load resistance will result in insufficient horizontal load capacity, and vice versa, leading to system failure during seismic events.
All FM UL certified seismic bracing fittings have clear maximum load ratings for specific installation angles, and the allowable load decreases significantly as the installation angle becomes smaller. A common mistake is installing bracing at an angle smaller than the minimum required by the product’s load data, or failing to recalculate the load capacity after adjusting the installation angle. For example, a fitting rated for 1980 lbs at 45°-59° may only support 1490 lbs at 30°-44°, and using it beyond its rated load will create serious safety hazards.
NFPA 13 and IBC standards set strict limits on the maximum spacing between adjacent seismic bracings, and this is one of the top reasons for inspection rejection. Many installers use a uniform spacing for all pipe sizes, ignoring the fact that smaller-diameter sprinkler pipes require shorter bracing spacing than larger-diameter industrial pipes. Spacing that is too large cannot meet seismic resistance requirements, while spacing that is too small unnecessarily increases construction costs.
NFPA 13 Seismic Bracing Spacing Standards
Using cheap, uncertified seismic bracing fittings, or mixing components from different manufacturers, is a high-risk mistake. Non-certified fittings have not undergone the rigorous static and dynamic load testing required by FM and UL standards, and cannot guarantee their load capacity and seismic performance. Mismatched components may have incompatible connection sizes and load ratings, leading to loose connections and system failure during earthquakes. Only full sets of FM UL certified components from the same manufacturer can ensure full compliance with NFPA 13 standards.
Fastener installation is a critical detail that is often overlooked. Many installers fail to tighten fasteners to the required torque, or omit the required shear bolts for seismic bracing connections. Under-tightened fasteners will loosen during seismic vibration, while over-tightened fasteners may damage the fittings or pipe walls. Missing shear bolts will cause the bracing connection to fail under lateral load, as shear bolts are designed to bear the horizontal seismic force and prevent the fitting from sliding off the pipe.

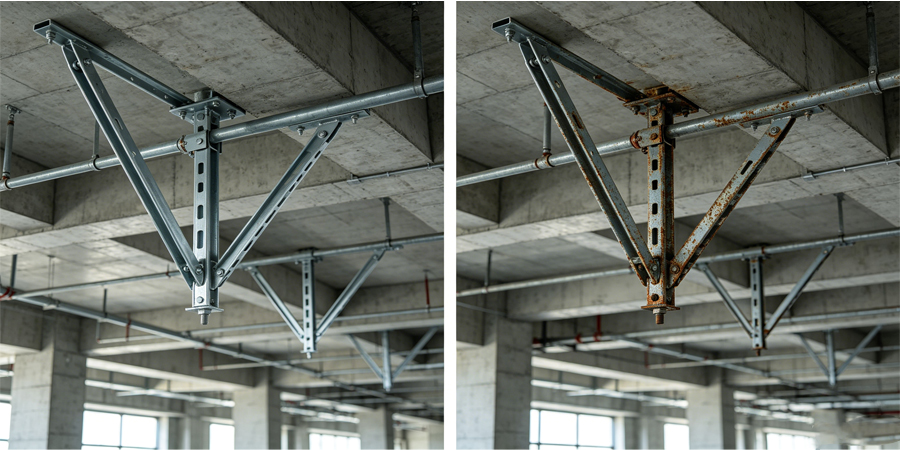

Seismic bracing installed in humid workshops, outdoor pipe racks, coastal areas, or chemical plants requires special anti-corrosion treatment, but this requirement is often ignored. Using standard electro-galvanized fittings in high-humidity or corrosive environments will lead to rust and corrosion within a few years, reducing the load capacity of the bracing system and creating long-term safety hazards. For harsh environments, hot-dip galvanized or stainless steel seismic bracing fittings must be used to ensure long-term corrosion resistance.
Even if the seismic bracing is installed correctly, the project will still fail inspection if the required documentation is incomplete. Building inspectors require full sets of product certification documents, load test reports, installation drawings, and torque records to verify compliance with NFPA 13 standards. Many installers fail to prepare these documents in advance, leading to inspection delays and rework requirements.

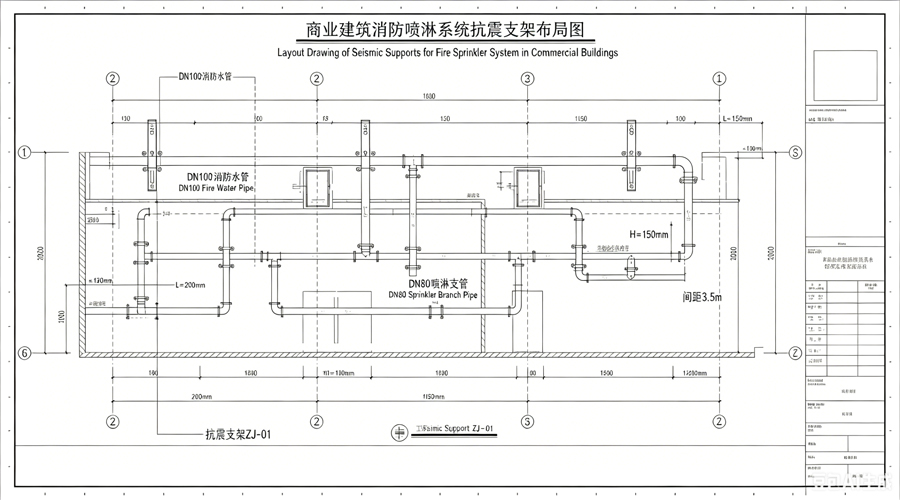

Seismic Bracing Installation Drawings & Technical Documents
Before starting installation, the seismic bracing layout must be verified by a professional engineer to ensure compliance with NFPA 13 standards. The verification should include: bracing type selection for each pipe/duct section, installation angle and load capacity calculation, spacing between adjacent bracings, and fastener torque requirements. Using pre-approved CAD/BIM drawings can significantly reduce installation errors and ensure compliance.
To ensure full compliance and safety, only use full sets of FM UL certified seismic bracing components from the same reputable manufacturer. Avoid mixing components from different brands, and never use uncertified cheap fittings. All components should come with complete certification documents and load test reports, which can be directly submitted for building inspection.
During installation, strictly follow the installation angle and spacing requirements specified in the approved design drawings and product technical data. For lateral bracing, the standard installation angle is 45°-90° relative to the pipe, and for longitudinal bracing, the standard angle is 30°-60°. Always recalculate the load capacity if the installation angle needs to be adjusted on-site, and never exceed the maximum spacing limits set by NFPA 13.

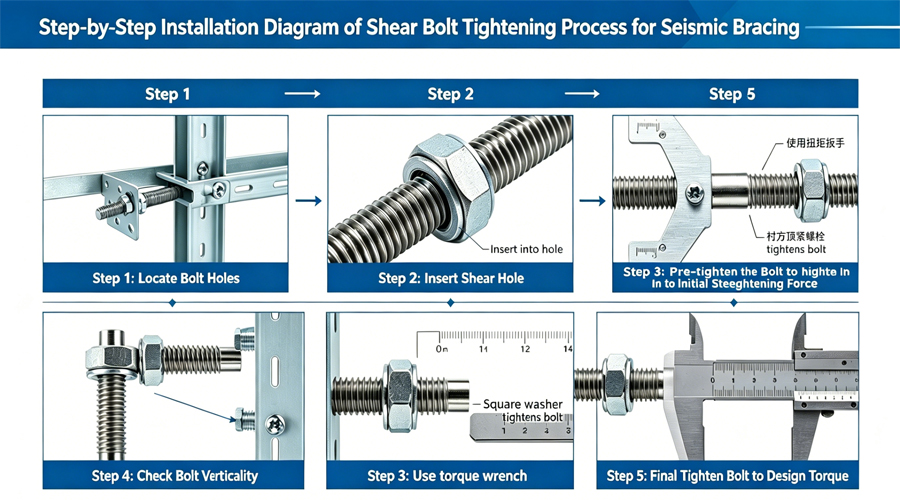

All fasteners must be tightened to the torque specified in the product installation manual, using a calibrated torque wrench to ensure accuracy. Shear bolts must be installed in the correct position and tightened until the head breaks off, as required by the installation instructions. Keep detailed torque records during installation, which will be required for building inspection.
Before the building inspection, prepare a complete set of compliance documents, including: product FM UL certification documents, load test reports for all components used, approved seismic bracing layout drawings, installation torque records, and material inspection reports. Having these documents ready will significantly speed up the inspection process and ensure your project passes on the first try.
Seismic Bracing Compliance Document Checklist
At Utterly TY Intelligent Technology Co., Ltd., we specialize in manufacturing high-quality, FM UL CE certified seismic bracing systems for MEP projects worldwide. Our full product line is fully compliant with NFPA 13, IBC and ASCE 7 standards, making it the ideal choice for commercial, industrial and public infrastructure projects in North America, Europe, the Middle East and Southeast Asia.

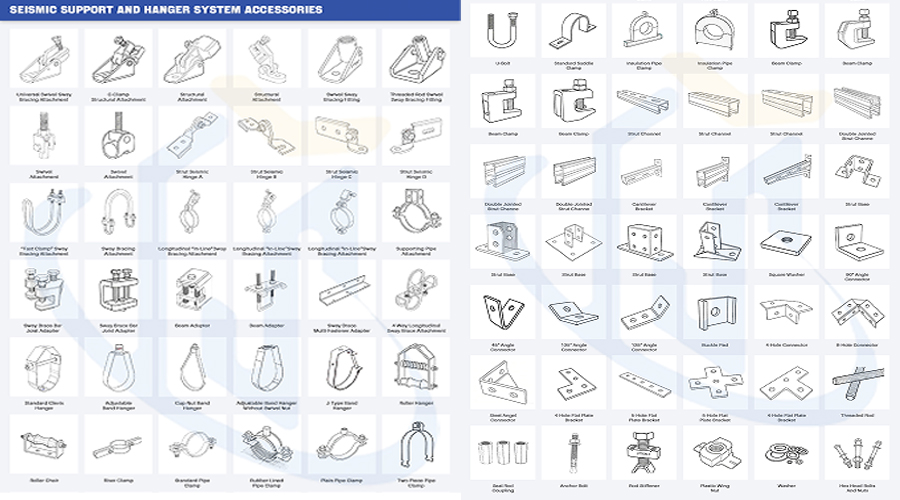

We offer a complete portfolio of seismic bracing components to cover all your project needs, including:

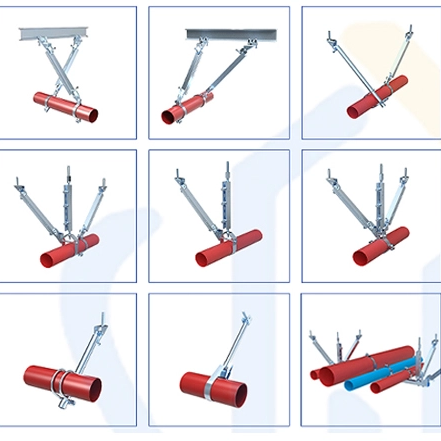

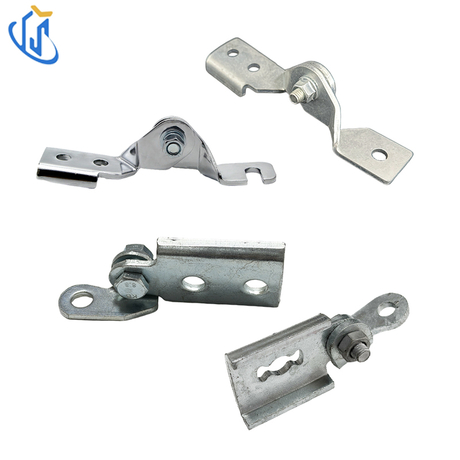

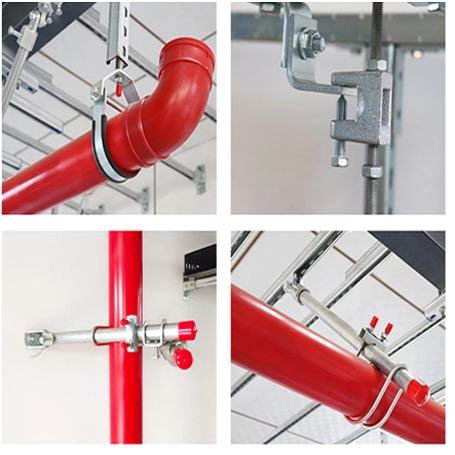

Lateral and longitudinal seismic bracing fittings (universal swivel hinges, swing brace connectors, in-line fittings)

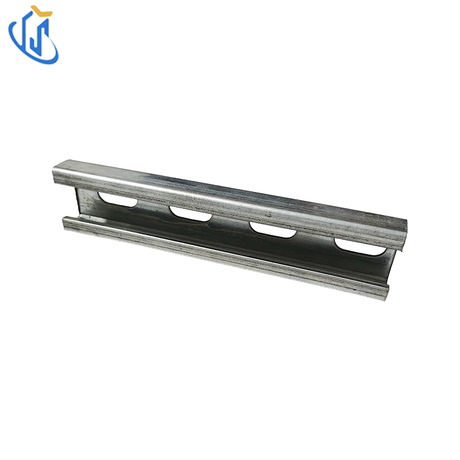

UTT series strut channels in various sizes and thicknesses (UTT7021, UTT7041, UTT7052, UTT7062, UTT7072, UTT44, UTT45)
Standard pipe clamps, beam clamps, hangers and fasteners for seismic support systems
Hot-dip galvanized and stainless steel anti-corrosion options for harsh environments
All our products are made from high-strength carbon steel and QT450 ductile iron, with complete technical data sheets, load tables and installation guides for every product. We also provide free CAD and BIM drawing services to help you create a fully compliant seismic bracing layout for your project.
We understand that correct installation is critical to the performance and compliance of seismic bracing systems, which is why we offer comprehensive installation support services:
Pre-sales technical consultation and load calculation support
Free CAD/BIM drawing design and layout verification
On-site installation guidance and training for your installation team
Full set of compliance documents and test reports for building inspection
Our technical team has over 10 years of experience in seismic bracing design and installation, and can help you avoid common installation mistakes and ensure your project fully complies with NFPA 13 and local building codes.
If you are looking for reliable, NFPA 13 compliant seismic bracing solutions for your fire sprinkler, HVAC or industrial piping project, we are here to help. Send us your detailed project requirements, including pipe sizes, layout drawings, project location and technical specifications, and our sales team will provide you with a detailed official quote, complete technical data sheets and certification documents within 24 hours.
We support bulk orders, sample testing and customized production, and have long-term cooperative relationships with dozens of engineering contractors and distributors worldwide. Whether you are a project contractor, engineering company or product distributor, we can provide you with a one-stop professional seismic bracing solution, from design and product supply to installation support and compliance documentation. Visit our Contact Us Page to leave your information, or send us an email for further communication. We look forward to establishing a long-term win-win cooperation with you.
