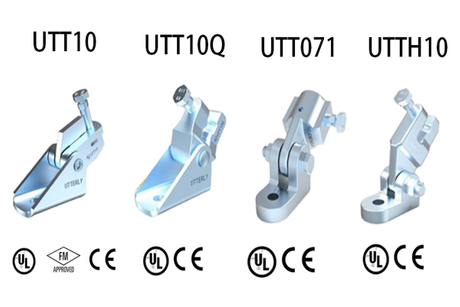

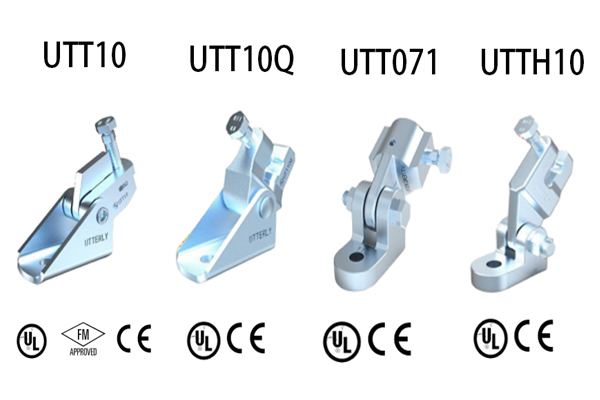

For MEP designers, general contractors and engineering specifiers, the selection of qualified seismic sway bracing attachments directly decides whether the whole fire protection and HVAC pipeline system can pass official AHJ inspection under NFPA 13 and ASCE 7 codes. Uncertified mismatched seismic hardware will bring hidden risks of pipeline displacement under seismic loads and lead to costly project rework. This article comprehensively analyzes four mainstream certified UTT models including UTT10, UTT10Q, UTT071 and UTTH10. It covers certification comparison, material specifications, load capacity data and applicable working conditions. All technical data is extracted from official factory drawings as objective reference for model selection.

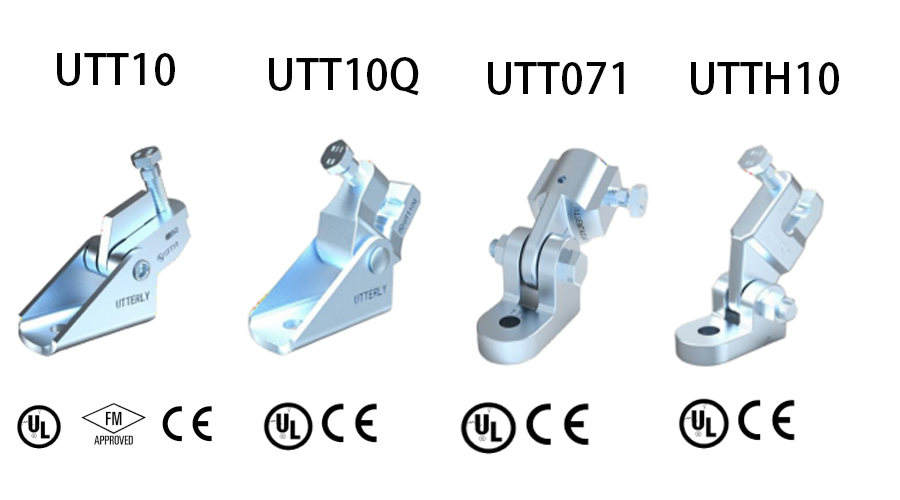

Many seismic fittings in the market have inconsistent certification levels. Before model matching, please check the certification status of each model clearly in the table below.
Model | UL | FM | CE |
|---|---|---|---|
UTT10 | ✅ | ✅ | ✅ |
UTT10Q | ✅ | ❌ | ✅ |
UTT071 | ✅ | ❌ | ✅ |
UTTH10 | ✅ | ❌ | ✅ |
The casting stressed parts of all four products adopt QT450 ductile iron, while plate components are carbon steel. Electro-galvanizing is the standard surface finish. All fittings reserve unified 1/2" bolt holes to match M12 shear bolts. Detailed parameters are listed in the table below.
Model No. | Full Name | Main Material | Surface Finish | Complete Certifications | Matched Pipe Standard | Core Function |
|---|---|---|---|---|---|---|
UTT10 | Universal Sway Bracing Attachment | Carbon Steel + QT450 Ductile Iron | Electro-galvanized | UL, FM, CE | Sch10, Sch40, GB/T 3091, JIS G3454 | Universal lateral & longitudinal seismic connector matched with SCH40 bracing pipe |
UTT10Q | C-clamp Structural Attachment | Carbon Steel + QT450 Ductile Iron | Electro-galvanized | UL, CE | Sch10, Sch40, GB/T 3091, JIS G3454 | Integrated C-beam clip, no pre-drilling for H steel beams |
Standard Structural Attachment | Carbon Steel + QT450 Ductile Iron | Electro-galvanized | UL, CE | Sch10, Sch40, GB/T 3091, JIS G3454 | Flat base for fixing on concrete beams & embedded plates | |
UTTH10 | Heavy-Duty Structural Attachment | Carbon Steel + QT450 Ductile Iron | Electro-galvanized | UL, CE | Sch10, Sch40, GB/T 3091, JIS G3454 | Thickened reinforced casting for heavy main pipeline bracing |
Electro-galvanized finish is only applicable to dry indoor environments such as offices and shopping malls. For underground parking lots, outdoor pipe racks and coastal areas with heavy salt fog, hot-dip galvanized customization is available. QT450 ductile iron has better anti-impact performance than ordinary cast iron and can avoid cracking under lateral seismic force.

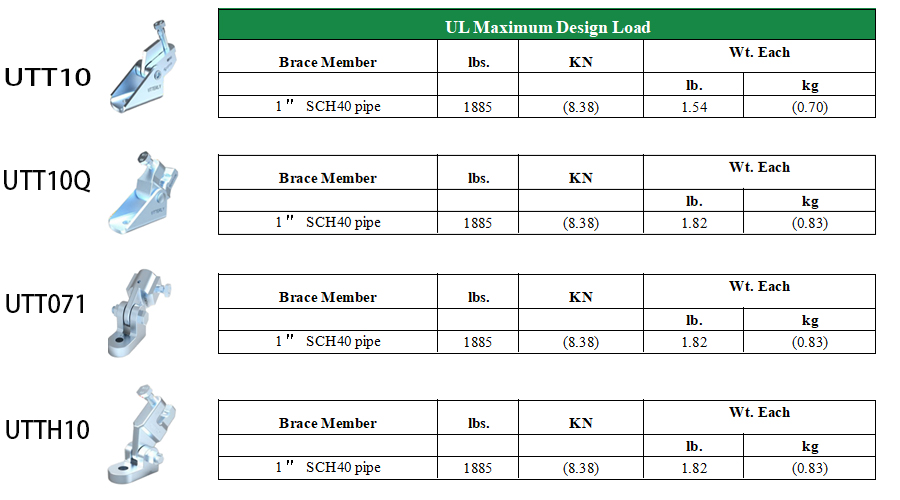

Load capacity is the core design basis. Only UTT10 has passed FM graded load tests at different installation angles. UTT10Q, UTT071 and UTTH10 only provide UL static load data. All tests use 1" SCH40 pipe as supporting member.
Load Classification | Rated Value | Unit | Single Piece Weight |
|---|---|---|---|
UL Maximum Design Load | 1885 | lbs (8.38 kN) | 1.54 lbs (0.70 kg) |
FM Load (30°–44° Installation Angle) | 1490 | lbs (6.62 kN) | - |
FM Load (45°–59° Installation Angle) | 1980 | lbs (8.80 kN) | - |
Model | UL Max Design Load | Unit | Single Piece Weight |
|---|---|---|---|
UTT10Q | 1885 | lbs (8.38 kN) | 1.82 lbs (0.83 kg) |
UTT071 | 1885 | lbs (8.38 kN) | 2.22 lbs (1.01 kg) |
1885 | lbs (8.38 kN) | 1.96 lbs (0.89 kg) |
Designers shall control the installation angle of sway brace assemblies between 30° and 59°. If the angle exceeds this range, the certified allowable horizontal load will drop significantly. Shear bolts must be tightened until the head breaks off to reach the designated torque standard.

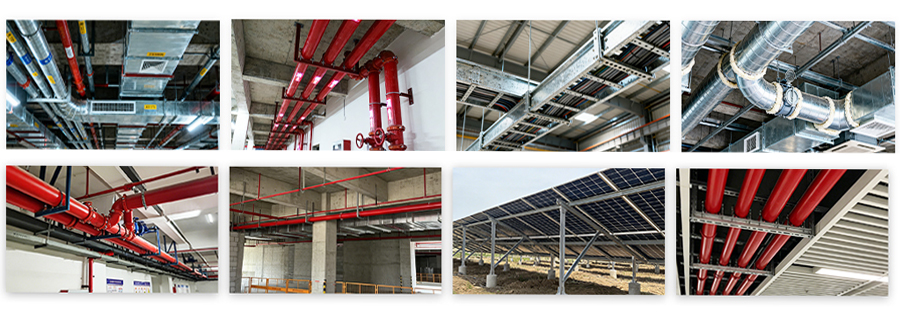

Different structural designs correspond to different building substrates and pipeline working conditions. The table below clearly distinguishes suitable projects for each model.
Model | Core Structural Feature | Applicable Building Type | Recommended Pipeline Condition |
|---|---|---|---|
UTT10 | Integrated universal casting, triple certifications | Shopping malls, office buildings, commercial complexes | All fire sprinkler branch & main pipes, priority for projects requiring FM inspection |
Built-in C-beam clamp base | Steel structure factories, warehouses | H-beam mounted fire pipelines, fast on-site installation without drilling | |
UTT071 | Flat bottom base for concrete fixing | Underground parking lots, residential basements | HVAC & sprinkler pipes fixed on concrete walls & beams |
UTTH10 | Thickened reinforced casting | Chemical plants, large commercial buildings | DN150+ heavy fire main pipelines |

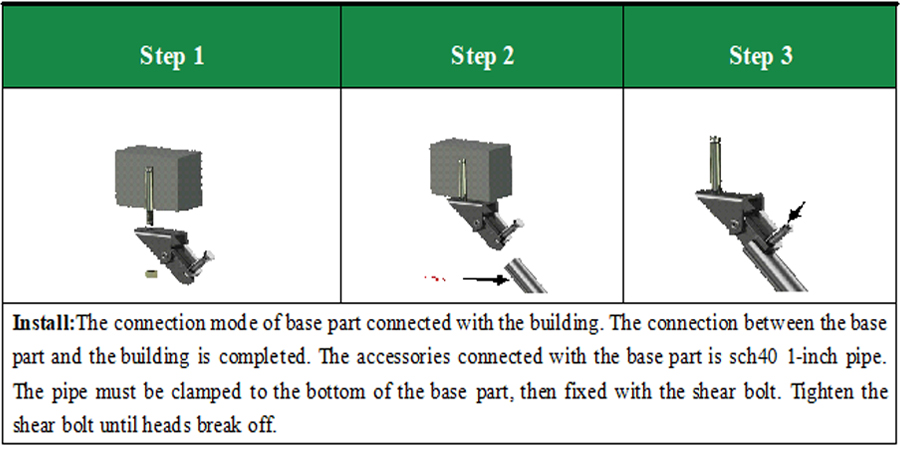

All four fittings follow the identical installation steps as specified on official drawings:
Secure the fitting base firmly to building load-bearing beams or concrete slabs;
Put standard 1" SCH40 bracing pipe into the base clamping groove;
Install M12 shear bolt and tighten until bolt head breaks off.
Several typical construction mistakes will invalidate certified load performance and lead to inspection failure:
Non-standard bolts cannot replace matched M12 shear bolts; incomplete tightening without broken bolt heads fails torque requirement;
Electro-galvanized products cannot be used in long-term humid or coastal salt fog environments; hot-dip galvanized customization is required;
UTT10Q is only fit for standard H-beam surfaces, not uneven concrete substrates;
UTTH10 is designed for heavy main pipes instead of small branch pipes to avoid material waste;
Complete seismic support system shall be assembled with matched strut channels and pipe clamps.
Utterly TY Intelligent Technology specializes in manufacturing seismic bracing hardware compliant with NFPA 13 standards. We supply complete supporting packages for UTT10, UTT10Q, UTT071 and UTTH10.
Our comprehensive technical & commercial services include:
Complete official datasheets, UL, CE and FM test reports for bidding and AHJ inspection;
Free load calculation & model selection based on client pipeline drawings and structural conditions;
Sample supply for pre-project load testing;
Mass bulk production & customized anti-corrosion surface treatment;
OEM & ODM custom casting & dimension processing.

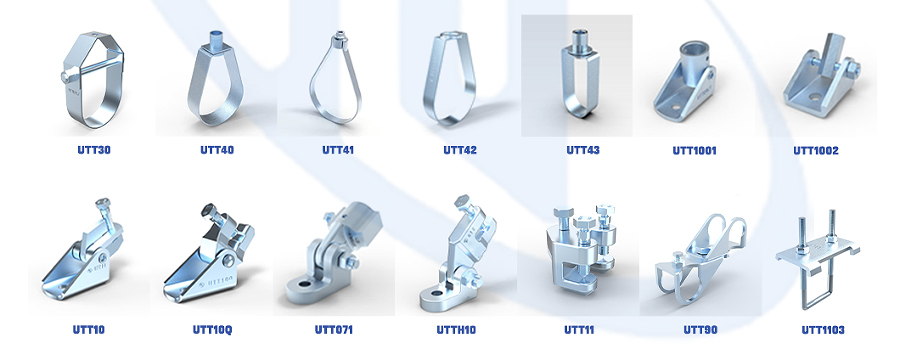

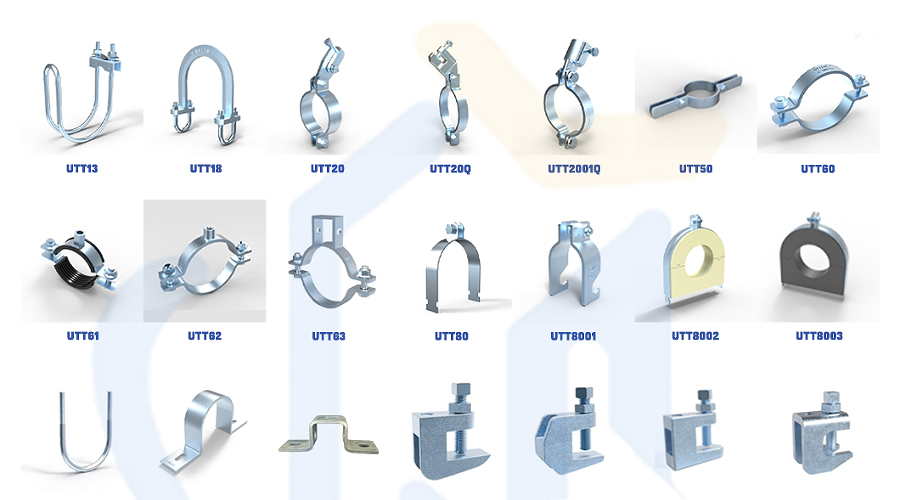

All four certified UTT attachments can form complete MEP seismic restraint systems together with our strut channels, pipe clamps and fastener series.
Complete fire protection seismic bracing system
Selecting properly certified UTT seismic sway bracing attachments helps you avoid seismic hazards and project inspection delays. UTT10 with UL, FM and CE triple certifications is the top choice for high-standard inspection projects. UTT10Q, UTT071 and UTTH10 provide targeted solutions for steel structures, concrete substrates and heavy-duty pipelines respectively.
