Carbon Steel Electro-Galvanized Round Pipe Seismic Attachment

Overview

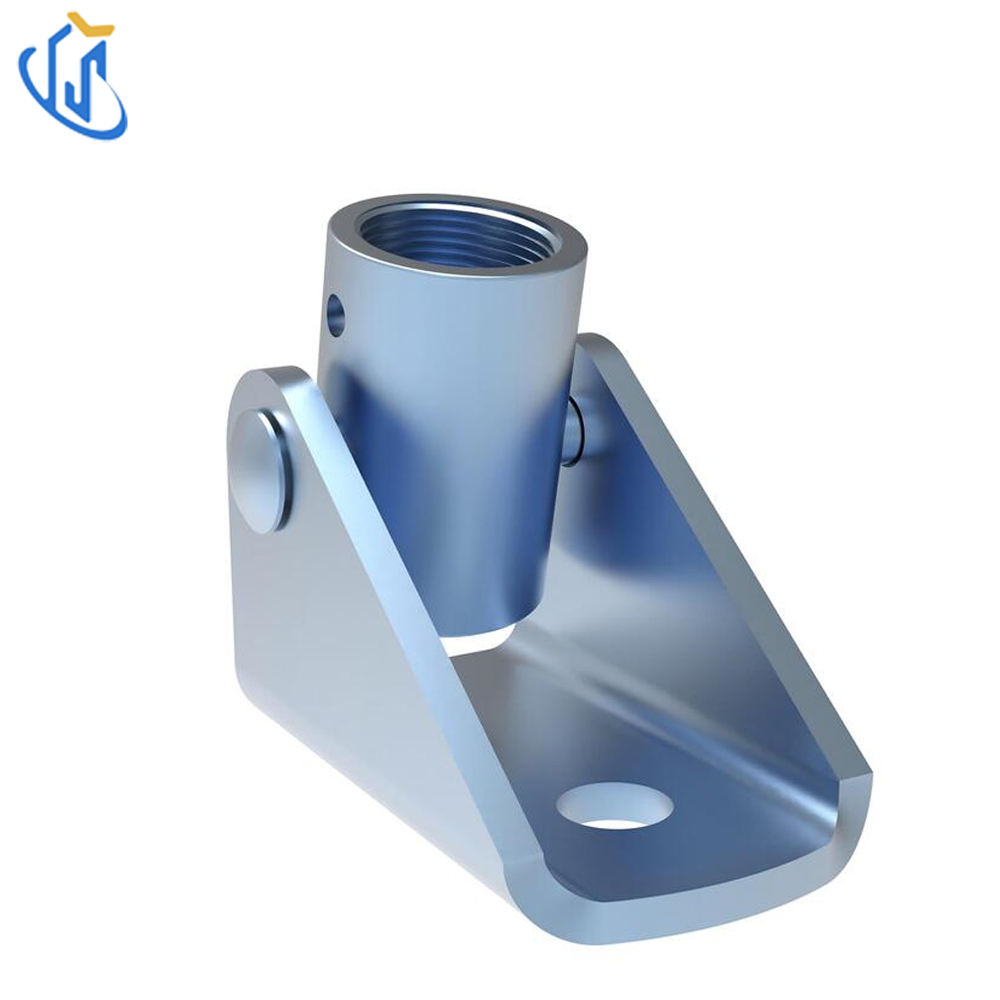

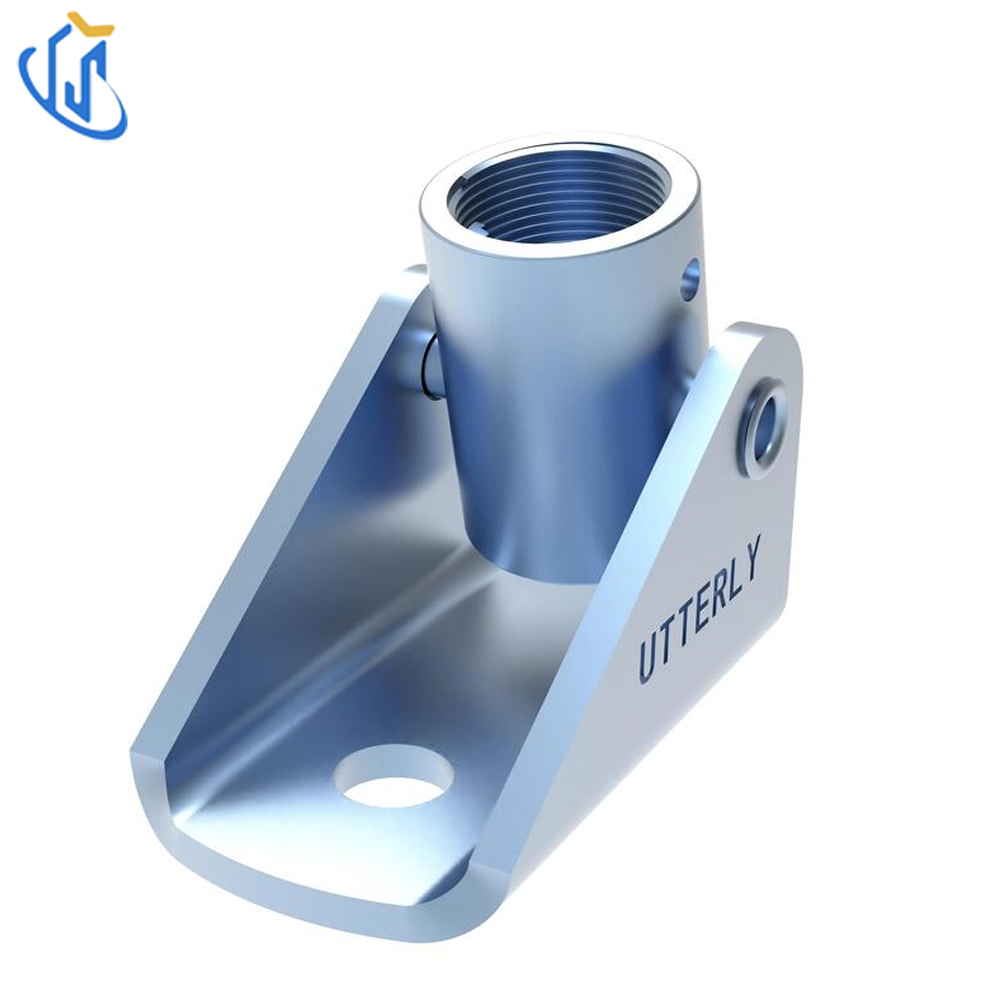

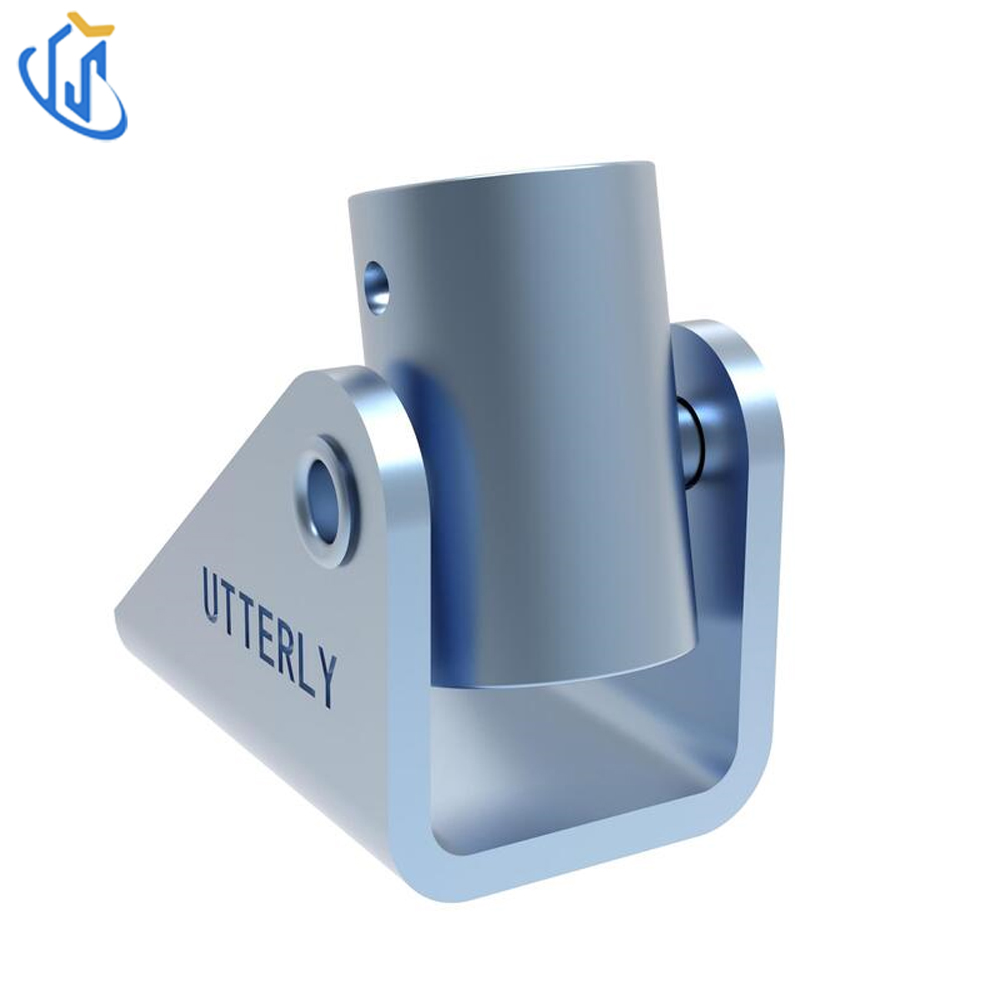

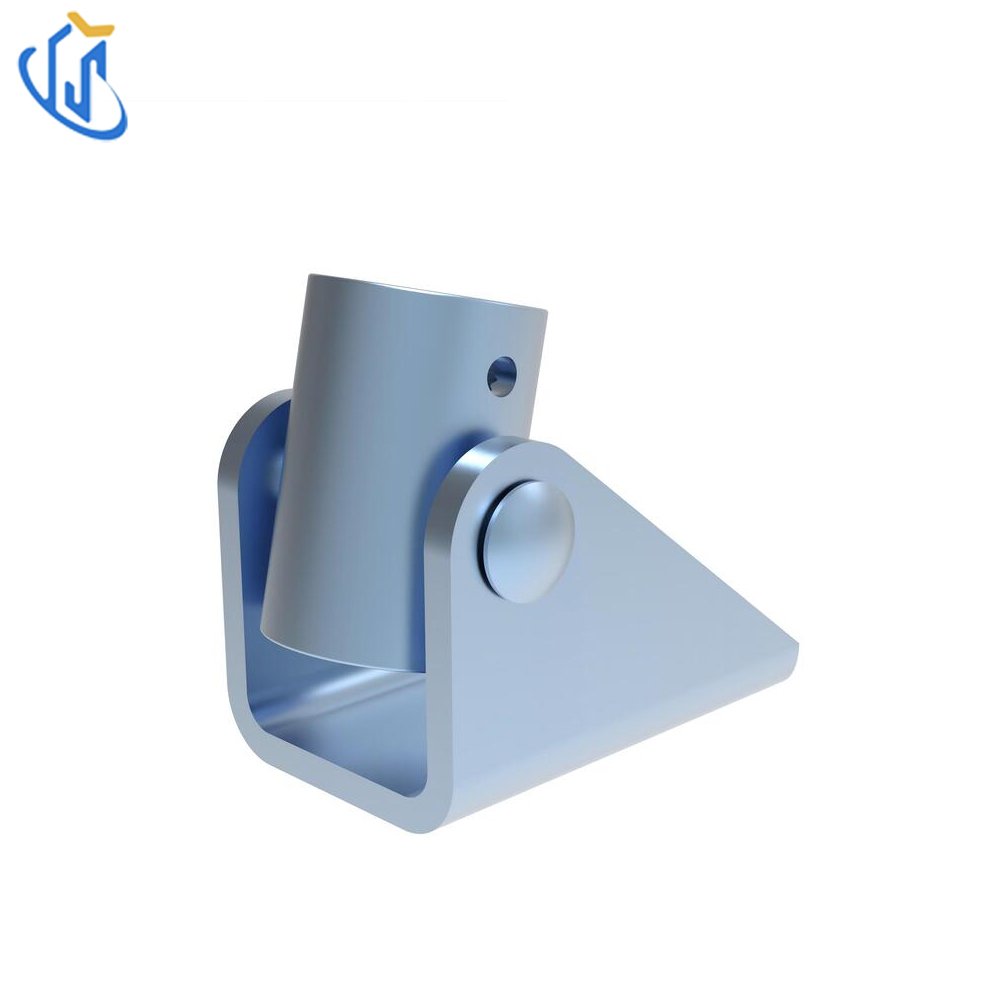

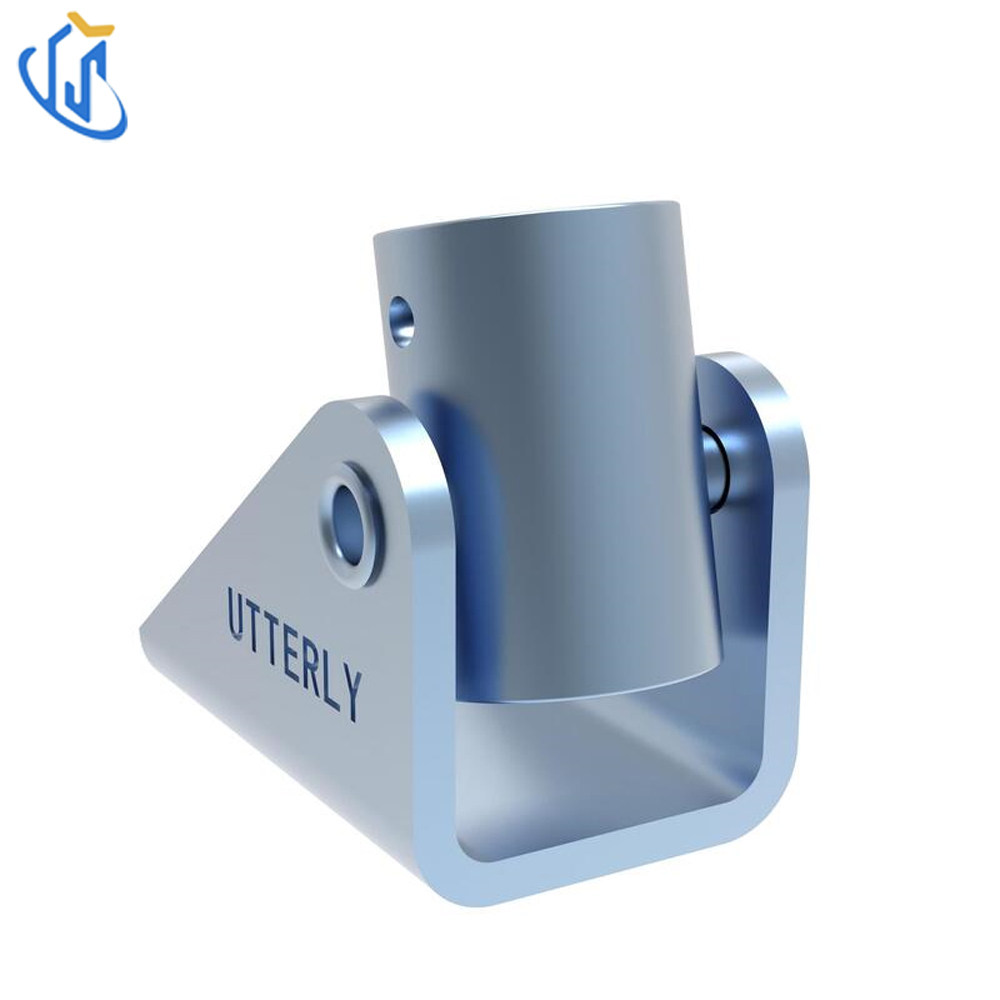

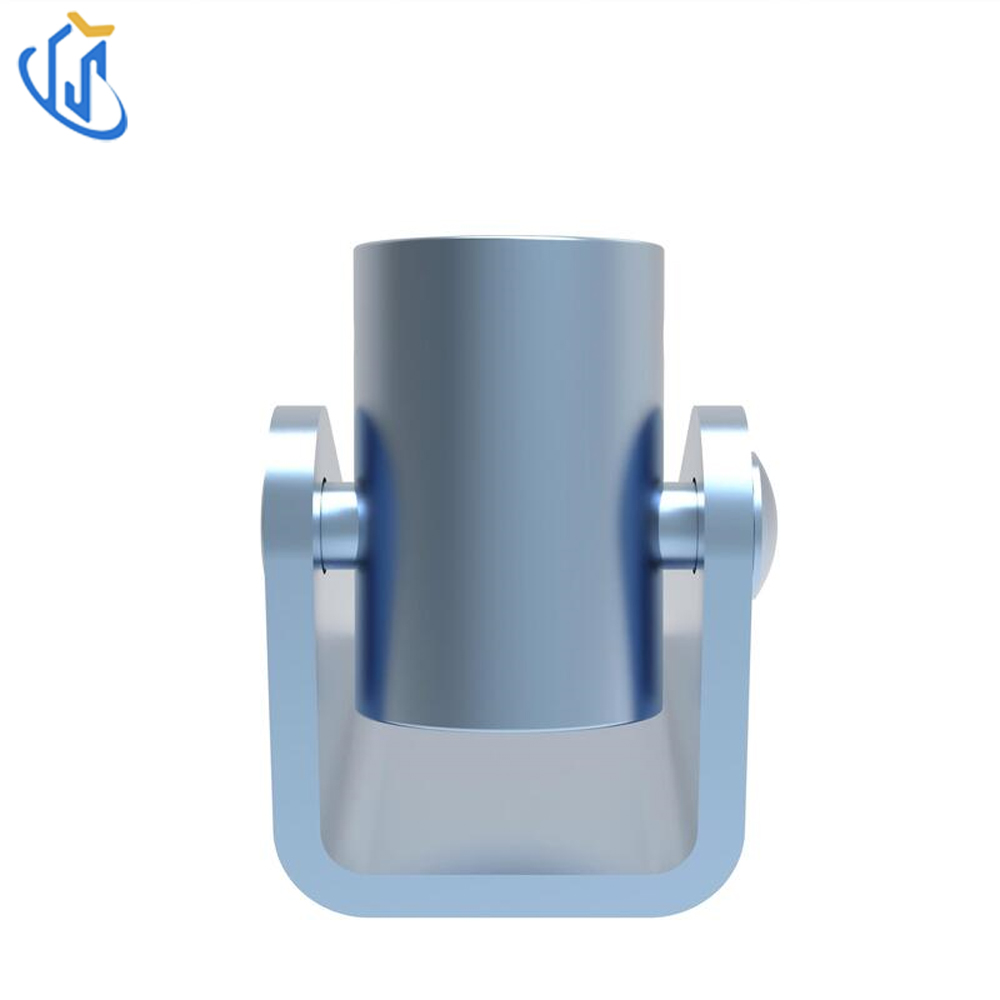

UTT1001 is professional carbon steel seismic structural attachment developed for fire sprinkler and MEP pipeline lateral sway & seismic restraint. Specially designed to assemble with 1" round bracing pipe and matched pipe clamps to form full NFPA13 compliant seismic bracing system, widely installed for commercial buildings, industrial workshops and various fire protection engineering projects.

Key Features

Core Function: Connect building structural components and round brace pipe to restrict pipeline lateral shift under earthquake impact Applicable Brace Pipe: Exclusive for 1",1-1/4" standard round bracing pipe Raw Material: High-strength carbon steel Surface Finish: Electro-galvanized coating for outstanding anti-corrosion performance Load Standard: Max working load up to 2015 lbs for both two sizes, UL certified load rating Matching Accessory: Cooperates with UTT series pipe clamps to finish complete seismic bracing installation

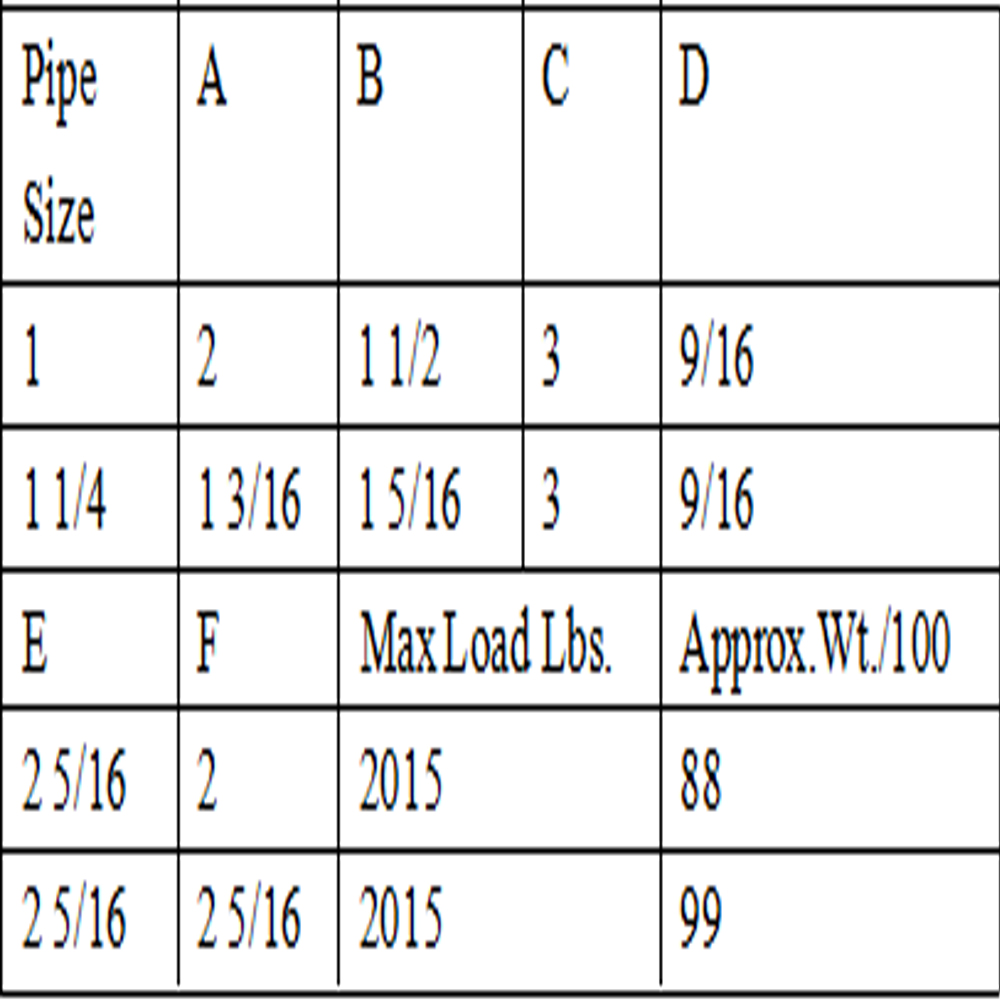

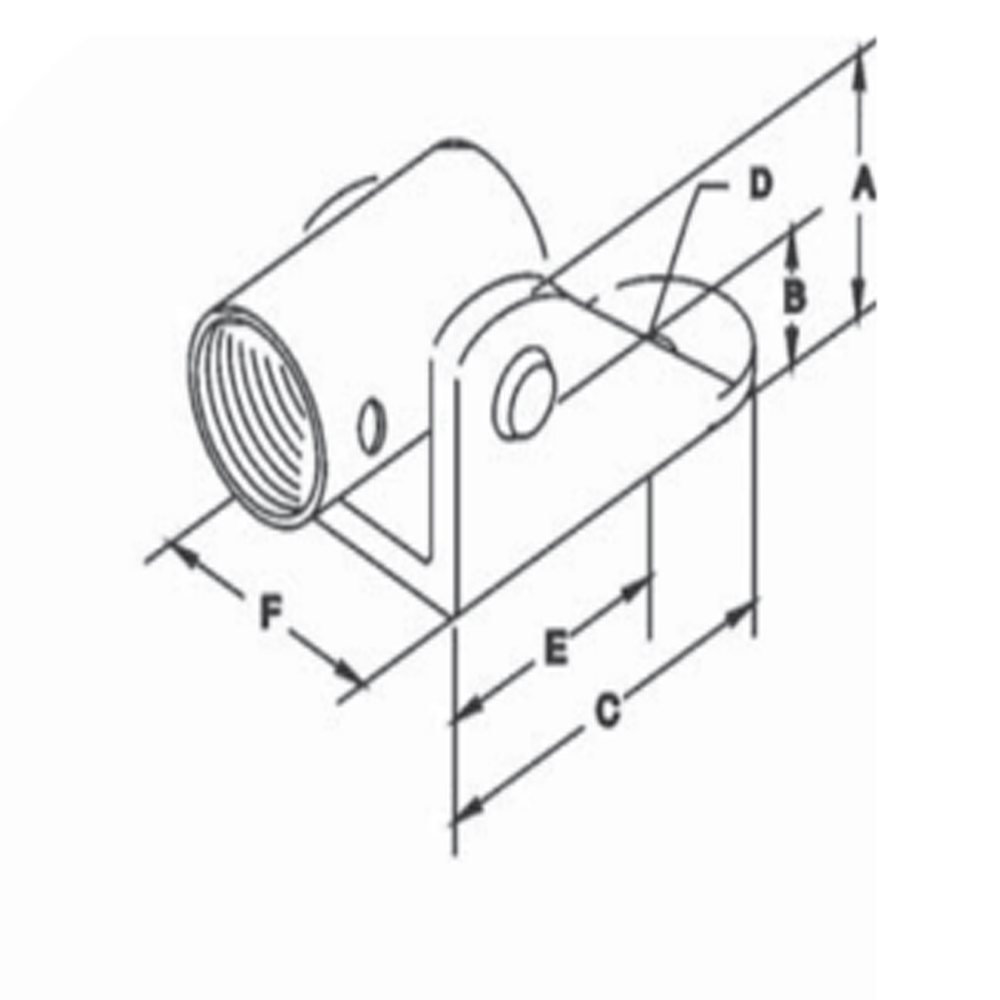

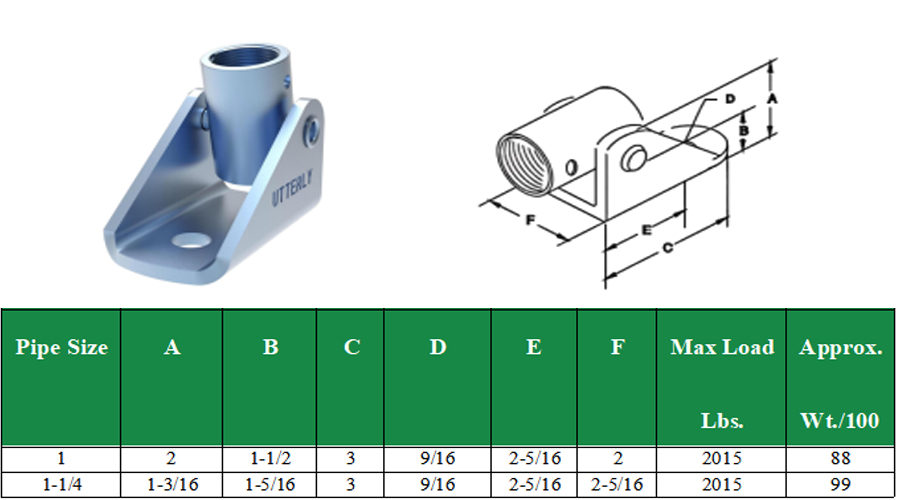

Product Parameter Table

Application Scenarios

1. Fire Protection Sprinkler Systems

   Special anti-seismic sway bracing for fire sprinkler pipeline, effectively prevent pipe displacement and deformation during seismic events to satisfy NFPA13 fire safety rules.

2. MEP & HVAC Pipeline Works

   Anti-sway fixation for cold/hot water pipeline, drainage and HVAC piping of high-rise buildings, shopping malls and residential estates.

3. Industrial & Public Construction Projects

   Seismic supporting solution for hospital, data center and factory constructions located in high seismic risk area.

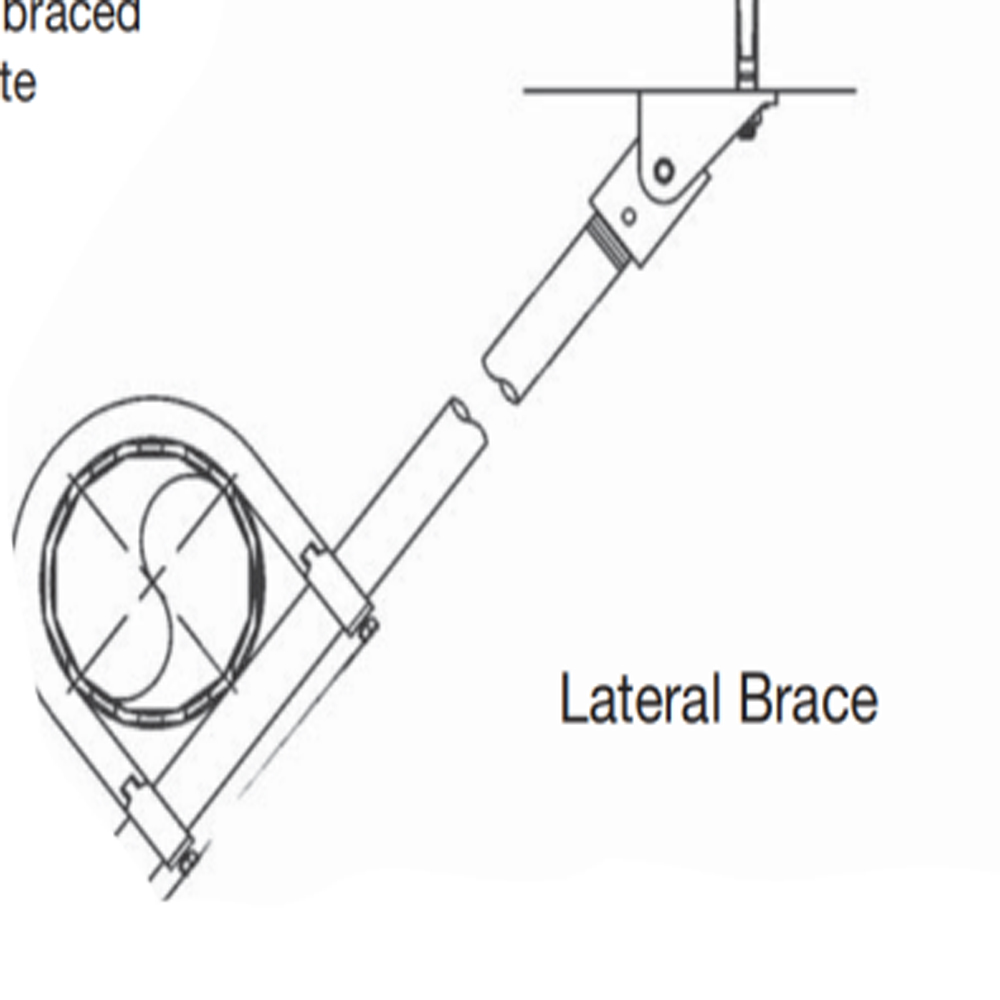

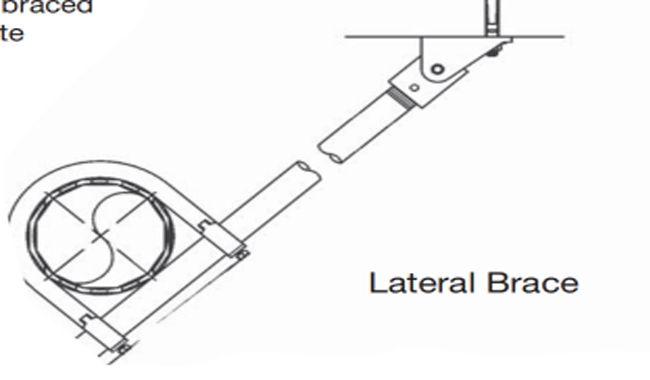

1. Fasten UTT1001 base firmly onto building concrete or steel structural member with standard fixing bolt.

2. Install 1" or 1-1/4" round bracing pipe into the reserved clamping position of the attachment.

3. Fix matched shear bolt and fasten tightly to lock bracing pipe in place.

4. Connect the opposite end of bracing pipe with matched series pipe clamp fixed on outer wall of service pipe.

5. Double-check all connection tightness before pipeline pressure testing.

1. UL authoritative product certification approved, load value verified by third-party testing institute

2. Fully compliant with NFPA13, IBC, ASCE7 North American building seismic design standards

3. Electro-galvanized surface meets ASTM B633 international anti-corrosion coating standard

4. Every production batch carries strict factory load test and dimensional inspection




Core Product Advantages

UL Verified Rated Load Performance

Certified max load 2015lbs passed third-party lab detection, valid for engineering project document submission.

Durable Carbon Steel Construction

High tensile carbon steel raw material provides excellent structural stability and impact resistance against seismic load.

Uniform Electro-Galvanized Anti-Corrosion Coating

Compact zinc coating isolates moisture and corrosive air, prolong service life under long-term indoor construction environment.

Customized Size for Round Brace Pipe

Specially tailored for 1" &1-1/4" round bracing pipe, precise size matching improves on-site installation efficiency.

Wide System Matching Ability

Interchangeable with complete UTT series pipe fittings to build integrated pipeline seismic support solution.

FAQ

Q1: What is UTT1001 mainly used for? A1: UL listed carbon steel seismic connector to fix round bracing pipe onto building structure for fire and MEP pipeline anti-seismic sway protection. Q2: Which bracing pipe sizes can UTT1001 match? A2: Available for 1 inch and 1-1/4 inch standard round bracing pipe. Q3: What is the maximum rated load of this fitting? A3: Both specifications support maximum working load up to 2015 lbs. Q4: What’s the material and surface finish? A4: Made of carbon steel with full electro-galvanized anti-rust finish. Q5: Can customers get free samples? A5: Free pre-order test samples can be provided for quality confirmation before bulk order.
