UTT7409
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Finish: | |
| Size: | |
| Length: | |
| Grade: | |
| Quantity: | |

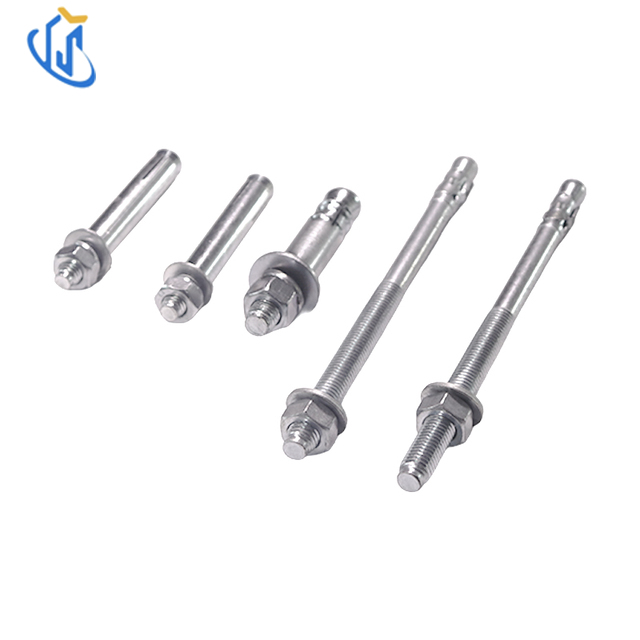

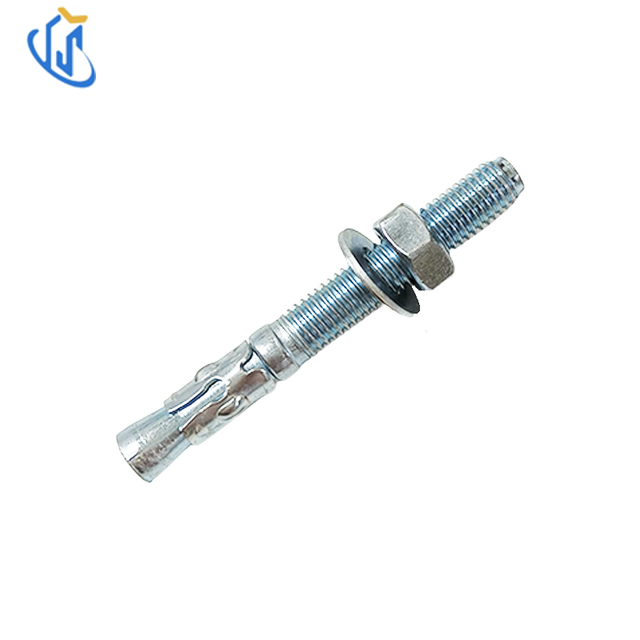

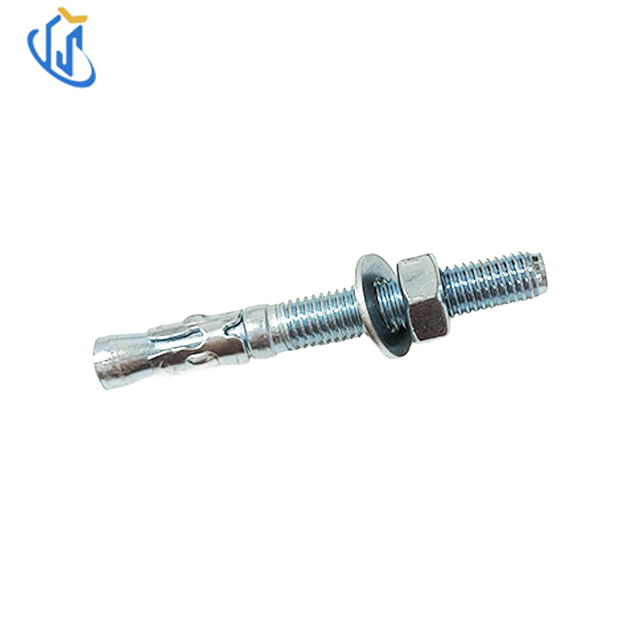

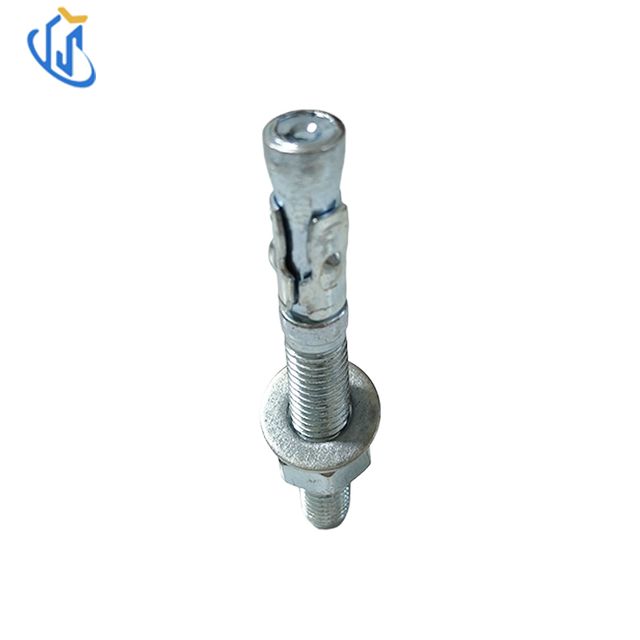

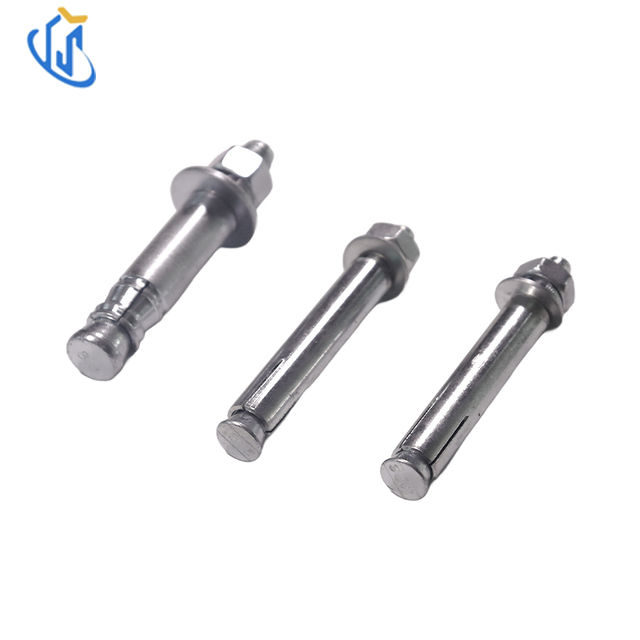

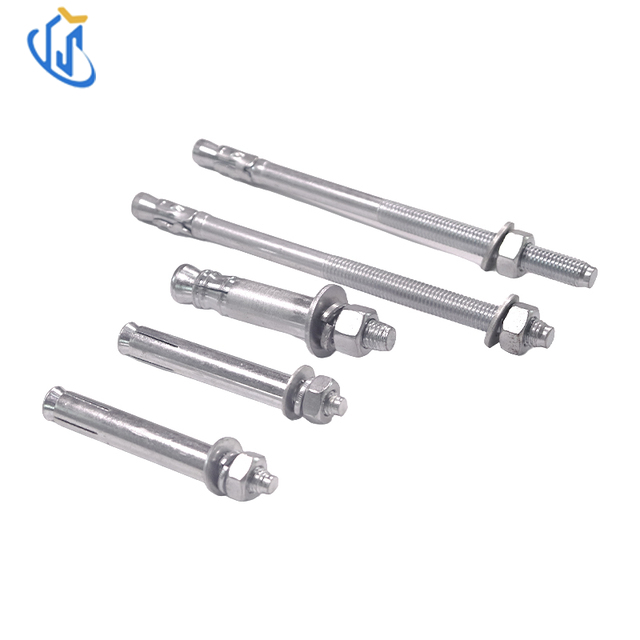

UTT7409 Anchor Bolt is a high-performance mechanical anchoring fastener widely used in construction, industrial and mechanical applications. Manufactured from high-quality carbon steel (grades 4.8, 6.8, 8.8) or stainless steel, it features electro-galvanized or stainless steel finishes to provide corrosion resistance for different environments.

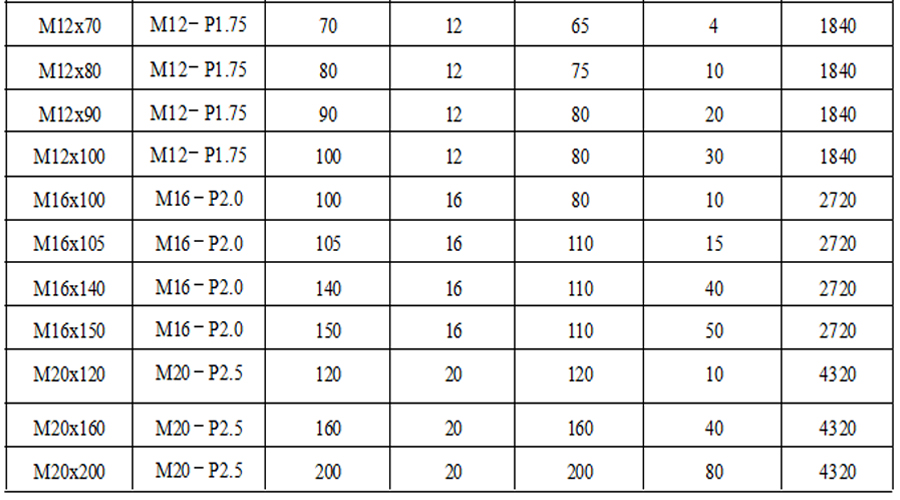

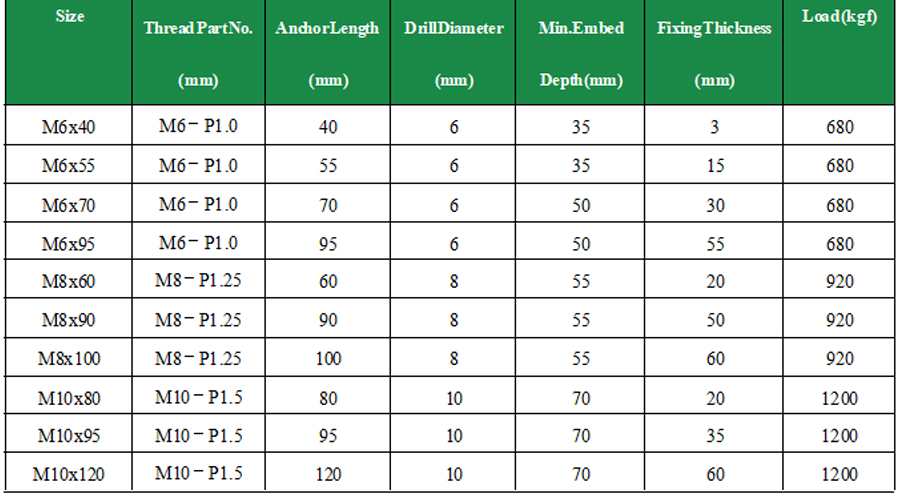

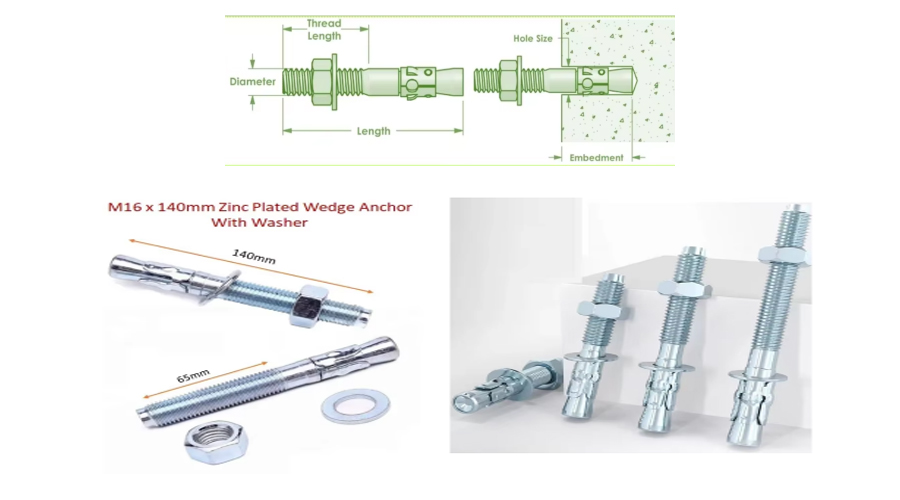

Designed for secure anchoring in concrete and masonry, it is available in a comprehensive range of sizes from M6 to M20 and lengths from 40mm to 200mm, with detailed specifications including drill diameter, minimum embedment depth, fixing thickness and load capacity data. Widely applied in structural support, equipment mounting, pipe hanger installations and general construction projects, it ensures stable and reliable mechanical anchoring for various load requirements.
Core Function: Provide secure mechanical anchoring in concrete and masonry for construction and industrial applications
Raw Material: Carbon Steel (Grades 4.8, 6.8, 8.8) / Stainless Steel
Surface Finish: Electro-galvanized / Stainless Steel
Standard Sizes: M6, M8, M10, M12, M16, M20
Standard Lengths: 40mm to 200mm
Design Feature: Expansion anchor design for reliable mechanical locking in concrete
Customization Service: Custom sizes, grades and finishes are available on request.
Item | Specification |
|---|---|
Model | UTT7409 Anchor Bolt |
Raw Material | Carbon Steel (4.8/6.8/8.8 grade) / Stainless Steel |
Surface Treatment | Electro-galvanized / Stainless Steel |
Standard Sizes | M6, M8, M10, M12, M16, M20 |
Standard Lengths | 40mm-200mm |
Standard Grade | 4.8, 6.8, 8.8 |
Core Performance | High load capacity, reliable mechanical anchoring |
Customization | Custom sizes, grades and finishes supported |
Main Application | Concrete anchoring for construction, equipment mounting and pipe support |
Sample Supply | Free pre-order test samples available |

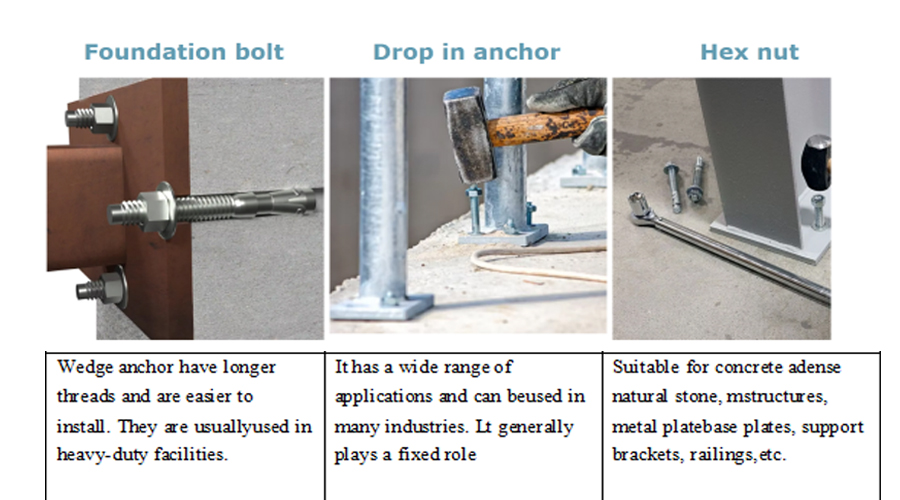

Construction Anchoring: Secure anchoring of structural components, railings and brackets in concrete and masonry.
Industrial Equipment Mounting: Reliable fixing of machinery, equipment frames and production line components.
Pipe Support Installations: Anchoring base plates and hangers for overhead pipe systems in HVAC and plumbing projects.
General Mechanical Applications: Suitable for various industrial and construction applications requiring strong mechanical anchoring.
Select the suitable anchor bolt size, length and grade according to load requirements and concrete base material.
Drill a hole in the concrete/masonry to the specified diameter and minimum embedment depth.
Clean the hole thoroughly to remove dust and debris.
Insert the anchor bolt into the hole and tighten the nut to expand the anchor sleeve.
Verify the anchor is securely fixed and test the connection before applying the full load.
Conforms to general manufacturing standards for mechanical anchor bolts and construction fasteners.
Galvanized and stainless steel finishes meet international anti-corrosion specifications for indoor and outdoor use.
All products pass dimensional, material strength and surface treatment inspection before delivery.
Available in M6-M20 sizes and 40mm-200mm lengths, suitable for various anchoring applications.
Carbon steel in 4.8/6.8/8.8 grades or stainless steel, with electro-galvanized or stainless steel finishes.
Expansion anchor design provides strong, secure anchoring in concrete and masonry.
Each size comes with verified load capacity specifications for safe and reliable selection.
High-quality materials combined with protective finishes ensure long service life in most environments.
Suitable for construction, industrial equipment, pipe support and general mechanical anchoring projects.
Q1: What materials and finishes are available for the anchor bolts?
A1: Materials include carbon steel (4.8/6.8/8.8 grade) or stainless steel, with electro-galvanized or stainless steel finishes.
Q2: What sizes and lengths do you offer?
A2: Standard sizes include M6, M8, M10, M12, M16, M20 with lengths from 40mm to 200mm.
Q3: What grade options are available?
A3: Carbon steel grades 4.8, 6.8 and 8.8 are available.
Q4: What is the main application of these anchor bolts?
A4: They are widely used for anchoring in concrete and masonry for construction, equipment mounting, pipe support and general mechanical applications.
Q5: Do you support customized sizes and finishes?
A5: Yes, we can provide custom sizes, grades and finishes according to project requirements.
