Electro-Galvanized Strut Wing Nut

Overview

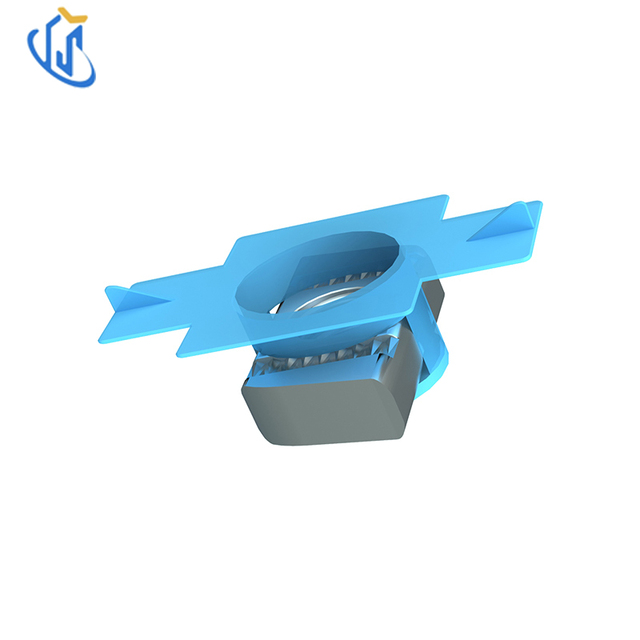

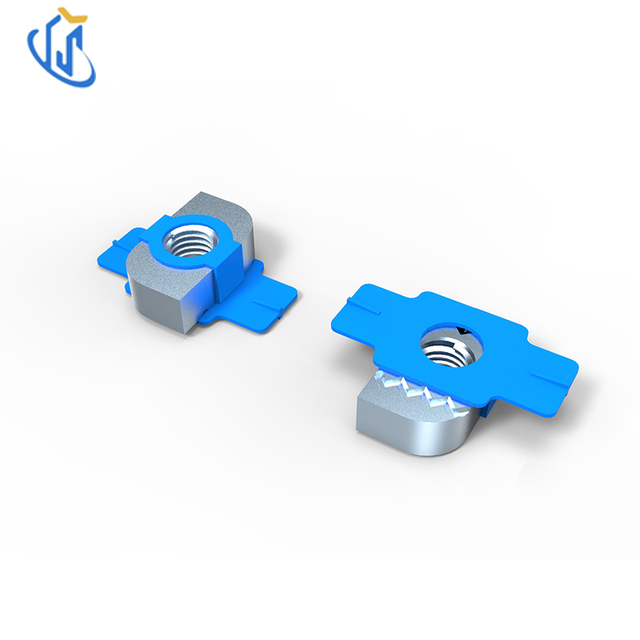

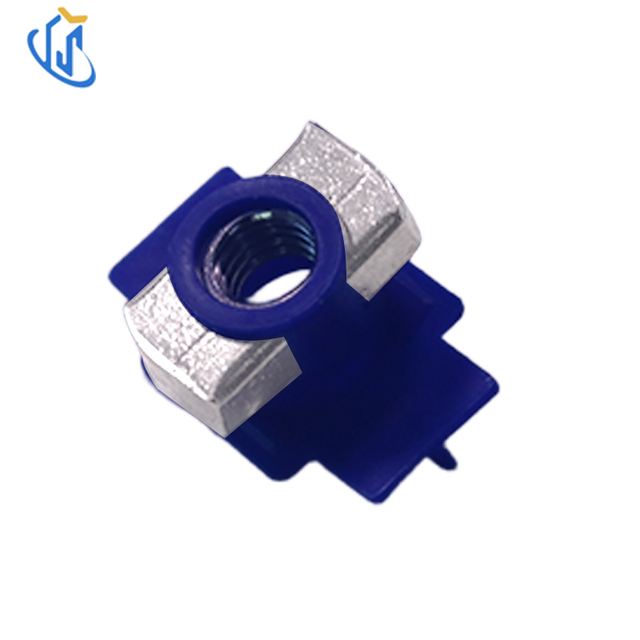

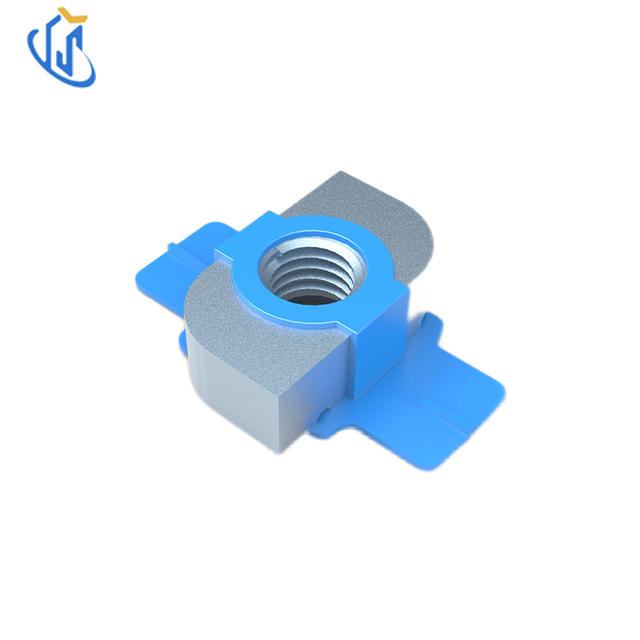

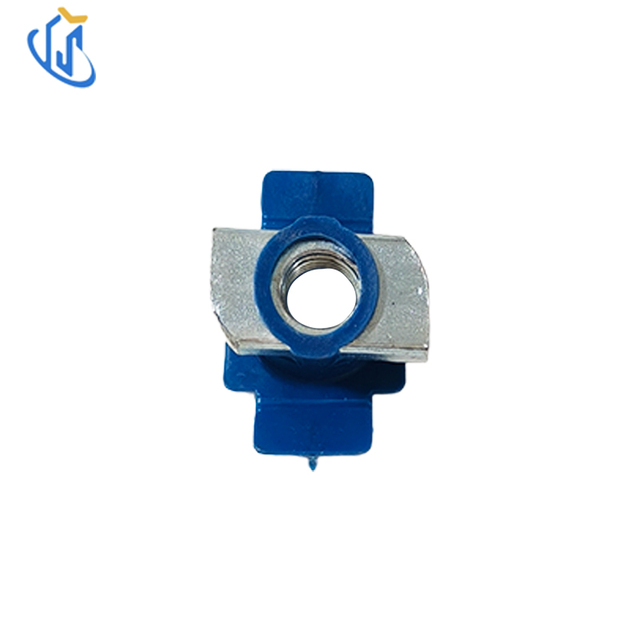

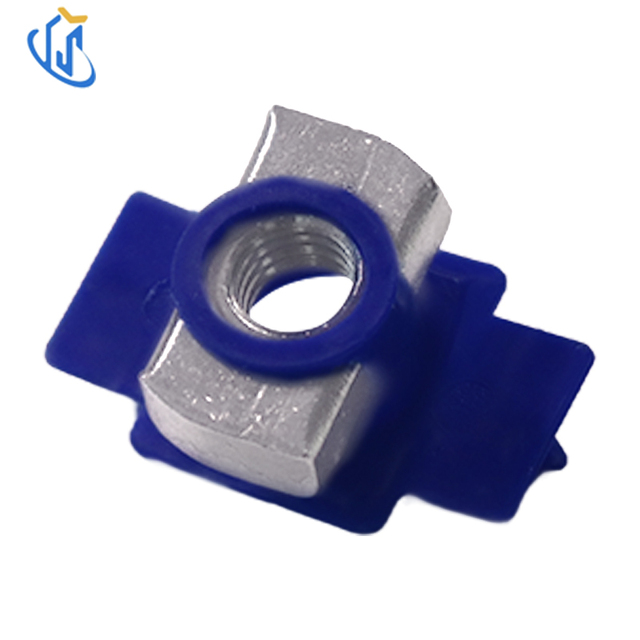

UTT7412 Plastic Wing Nut is a specialized fastener designed for strut channel systems, also known as channel wing nut or spring wing nut. Manufactured from high-quality carbon steel with electro-galvanized finish, it provides corrosion resistance and reliable performance. Featuring a plastic wing design, it can be easily inserted into strut channels without tools, offering quick positioning and secure fastening for various applications.

Available in standard sizes M6, M8, M10, M12 with thickness options of 6mm, 8mm, 9mm, it is suitable for use with standard strut channels. Widely applied in HVAC installations, electrical support, industrial piping and general strut channel framing projects, it enables fast assembly and disassembly, improving installation efficiency while ensuring stable connections.

Key Features

Core Function: Quick and secure fastening for strut channel systems without tools

Raw Material: High-quality carbon steel

Surface Finish: Electro-galvanized

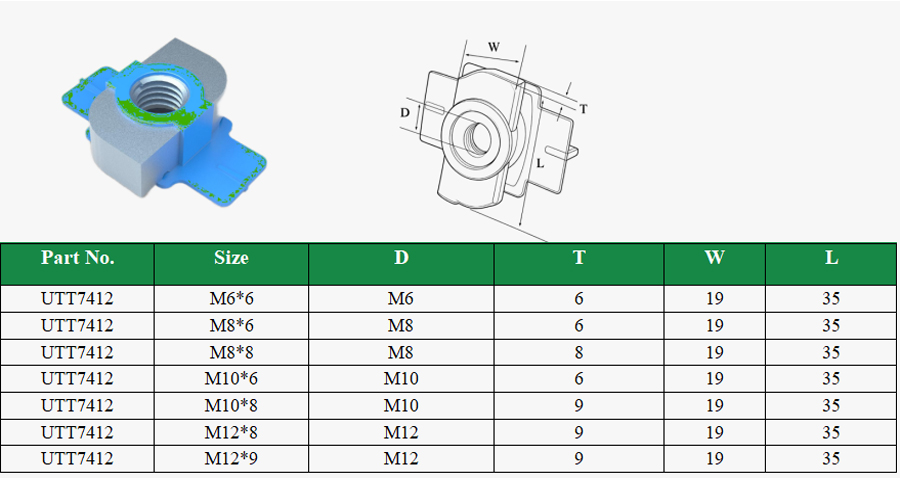

Standard Sizes: M6, M8, M10, M12

Thickness Options: 6mm, 8mm, 9mm

Design Feature: Plastic wing insert for easy channel insertion and positioning

Customization Service: Custom sizes, grades and finishes are available on request

Application Scenarios

1. HVAC Piping Systems:Fastening brackets, hangers and accessories to strut channels in overhead piping installations.

2. Electrical Installations: Securing cable trays, conduits and electrical equipment frames to strut channel systems.

3. Industrial Equipment Mounting: Quick and secure fastening of machinery components to strut channel frames.

4. General Strut Framing: Versatile fastener for modular strut channel structures in construction and industrial projects.

Step-by-Step Installation Guide

1. Select the suitable UTT7412 Plastic Wing Nut according to bolt size, strut channel thickness and load requirements.

2. Insert the wing nut into the strut channel through the slot, aligning the plastic wings with the channel edges.

3. Slide the nut to the desired position along the channel.

4. Attach the bracket, pipe hanger or equipment to the nut using the corresponding bolt.

5. Tighten the bolt to secure the connection, ensuring the nut is firmly seated in the channel.

Industry Compliance

1. Conforms to general manufacturing standards for strut channel fasteners and construction accessories.

2. Electro-galvanized finish meets international anti-corrosion specifications for indoor and humid environments.

3. All products pass dimensional, material strength and surface treatment inspection before delivery.

Core Product Advantages

Tool-Free Installation:

Plastic wing design allows easy insertion and positioning in strut channels without tools, improving installation efficiency.

Comprehensive Size Range:

Available in M6-M12 sizes with multiple thickness options to match different strut channel specifications.

Corrosion-Resistant Finish: Electro-galvanized carbon steel construction provides reliable corrosion resistance for indoor applications.

Secure Fastening:

Spring-loaded design ensures the nut stays in position while tightening, preventing rotation.

Versatile Compatibility:

Compatible with standard strut channel accessories, hangers and brackets for full system integration.

Durable Construction:

High-quality carbon steel and plastic wing combination ensures long service life under continuous use.

FAQ

Q1: What material and finish does the wing nut adopt?

A1: It is made of carbon steel with electro-galvanized finish.

Q2: What sizes and thicknesses are available?

A2: Standard sizes include M6, M8, M10, M12 with thickness options of 6mm, 8mm, 9mm.

Q3: What grade options are available?

A3: Grades 4.8, 6.8 and 8.8 are available.

Q4: What is the main purpose of the plastic wing nut?

A4: It is a tool-free fastening accessory designed for use in strut channel systems.

Q5: Where is the wing nut widely applied?

A5: It is commonly used in HVAC installations, electrical support, industrial equipment mounting and general strut framing projects.
