UTT44
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Finish: | |
| Quantity: | |

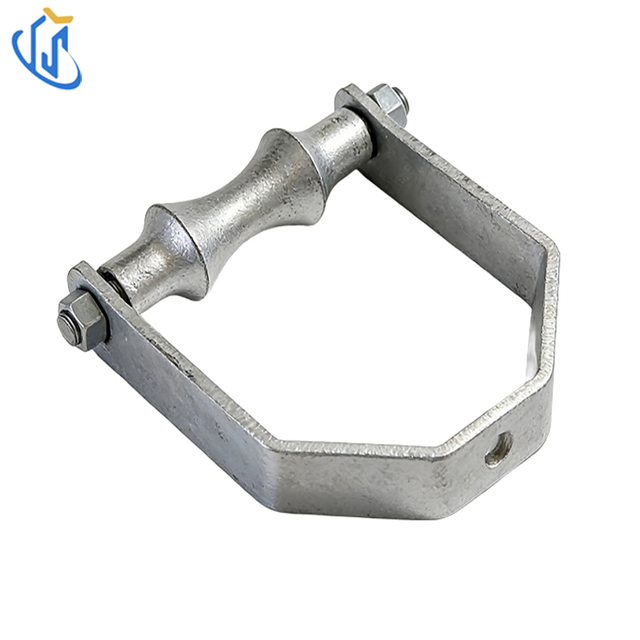

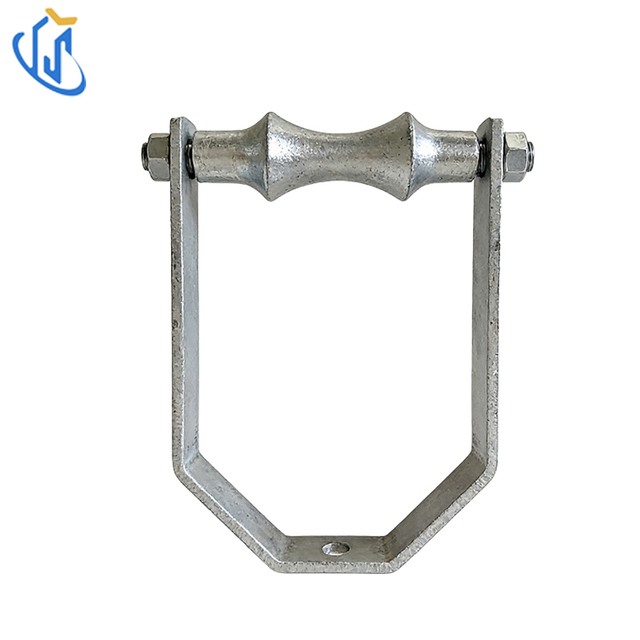

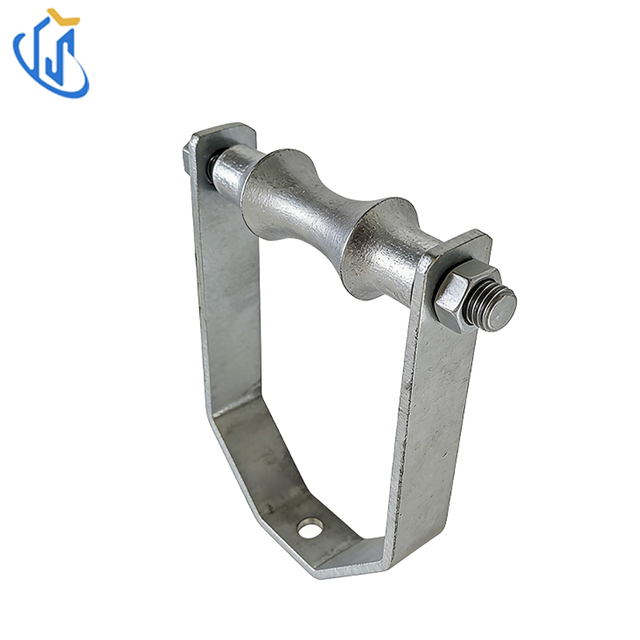

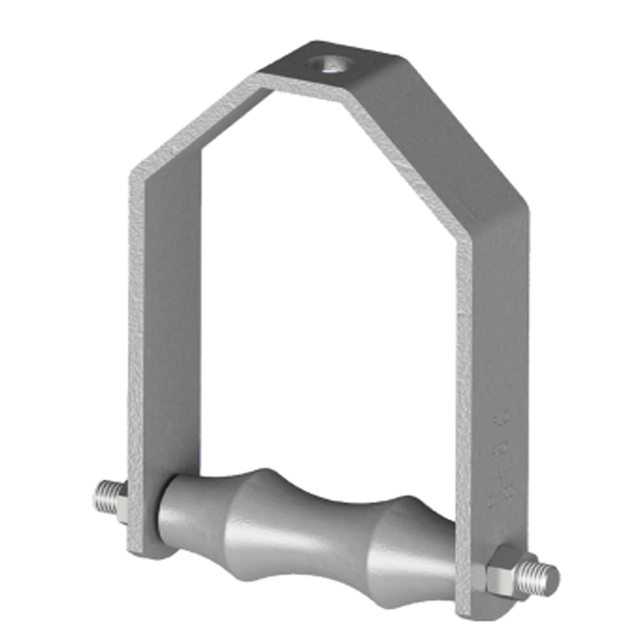

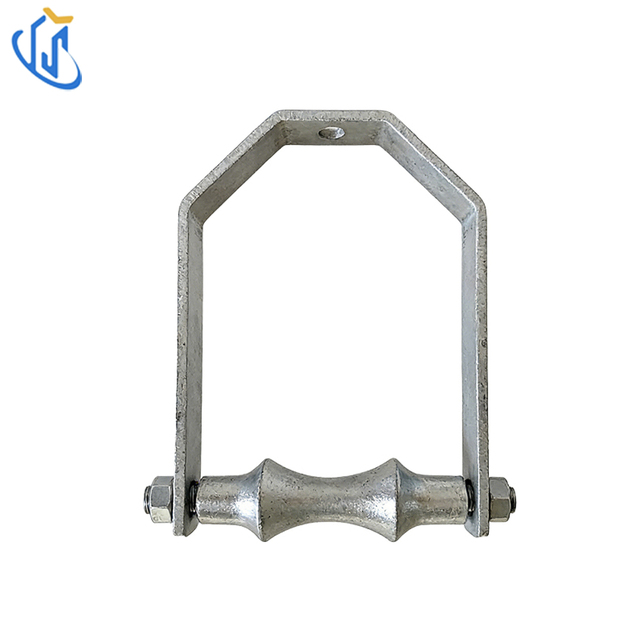

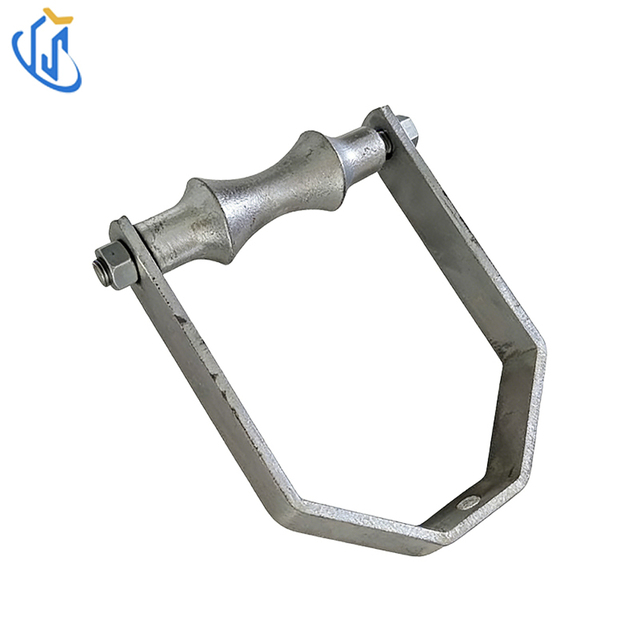

UTT44 Roller Hanger is an essential overhead pipe suspension accessory for piping systems, also known as overhead pipe expansion roller on construction sites. Manufactured from high-strength carbon steel, it features a hot-dip galvanized finish to adapt to indoor, humid and outdoor corrosive environments. Designed as a reliable single-rod suspended support, this roller hanger firmly holds overhead pipes while enabling smooth horizontal movement to accommodate thermal expansion and contraction, effectively lowering friction and preventing pipe surface wear.

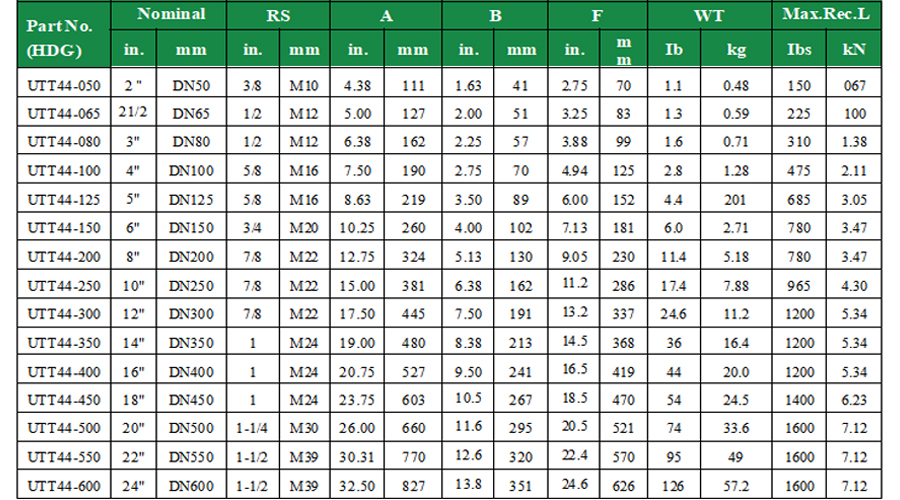

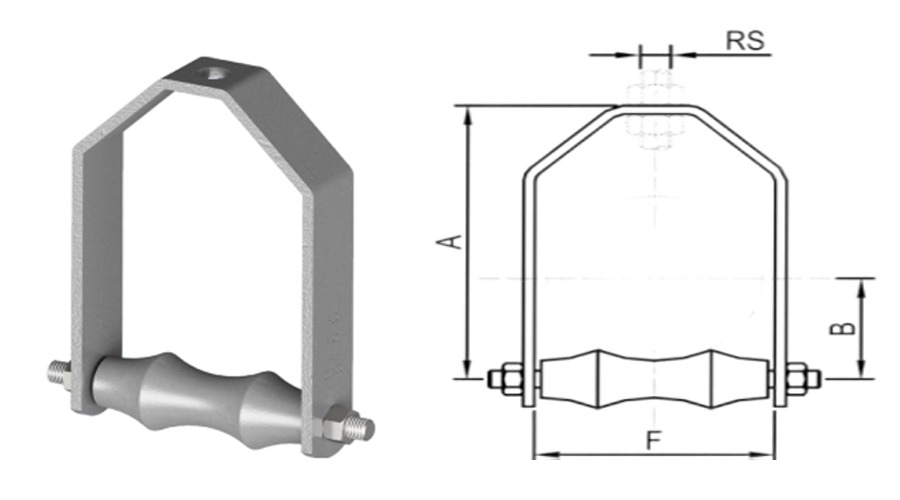

It is equipped with complete standard sizes covering nominal pipe specifications from 2" (DN50) to 24" (DN600), along with detailed dimension parameters (RS, A, B, F) and load data for selection. Custom dimensions are fully supported to satisfy different construction and engineering demands. Widely applied in overhead steam pipelines, chilled water systems, industrial long-distance pipe runs and rooftop pipe installations, it relieves thermal stress and ensures long-term stability of the entire support system.
Core Function: Suspend overhead pipes and enable smooth horizontal movement to accommodate thermal expansion, reduce friction and wear
Raw Material: High-strength carbon steel frame + Cast iron roller cylinder
Surface Finish: Hot-dip galvanized (HDG)
Structural Design: Single rod suspension design for overhead mounting
Performance: Heavy duty load bearing, smooth horizontal movement
Standard Size: 2" (DN50) to 24" (DN600) pipe specifications
Customization Service: Custom sizes are available on request
Item | Specification |
|---|---|
Model | UTT44 Series |
Raw Material | Carbon Steel Frame & Cast Iron Roller Cylinder |
Surface Treatment | Hot-dip galvanized (HDG) |
Structural Feature | Single rod suspension roller hanger for overhead use |
Standard Size | 2" (DN50) to 24" (DN600) pipe specifications |
Customization | Custom sizes supported |
Main Application | Overhead pipe suspension for thermal expansion in HVAC and industrial piping |
Sample Supply | Free pre-order test samples available |

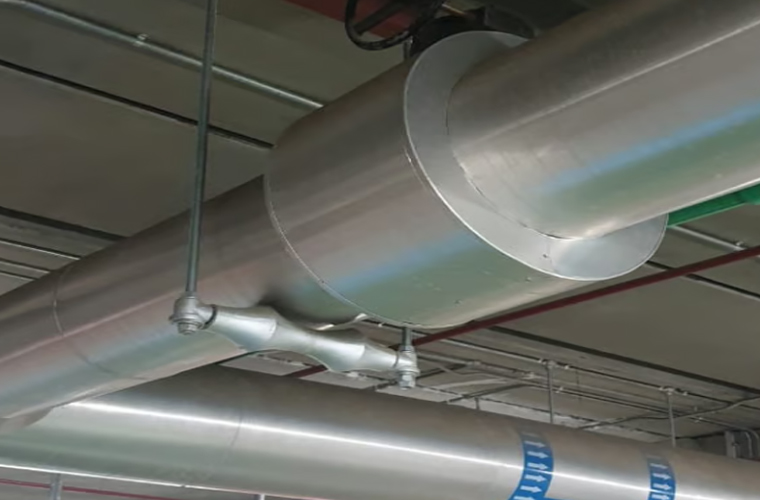

HVAC Piping System: Fundamental overhead roller hanger for chilled water and hot water pipelines, dispersing load evenly on ceiling mounting surfaces.
Steam & Hot Water Pipeline: Heavy duty roller hanger for high-temperature overhead pipelines, relieving thermal stress effectively.
Industrial Overhead Piping: Universal suspension support for long-distance overhead pipe runs in factories and plants, resisting industrial environments and reducing pipe wear.
Roof Top Pipe Installations: Overhead roller support for rooftop pipe runs, adapting to outdoor temperature changes and ensuring stable pipe suspension.
Select the suitable UTT44 Roller Hanger according to pipe size, load requirements and working conditions.
Attach the hanger to the designated overhead threaded rod, matching the RS thread size.
Secure the connection between the rod and the hanger to ensure firm and stable installation.
Place the pipe steadily on the cast iron roller cylinder of the hanger.
Inspect the overall assembly to confirm free horizontal movement and stable load bearing.
Conforms to general manufacturing standards for pipe hangers and overhead support components.
Hot-dip galvanized finish meets international anti-corrosion specifications for industrial and outdoor use.
All products pass dimensional, load and appearance inspection before delivery.
Enables smooth horizontal movement to release thermal stress, perfectly solving overhead pipe expansion and contraction problems.
Solid cast iron roller and carbon steel frame deliver high load capacity, not easy to deform under long-term overhead load.
Optimized roller structure greatly reduces friction and effectively avoids overhead pipe surface wear.
Hot-dip galvanized finish performs well in humid, outdoor and corrosive environments to extend service life.
Rich standard sizes for regular overhead projects, and customized sizes for special engineering demands.
Q1: What surface finish does UTT44 Roller Hanger adopt?
A1: It features hot-dip galvanized finish with great anti-corrosion performance.
Q2: What material is the UTT44 Roller Hanger made of?
A2: It is made of high-strength carbon steel frame and cast iron roller cylinder.
Q3: Does UTT44 support customized sizes?
A3: Yes, we can produce custom sizes as required.
Q4: What is the main purpose of UTT44 Roller Hanger?
A4: It is used as overhead pipe suspension to accommodate pipe thermal expansion and reduce friction.
Q5: Where is UTT44 widely applied?
A5: It is commonly used in HVAC overhead systems, steam pipelines, industrial long-distance overhead pipe runs and rooftop pipe installations.
