UTT7407
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface Finish: | |
| Grade: | |
| Quantity: | |

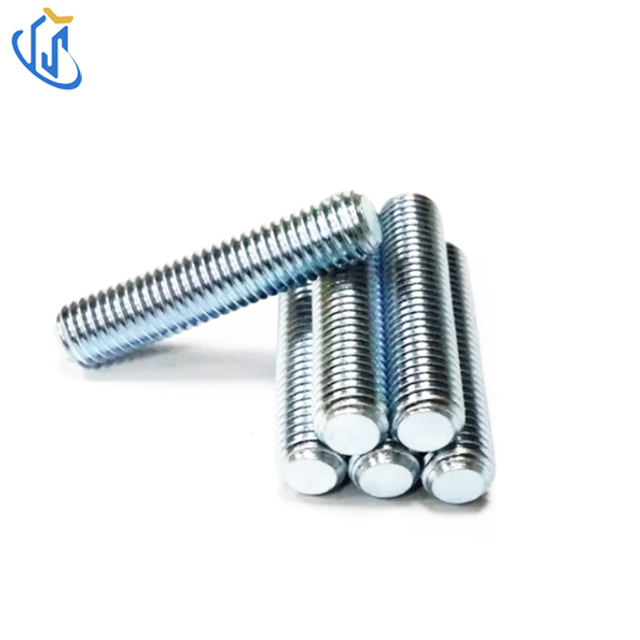

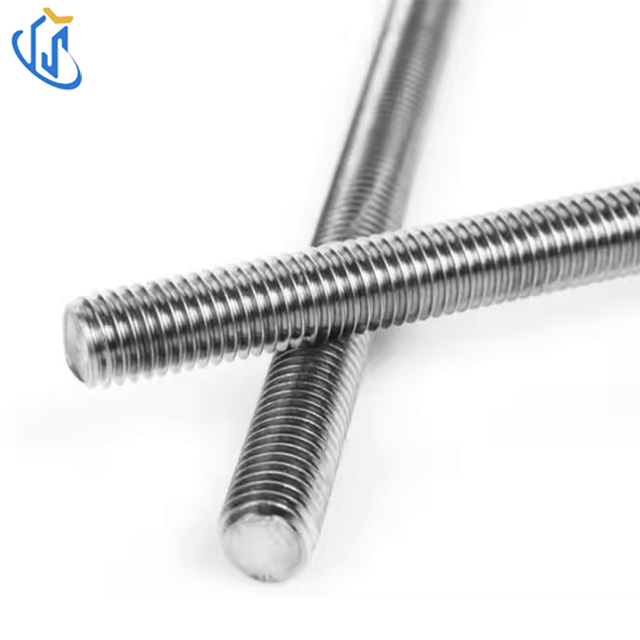

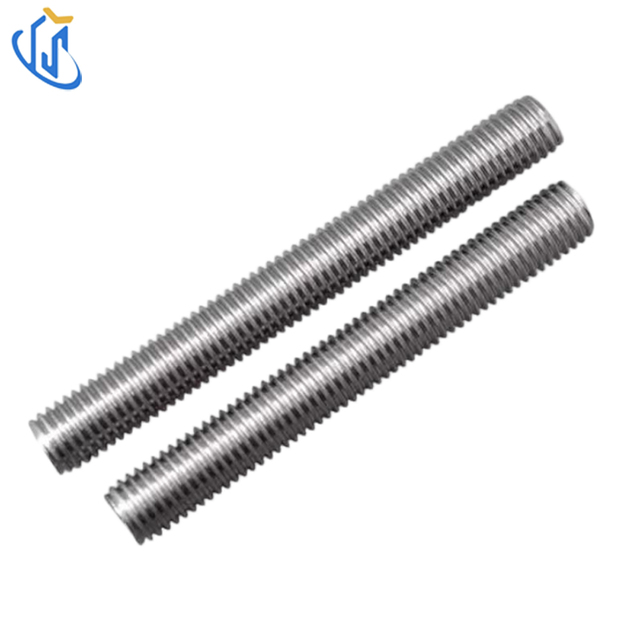

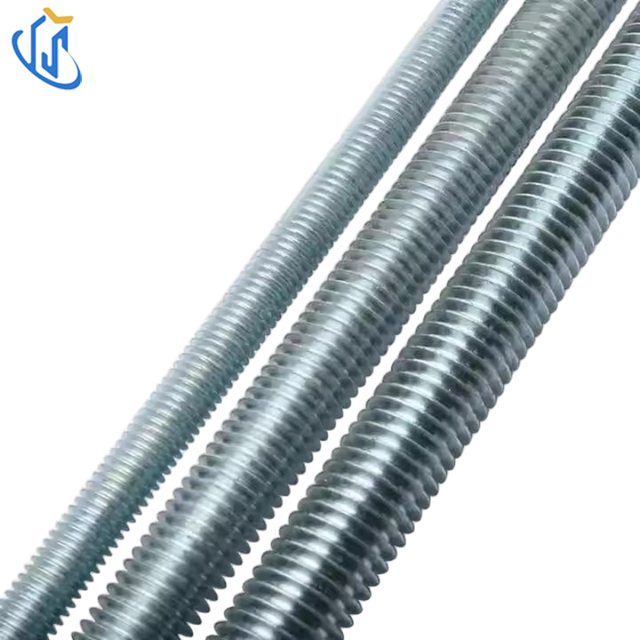

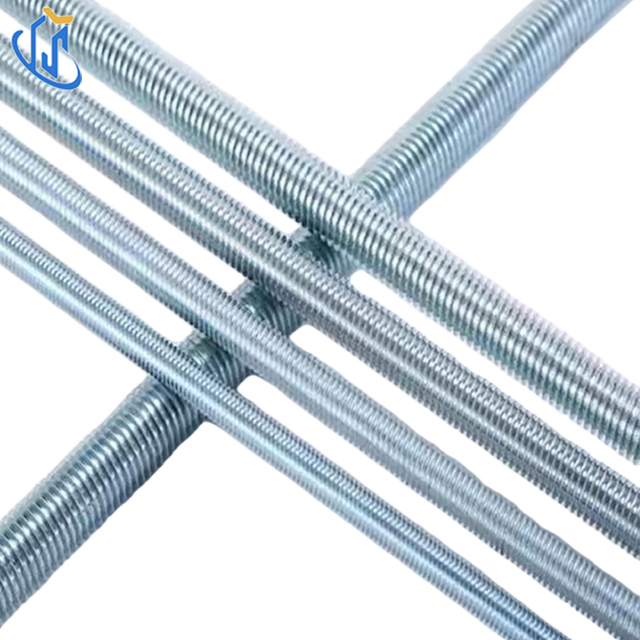

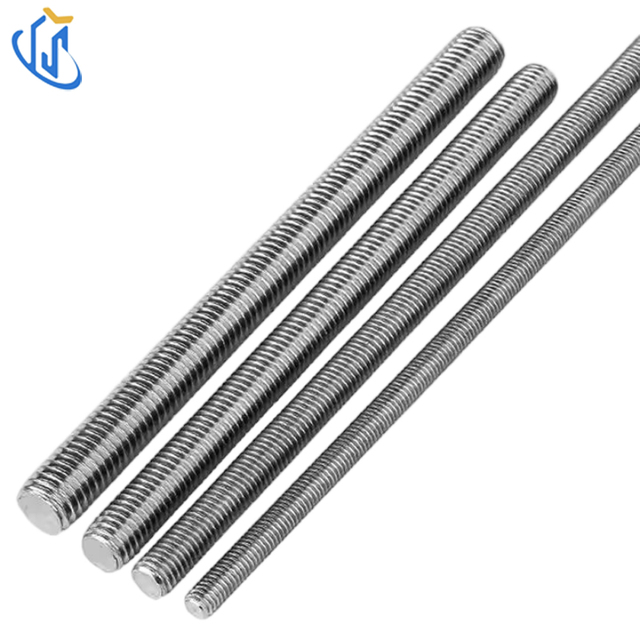

Thread Rod is an indispensable connecting and suspension fastener for strut channel support systems. It is professionally manufactured from high-quality carbon steel to deliver outstanding structural strength and load-bearing capacity. The standard surface treatment is electro-galvanizing, and extra surface finishes can be customized to adapt to indoor, humid and outdoor working environments. This product covers a full range of sizes, including imperial specifications from 1/4 inch to 1 inch and metric specifications from M6 to M24. Each size has matched weight and maximum load parameters for accurate selection.
Mainly assembled with loop hangers, it is widely adopted in electromechanical installation, HVAC projects and pipeline suspension engineering. With stable mechanical performance, it bears vertical loads reliably and ensures the long-term safety and stability of the entire strut support system.
Core Function: Suspension connection fastener matched with loop hangers for strut channel systems
Raw Material: High-quality carbon steel
Surface Finish: Electro-galvanized (custom finishes available on request)
Standard Size: Imperial 1/4" - 1", Metric M6 - M24

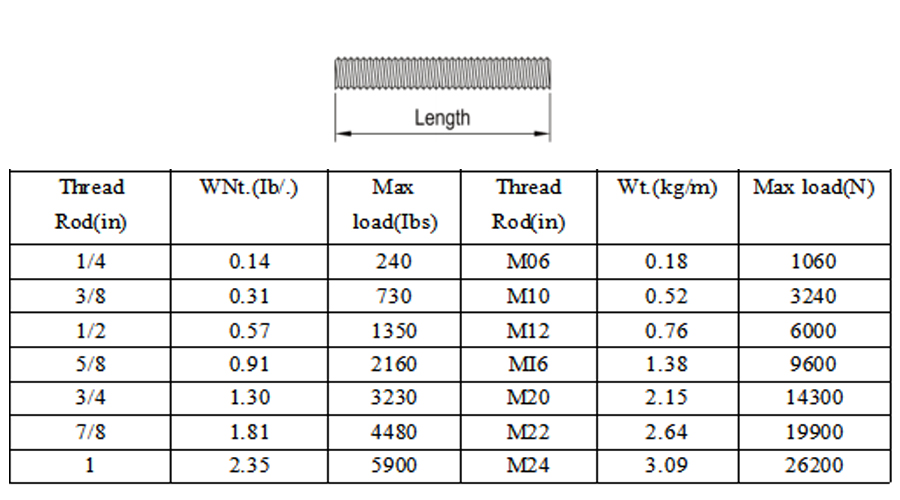

Load Parameter: Equipped with exclusive weight and maximum load for each specification
Customization Service: Custom surface treatments and rod lengths are available on request
Item | Specification |
|---|---|
Model | Thread Rod Series |
Raw Material | Carbon Steel |
Surface Treatment | Electro-galvanized (customizable) |
Standard Size | Imperial: 1/4 inch - 1 inch; Metric: M6 - M24 |
Load Data | Corresponding weight and maximum load for each size |
Customization | Custom surface finishes & lengths supported |
Main Application | Suspension assembly with loop hangers for strut channel systems |
Sample Supply | Free pre-order test samples available |

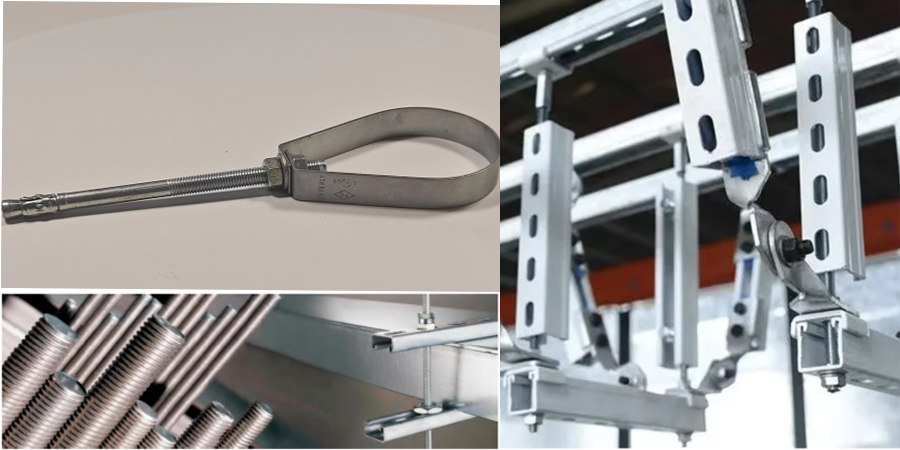

1.Strut Channel System: Core suspension fastener for overhead strut structures, evenly bearing vertical loads for long-term stable operation.
2.Pipeline Installation: Standard connecting rod for pipe suspension brackets, widely used in various pipeline support projects.
3.Electrical Installation: Suspension component for cable trays and electrical equipment frames to keep structures upright and firm.
4.HVAC Engineering: Supporting fastener for air ducts and refrigeration pipelines, effectively resisting vibration and displacement.
1.Select the suitable Thread Rod according to actual load requirements and matching hanger size.
2.Align the threaded rod with the reserved mounting hole of the loop hanger.
3.Screw the rod into the hole of the loop hanger and tighten it fully.
4.Fix the assembled combination to the preset overhead mounting position.
5.Check the overall assembly tightness and load-bearing status to confirm safe installation.
1.Conforms to general manufacturing standards for strut channel connecting fasteners.
2.Electro-galvanized surface finish meets international anti-corrosion and surface treatment specifications.
3.All products pass strict dimensional, thread and load inspection before delivery.
Standard electro-galvanized finish adapts to most conventional environments; customized finishes fit special corrosive scenarios.
Complete imperial and metric size range, perfectly compatible with mainstream strut accessories and loop hangers.
High-strength carbon steel material prevents deformation, with clear load data for safe and reasonable selection.
Precise thread processing ensures smooth assembly and firm connection without loosening.
Supports customized surface treatments and rod lengths to meet special engineering requirements.
Suitable for electromechanical, HVAC, pipeline and multiple building support projects.
Q1: What surface finishes are available for the thread rod?
A1: The standard finish is electro-galvanized, and other surface treatments can be customized.
Q2: What material is the Thread Rod made of?
A2: It is made of high-quality carbon steel.
Q3: Does this thread rod support customized production?
A3: Yes, we can customize surface finishes and rod lengths as required.
Q4: What is the main purpose of the Thread Rod?
A4: It is assembled with loop hangers to serve as suspension fasteners for strut channel systems.
Q5: What sizes does the Thread Rod provide?
A5: Imperial sizes from 1/4 inch to 1 inch, and metric sizes from M6 to M24.
