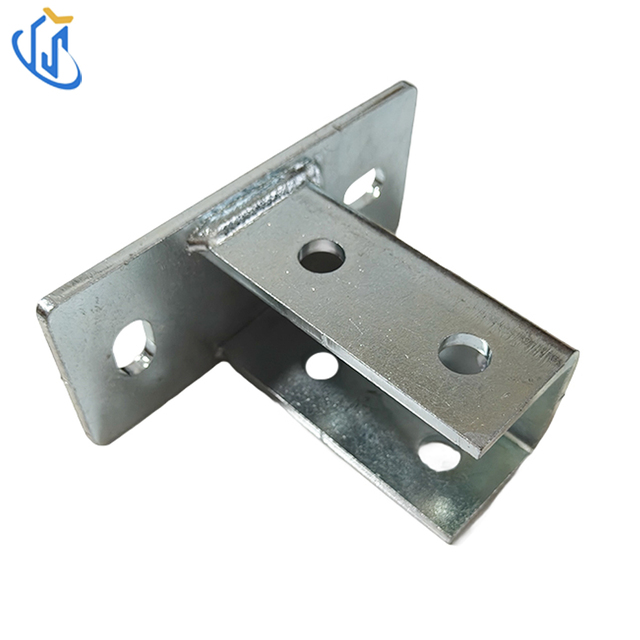

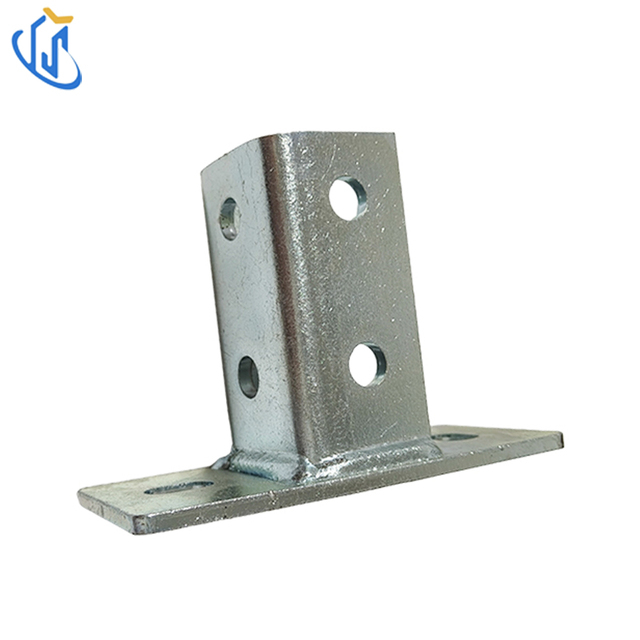

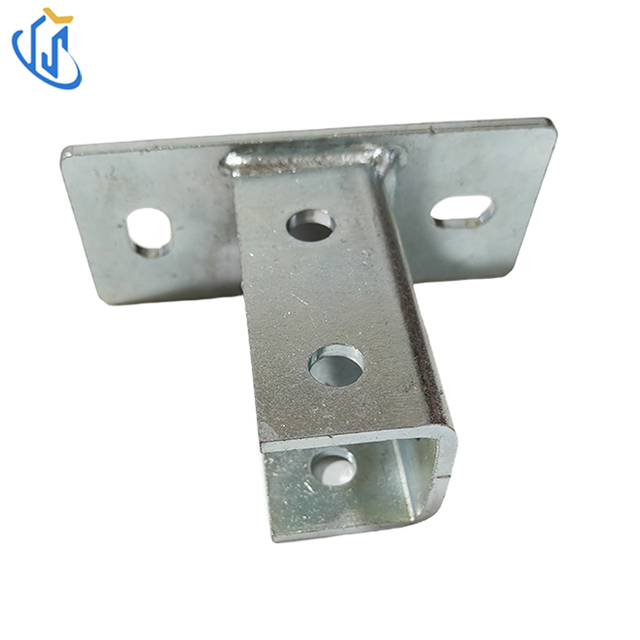

Strut Base Plate for Metal Frame Mounting

Overview

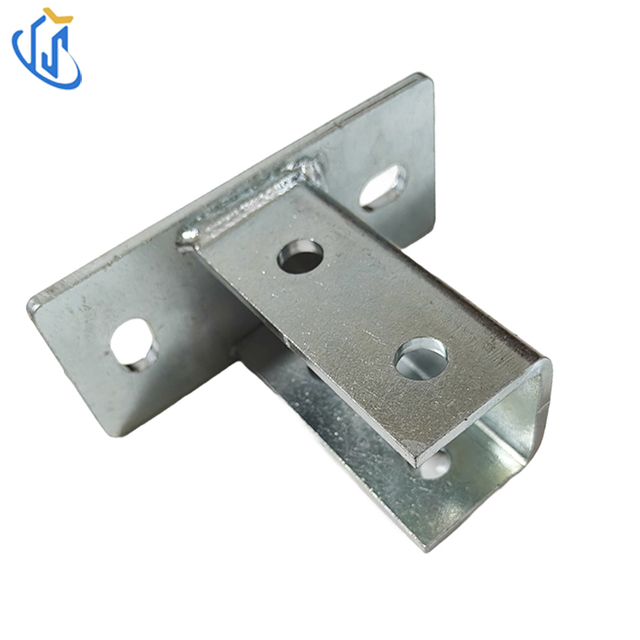

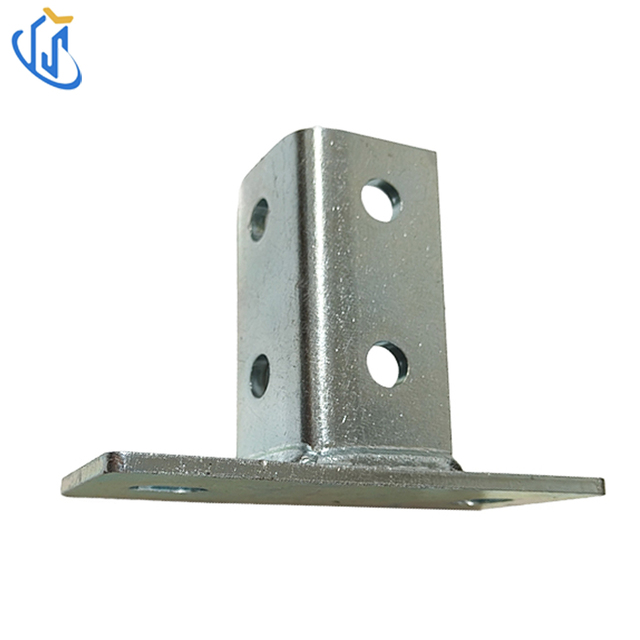

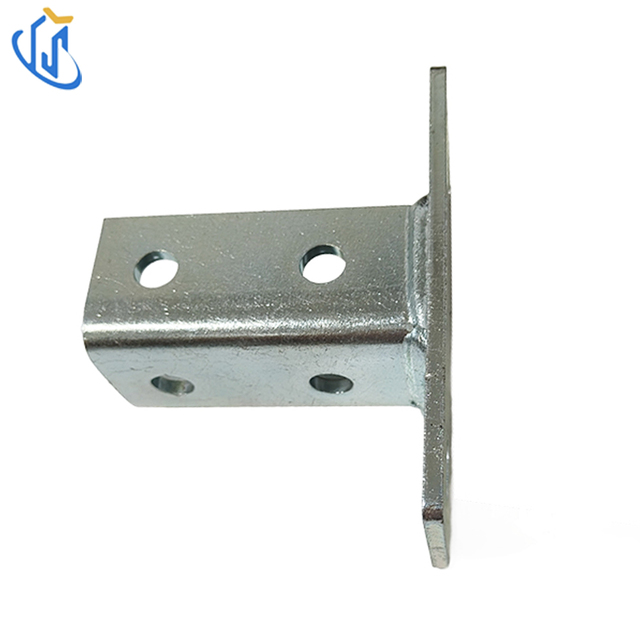

UTT7101 Strut Base Plate is an essential foundation accessory for strut channel systems. Manufactured from high-strength carbon steel, it offers three professional surface treatments to adapt to dry indoor, humid and outdoor corrosive environments. Designed as a reliable post base, this base plate firmly anchors strut channels to floors, walls and other mounting surfaces, serving as the stable base for various metal frames. Its standard specifications include A=43mm, B=41mm, C=98mm, D=154mm, E=54mm.

It provides a full range of standard sizes and fully supports customized dimensions to satisfy different construction and engineering demands. Widely applied in electromechanical installation, HVAC projects and structural metal framing, it effectively disperses load and prevents strut channels from shifting, ensuring long-term stability of the entire support system.

Key Features

Core Function: Anchor strut channels as post base and assemble metal frames steadily

Raw Material: High-strength carbon steel

Surface Finish: Black finish / Electro-galvanized / Hot-dip galvanized (HDG)

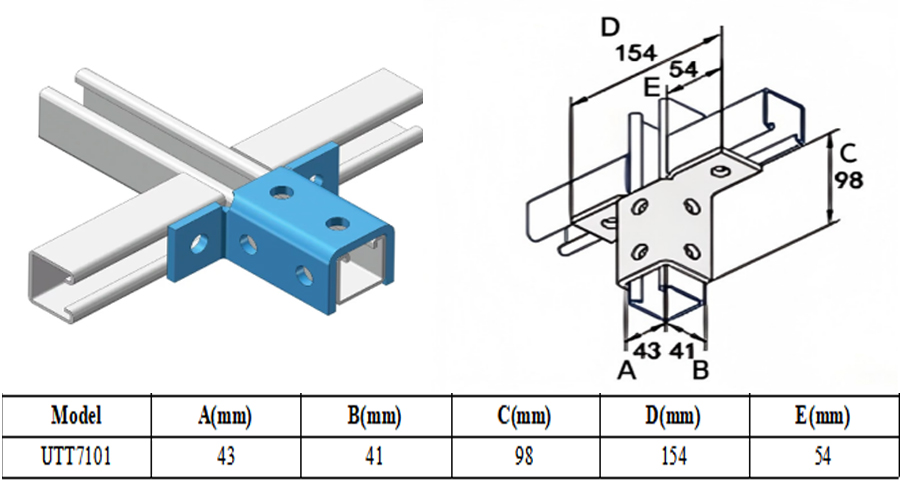

Standard Size: A=43mm, B=41mm, C=98mm, D=154mm, E=54mm

Customization Service: Custom sizes are available on request

Application Scenarios

1.Strut Channel System: Fundamental post base for vertical strut channels in pipeline support projects, dispersing load evenly on mounting surfaces.

2.Electrical Installation: Anchor plate for metal frames of cable trays and electrical equipment to keep structures upright and stable.

3.HVAC Engineering: Base fitting for support frames of air ducts and pipelines, resisting vibration and displacement.

4.Structural Framing: Universal anchor base for light-duty metal framing systems on concrete floors or steel structures.

Step-by-Step Installation Guide

1.Select the suitable UTT7101 Strut Base Plate according to strut channel size and load requirements.

2.Place the base plate on the designated mounting surface and adjust to the correct position.

3.Align the reserved holes of the base plate with anchor points on the surface.

4.Fix the base plate with anchor bolts, then connect and fasten the strut channel to the plate.

5.Inspect the overall assembly to confirm no displacement and stable load bearing.

Industry Compliance

1.Conforms to general manufacturing standards for strut channel connecting fittings.

2.Black, electro-galvanized and hot-dip galvanized finishes all meet international anti-corrosion specifications.

3.All products pass dimensional and appearance inspection before delivery.

Core Product Advantages

1.Three Surface Options:

Black finish for cost-effective indoor use; electro-galvanized for regular humid areas; hot-dip galvanized for outdoor and severely corrosive environments.

2.Load Dispersion Design:

Wide plate structure evenly transfers vertical and horizontal loads, reducing pressure on anchor points and extending service life.

3.Solid Anchoring Performance:

Effectively prevents strut channels from shifting or tilting under long-term load, enhancing overall structural safety.

4.Standard & Custom Sizes:

Standard sizes for common projects, and customized sizes for special engineering demands.

5.High Material Strength:

Durable carbon steel resists deformation and impact for reliable long-term performance.

6.Wide Compatibility:

Matches all mainstream strut channels and strut system accessories for flexible assembly.

FAQ

Q1: What surface finishes are available for UTT7101 base plate?

A1: Three options: black finish, electro-galvanized and hot-dip galvanized.

Q2: What material is the UTT7101 Strut Base Plate made of?

A2: It is made of high-strength carbon steel.

Q3: Does UTT7101 support customized sizes?

A3: Yes, we can produce custom sizes as required.

Q4: What is the main purpose of UTT7101?

A4: It is used as a post base to anchor strut channels and assemble metal frames.

Q5: What are the standard parameters of UTT7101?

A5: Standard dimensions: A=43mm, B=41mm, C=98mm, D=154mm, E=54mm.
