UTT7241
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Finish: | |
| Quantity: | |

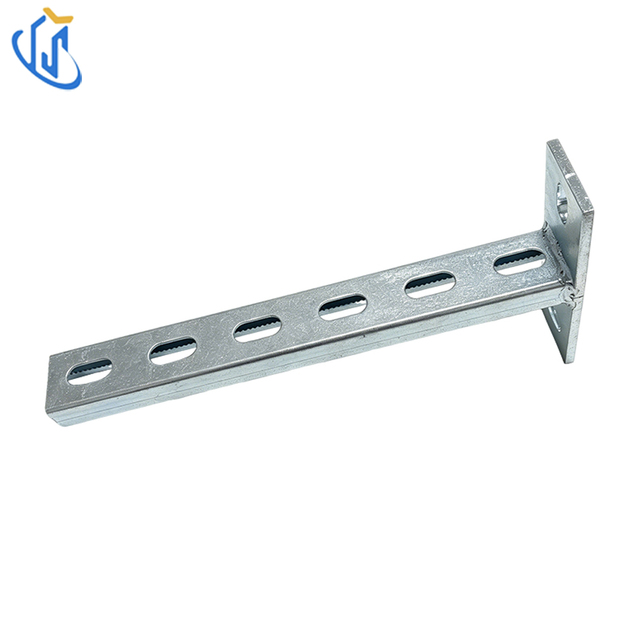

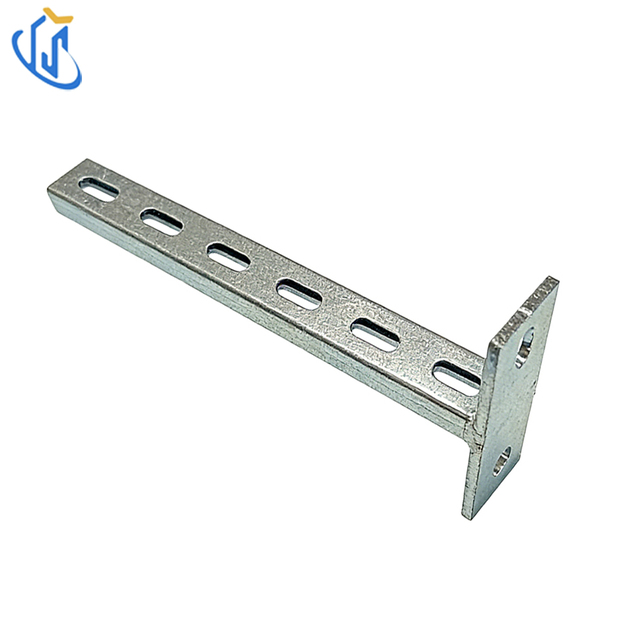

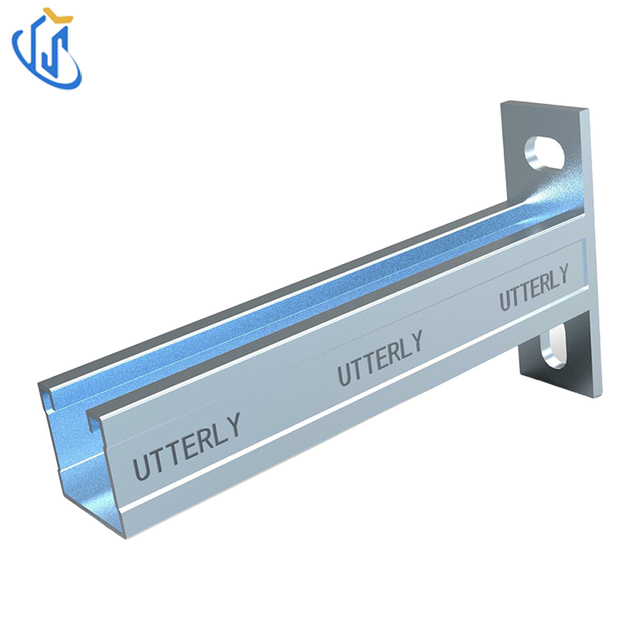

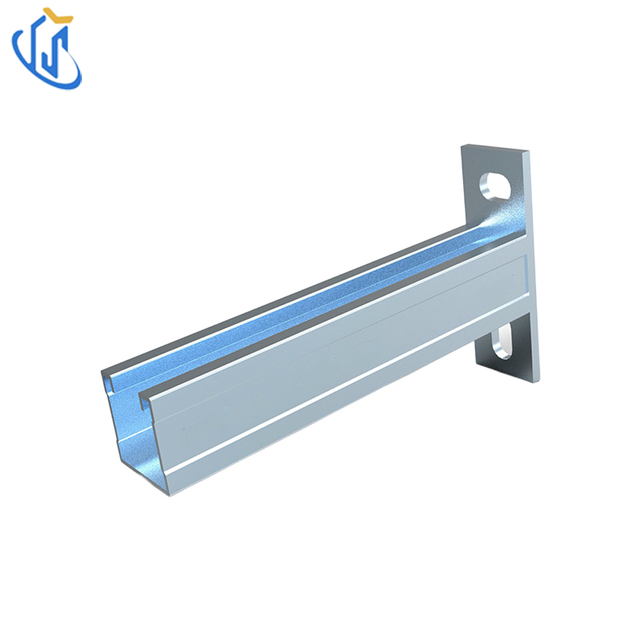

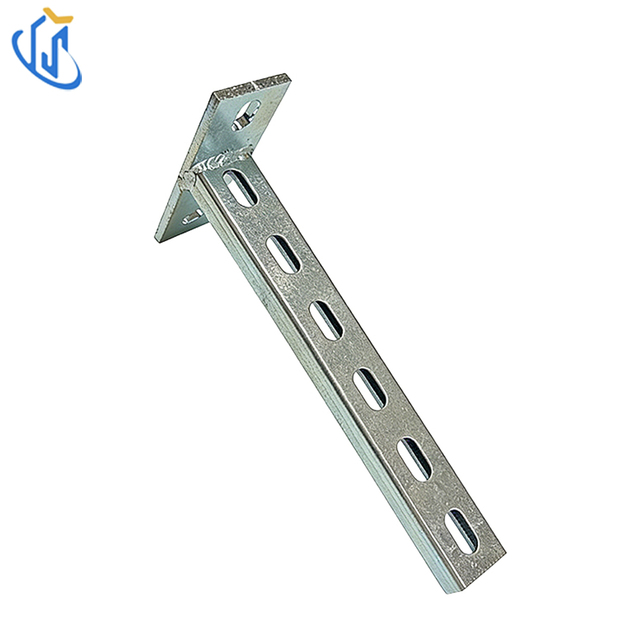

UTT7241 Cantilever Bracket is a robust support component widely used in industrial, mechanical and HVAC applications. Manufactured from high-quality carbon steel, it features three surface treatments to adapt to different environments: pre-galvanized steel sheet, electro-galvanized finish and hot-dip galvanized finish. Designed to transmit bending moments and shear forces to its fixed base, this wall-mounted bracket provides stable and reliable support for pipes, equipment and assemblies.
It is available in customized sizes with wall thickness from 1.5mm to 2.5mm, and multiple standard lengths with corresponding load capacity data. Widely applied in overhead piping systems, mechanical equipment mounting and industrial installations, it ensures long-term stability and load-bearing performance for various support applications.
Core Function: Carry vertical and horizontal loads, transmit bending moments and shear forces to the fixed base for stable support
Raw Material: High-quality carbon steel
Surface Finish: Pre-galvanized steel sheet / Electro-galvanized / Hot-dip galvanized

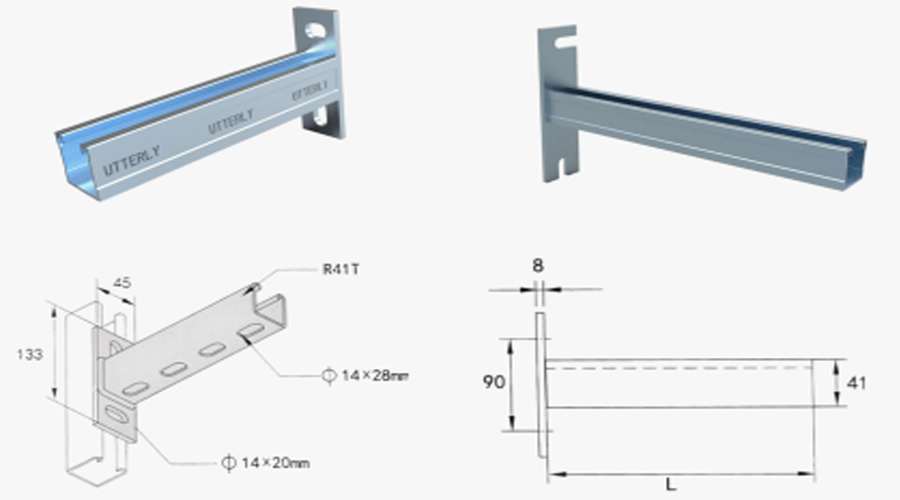

Standard Sizes: Multiple standard lengths (150mm, 300mm, 450mm, 600mm, 750mm) with customized size available
Wall Thickness: 1.5mm-2.5mm
Design Feature: Wall-mounted cantilever structure for equipment and pipe support
Customization Service: Custom sizes, thicknesses and finishes are available on request
Item | Specification |
|---|---|
Model | UTT7241 Cantilever Bracket |
Raw Material | Carbon Steel |
Surface Treatment | Pre-galvanized / Electro-galvanized / Hot-dip galvanized |
Standard Lengths | 150mm, 300mm, 450mm, 600mm, 750mm |
Wall Thickness | 1.5mm-2.5mm |
Standard Size | Customizable sizes available |
Core Performance | High load capacity, stable load-bearing performance |
Customization | Custom sizes, thicknesses and finishes supported |
Main Application | Industrial and mechanical equipment mounting, overhead pipe support |
Sample Supply | Free pre-order test samples available |
HVAC Piping Systems: Wall-mounted cantilever support for overhead chilled water, hot water and steam pipes, providing stable and adjustable installation points.
Industrial Equipment Mounting: Cantilever bracket for supporting mechanical equipment, electrical components and industrial assemblies on walls.
Overhead Pipe Runs: Robust support for long-distance overhead pipe runs in factories and plants, with high load capacity and reliable performance.
Structural Support Applications: Suitable for various industrial installations requiring stable cantilever support, adapting to different load and environmental conditions.
Select the suitable UTT7241 Cantilever Bracket according to load requirements, size and environmental conditions.
Position the bracket at the designated wall mounting location and mark the anchor points.
Secure the base to the wall using appropriate anchor bolts, ensuring it is level and stable.
Place the supported pipe or equipment on the cantilever arm, ensuring it is properly seated and balanced.
Inspect the entire assembly to confirm the load is evenly distributed and the bracket is securely fixed.
Conforms to general manufacturing standards for cantilever brackets and structural support components.
Galvanized finishes meet international anti-corrosion specifications for indoor, humid and outdoor use.
All products pass dimensional, load and surface treatment inspection before delivery.

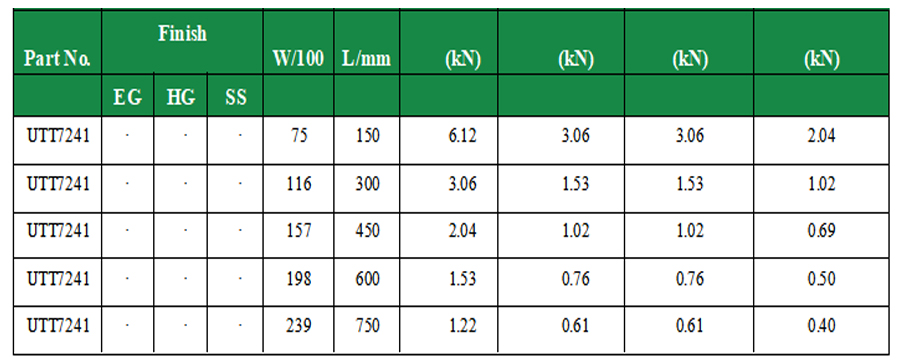

Designed to carry vertical and horizontal loads, with detailed load capacity data for each standard length.
Available in multiple standard lengths with fully customizable sizes, thicknesses and finishes to meet specific project requirements.
High-quality carbon steel construction ensures long service life and reliable performance under continuous load.
Wall-mounted design with standard mounting holes for quick and stable assembly.
Suitable for HVAC, industrial equipment, overhead piping and various mechanical support applications.
Q1: What surface finishes are available for the cantilever bracket?
A1: Three options: pre-galvanized steel sheet, electro-galvanized and hot-dip galvanized.
Q2: What material is the UTT7241 Cantilever Bracket made of?
A2: It is made of high-quality carbon steel.
Q3: What standard lengths do you offer?
A3: Standard lengths include 150mm, 300mm, 450mm, 600mm and 750mm, with customizable sizes available.
Q4: What is the wall thickness range of the bracket?
A4: The wall thickness ranges from 1.5mm to 2.5mm.
Q5: What applications is this cantilever bracket suitable for?
A5: It is widely used in HVAC piping systems, industrial equipment mounting, overhead pipe runs and various structural support applications.
