Overview

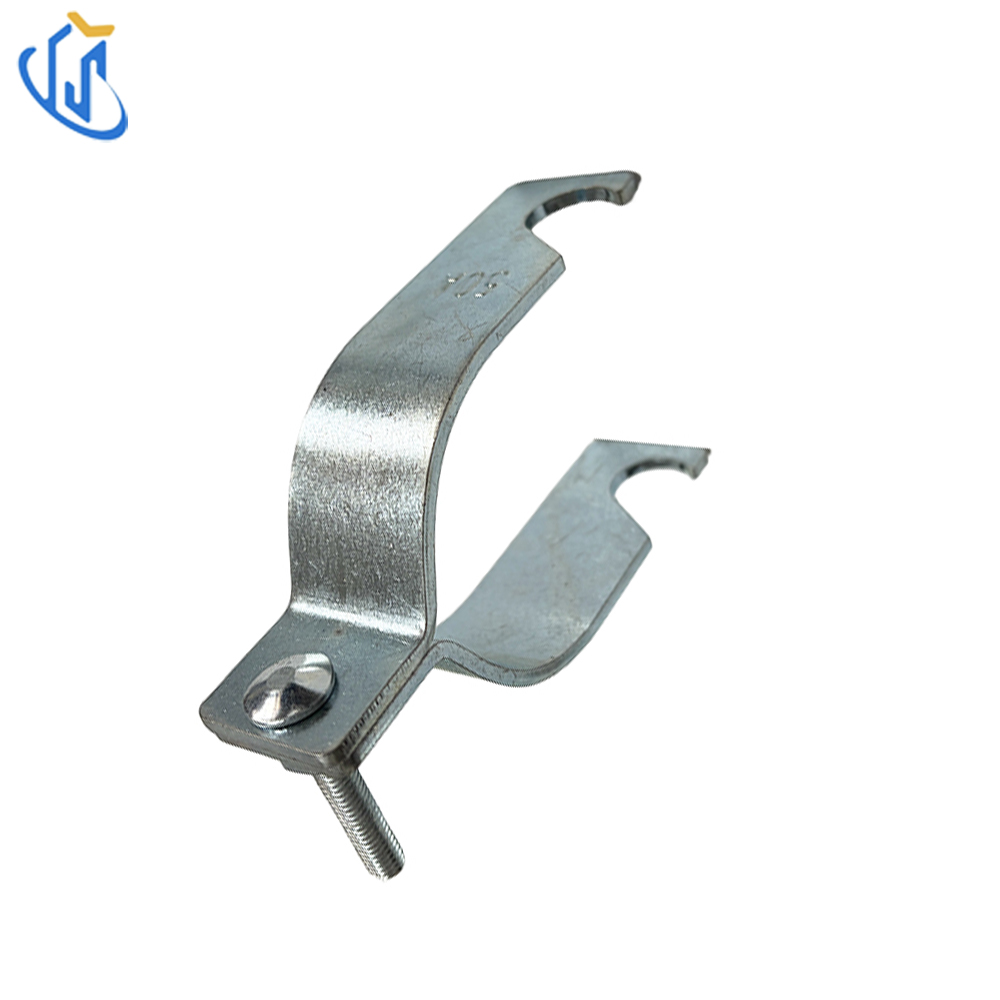

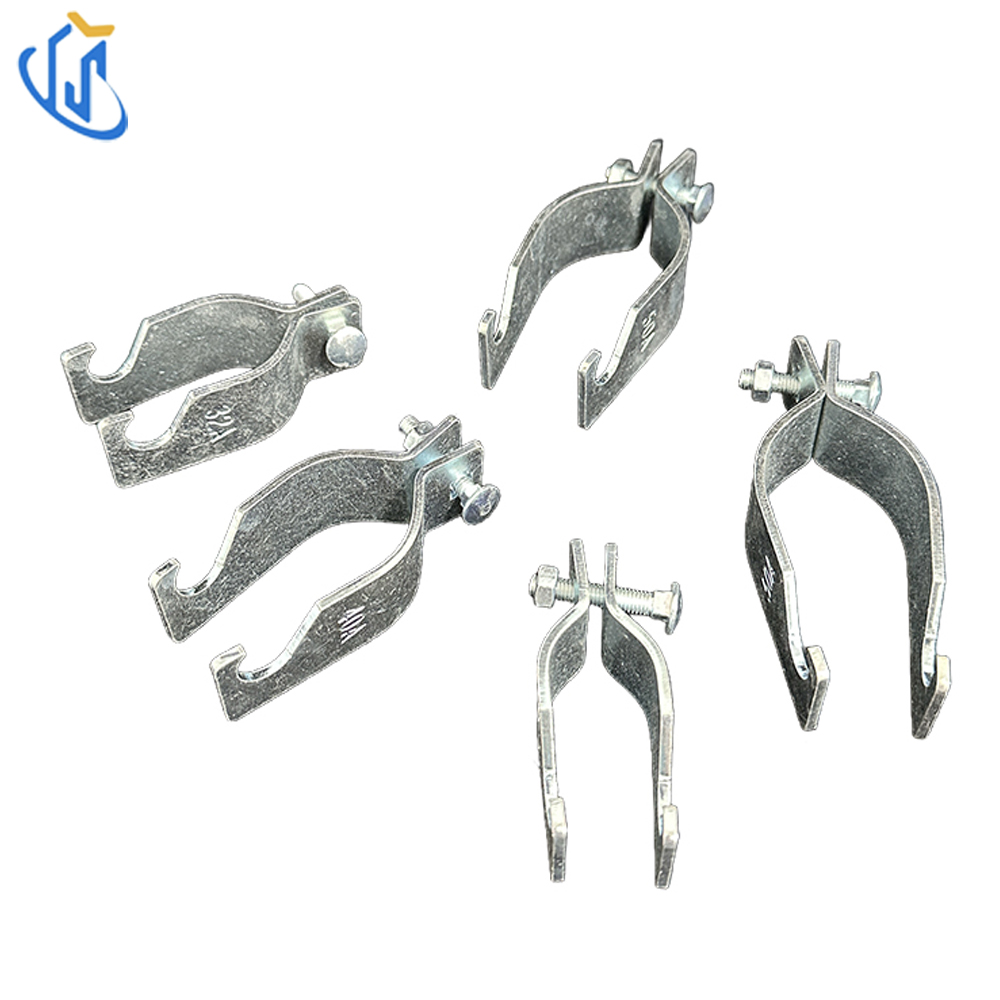

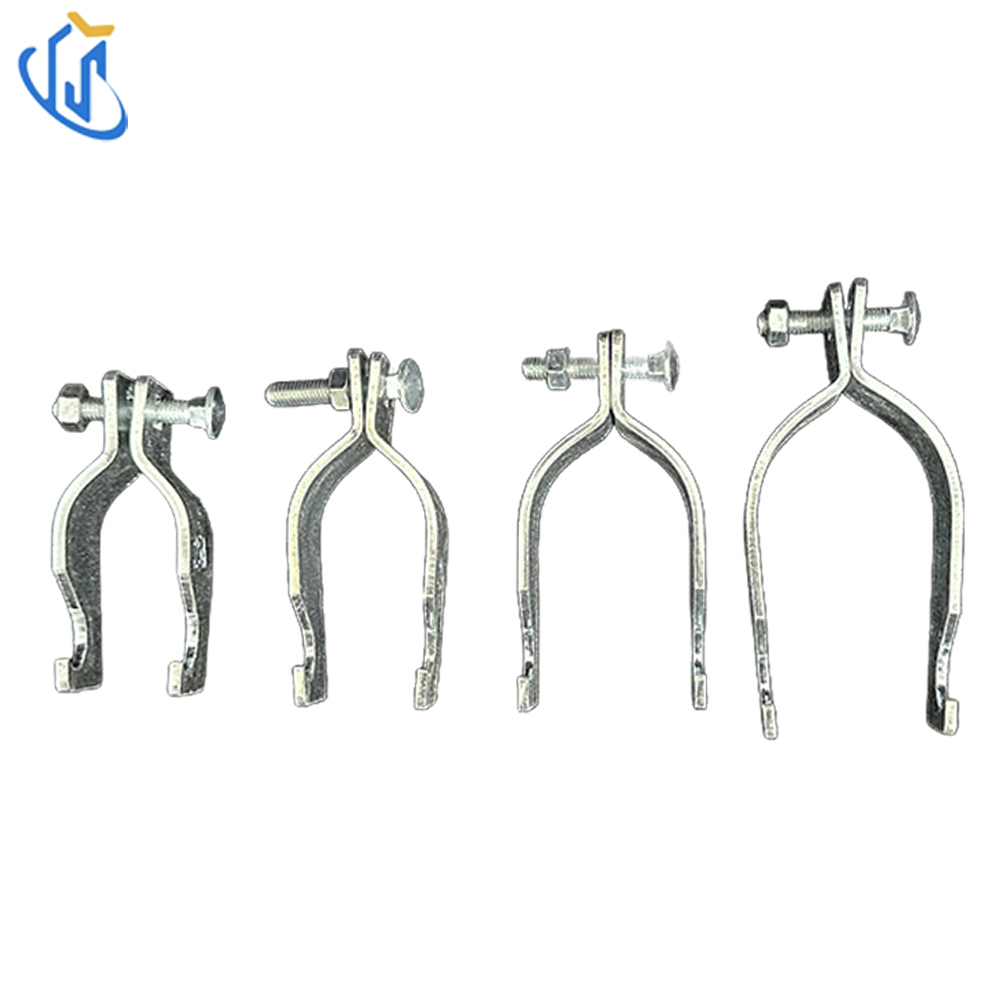

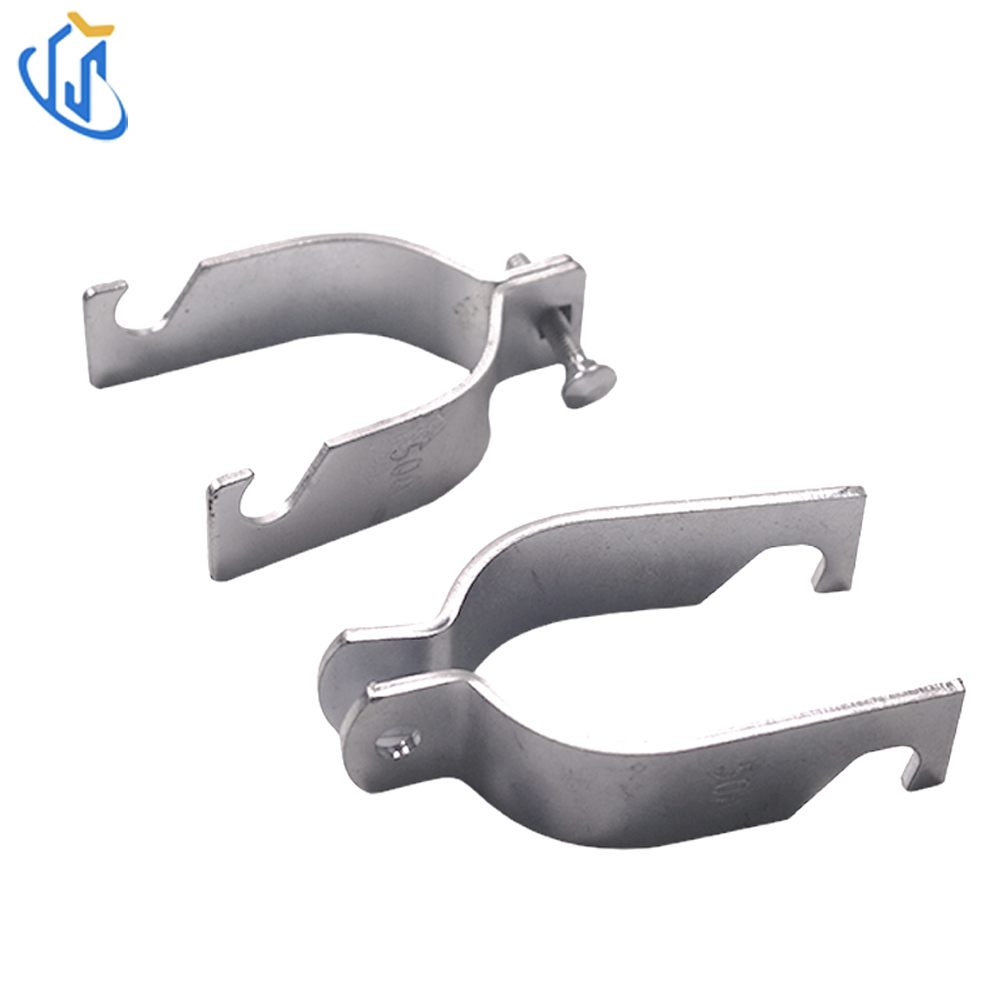

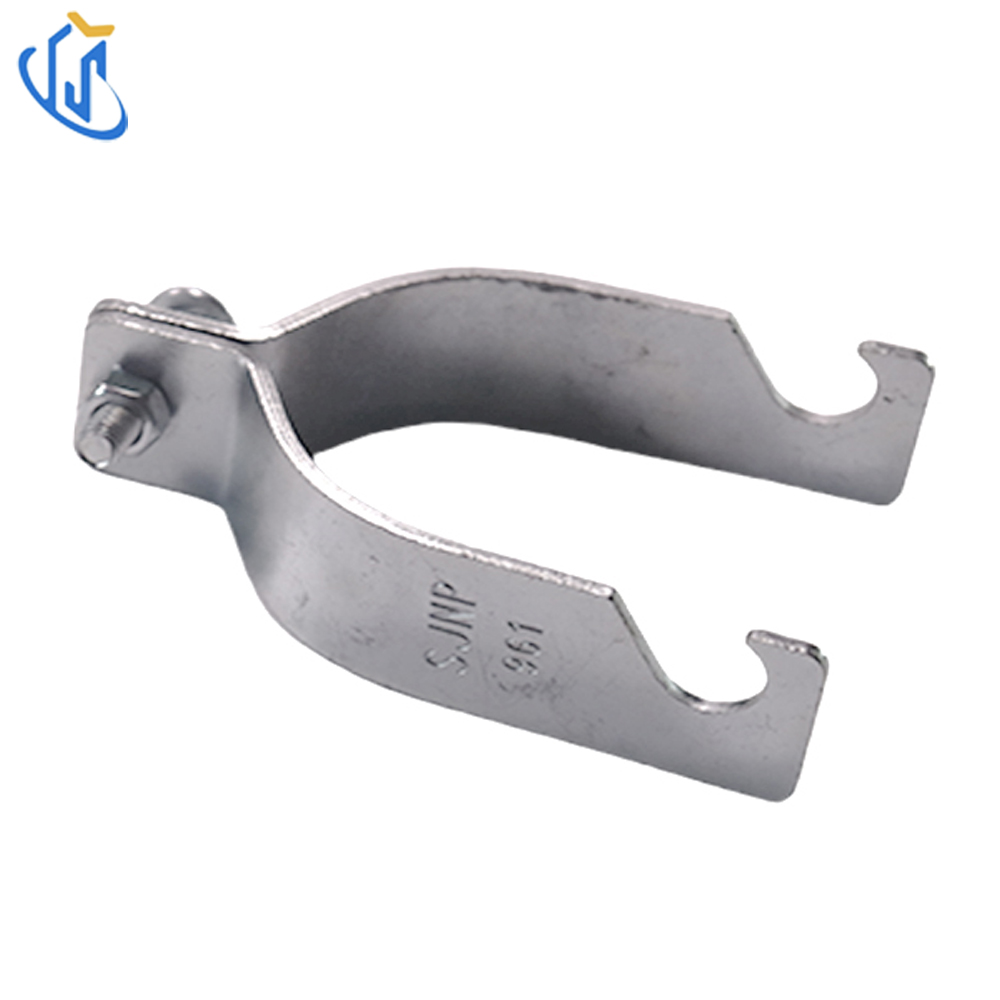

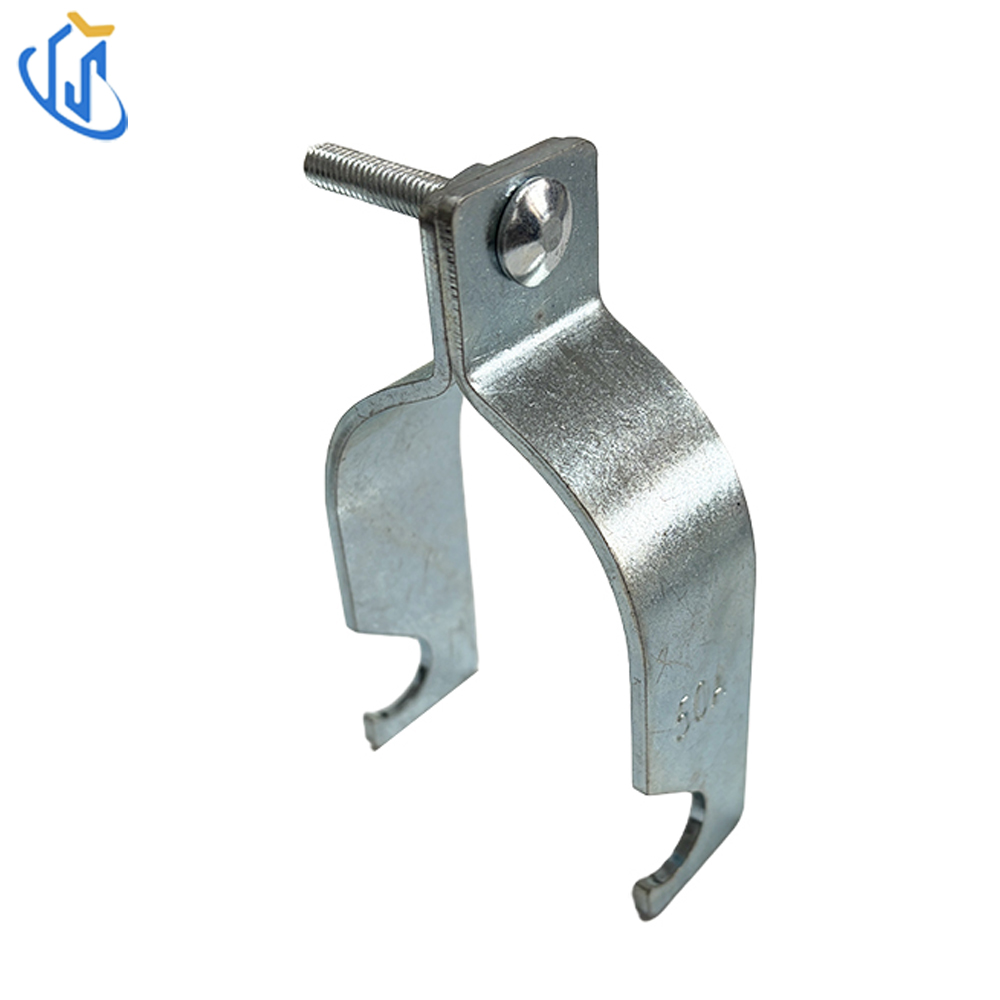

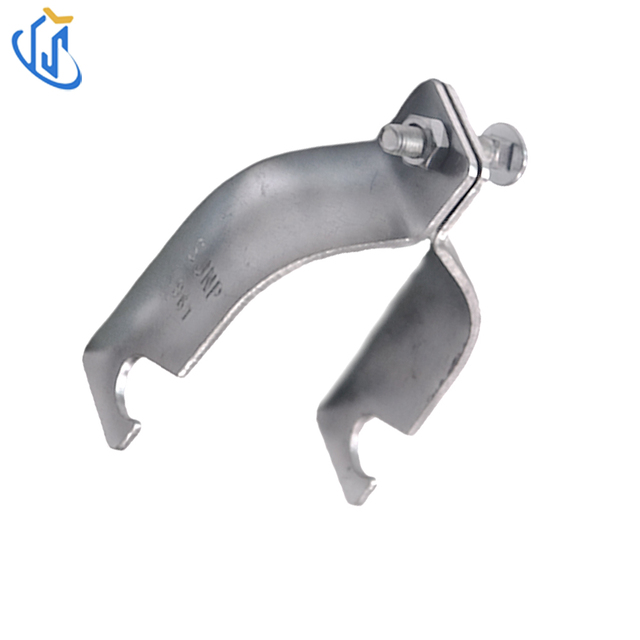

UTT8001 two-piece split pipe clamp is split-type pipeline fixing component specially designed for installation on channel steel. Standard material is electro-galvanized carbon steel, stainless steel is optional upon demand, covering full pipe range from 1/2 inch up to 12 inch with fully customizable specifications. Widely applied for fire sprinkler, plumbing and HVAC pipeline fixed installation in commercial, residential and industrial construction projects.
Key Features
Core Function: Two-piece split design to fasten pipeline onto channel steel for stable suspension support
Raw Material: Standard carbon steel, optional stainless steel
Surface Finish: Electro-galvanized anti-rust coating
Applicable Pipe Range: 1/2'' ~12''
Customization: Full size & specification customizable per client’s requirements
Matching Base: Designed exclusively for channel steel mounting
| Item | Specification |
| Model | UTT8001 |
| Main Material | Carbon Steel, SS alternative available |
| Surface Treatment | Electro-galvanized |
| Applicable Pipe Size | 1/2" ~ 12" |
| Spec Option | Fully customizable dimension |
| Matching Accessory | Standard channel steel |
| Sample Supply | Free pre-order test samples available |
Application Scenarios
1.Fire Sprinkler System: Channel-mounted suspension fixing for various size sprinkler pipelines in building fire protection systems.
2.MEP & HVAC Engineering: Suspended support for cold/hot water pipes, drainage and ventilation ducts.
3.Industrial Construction: Custom-size pipe fixing for factory equipment piping and large comprehensive building projects.

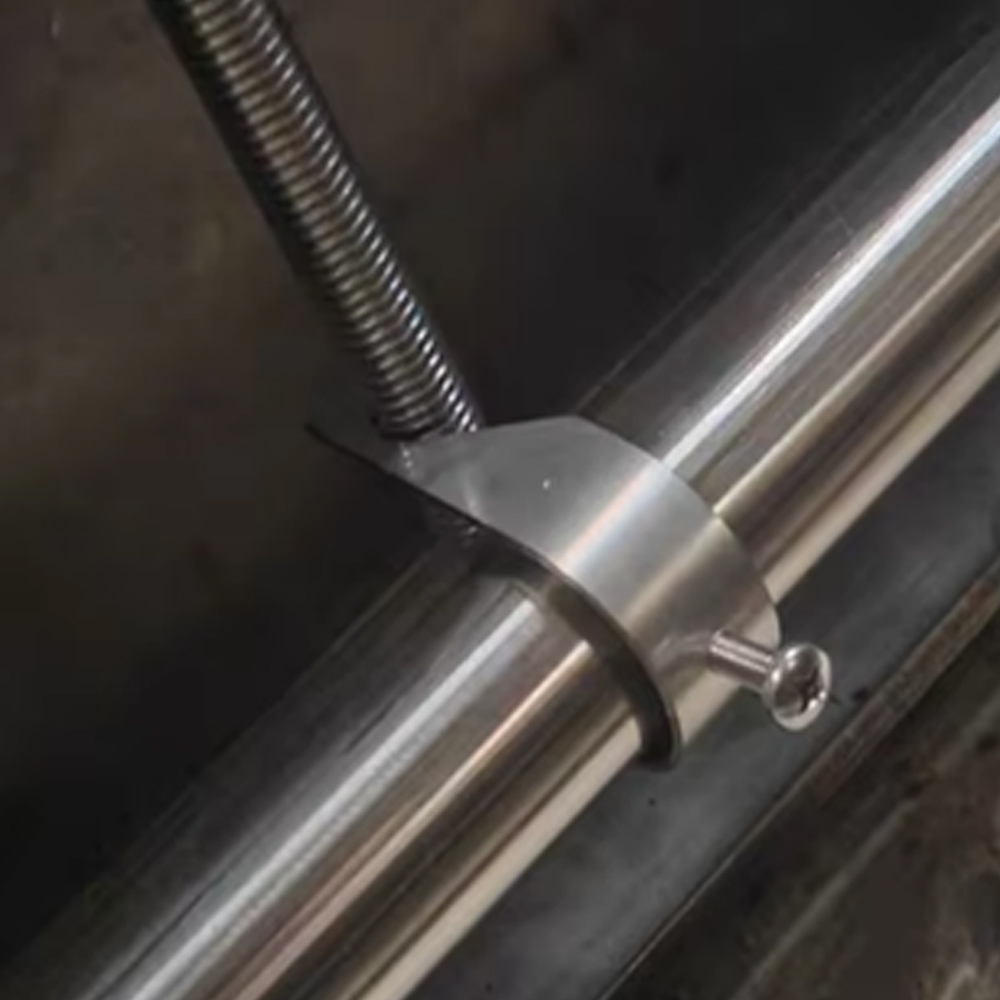

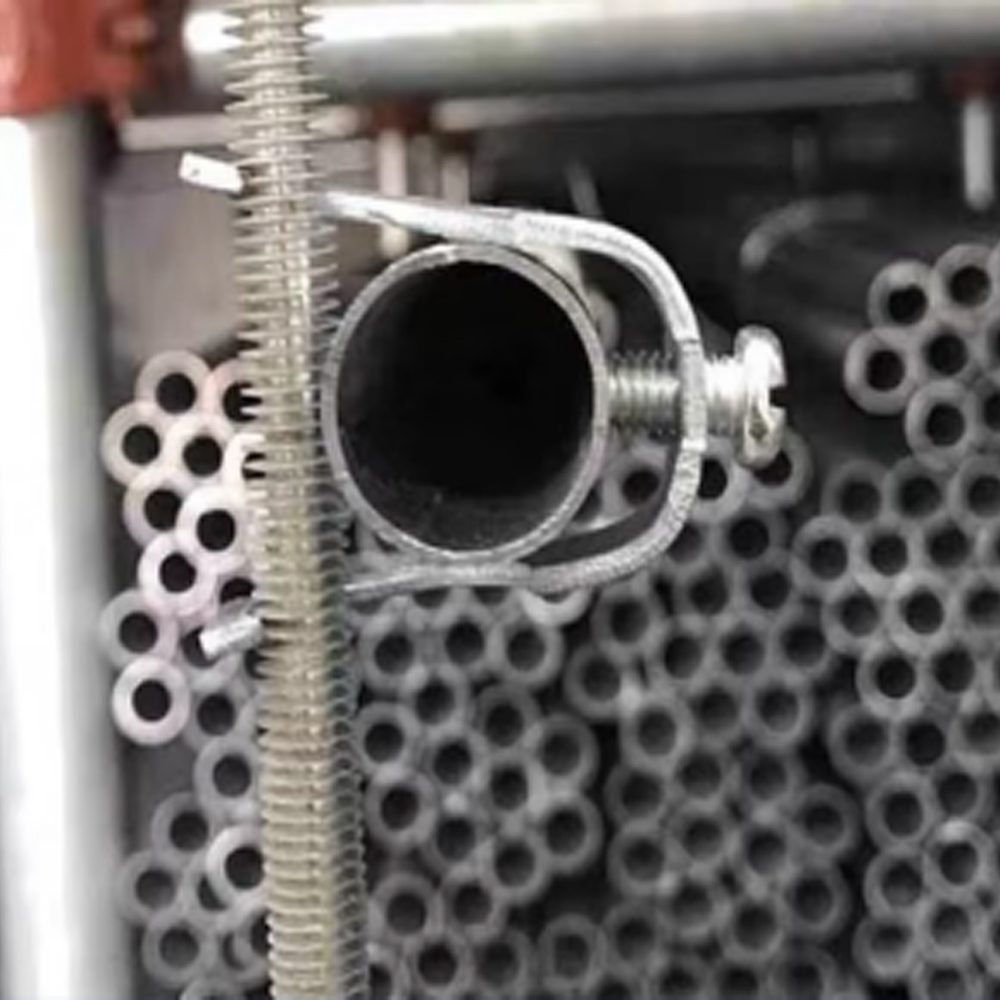

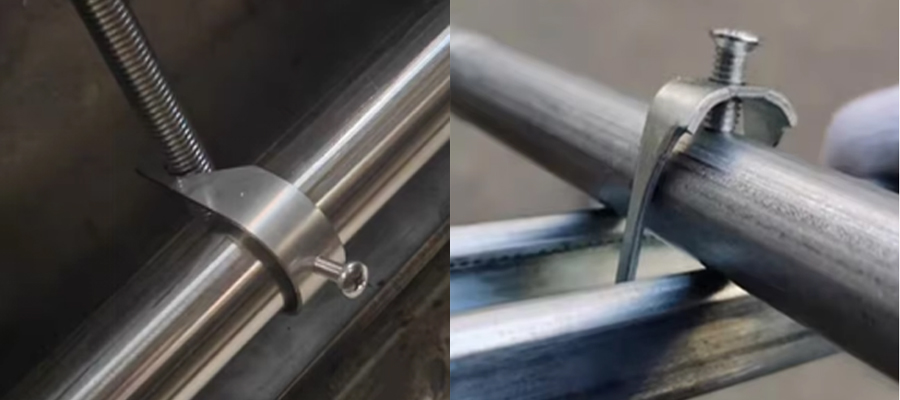

Step-by-Step Installation Guide
1.Split the two-piece UTT8001 clamp and wrap around outer surface of target pipeline.
2.Align clamp opening with pre-installed channel steel groove position.
3.Tighten fixing bolts to lock two clamp halves together and secure onto channel steel firmly.
4.Check pipe centering and clamping tightness to avoid pipe slipping under load.
5.Final inspection before pipeline pressure test.
Industry Compliance
1.Meets conventional NFPA13 and domestic pipeline installation specification requirements.
2.Electro-galvanized coating conforms to standard international anti-corrosion criteria.
3.All custom-size products pass dimensional inspection before shipment.
Core Product Advantages
Split Two-Piece Convenient Installation
No need to cut pipeline for mounting, greatly improve field installation efficiency.
Wide Size Coverage from 1/2'' to12''
Covers most common engineering pipe specifications for versatile usage.
Two Material Choices
Standard carbon steel for regular environment, stainless steel for humid/corrosive working conditions.
Full Customizable Specifications
Flexible dimension adjustment to satisfy special project construction demands.
Specialized for Channel Steel
Perfect fit standard channel steel for stable suspended pipeline layout.
FAQ
Q1: What’s UTT8001 structural feature?
A1: Two-piece split structure designed for fast mounting on channel steel.
Q2: Available material options?
A2: Standard electro-galvanized carbon steel, stainless steel optional.
Q3: Applicable pipe size scope?
A3: Fits pipeline from 1/2 inch up to 12 inch diameter.
Q4: Can specifications be customized?
A4: Yes, all sizes and parameters support customer customized production.
Q5: Free sample available?
A5: Free inspection samples can be provided before bulk order.
