Overview

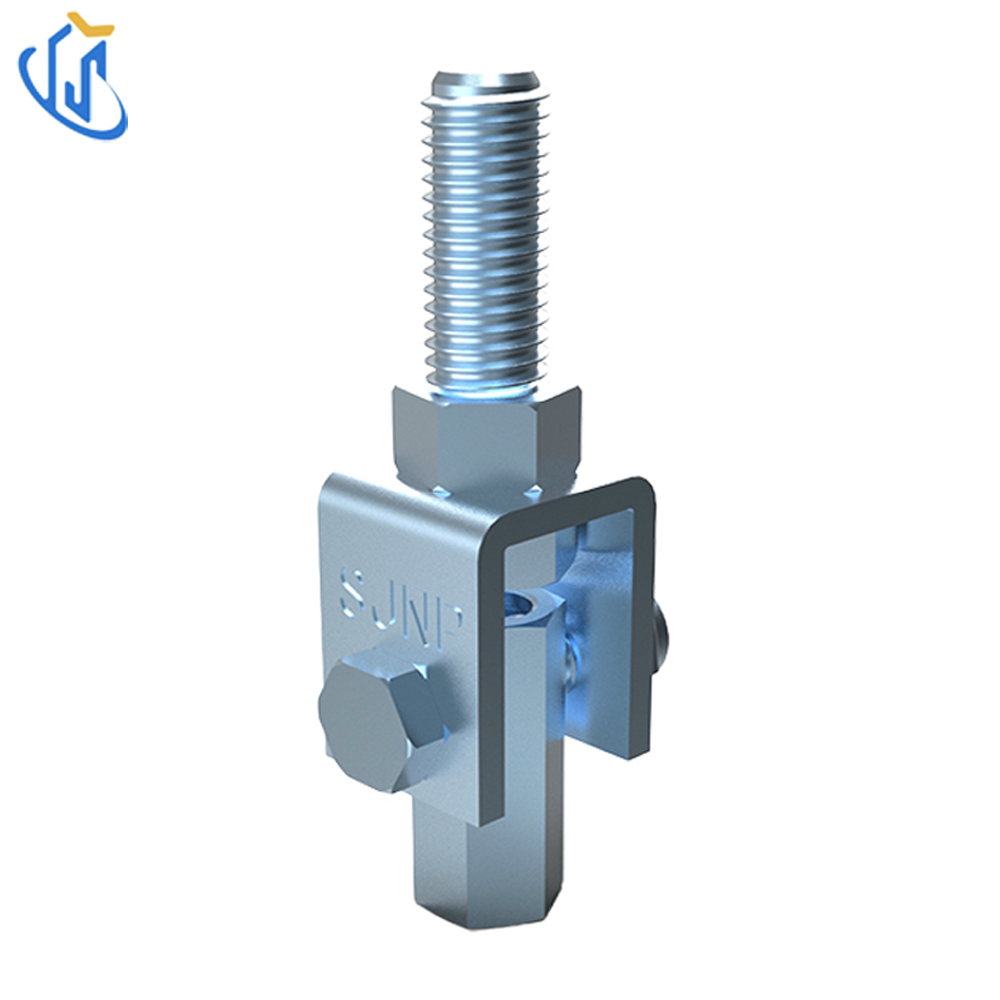

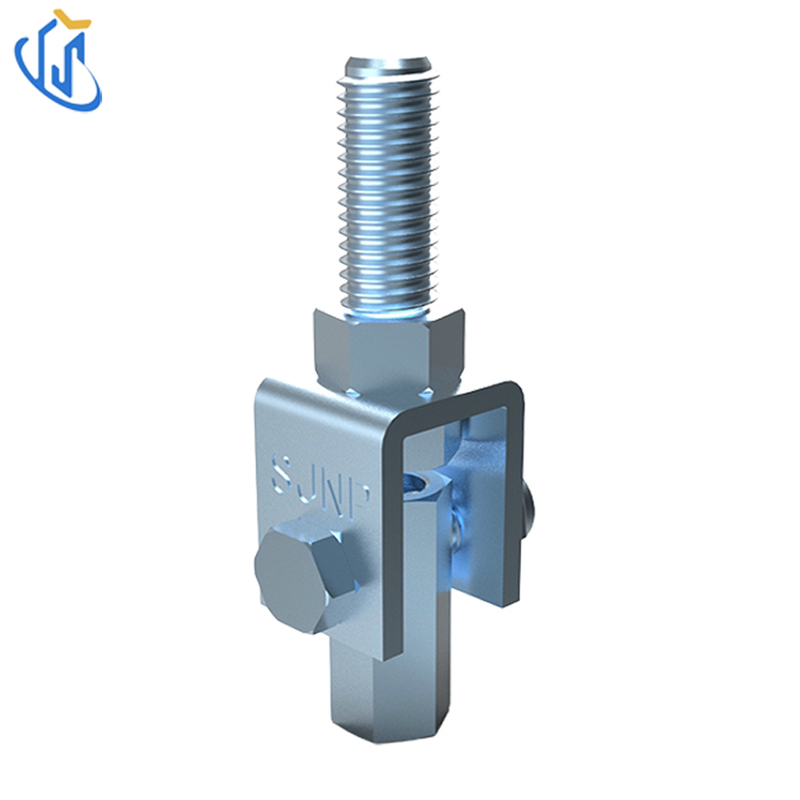

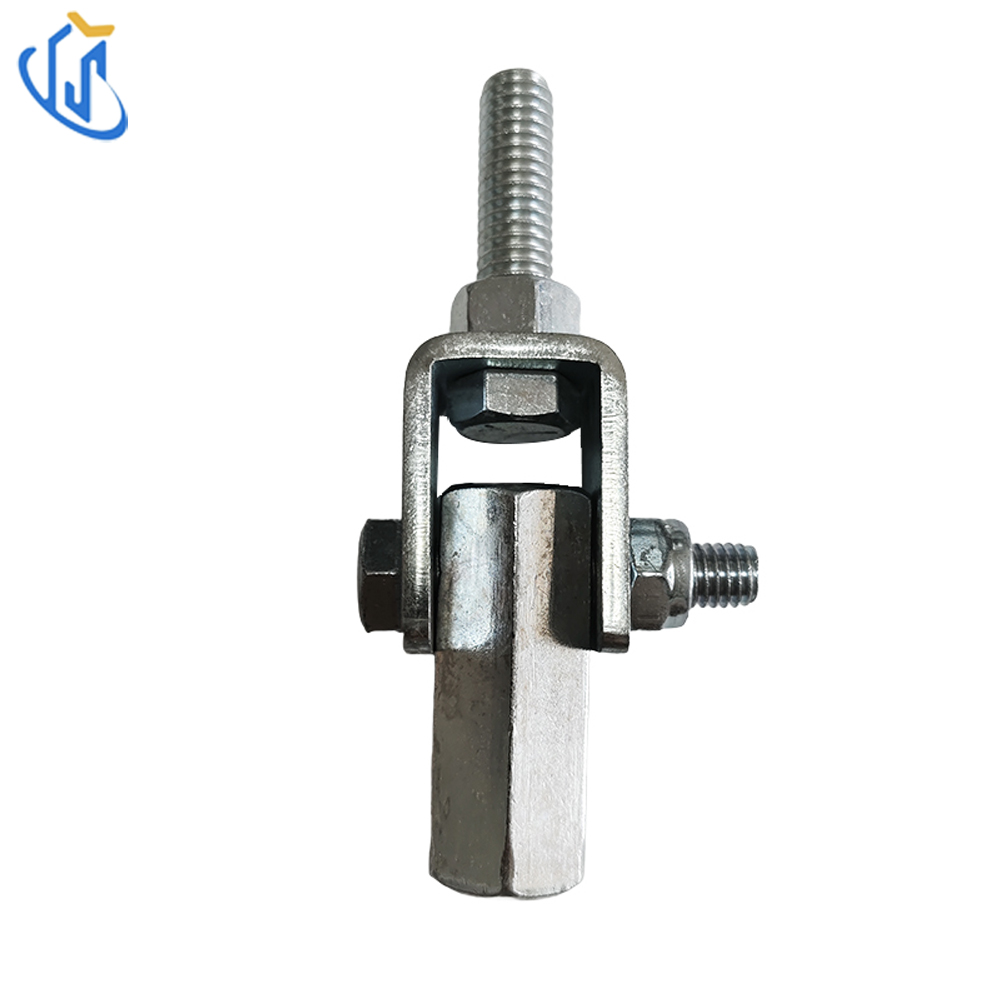

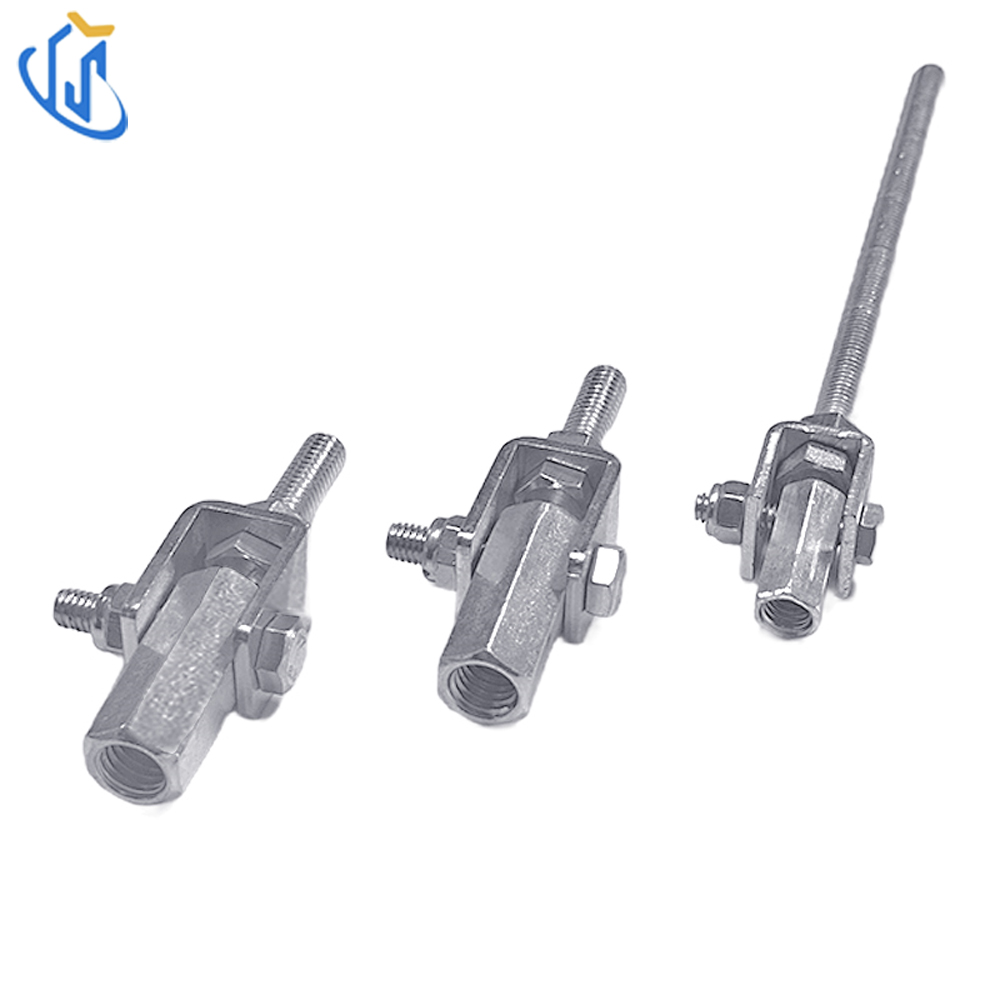

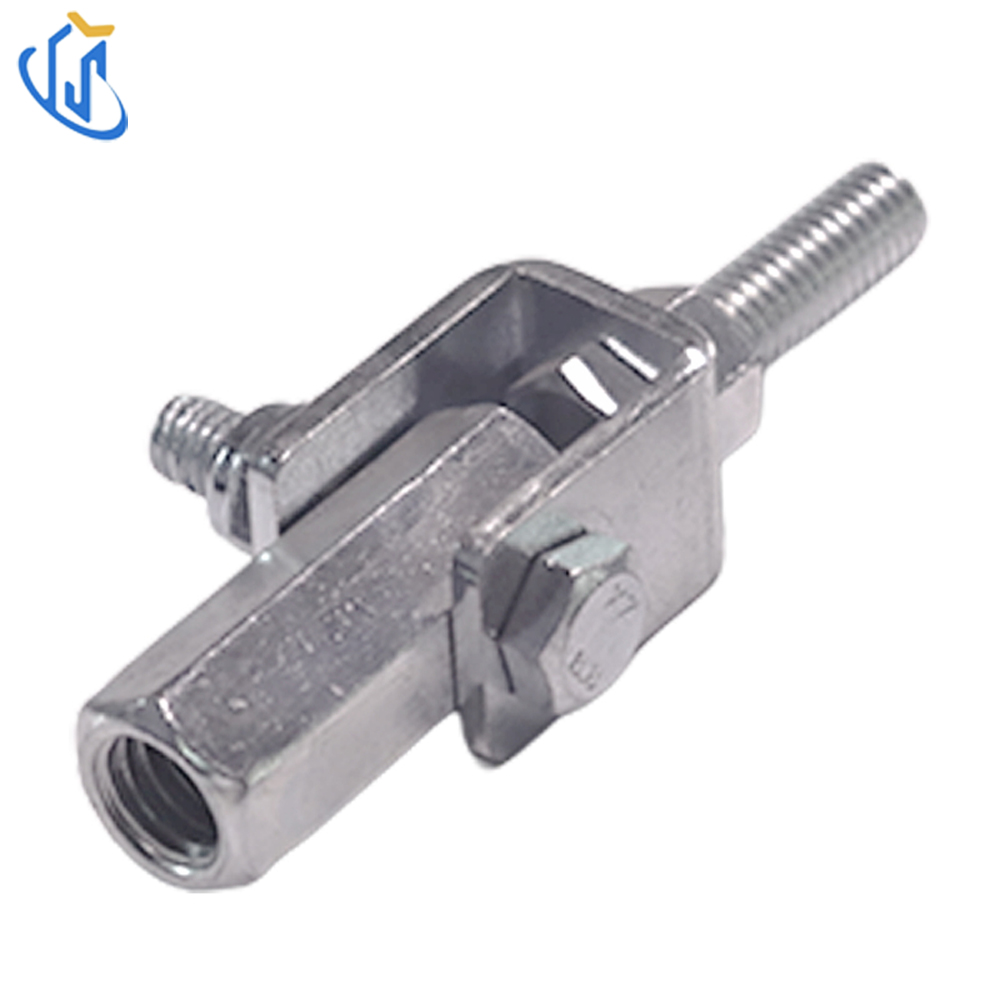

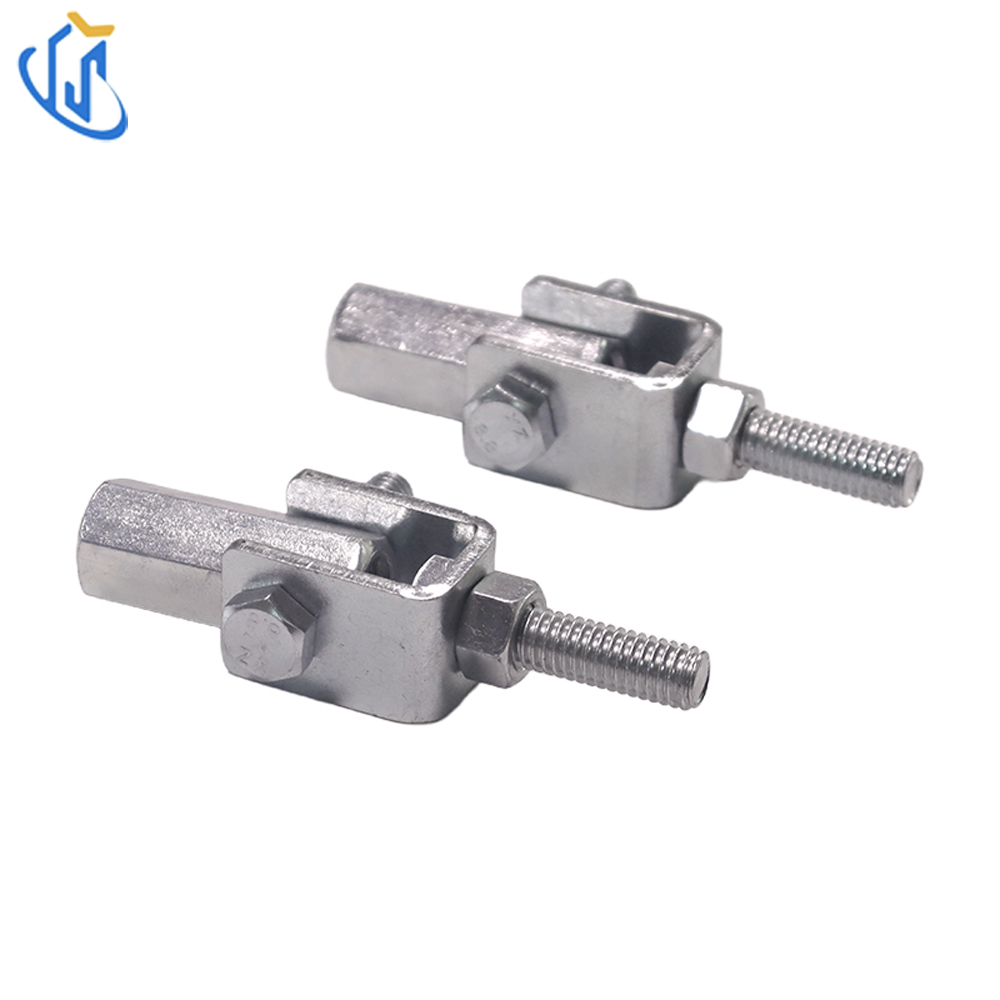

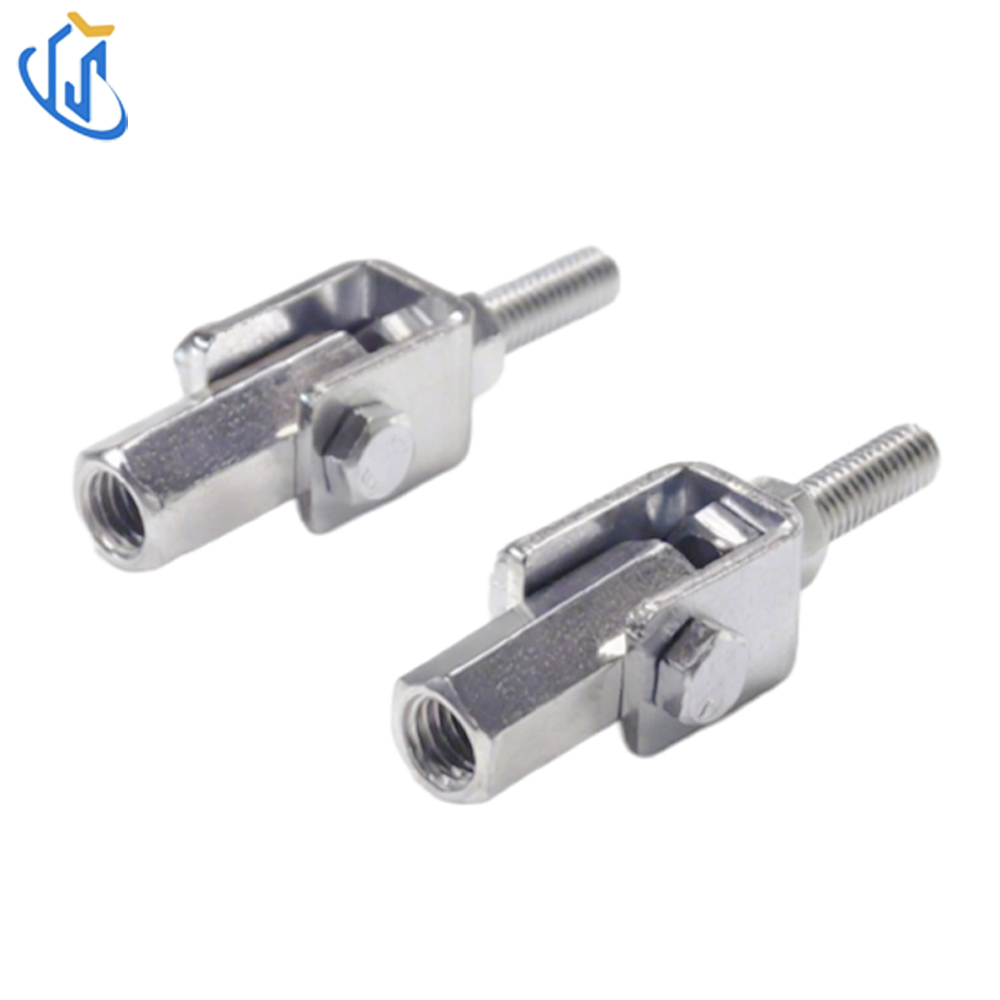

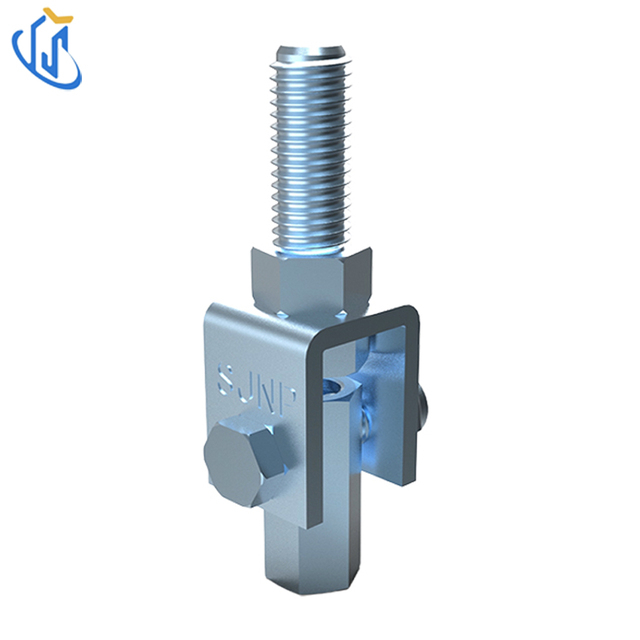

UTT14 universal connector is a versatile multi-spec connection component specially engineered to cooperate with all sizes of threaded rod for fire sprinkler, MEP and HVAC seismic bracing system. Available in carbon steel, SS304 & SS316 stainless steel options with diversified surface treatments, compliant with ASME, IFI and DIN international standards, widely used for commercial building, industrial factory and high-rise pipeline anti-seismic supporting projects.
Key Features
Core Function: Universal connection between threaded rod and seismic bracing components for pipeline sway restraint
Matching Accessory: Compatible with threaded rod M6~M100, rod length customizable from 1M to 6M
Raw Material Optional: Carbon Steel / SS304 Stainless Steel / SS316 Stainless Steel
Multiple Surface Finish: Electro-galvanized, HDG, black oxide, nickel plating, phosphate, plain passivation
Strength Grade: 4.6~12.9 carbon steel, Grade2~Grade10 stainless steel
Compliance Standard: ASME B16.5, IFI136, DIN975 international manufacturing norms
Product Parameter Table
| Item | Specification |
| Available Material | Carbon Steel, SS304, SS316 |
| Surface Options | Electric zinc, HDG, black, nickel, phosphate black, plain, passivated |
| Applicable Thread Size | 1/4"-4", M6-M100 |
| Custom Rod Length | 1M-6M as customer requirement |
| Approved Standards | ASME B16.5, IFI136, DIN975 |
| Strength Grades | 4.6~12.9(CS), Grade2~Grade10(SS) |
| Sample Supply | Free test samples available before bulk purchase |
Application Scenarios
Fire Protection Sprinkler Systems

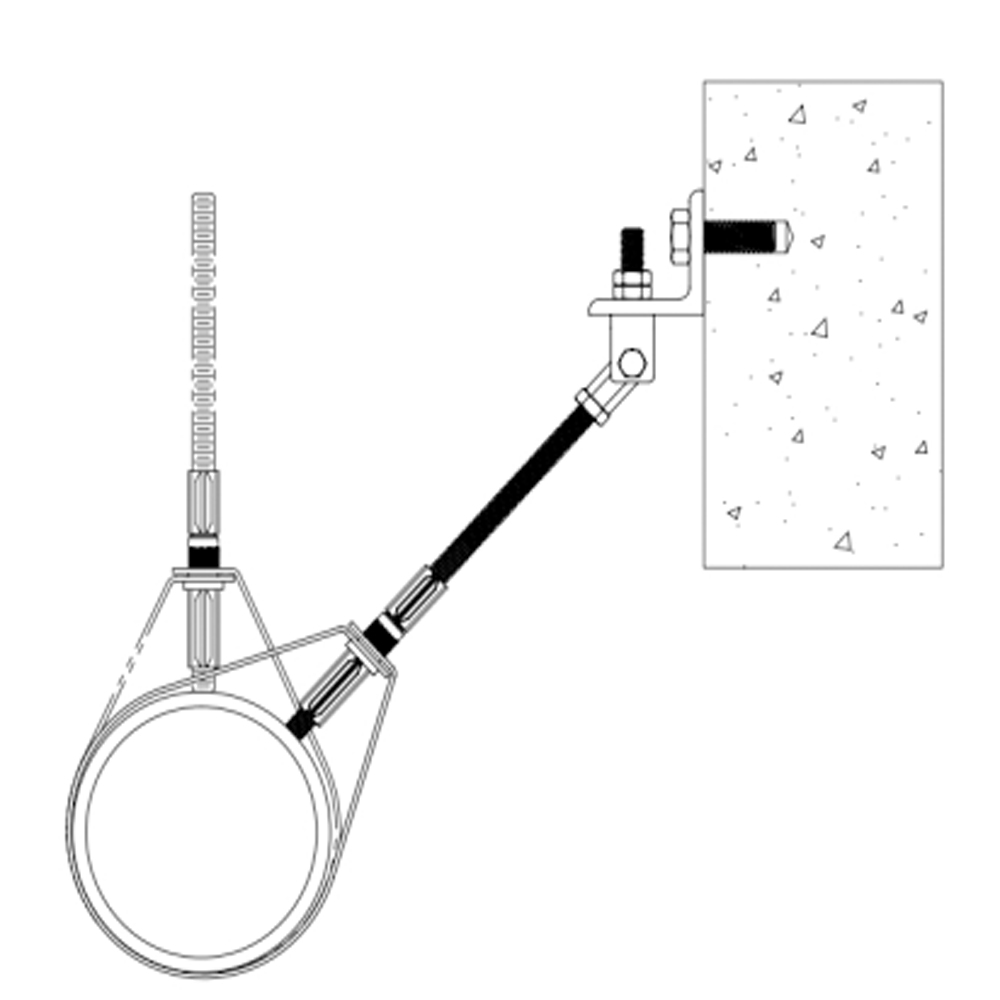

Universal linking piece to connect threaded rod and seismic sway brace for fire pipeline, satisfy NFPA13 anti-seismic fixed requirements.
MEP & HVAC Engineering

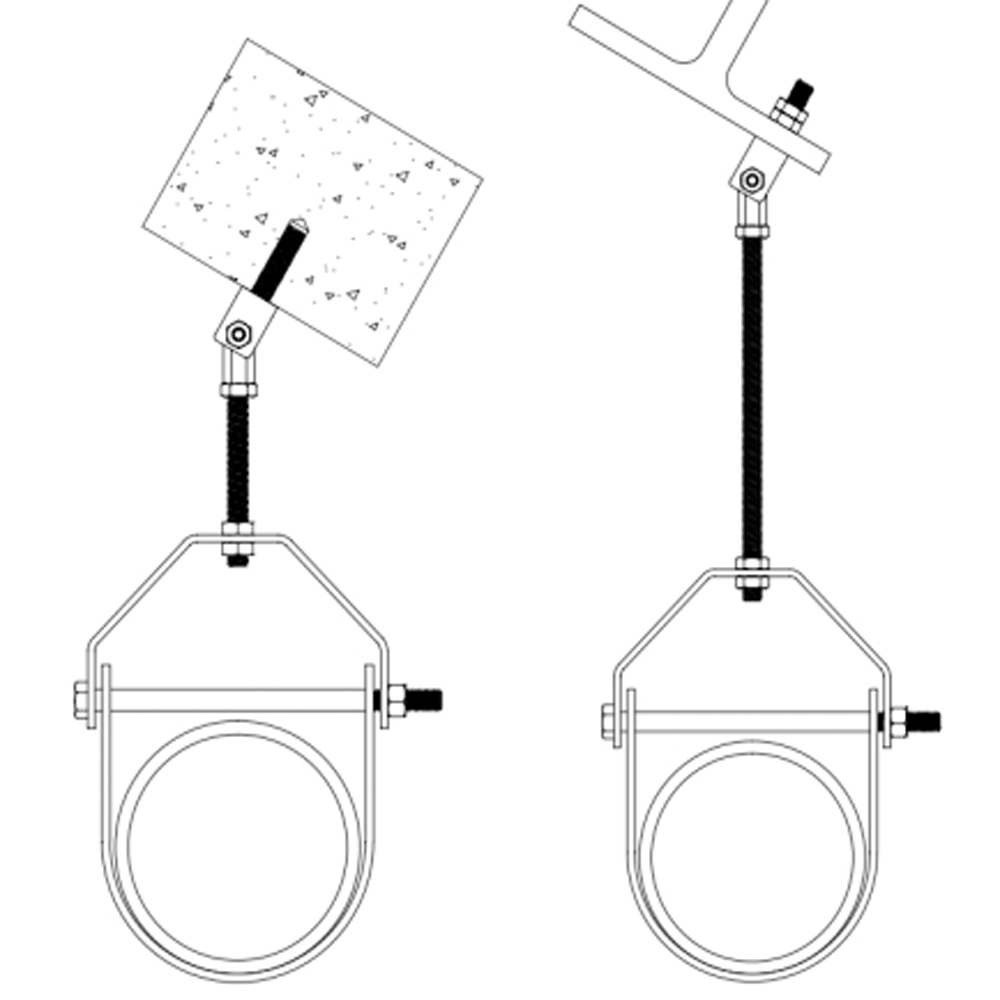

Connect suspending threaded rod with pipe hangers and seismic fittings for cold/hot water, drainage and air duct pipeline of commercial buildings.
Industrial & Public Construction Projects
Flexible connecting component for hospital, data center and factory seismic bracing systems with customized rod size and surface treatment.

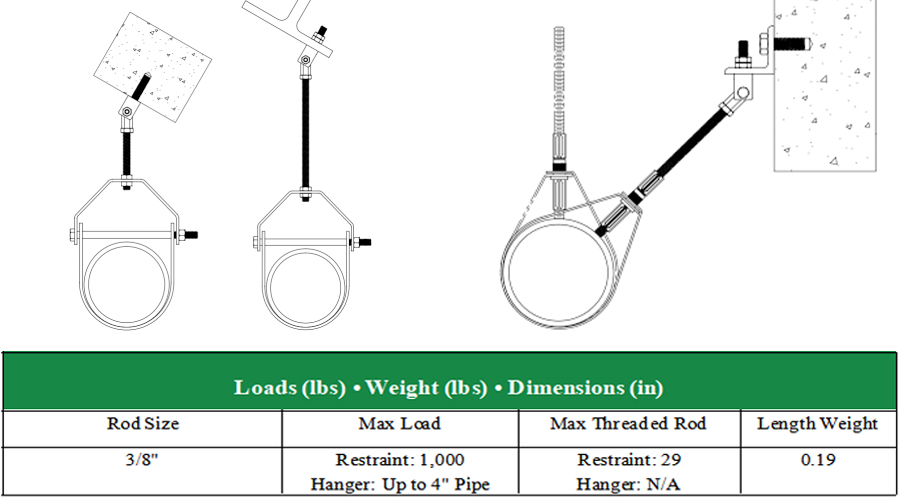

Step-by-Step Installation Guide
Screw UTT14 connector onto customized size threaded rod tightly by hand or spanner.
Link the other end of UTT14 with matched seismic attachment or pipe hanger according to on-site layout.
Adjust rod length and connector position to finish vertical/horizontal pipeline suspension fixation.
Lock all thread connections to prevent loosening under long-term vibration and seismic load.
Inspect overall connection stability before pipeline water pressure testing.
Note: Fully interchangeable with all UTT series pipe clamps, structural attachments and seismic accessories to build complete bracing system.
Industry Certifications
Produced following ASME B16.5, IFI136, DIN975 international industrial standards
Multiple anti-corrosion surface finishes meet ASTM B633 global coating specification
All raw materials pass incoming inspection, every batch has mechanical strength test report
Size and surface customization supported to fit global different regional construction codes
Core Product Advantages
Three Optional Raw Materials
Selectable carbon steel, SS304, SS316 to adapt indoor dry, damp and corrosive outdoor working environments.
Rich Multi-Finish Selection
7 kinds of surface treatments solve different anti-rust and cost demands for various construction sites.
Ultra-Wide Size Coverage
Covers M6~M100 thread specification, one connector fits most commonly-used threaded rod globally.
Customizable Production
Rod length adjustable from 1M to 6M to cut on-site construction waste and improve installation efficiency.
Global Standard Compliance
Made per mainstream US & EU industry standards, smoothly pass project engineering approval for export orders.
FAQ
Q1: What is UTT14 used for?
A1: Multi-material universal connector designed to connect threaded rod and various seismic bracing fittings for pipeline anti-sway installation.
Q2: What materials can I choose?
A2: Three options: regular carbon steel, SS304 and corrosion-resistant SS316 stainless steel.
Q3: What thread sizes does it support?
A3: Imperial 1/4"-4" & metric M6-M100 full range of threaded rod.
Q4: Can I customize surface finish and length?
A4: 7 surface treatments available, threaded rod length can be customized from 1M to 6M as requests.
Q5: Is free sample available?
A5: Small free pre-production samples are provided for quality verification before bulk order.
