Overview

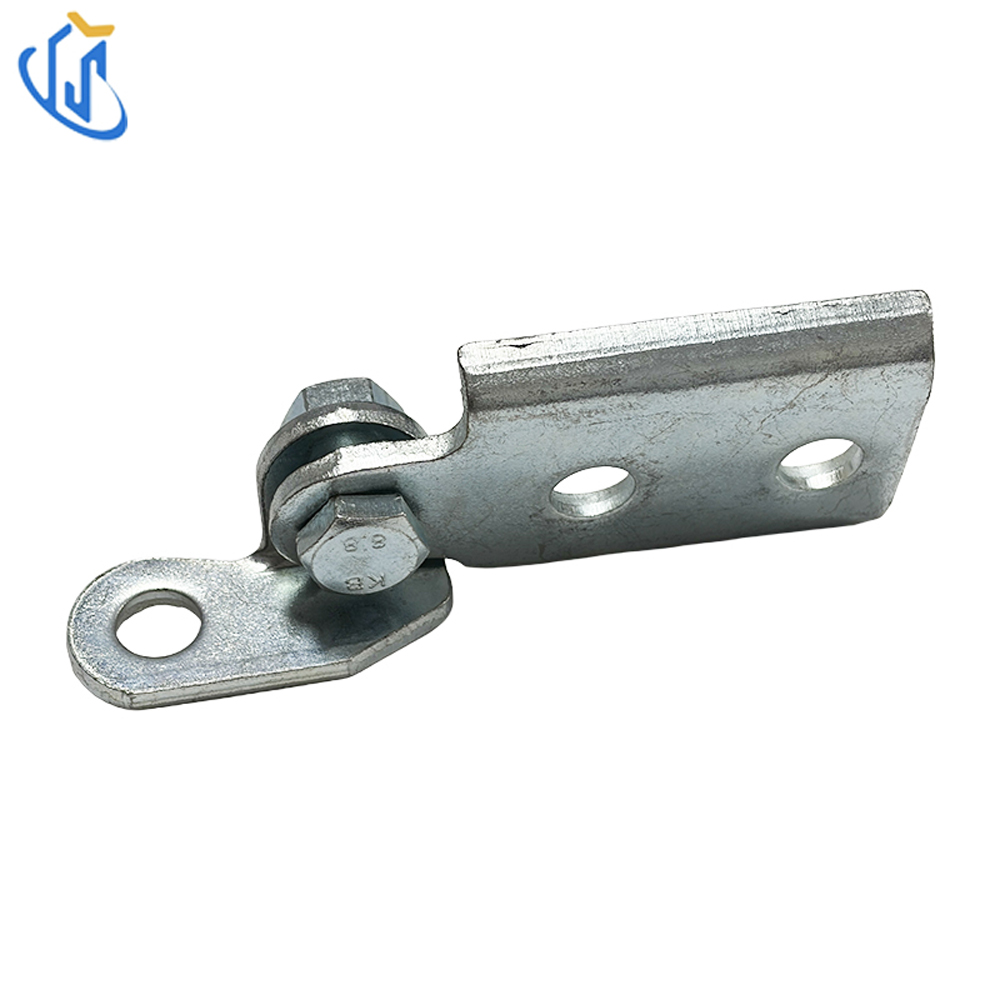

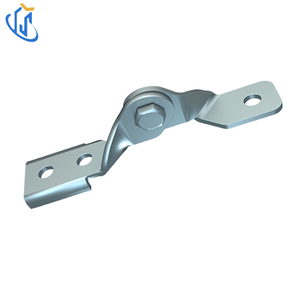

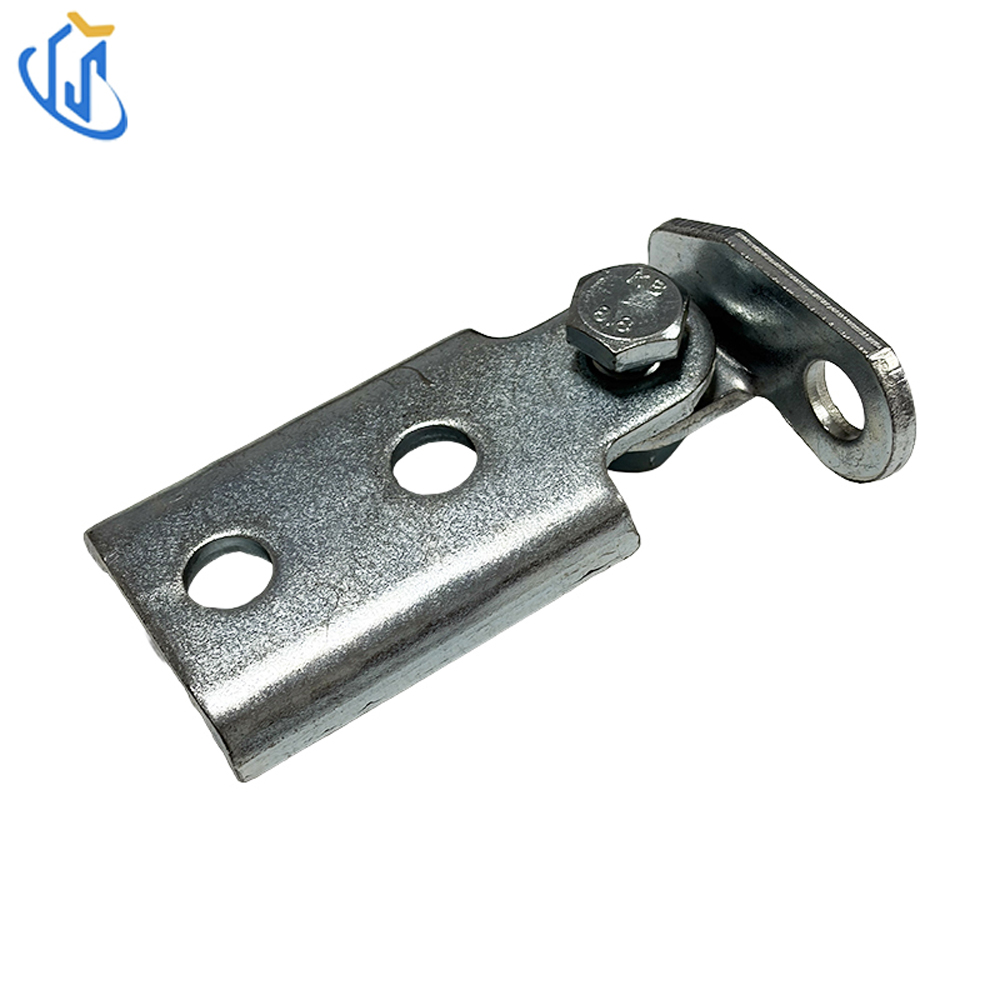

UTT12C offset seismic hinge is carbon steel bracing connector designed with offset bending structure, applicable for lateral and longitudinal seismic bracing on wall or steel beam. Adjustable mounting angle shortens installation time, four optional surface treatments fit various construction environments for fire sprinkler and MEP pipeline anti-seismic projects.
Key Features
Core Function: Offset structure connects building structure and bracing for lateral & longitudinal seismic restraint
Material: High strength carbon steel
Hole Size:14mm, matched M12 expansion bolt
Max Load:7300N
Surface:Electro-galvanized, HDG, DACROMET, epoxy spraying
Feature:Offset design avoids space interference during on-site installation

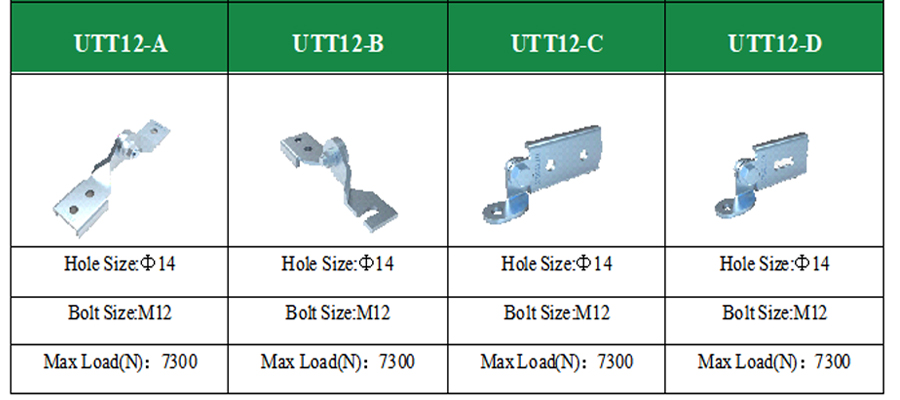

| Item | Specification |
| Model | UTT12C |
| Material | Carbon Steel |
| Bore Diameter | 14mm(M12 bolt) |
| Max Rated Load | 7300N |
| Surface Options | Electro-galvanized/HDG/DACROMET/Epoxy coating |
| Structure Feature | Offset bent body |
| Sample | Free test samples available |
![2]()
Application Scenarios

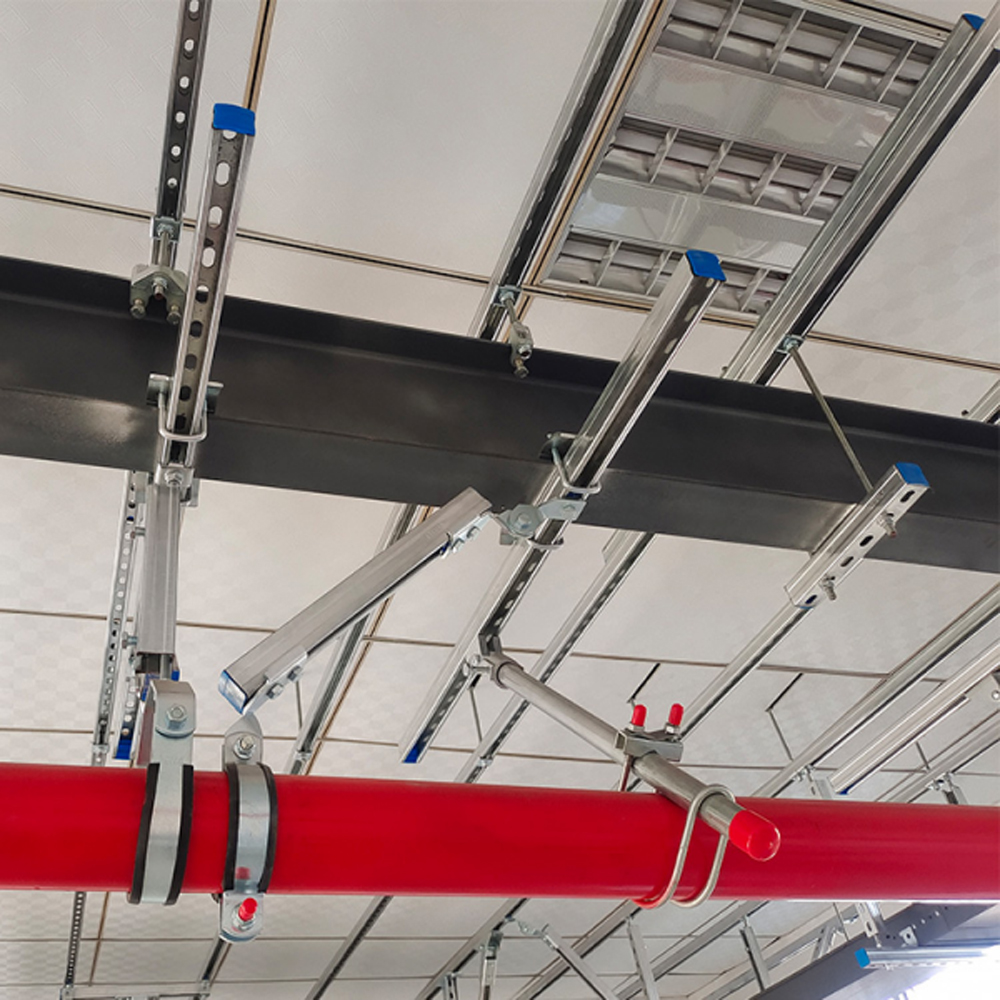

1.Fire Sprinkler System: Offset installation seismic bracing for sprinkler pipes with narrow installation space.
2.MEP & HVAC: Pipeline anti-sway support for water and air duct in compact building structure.
3.Industrial Construction: Seismic connecting part for factory pipeline where regular hinge cannot be installed.
![12]()

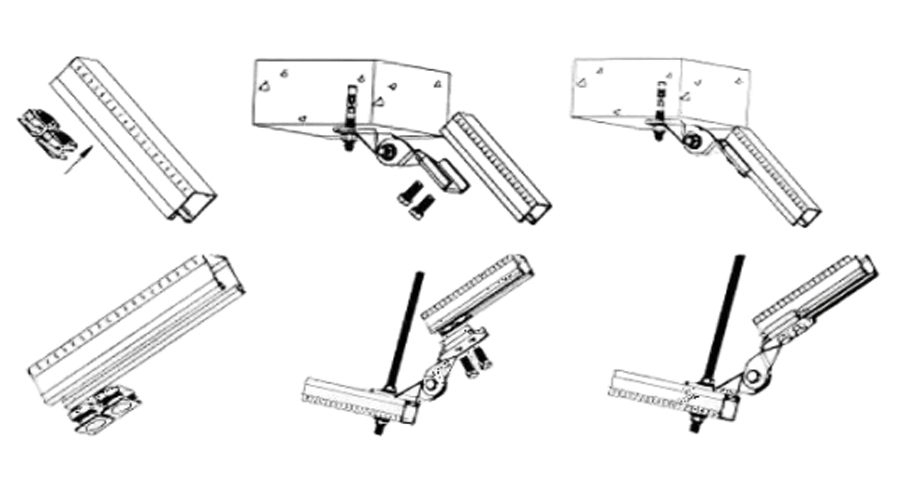

Installation Guide

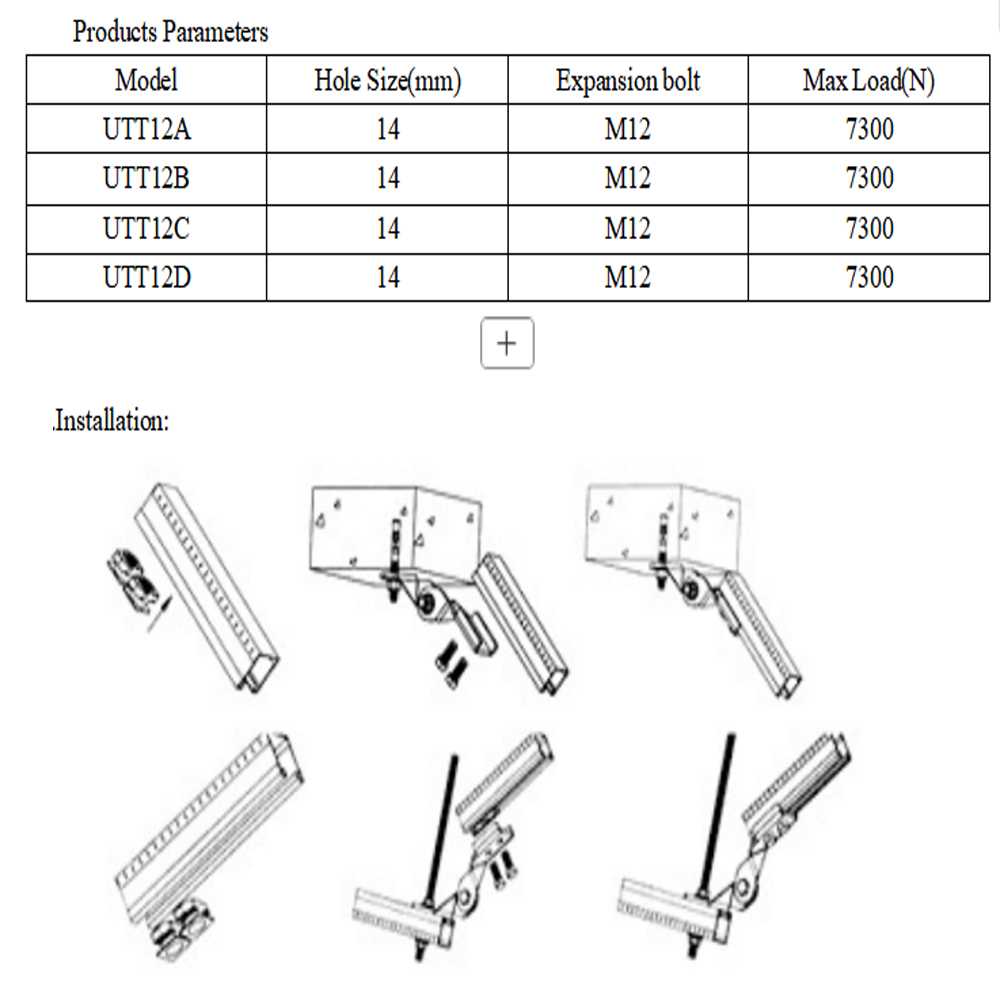

1.Fix UTT12C onto wall or steel beam with M12 bolt.
2.Adjust hinge angle and use offset structure to bypass obstacles.
3.Connect bracing pipe to the other end of hinge and fasten all bolts.
4.Check connection tightness before pipeline pressure test.
![11]()
Industry Certifications
1.Conforms to NFPA13, IBC, ASCE7 seismic specification
2.Coating meets international anti-corrosion standards
3.Every batch passes factory load and dimension inspection
Core Advantages
Unique offset design solves limited installation space problems; adjustable angle improves construction efficiency; multiple anti-corrosion finishes for different environments; stable 7300N load capacity; compatible with full UTT series fittings.
FAQ
Q1: What’s UTT12C feature?
A1: Offset bent structure for narrow-space installation of seismic bracing.
Q2: Matching bolt?
A2: 14mm hole for M12 expansion bolt.
Q3: Max load?
A3: Rated max load 7300N.
Q4: Available surface?
A4: Electro-galvanized, HDG, DACROMET, epoxy spraying.
