UTT12D
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface: | |
| Quantity: | |

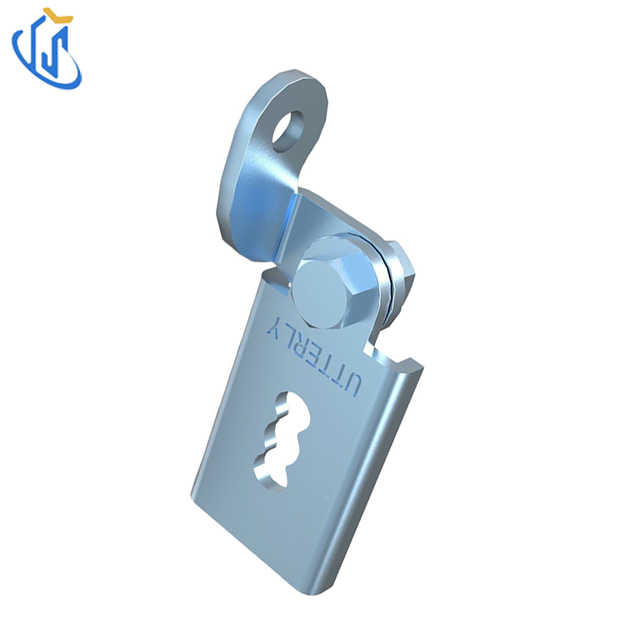

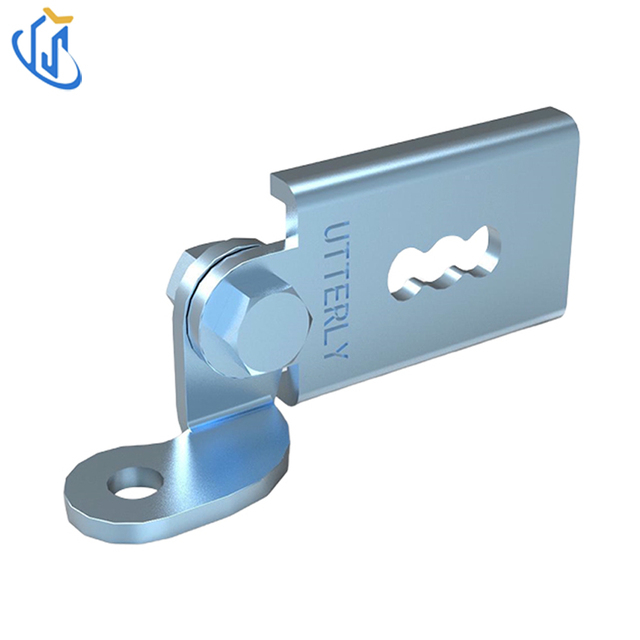

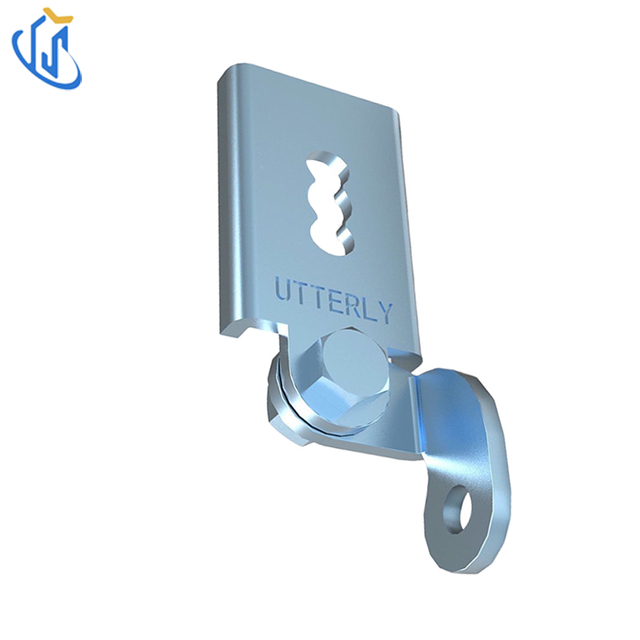

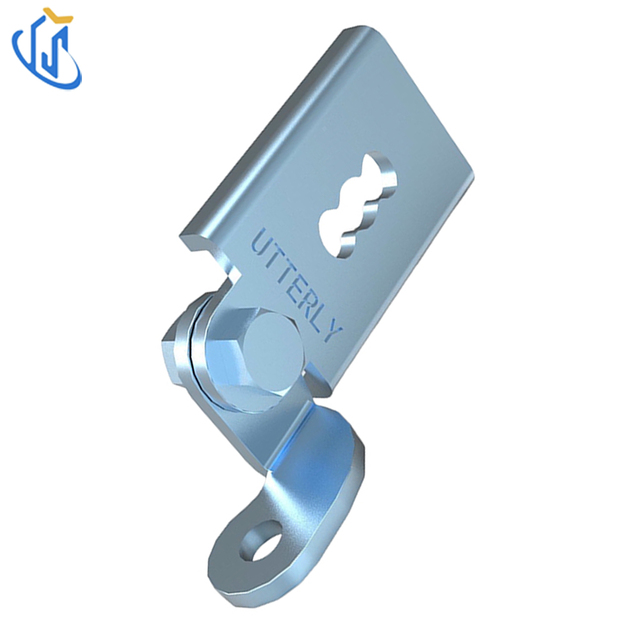

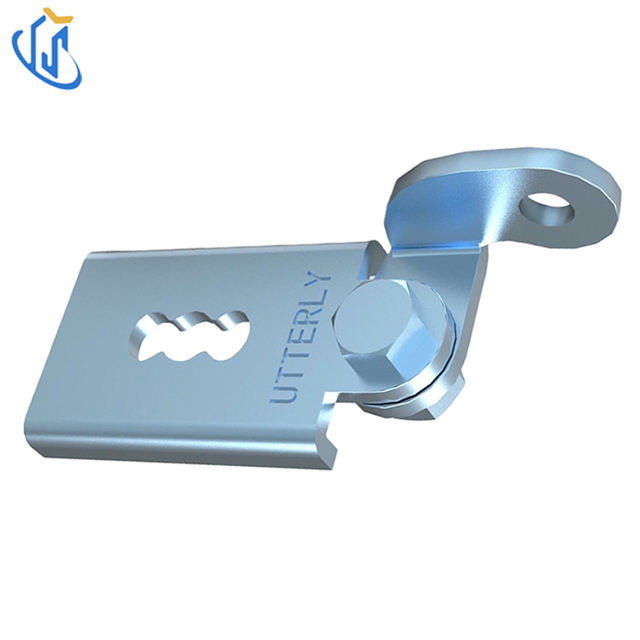

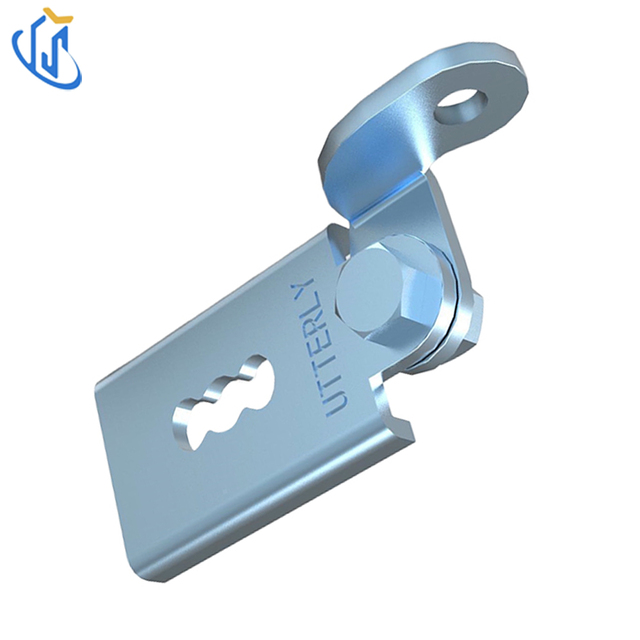

UTT12D dual-hole adjustable seismic hinge is carbon steel anti-seismic connector featured with double mounting hole layout, designed for lateral and longitudinal pipeline bracing on wall or steel beam. Adjustable hinge angle optimizes field installation efficiency, four optional anti-corrosion surface finishes, widely used in fire sprinkler, HVAC and MEP pipeline seismic fixed projects of commercial & industrial buildings.
Core Function: Dual-hole structure connects building wall/steel beam and bracing pipe for lateral & longitudinal seismic sway restraint
Raw Material: High-strength carbon steel
Mount Hole: Φ14mm, compatible with M12 expansion bolt
Max Rated Load:7300NAvailable
Surface: Electro-galvanized, HDG, DACROMET, epoxy spraying
Unique Advantage: Double-hole design improves installation stability under heavy seismic load

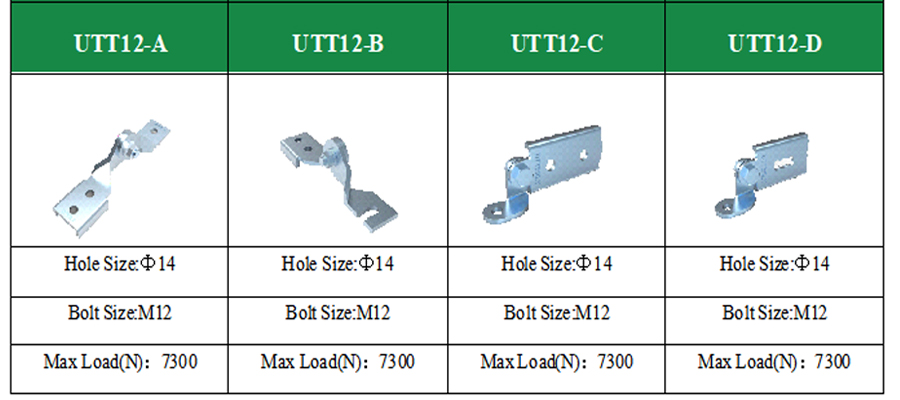

Item | Specification |
|---|---|
Model | UTT12D |
Raw Material | Carbon Steel |
Bolt Hole Diameter | 14mm (M12 bolt matched) |
Max Working Load | 7300N |
Surface Treatment Options | Electro-galvanized / Hot-dip galvanized / DACROMET / Epoxy coating |
Structural Feature | Dual mounting hole design |
Sample Service | Free pre-order testing samples available |
Fire Protection Sprinkler System: Dual-hole fixed seismic bracing for large-diameter sprinkler pipeline requiring higher installation stability.
MEP & HVAC Engineering: Anti-seismic support for heavy-duty water pipe and ventilation duct on wall or steel beam.
Industrial Construction: Seismic connecting component for factory pipeline with high seismic load requirement.

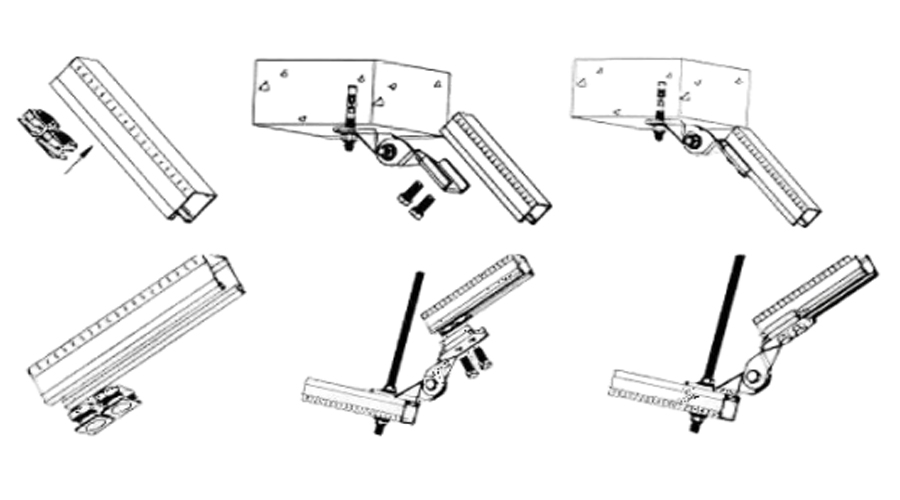

Secure UTT12D onto wall or steel beam with M12 bolts via dual reserved holes for reinforced fixing.
Adjust hinge angle according to actual bracing pipe layout on construction site.
Fasten one end of seismic brace pipe to hinge connecting hole and fully lock all fasteners.
Check overall connection tightness and stability before pipeline hydraulic pressure test.
Conforms to NFPA13, IBC, ASCE7 North American seismic design specifications
All galvanized surface complies with international ASTM anti-corrosion coating standard
Each production batch passes factory load test and dimensional inspection
Double-hole layout greatly enhances mounting firmness, ideal for high-load pipeline anti-seismic installation;
Adjustable hinge cuts construction time and reduces on-site machining cost;
Multiple finishes adapt dry, damp and slightly corrosive construction environments;
Uniform load rating ensures long-term seismic safety of piping system;
Perfectly matched with all UTT series pipe clamps and seismic fittings.
Q1: What’s unique for UTT12D?
A1: Dual-hole reinforced mounting structure for higher installation stability vs UTT12A/B/C.
Q2: Matching installation bolt?
A2: 14mm hole fits standard M12 expansion bolt.
Q3: Maximum rated load?
A3: Max safe bearing load reaches 7300N.
Q4: Available surface treatments?
A4: Electro-galvanized, HDG, DACROMET and epoxy spraying four choices.
