Overview

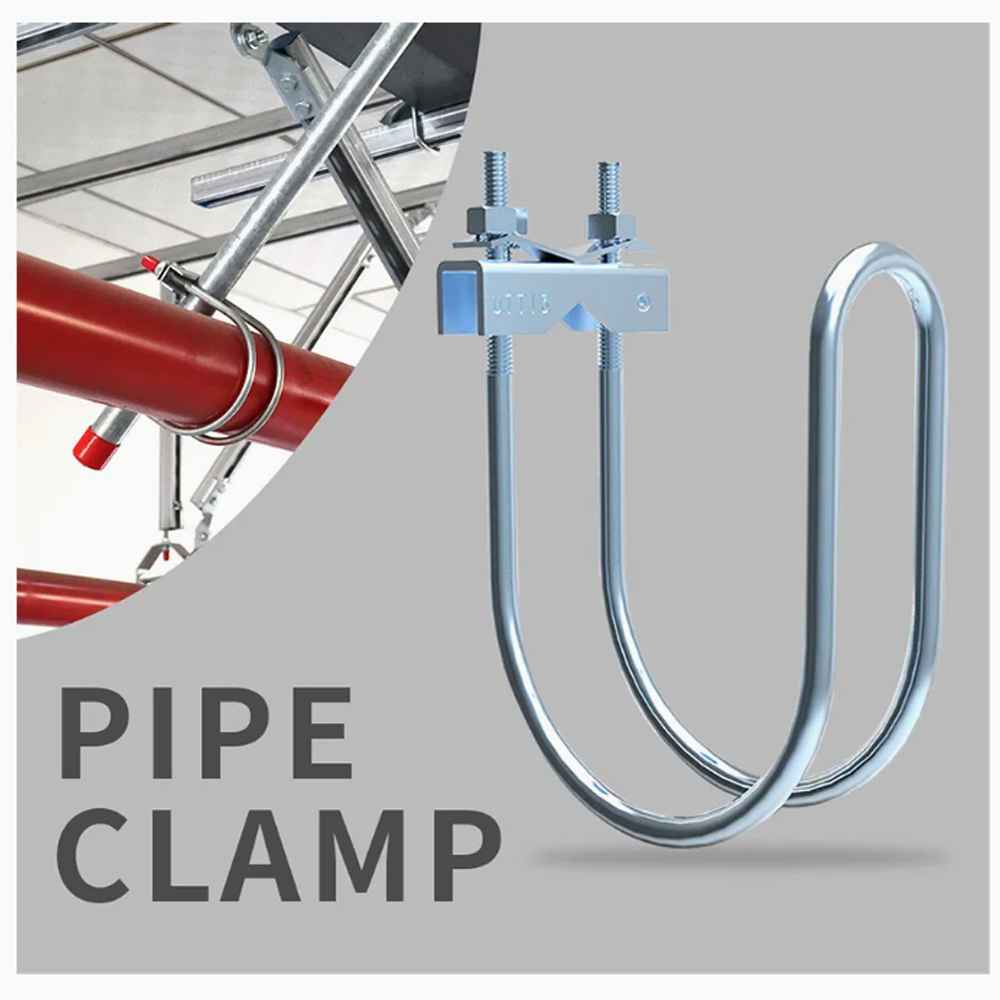

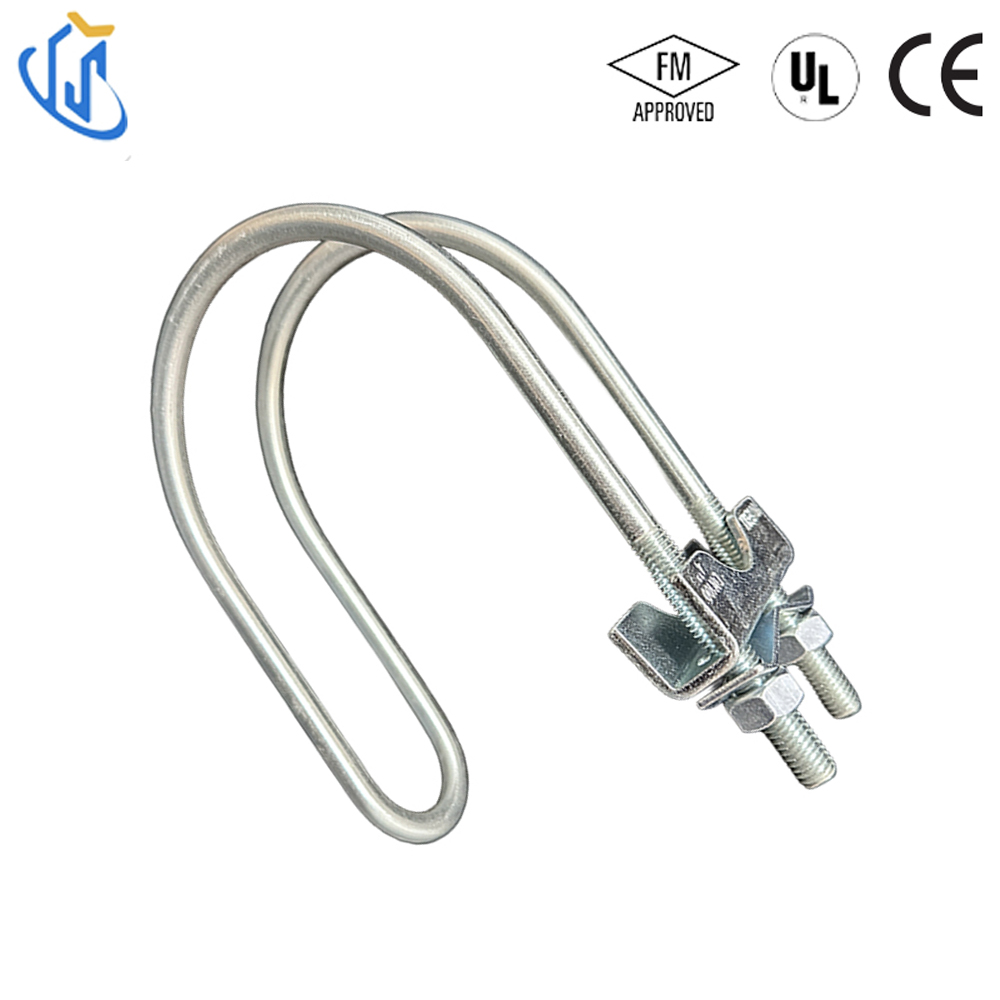

UTT13 U Quick Lateral Bracing Clamp is UL/FM certified carbon steel pipe clamp, core pipe attachment part for complete seismic sway brace system. It cooperates with UTT series structural attachments and bracing pipe to assemble full anti-sway set, compliant strictly with NFPA13 specification, widely matched with Sch10, Sch40, GB/T3091, JIS G3454 standard fire sprinkler piping from 1 inch up to 8 inch diameter.
Key Features
Core Function: Quick-clamp on service pipe to build lateral seismic sway brace together with bracing pipe & structural fittings
Raw Material: High-strength carbon steel
Surface Finish: Electro-galvanized anti-corrosion zinc coating
Certification Range: UL certified for 1''~8'', FM certified for 2''~8'' pipe size
Applicable Pipe: Sch10, Sch40, GB/T3091, JIS G3454 standard sprinkler steel pipe
Install Standard: Torque lock at 30~35N·M with marked alignment line
Product Parameter Table
| Item | Specification |
| Model | UTT13 |
| Material | Carbon Steel |
| Coating | Electro-galvanized |

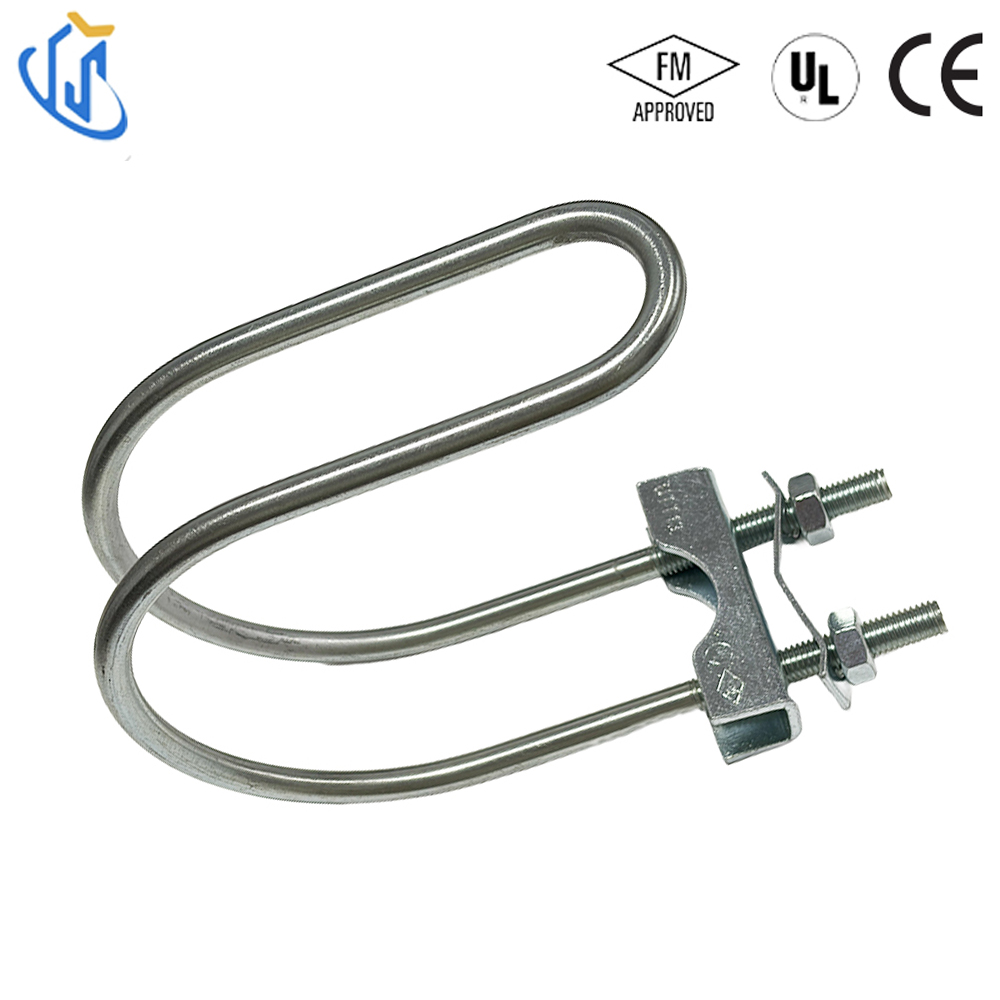

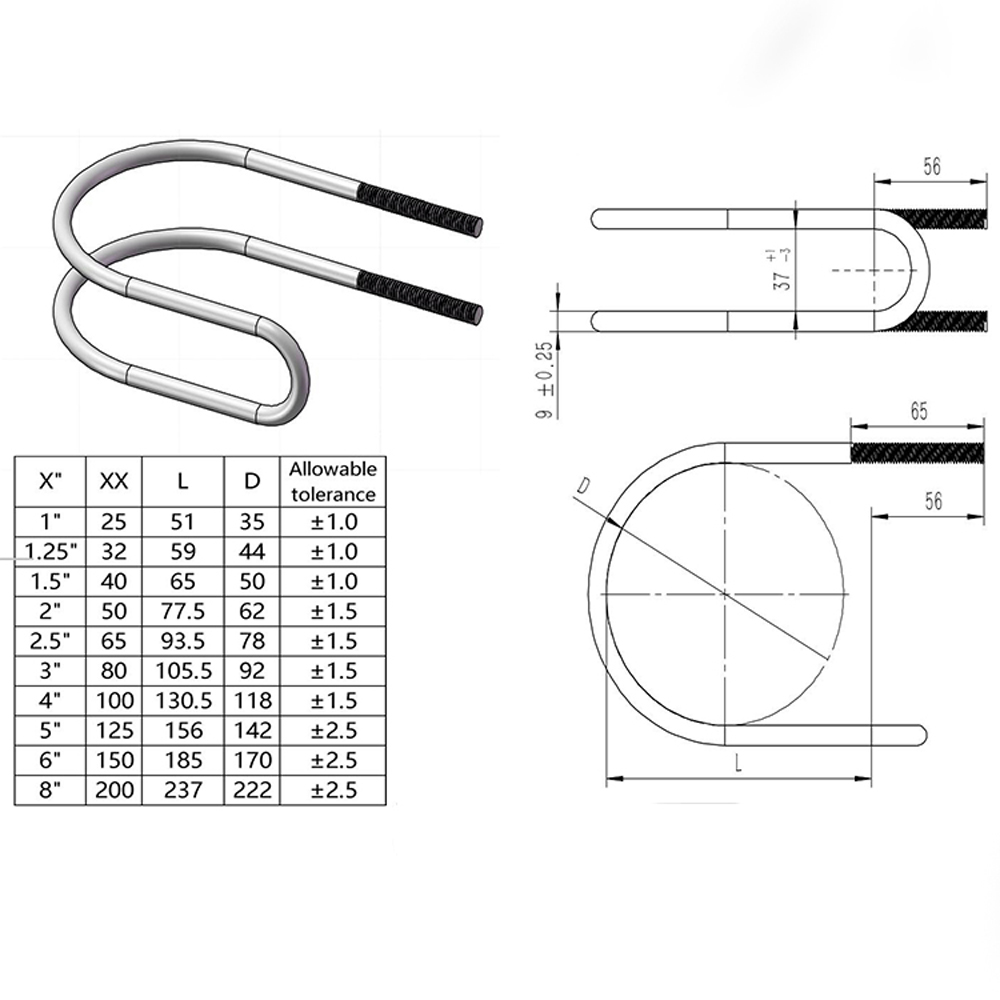

| Applicable Pipe Range | 1"(25mm) ~8"(200mm) |

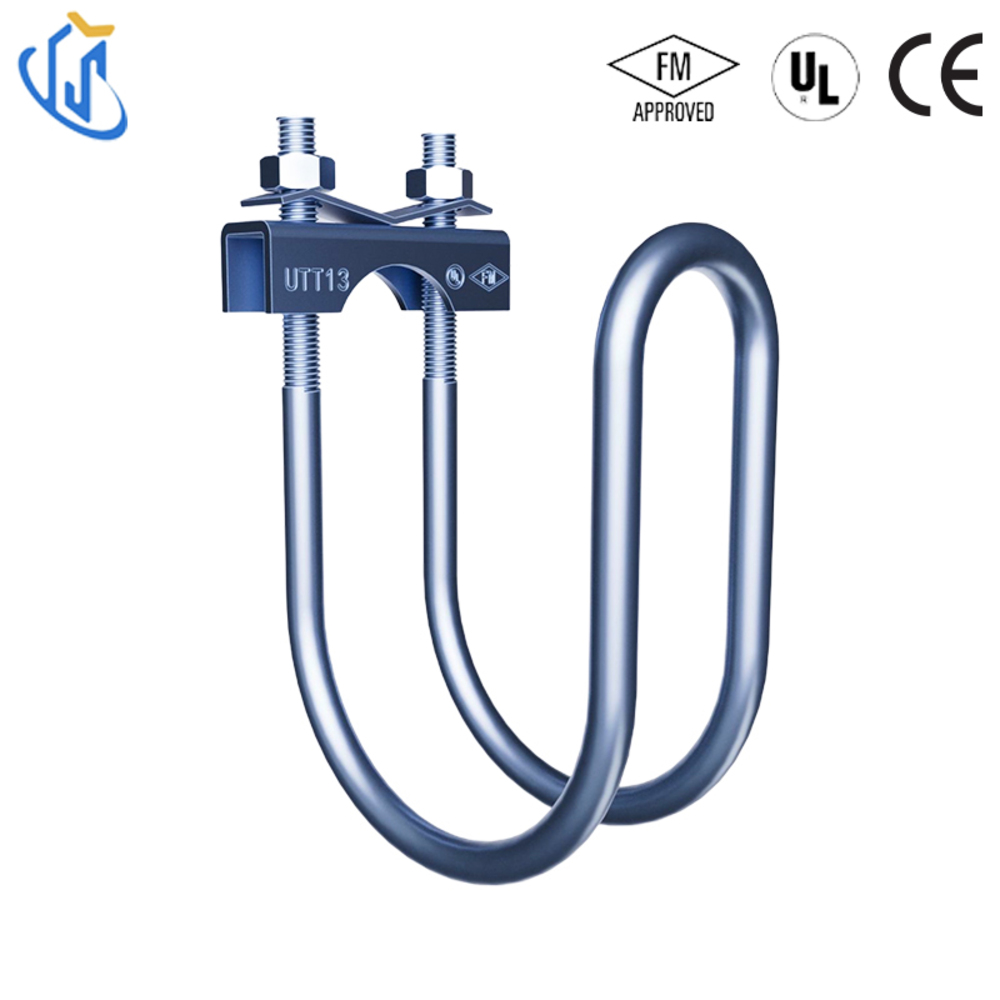

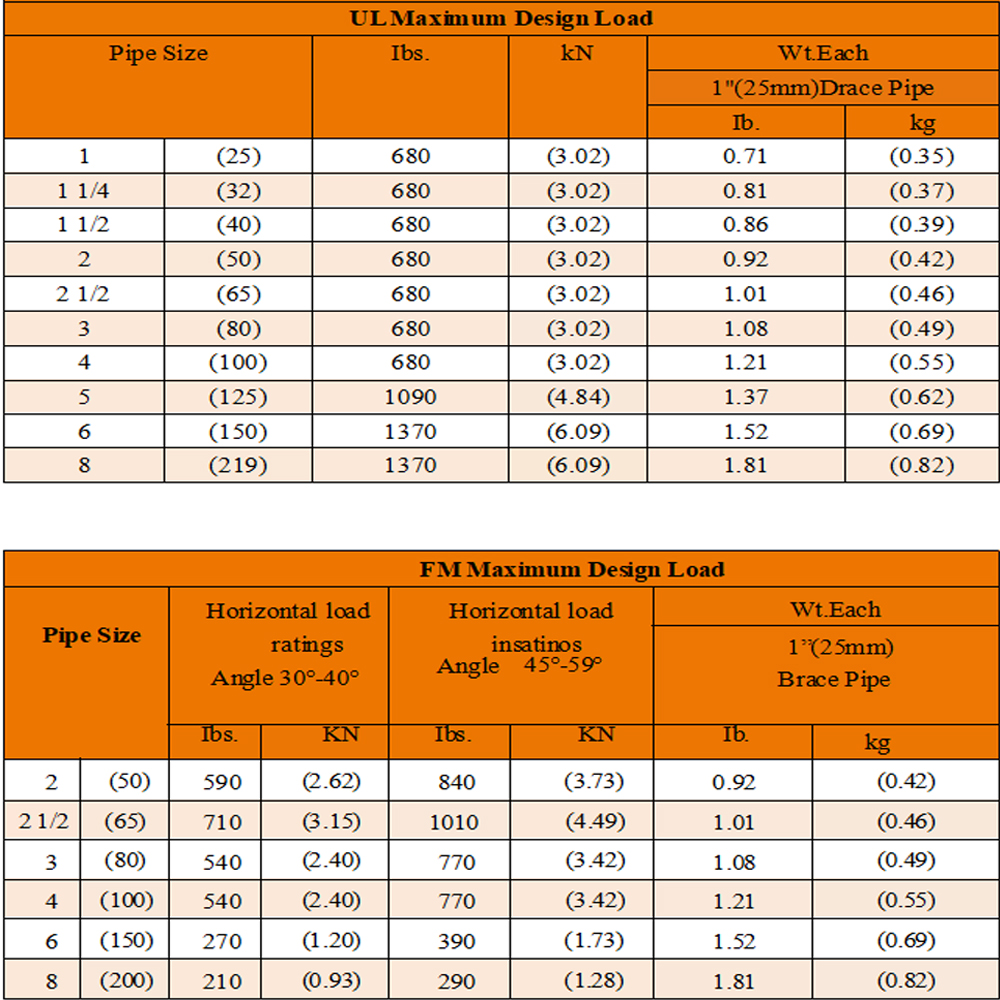

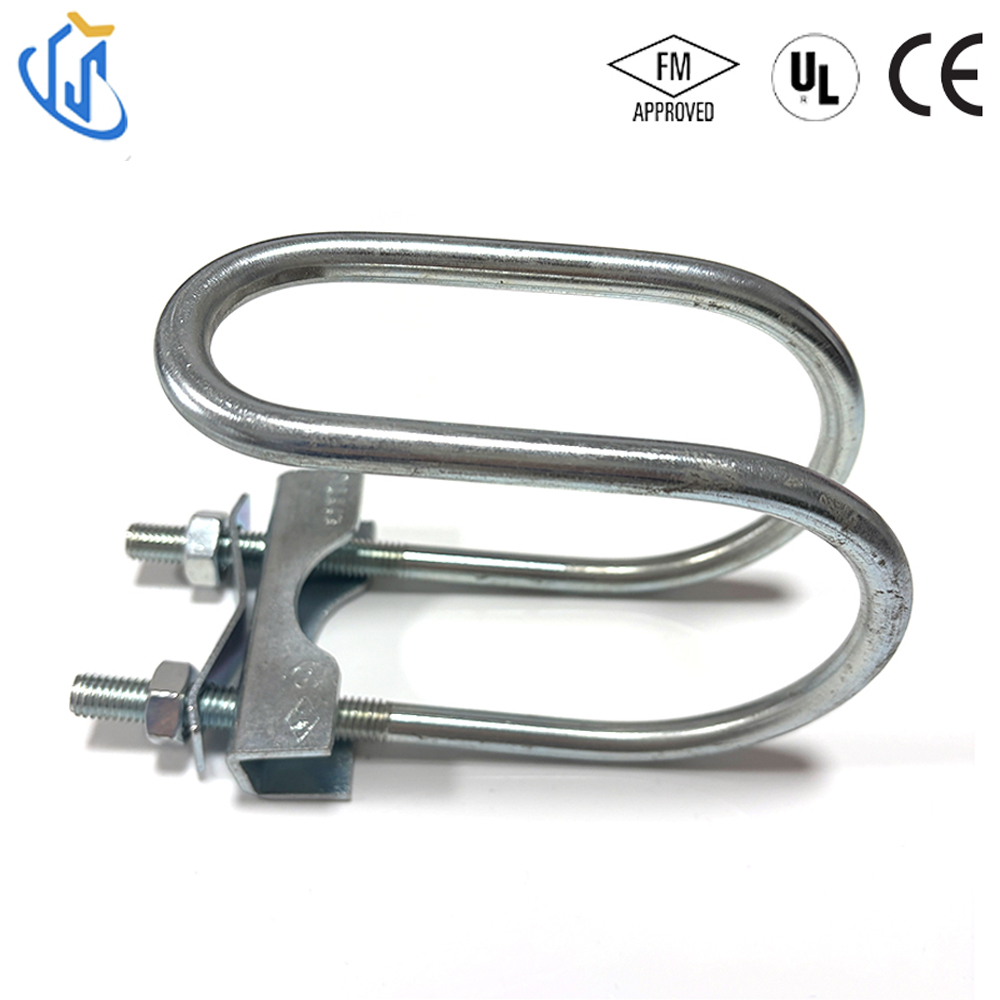

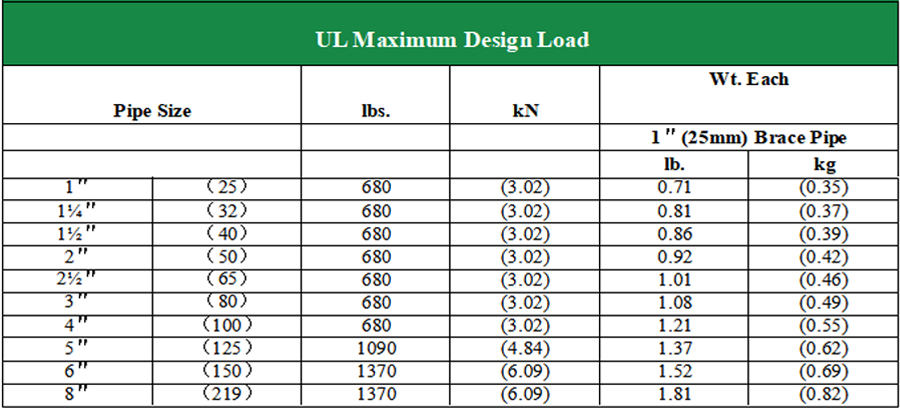

| UL Valid Size | 1"~8", Max UL Load:680~1370lbs |

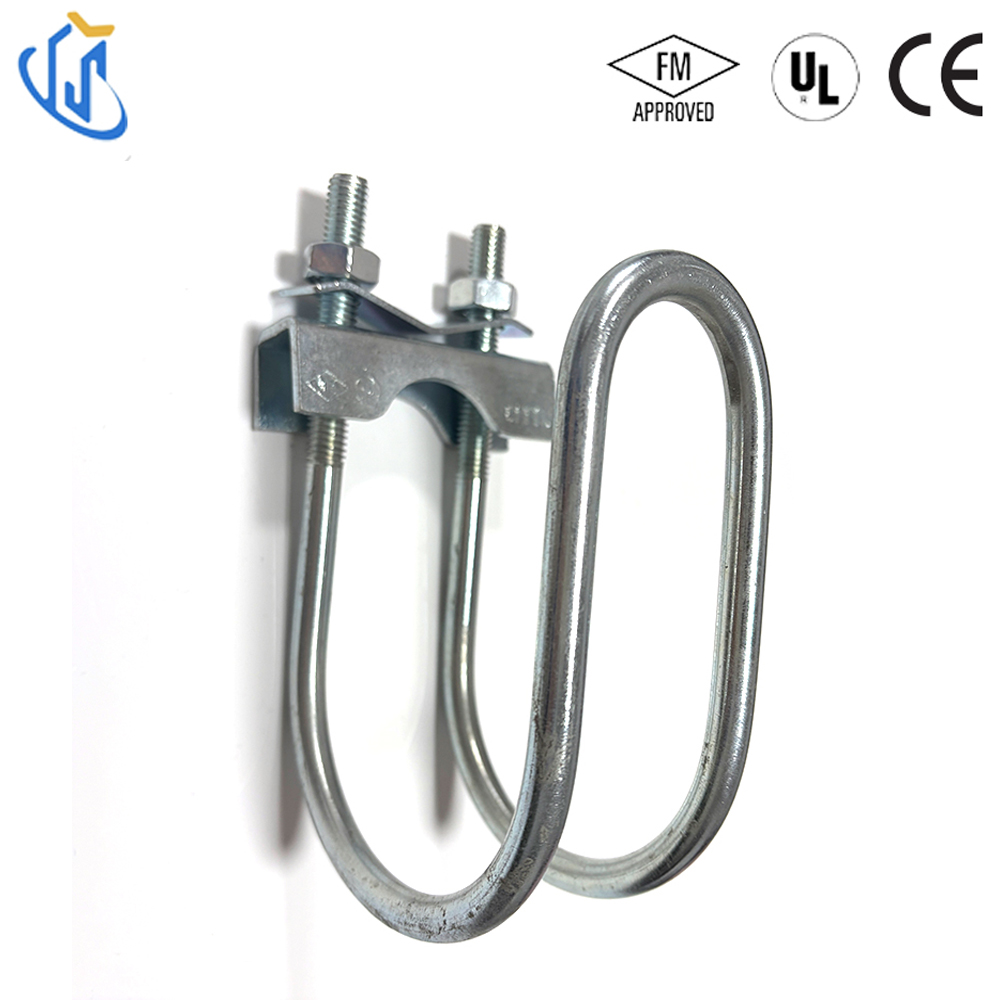

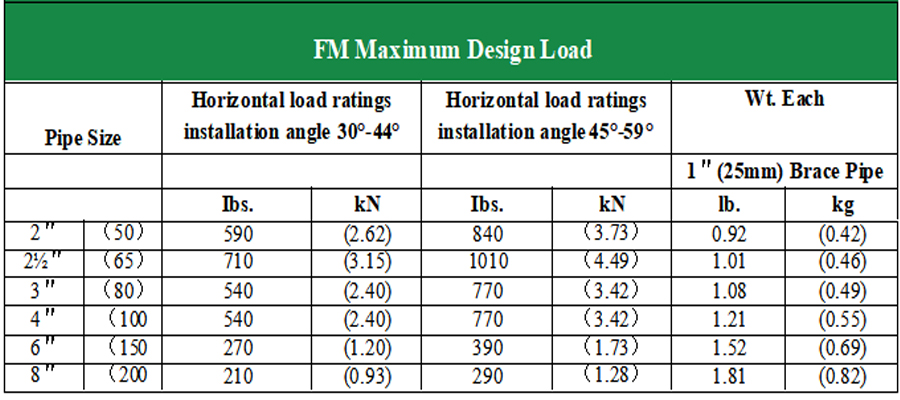

| FM Valid Size | 2"~8", Graded load at 30°-40° &45°-59° mounting angle |
| Fastening Torque | 30~35N·M |
| Sample Supply | Free pre-order test samples available |
![1]()

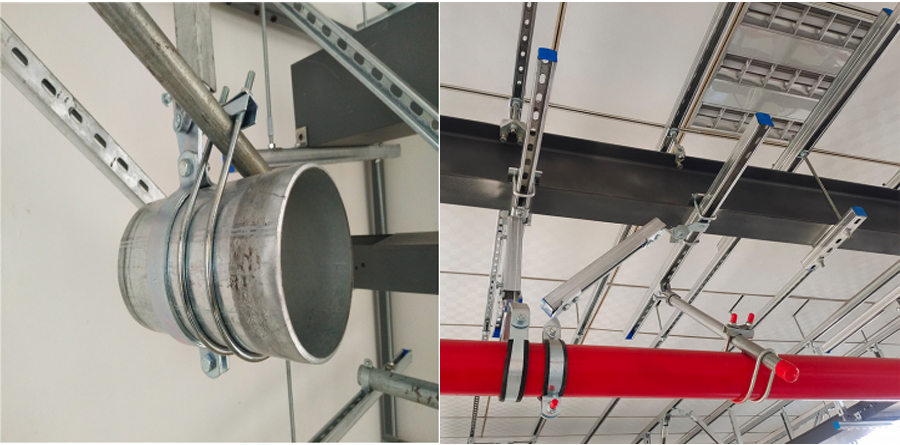

Application Scenarios

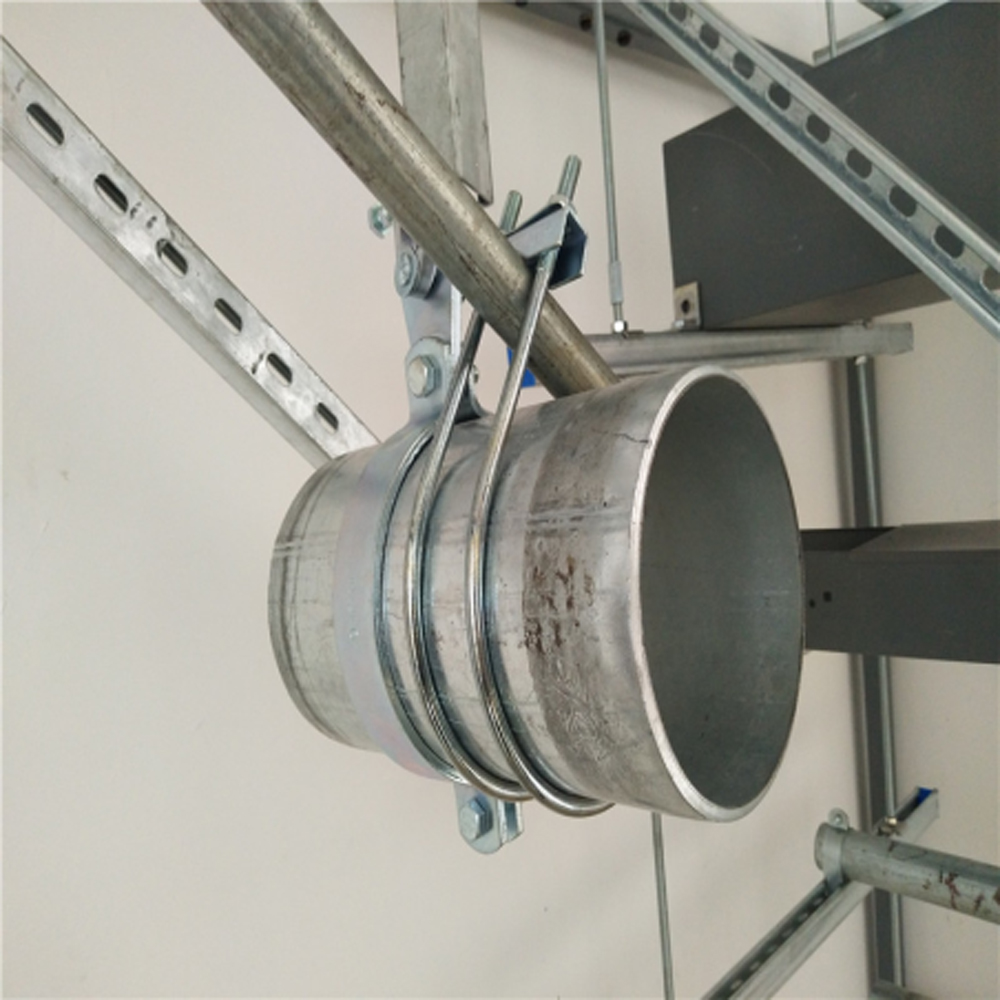

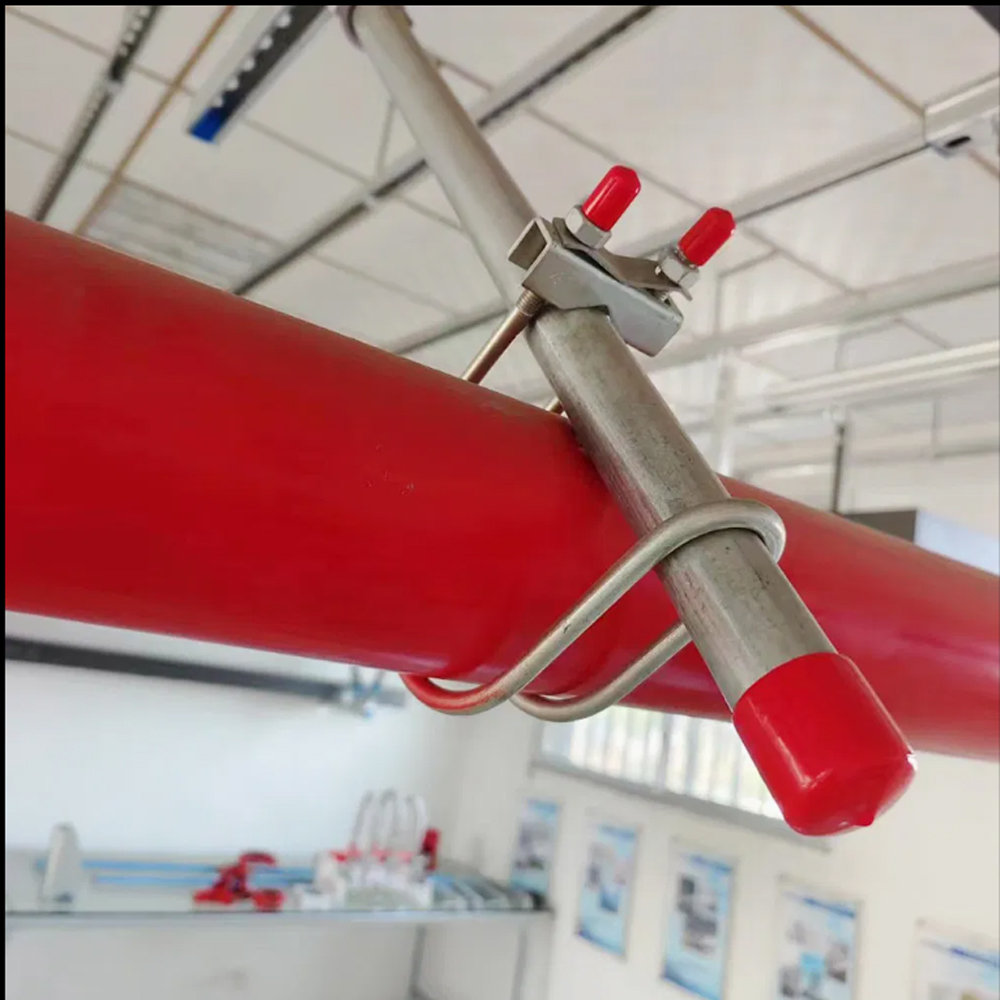

Fire Sprinkler Pipeline: Lateral anti-sway bracing for NFPA13 standard sprinkler piping in commercial buildings, malls.
MEP & HVAC Works: Seismic restraint for cold/hot water, drainage and ventilation steel pipes.
Industrial Construction: Pipeline anti-seismic fixing for factory, data center and high-seismic zone building projects.

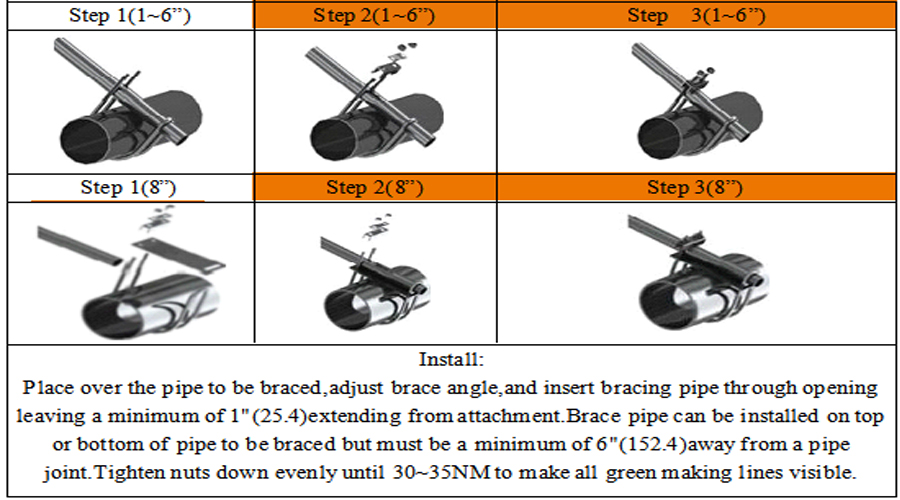

Step-by-Step Installation Guide

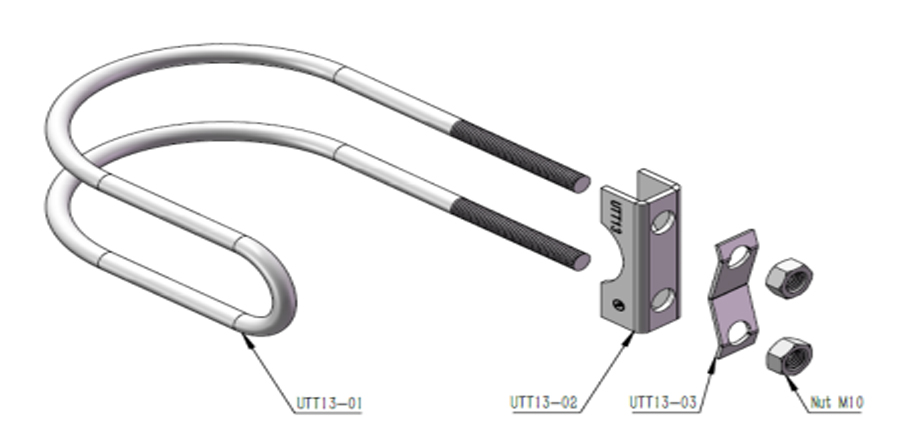

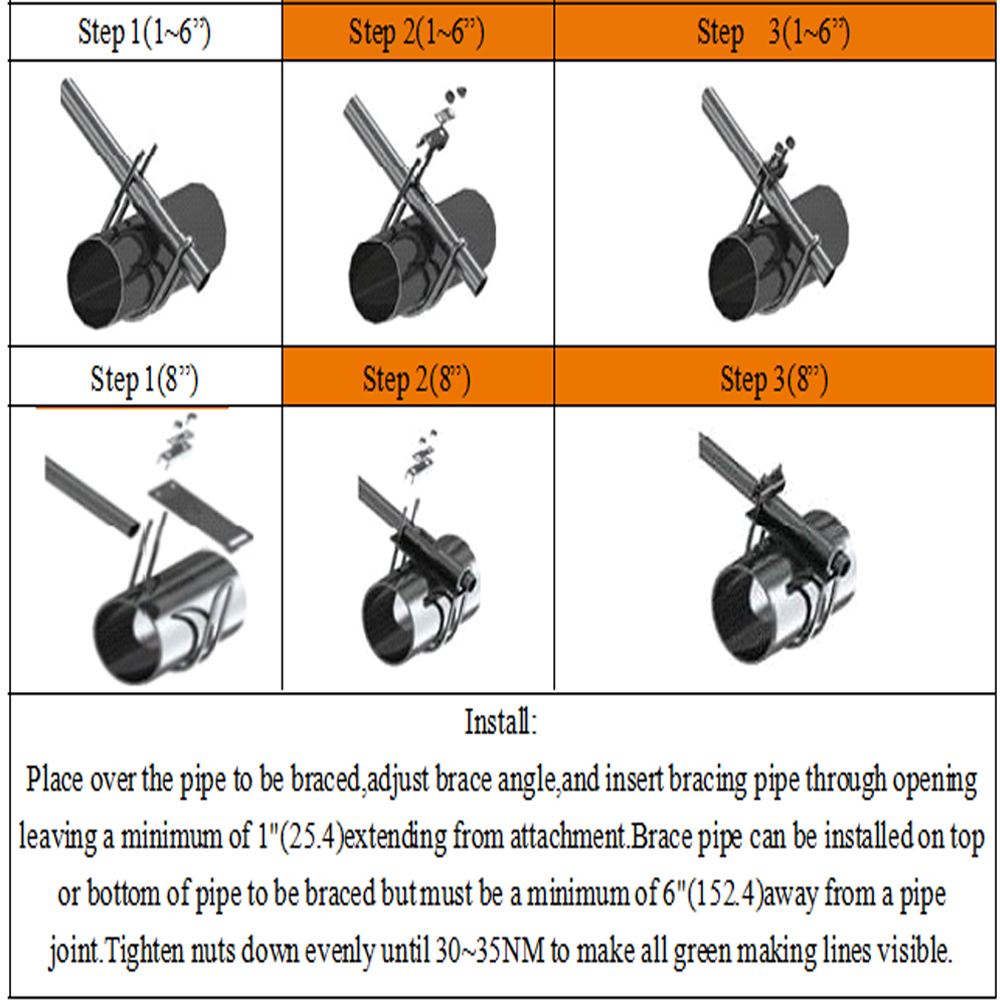

Wrap UTT13 clamp over target sprinkler pipe, keep ≥6" distance away from any pipe joint per specification.
Insert 1" standard bracing pipe into clamp opening with minimum 1"(25.4mm) pipe extension outside fitting.
Adjust bracing mounting angle as site layout requirement, brace pipe can be mounted above or below service pipe.
Evenly tighten fastening nuts to 30~35N·M until all green indicator lines fully exposed.
Connect bracing pipe opposite end with UTT series structural attachment to finish full sway brace assembly.
Industry Certifications & Compliance
UL certified full range 1"-8"; FM certified 2"-8" under different mounting inclination angles
Fully complies with NFPA13 seismic bracing design code for fire protection system
Electro-galvanized finish meets ASTM B633 international anti-corrosion coating standard
All units pass factory load testing and dimension inspection before delivery
Core Product Advantages
UL+FM Dual Global Certification
Dual authoritative approvals satisfy US domestic and international fire engineering acceptance requirements.
Universal Multi-standard Pipe Matching
Compatible with four mainstream global steel pipe standards covering full size from 1~8 inch.
Quick On-site Installation Design
U-type snap-on structure greatly cuts assembly time with visual torque marking for standardized construction.
Classified Angle Load Rating
FM split load data based on 30°~40° &45°~59° inclined installation for accurate engineering calculation.
Complete System Matching

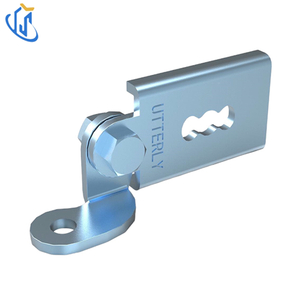

Perfectly combine with all UTT series seismic attachments & hinges to form one-stop bracing solution.
FAQ
Q1: What is UTT13 used for?
A1: U-type quick lateral clamp as pipe part of complete seismic sway brace system for fire sprinkler pipeline anti-sway restraint.
Q2: Certification coverage range?
A2: UL covers 1''~8'', FM approves pipe size from 2'' up to8''.
Q3: Required installation torque?
A3: Fasten nuts evenly to 30~35N·M till green mark lines show up fully.
Q4: Minimum distance from pipe joint?
A4: Must install minimum 6 inch away from any pipeline joint as NFPA13 requirement.
Q5: Free sample available?
A5: Free inspection samples can be provided for bulk order quality confirmation.
