Sway Brace Multi-Fastener Adapter for Strut

Overview

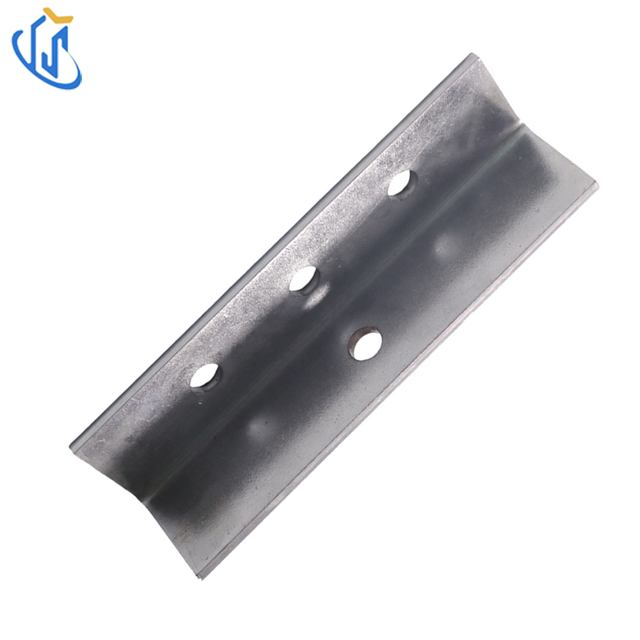

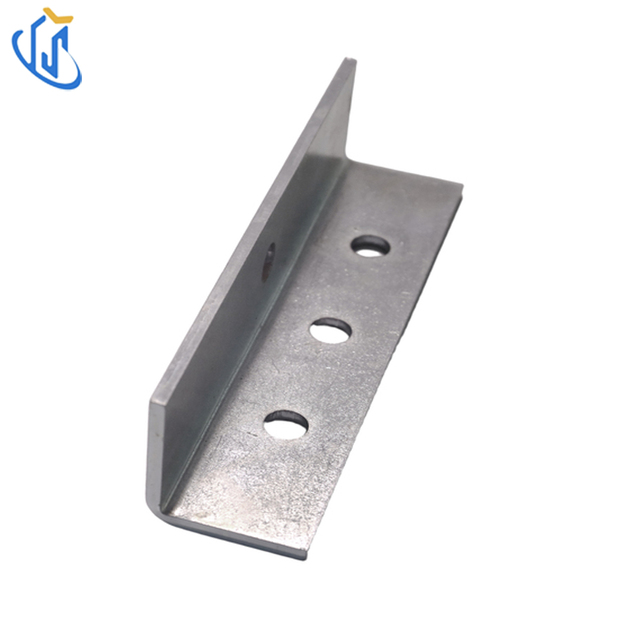

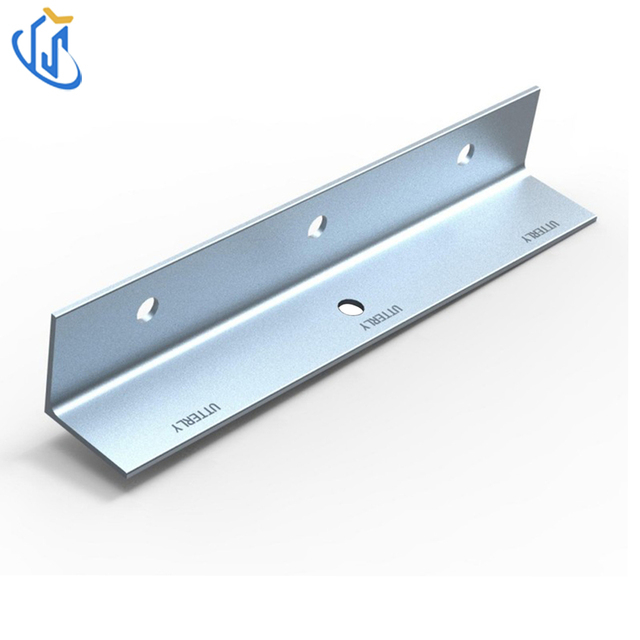

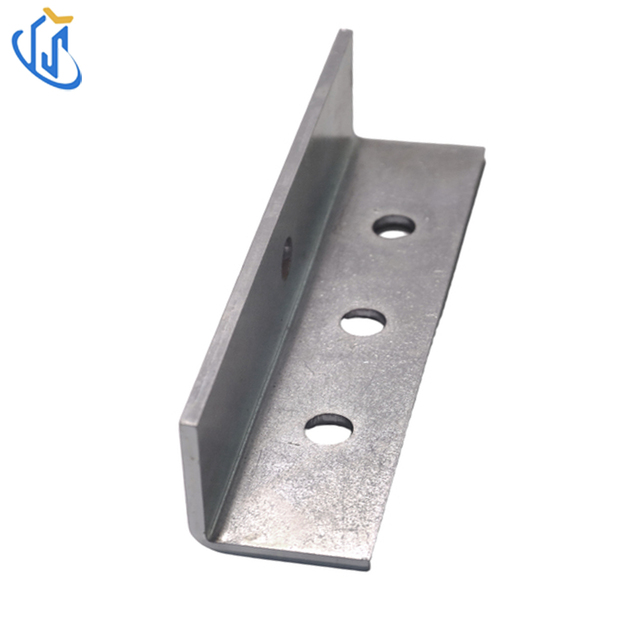

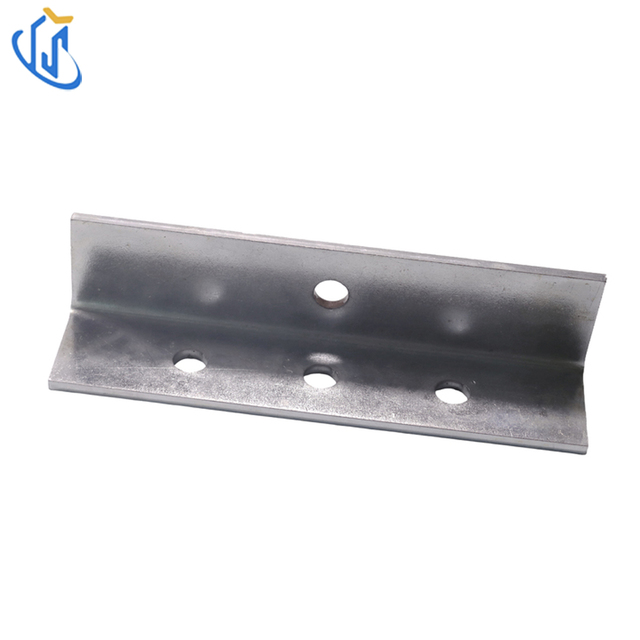

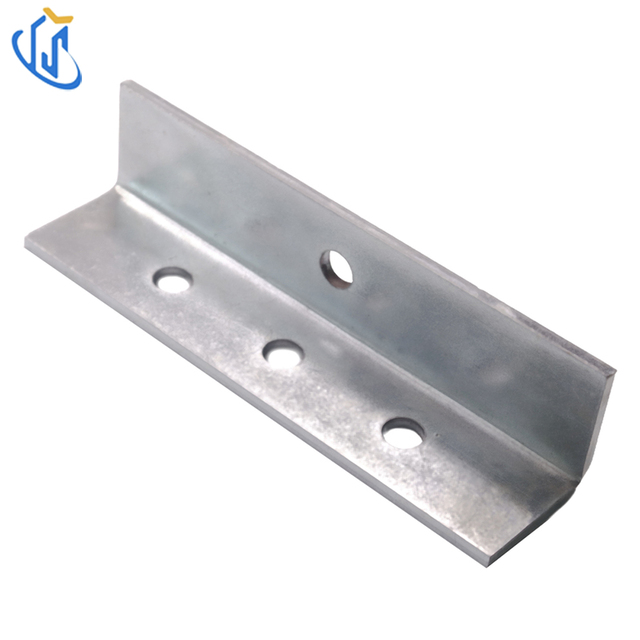

UTT7304 Sway Brace Multi-Fastener Adapter is a specialized accessory for strut channel sway brace systems. Manufactured from high-strength carbon steel with electro-galvanized anti-corrosion treatment, this adapter is designed to allow sway brace fittings to achieve greater load carrying capacity by providing multiple fastener attachments. The product complies with NFPA standards for fastener loads to various structures.

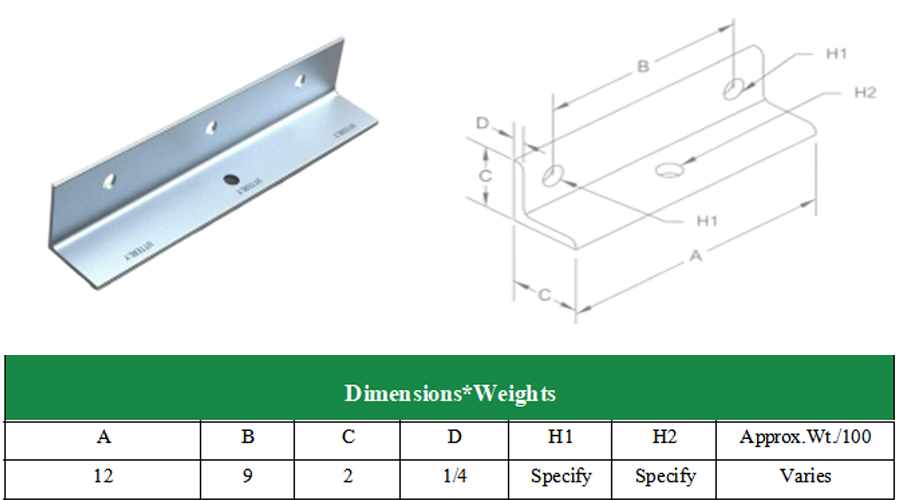

It's standard dimensions include A: 12, B: 9, C: 2, D: 1/4, while H1 and H2 are customizable as specified. The approximate weight varies by configuration, and fully customized sizes are available to meet different engineering demands. Widely used in seismic bracing, pipeline support and structural framing projects, it ensures reliable load transfer and enhanced system stability.

Key Features

Core Function: Enhance sway brace load capacity via multi-fastener attachments

Raw Material: High-strength carbon steel

Surface Finish: Electro-galvanized (anti-corrosion)

Standard Dimensions: A=12, B=9, C=2, D=1/4; H1/H2 customizable

Compliance: NFPA compliant for fastener load requirements

Customization Service: Custom sizes and specifications are available on request.

Application Scenarios

1.Seismic Bracing System: Multi-fastener adapter to enhance load capacity of sway brace fittings in anti-seismic projects.

2.Pipeline Support Engineering: Reinforcing accessory for sway brace assemblies in HVAC and plumbing systems.

3.Structural Framing: NFPA-compliant connector for seismic bracing of light-duty metal framing systems.

4.Fire Protection Projects: Fastener attachment component for structures requiring NFPA load specifications.

Step-by-Step Installation Guide

1.Select the suitable UTT7304 adapter according to sway brace specifications and fastener requirements.

2.Place the adapter at the designated position on the strut channel.

3.Align the multiple fastener holes with the mounting positions of sway brace fittings.

4.Insert fasteners and tighten them evenly to complete the connection.

5.Inspect the assembly to ensure secure fastener attachments and reliable load transfer.

Industry Compliance

1.Conforms to NFPA standards for fastener loads to various structures.

2.Electro-galvanized finish meets international anti-corrosion specifications.

3.All products pass dimensional, load and appearance inspection before delivery.

Core Product Advantages

1.NFPA Compliant:

Meets National Fire Protection Association standards for fastener load requirements, ensuring safety in seismic applications.

2.Multi-Fastener Design:

Provides multiple attachment points to significantly enhance the load carrying capacity of sway brace fittings.

3.Electro-Galvanized Finish:

Excellent anti-corrosion performance, suitable for long-term use in various environments.

4.Customizable Dimensions:

Standard base dimensions with flexible H1/H2 specifications and full custom size support.

5.High Material Strength:

Durable carbon steel construction ensures reliable performance under heavy loads.

6.Versatile Application:

Compatible with various sway brace systems, covering most seismic bracing and pipeline support scenarios.

FAQ

Q1: What surface finish is available for UTT7304 adapter?

A1: It features electro-galvanized finish for anti-corrosion protection.

Q2: What material is the UTT7304 Sway Brace Multi-Fastener Adapter made of?

A2: It is made of high-strength carbon steel.

Q3: Does UTT7304 comply with any industry standards?

A3: Yes, it complies with NFPA standards for fastener loads to various structures.

Q4: What is the main purpose of UTT7304?

A4: It enhances the load carrying capacity of sway brace fittings by providing multiple fastener attachments.

Q5: Are custom sizes available for UTT7304?

A5: Yes, the product supports customized dimensions, with H1 and H2 specified according to requirements.
