UTT7302
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface Finish: | |
| Quantity: | |

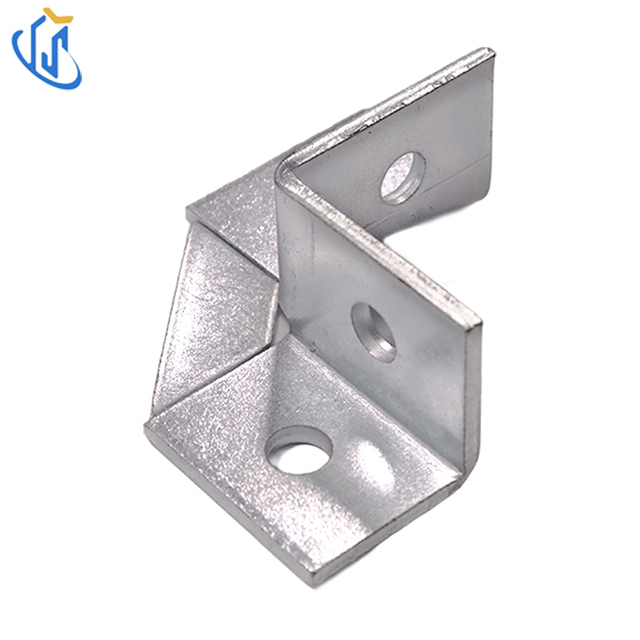

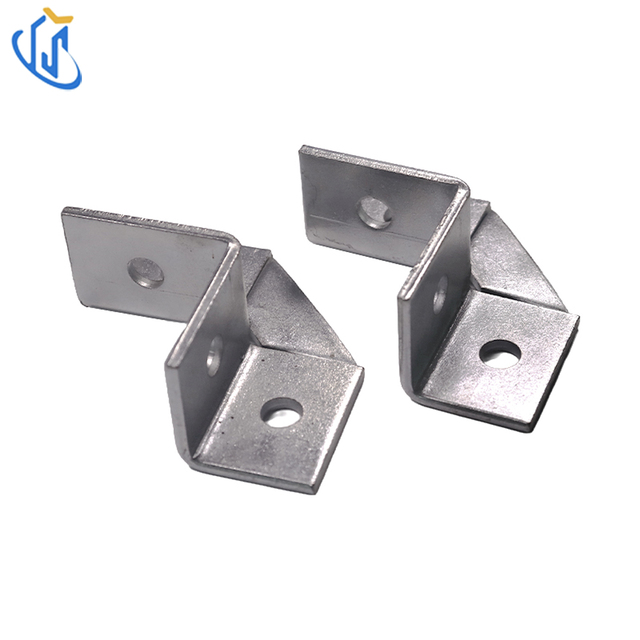

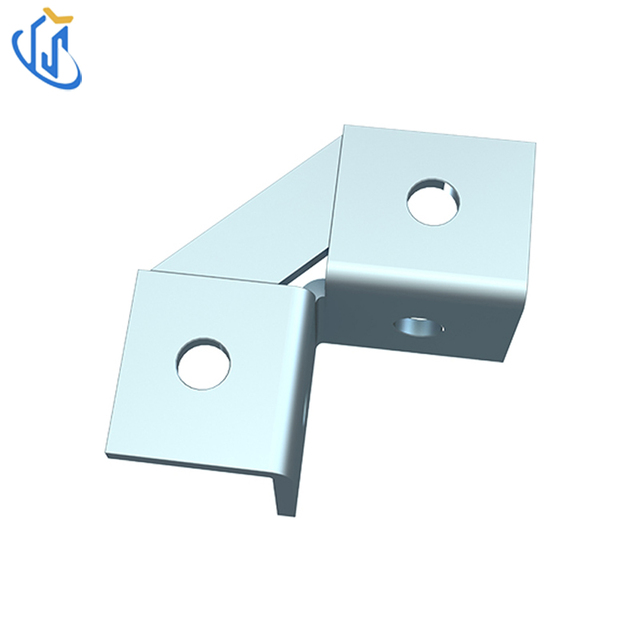

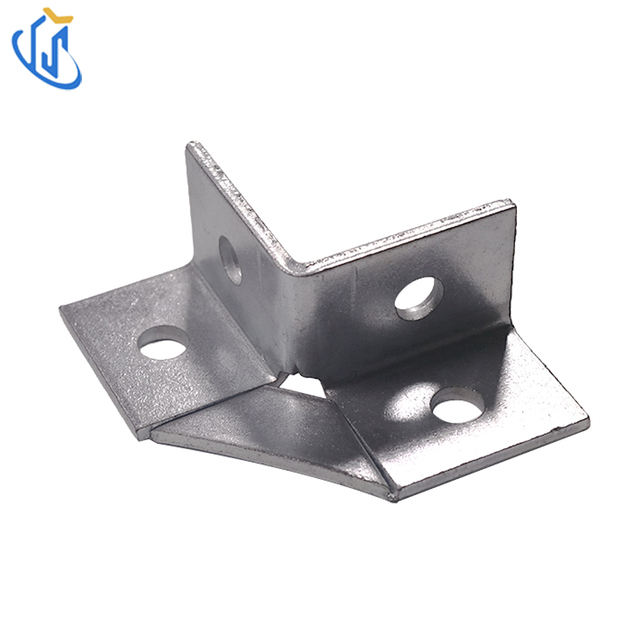

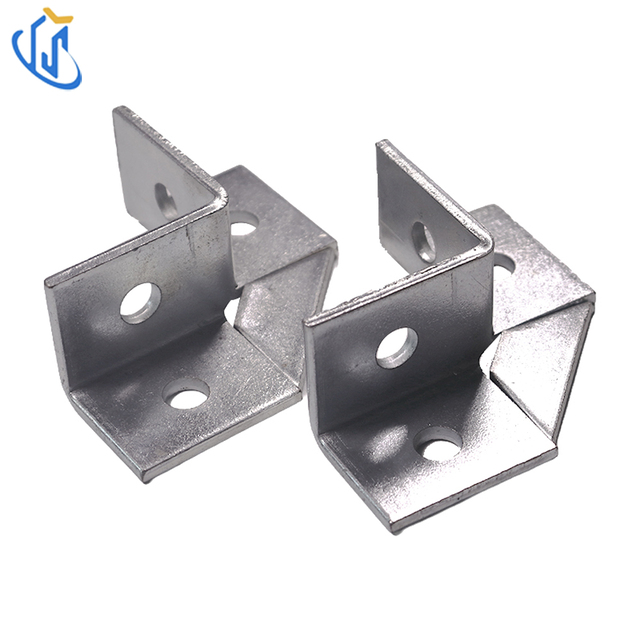

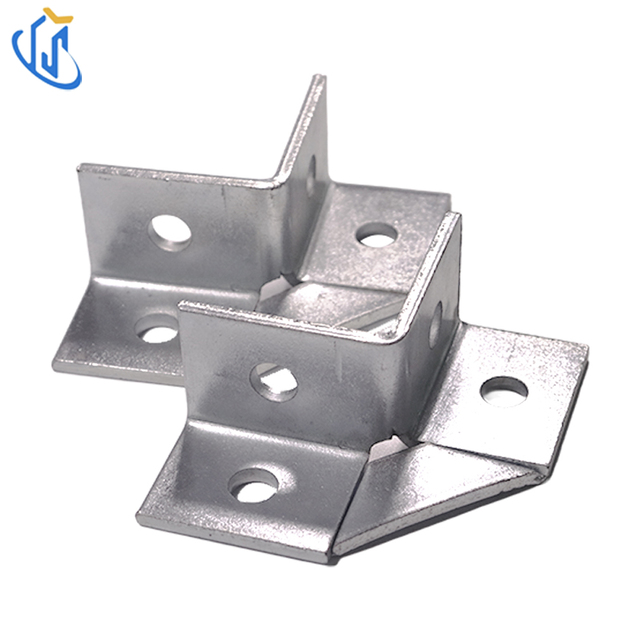

UTT7302 4-Hole Connector is a reliable connecting accessory for strut channel systems. Manufactured from high-strength carbon steel, it comes with three surface treatments to adapt to indoor, humid and outdoor corrosive environments. This 4-hole connector is mainly used for corner and joint connection of strut channels. Its standard dimension is 58×58mm, thickness 5mm, height 42mm and weight 310g. It supports various standard sizes and customized dimensions to meet different engineering requirements. Widely used in electromechanical installation, HVAC projects and structural metal framing, it ensures firm connection for strut channel assemblies.
Core Function: Connect strut channels at corners and joints
Raw Material: High-strength carbon steel
Surface Finish: Black finish / Electro-galvanized / Hot-dip galvanized (HDG)

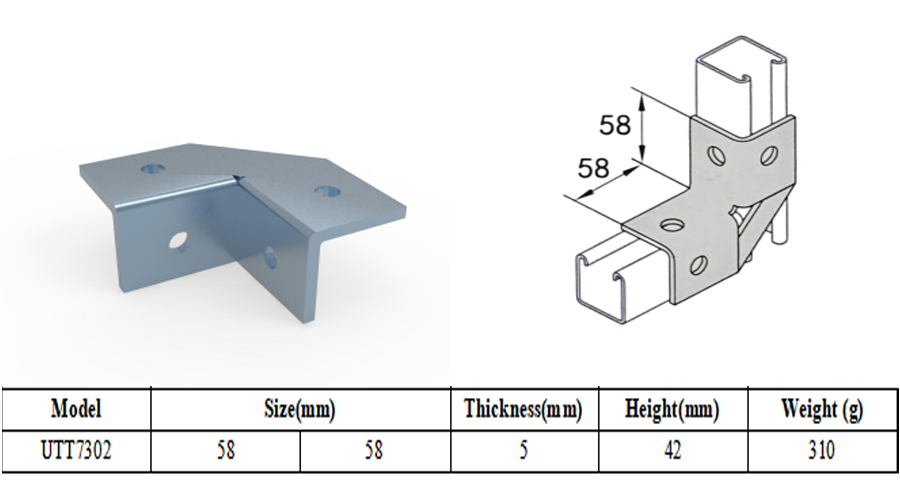

Standard Size: 58×58mm, Thickness: 5mm, Height: 42mm
Unit Weight: 310g
Customization Service: Custom sizes are available on request
Item | Specification |
|---|---|
Model | UTT7302 Series |
Raw Material | Carbon Steel |
Surface Treatment | Black / Electro-galvanized / Hot-dip galvanized (HDG) |
Standard Dimension | 58×58mm, Thickness: 5mm, Height: 42mm |
Unit Weight | 310g |
Customization | Custom sizes supported |
Main Application | Corner and joint connection for strut channels |
Sample Supply | Free pre-order test samples available |
1.Strut Channel System: Standard fitting for corner and joint connection of various strut channel frames in pipeline support projects.
2.Electrical Installation: Connecting component for corner joints of electrical equipment and cable tray frames.
3.HVAC Engineering: Auxiliary fitting for connecting support frames of air ducts and pipelines.
4.Structural Framing: Universal connector for joints and corners of light-duty metal framing systems.
1.Select the suitable UTT7302 4-Hole Connector according to strut channel specifications.
2.Place the connector at the corner or joint position of strut channels.
3.Align the four mounting holes with the holes on strut channels.
4.Insert bolts and nuts, then tighten them evenly to finish the connection.
5.Check the assembly to confirm stable and firm installation.
1.Conforms to general manufacturing standards for strut channel connecting fittings.
2.Black, electro-galvanized and hot-dip galvanized finishes all meet international anti-corrosion specifications.
3.All products pass dimensional and appearance inspection before delivery.
Black finish for cost-effective indoor use; electro-galvanized for regular humid areas; hot-dip galvanized for outdoor and severely corrosive environments.
Even force distribution improves connection firmness and overall stability.
Specially designed for corners and joints, flexible for various frame layouts.
Standard size for common projects, and customized sizes for special engineering demands.
Durable carbon steel resists deformation under long-term load for long service life.
Simple operation saves time for on-site assembly.
Q1: What surface finishes are available for UTT7302 connector?
A1: Three options: black finish, electro-galvanized and hot-dip galvanized.
Q2: What material is the UTT7302 4-Hole Connector made of?
A2: It is made of high-strength carbon steel.
Q3: Does UTT7302 support customized sizes?
A3: Yes, we can produce custom sizes as required.
Q4: What is the main purpose of UTT7302?
A4: It is used to connect strut channels at corners and joints.
Q5: What are the standard parameters of UTT7302?
A5: Size 58×58mm, thickness 5mm, height 42mm, weight 310g.
