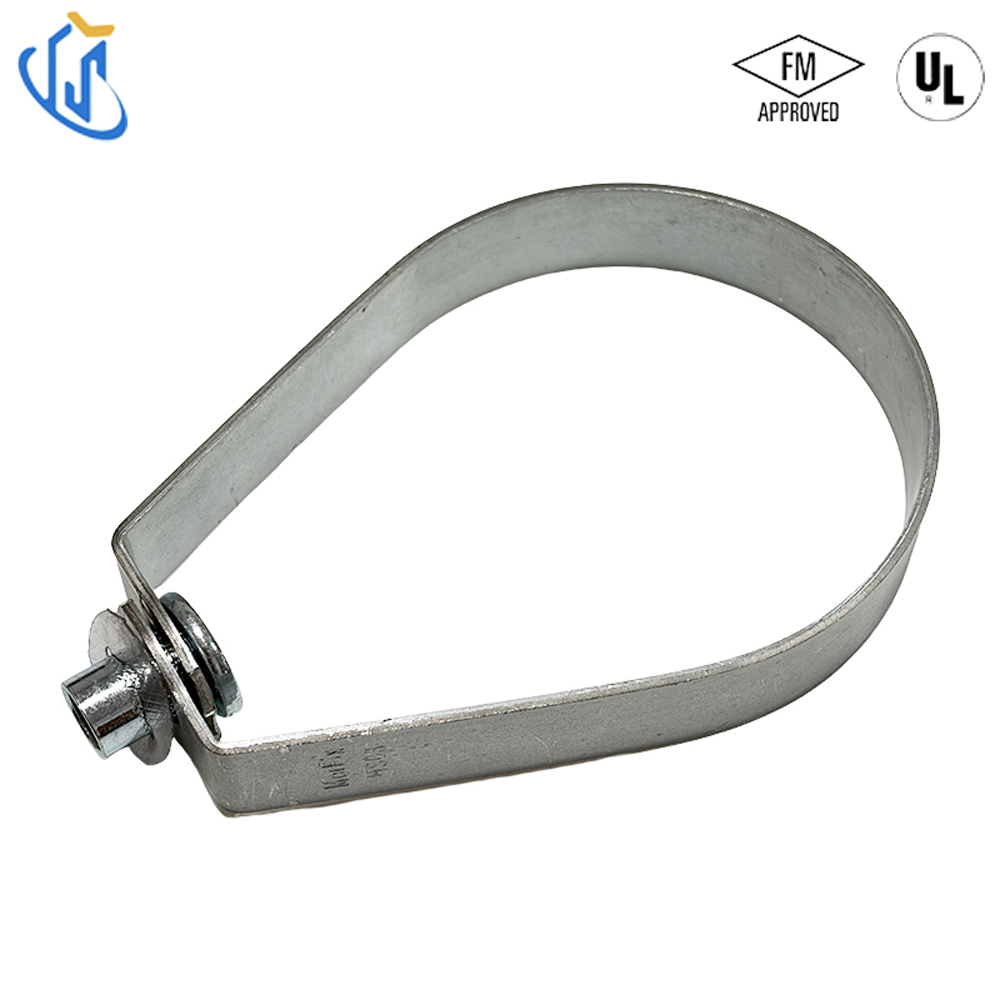

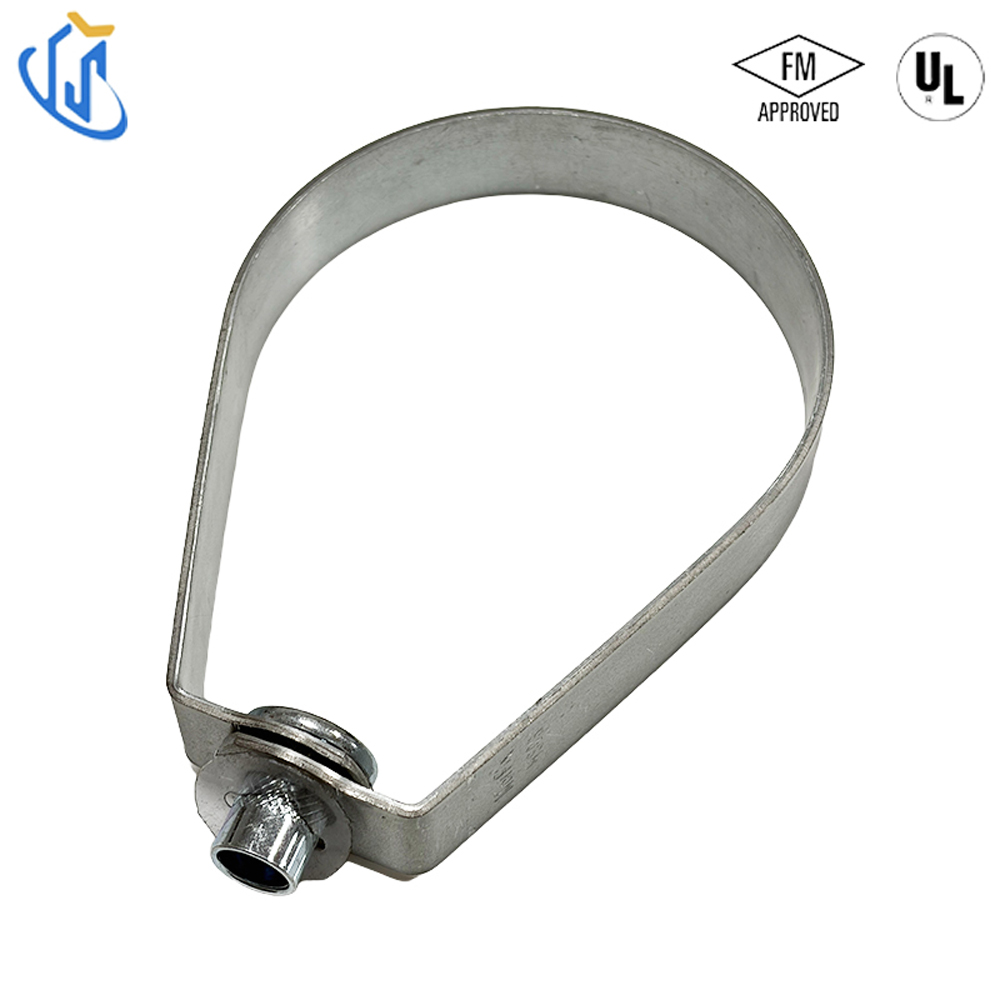

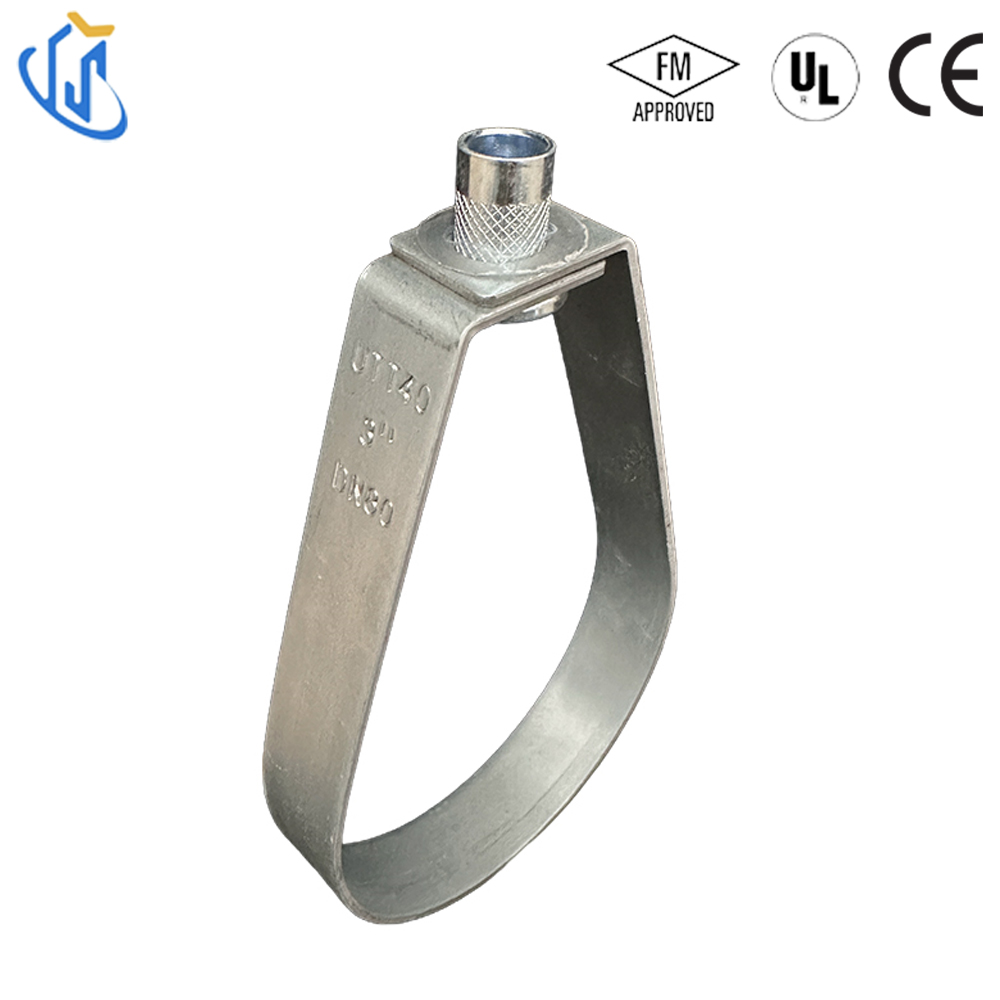

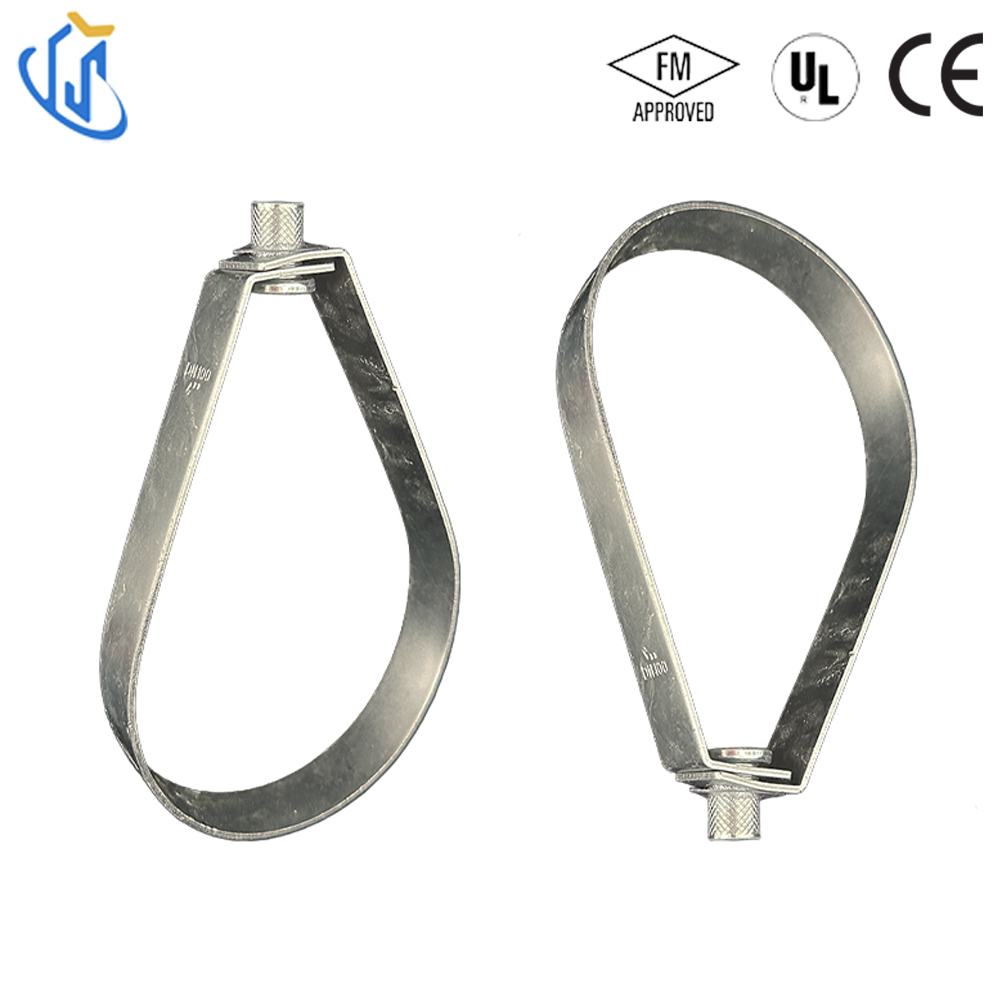

UTT40
UTTERLY
| Color: | |
|---|---|
| Material: | |
| Surface: | |
| Quantity: | |
Recommended for suspension of stationary non-insulated pipelines
Equipped with keyed insert nut to keep hanger and nut assembled
Insert nut is removable if required
Complies with A-A-1192A (Type10) & MSS SP-36 (Type 10)

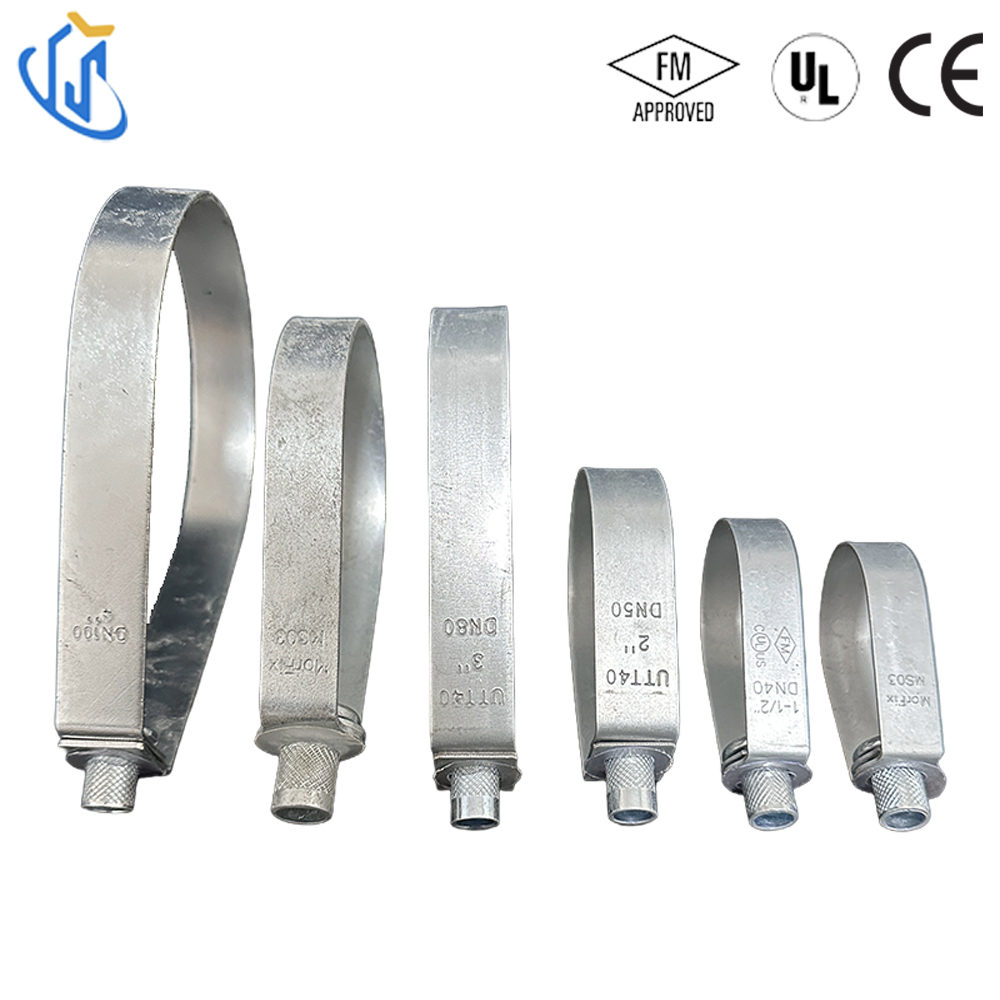

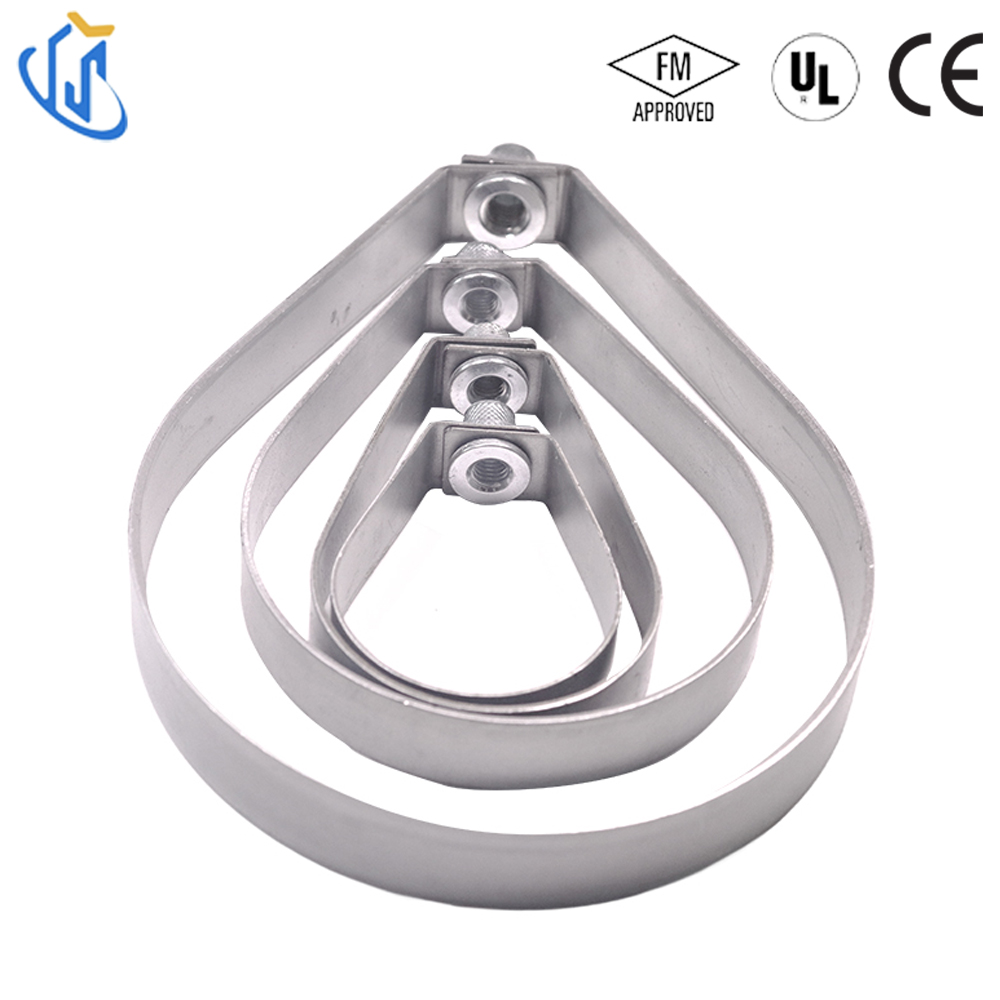

Size range: 1/2” through 12” (DN15–DN250)
Material: Carbon steel
Finish: Zinc plate for corrosion resistance
Certifications: FM & UL approved

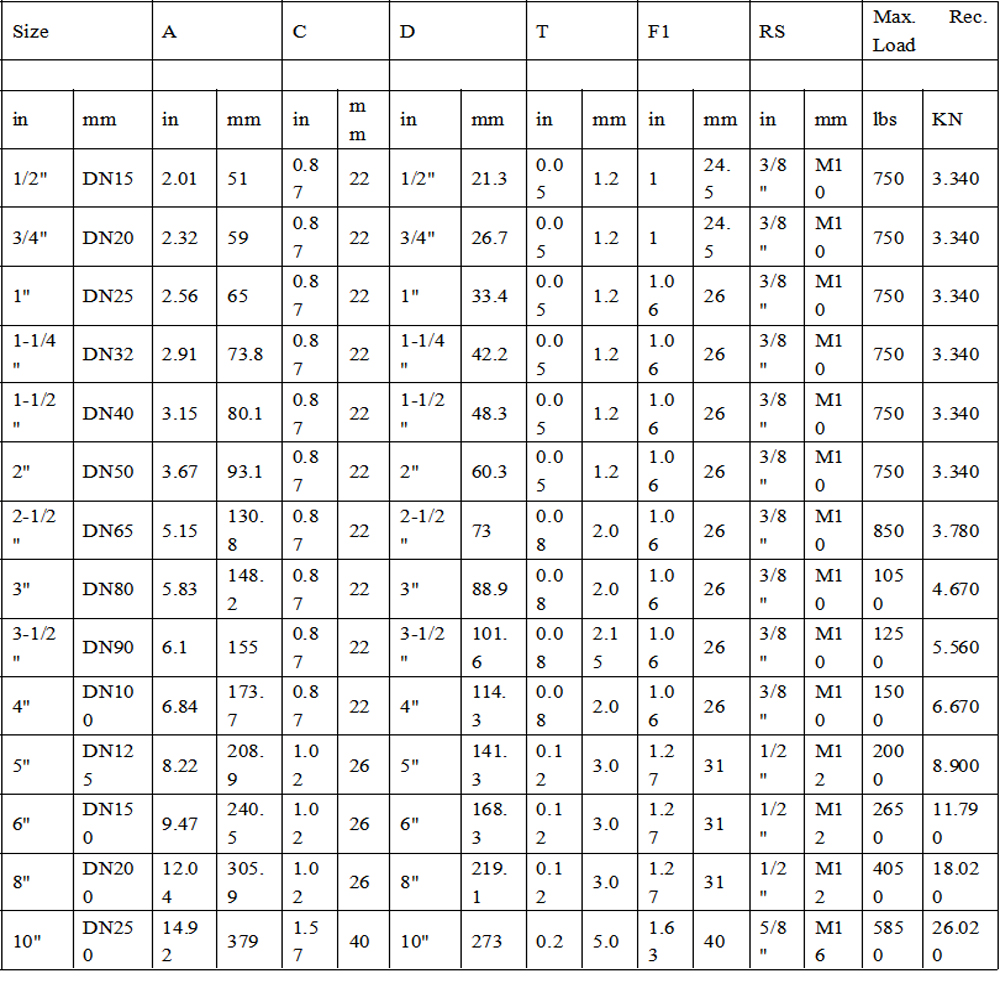

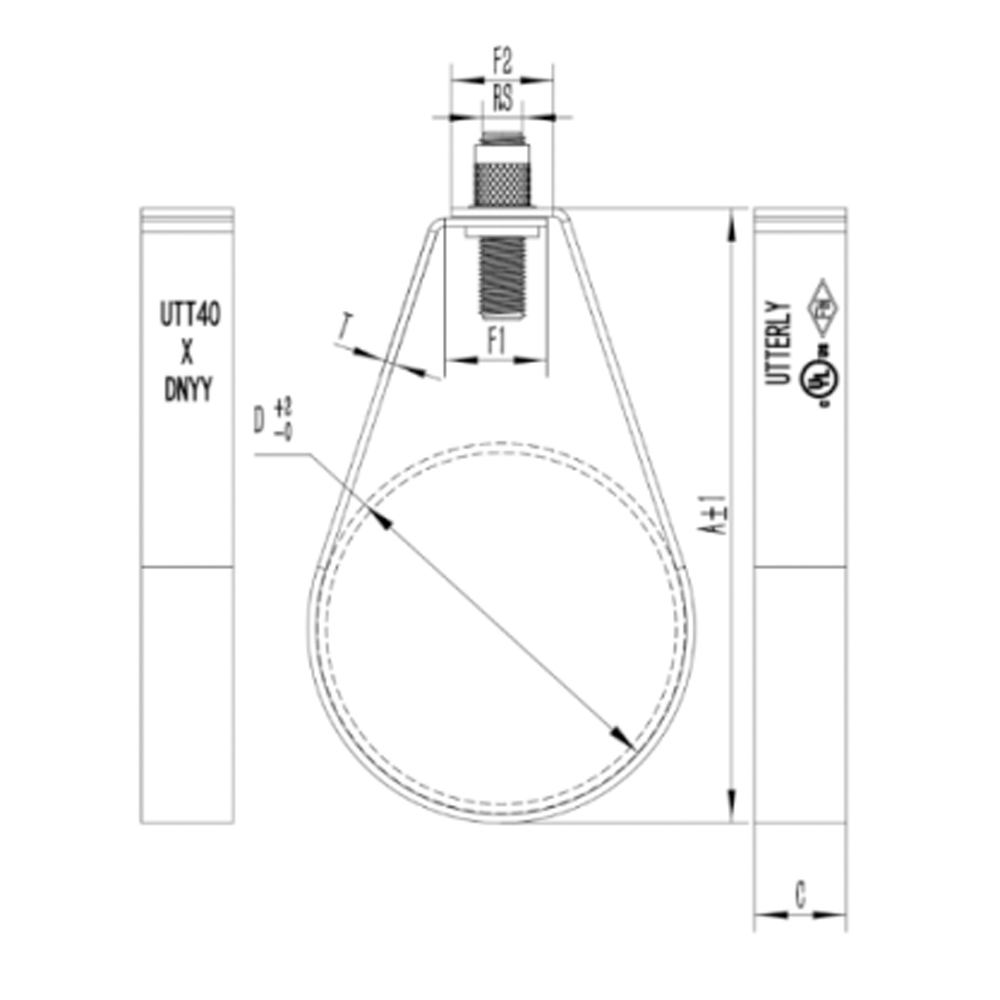

| Item | Specification |
|---|---|
| Model | UTT40 |
| Raw Material | Carbon steel |
| Surface Treatment | Zinc plate |
| Size Range | 1/2” – 12” (DN15 – DN250) |
| Application | Suspension of stationary non-insulated pipelines |
| Standards | A-A-1192A Type10, MSS SP-36 Type 10 |
| Certification | FM, UL |
| Max Recommended Load | 750–5850 lbs (3.34–26.02 kN) |
| Design Feature | Keyed insert nut, removable if needed |

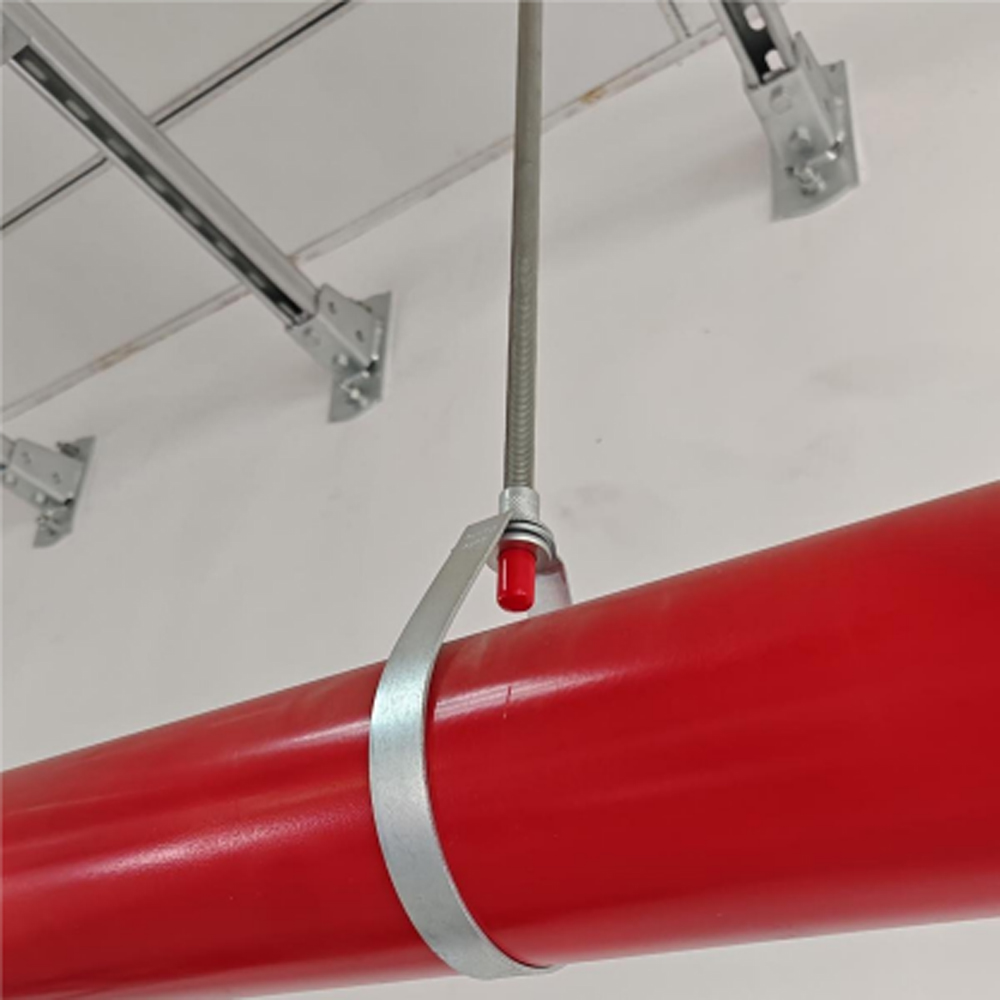

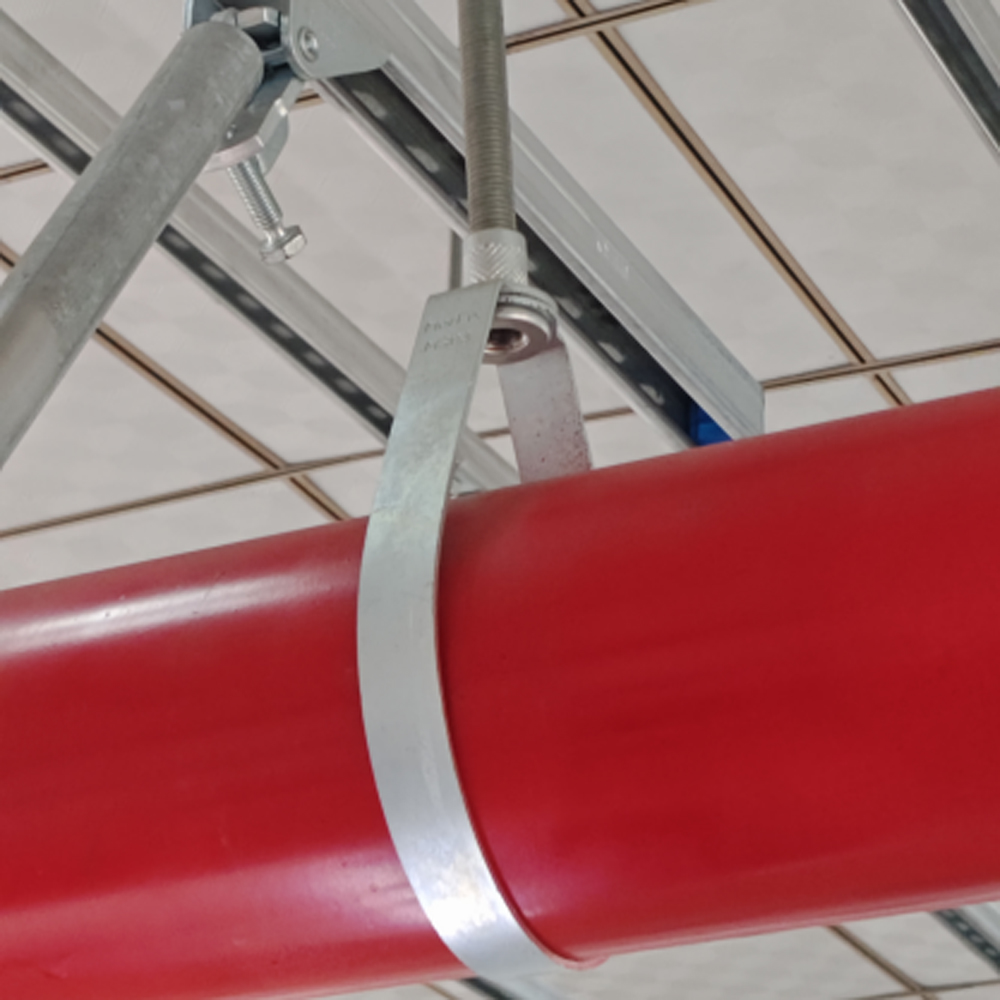

Fire Sprinkler Systems
Stable vertical suspension for fire protection pipes in compliance with FM/UL standards.
MEP & HVAC Installations
Ideal for stationary non-insulated water, drainage and mechanical piping in commercial and residential buildings.
Industrial & Infrastructure
Suitable for factories, utilities, hospitals, data centers and high-rise constructions.

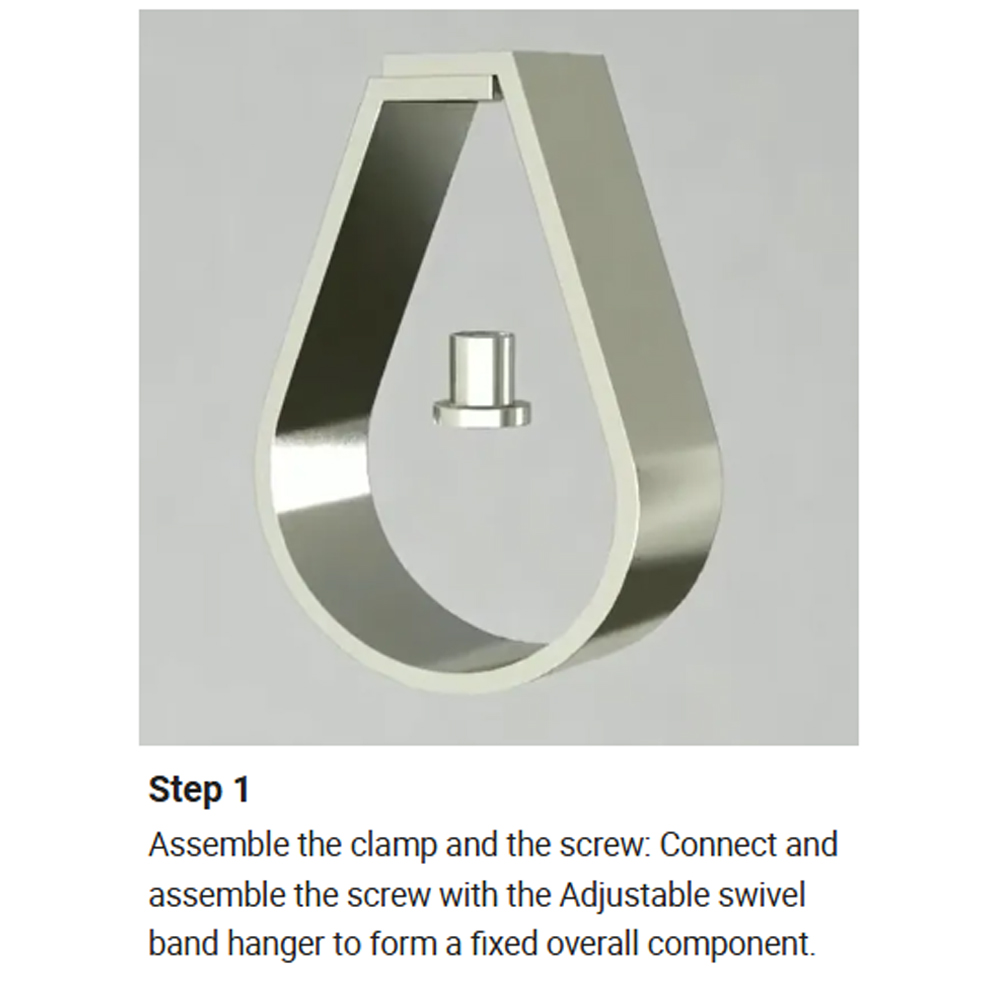

Assemble the threaded rod with the UTT40 swivel band hanger to form a complete assembly.

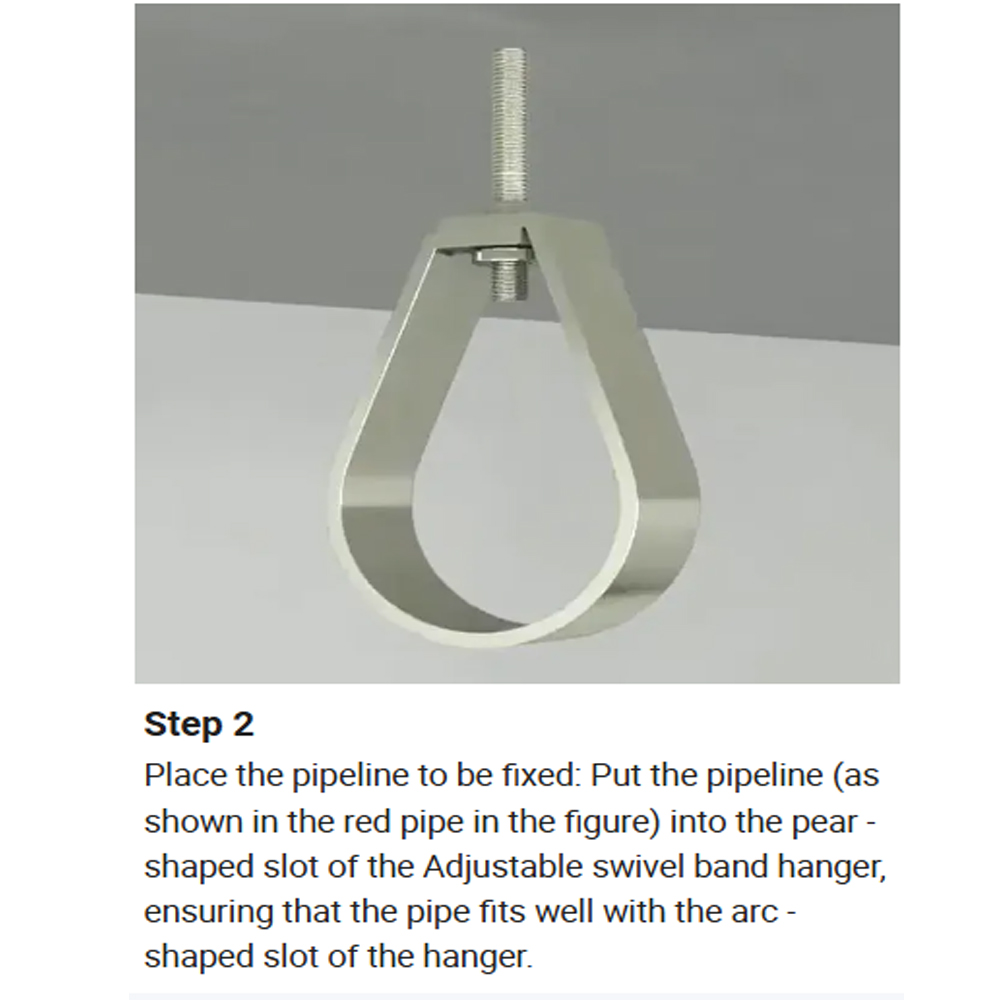

Place the pipeline into the pear-shaped slot of the hanger, ensuring full contact with the arc seat.

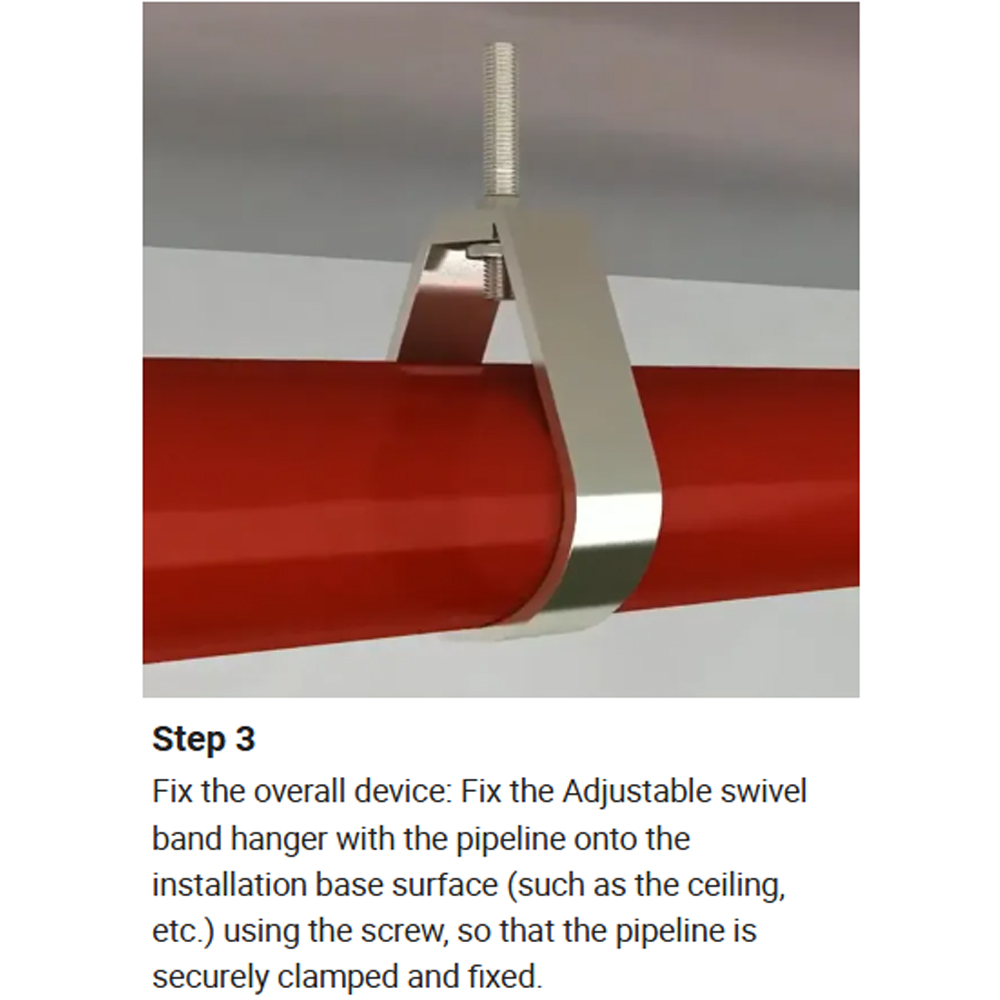

Mount the assembled hanger and pipe to the ceiling or structural base using the threaded rod.
Tighten all fasteners to secure the pipeline firmly in place.
FM & UL certified
Complies with Federal Specification A-A-1192A (Type10)
Complies with MSS SP-36 (Type 10)
Factory load-tested for safety and reliability
