Overview

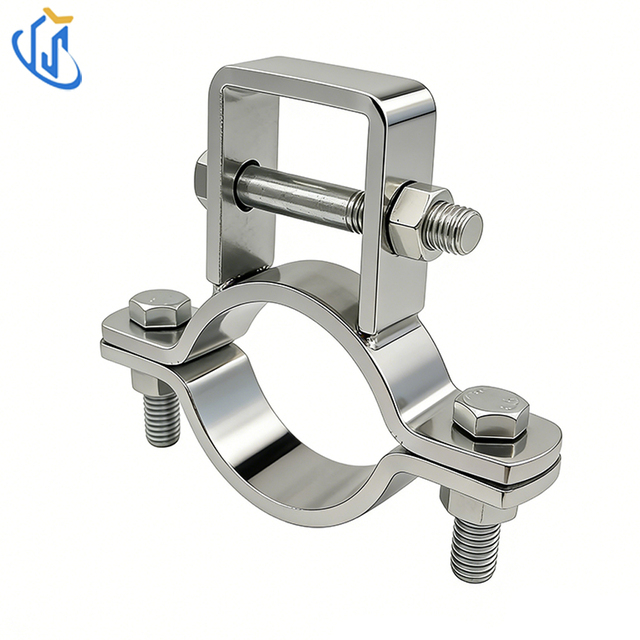

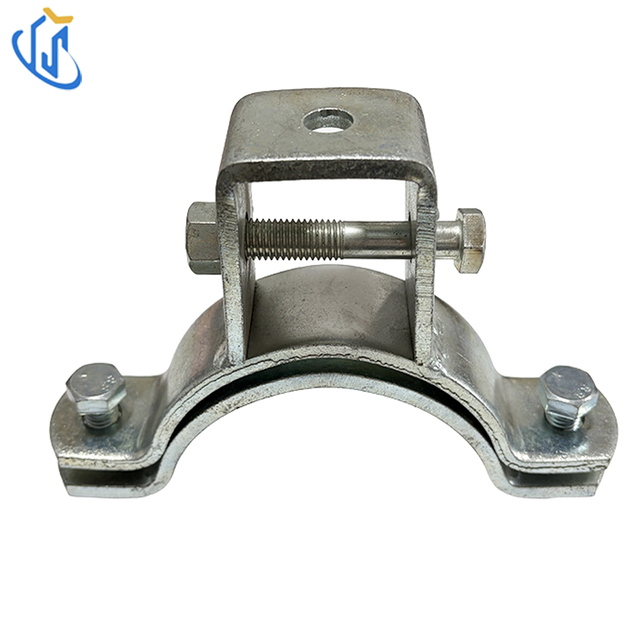

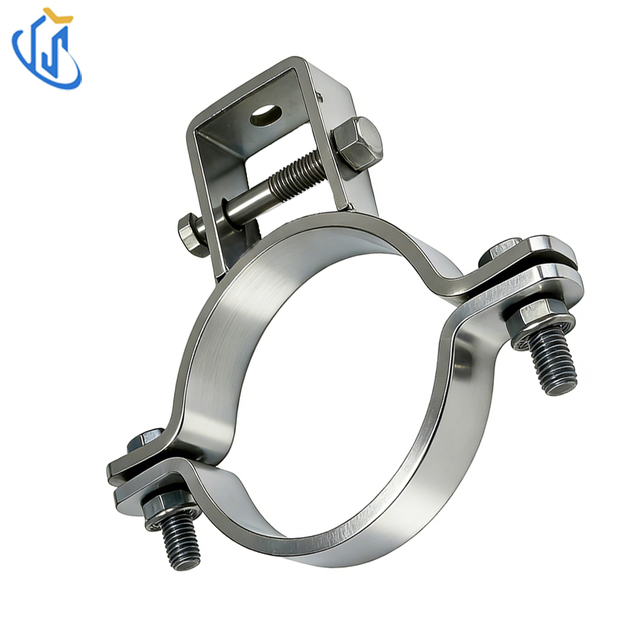

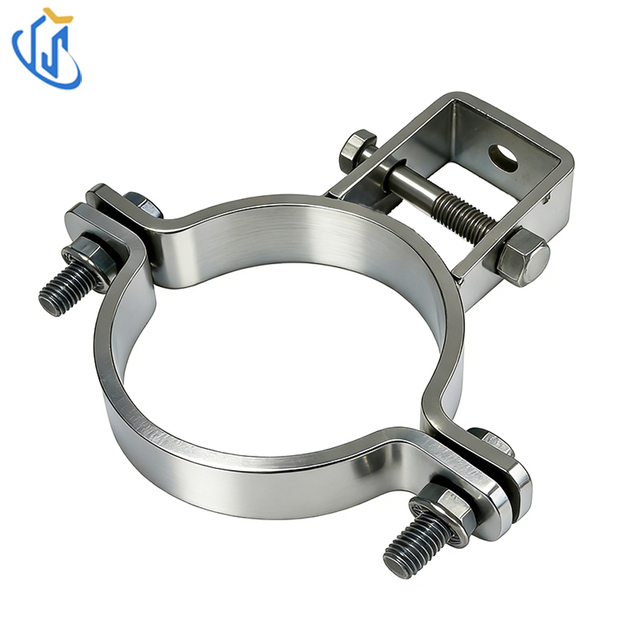

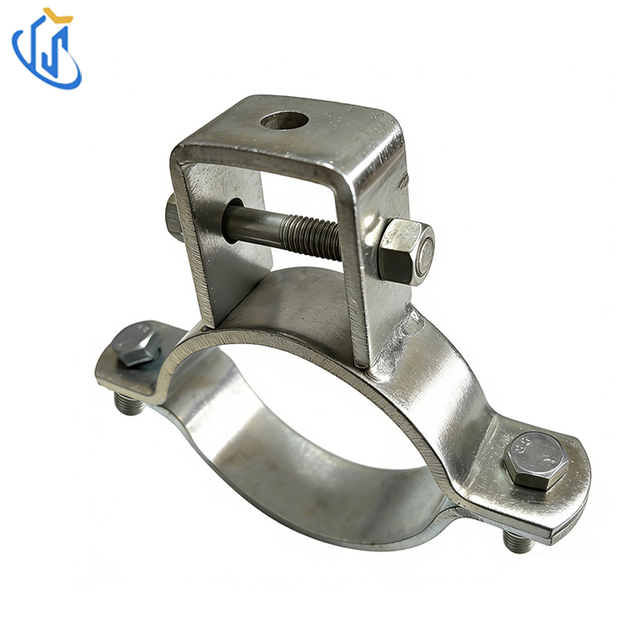

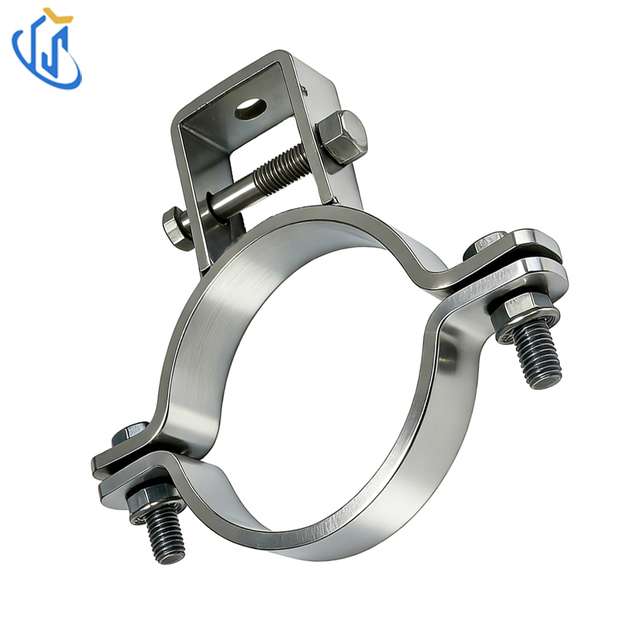

UTT63 suspension pipe clamp is electro-galvanized carbon steel fitting specially developed for suspending uninsulated cold and hot piping systems. Featured with break-off hex head set screw locking design, it matches standard channel steel and bracing pipe, covers DN65~DN250 pipe sizes with uniform 9000N rated load, widely used for fire sprinkler, plumbing and industrial bare pipeline suspended installation.
Key Features
Core Function: Suspended fixing for uninsulated hot & cold pipelines via break-off set screw locking structure
Raw Material: High-strength carbon steel
Surface Finish: Electro-galvanized anti-corrosion coating
Applicable Range: 1/2"~8"(DN65~DN250)
Design Load: Uniform max load 9000N
Unique Structure: Break-off head set screw for standardized installation locking

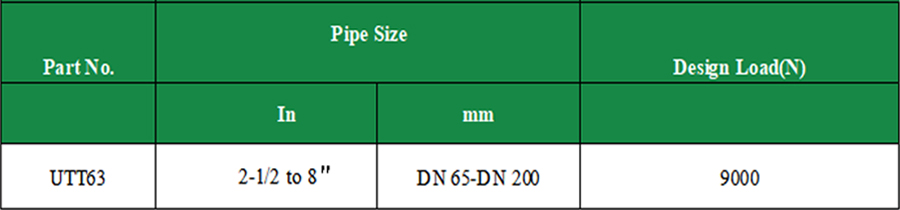

| Item | Specification |
| Model | UTT63 |
| Material | Carbon Steel |
| Surface Treatment | Electro-galvanized |
| Applicable Pipe | DN65~DN250(2-1/2"~10") |
| Design Max Load | 9000N |
| Locking Method | Break-off hex head set screw |
| Matching Accessory | Standard channel steel & bracing pipe |
| Sample Supply | Free pre-order samples available |
Application Scenarios
1.Fire Sprinkler System: Suspension support for uninsulated bare sprinkler cold/hot water pipes of commercial buildings.
2.MEP&HVAC: Fixing for non-insulated hot/cold water pipelines and industrial process piping.
3.Factory Construction: Heavy-load suspended pipe support for workshop bare process pipeline layout.
Step-by-Step Installation Guide
1.Wrap UTT63 clamp around target uninsulated pipeline and adjust mounting position as required.
2.Tighten main clamping bolts to fix clamp tightly on pipe outer wall.
3.Put bracing pipe into the clamp jaw cavity.
4.Torque the set screw continuously until its hex head breaks off to complete locking.
5.Connect upper end with channel steel and inspect overall stability.
Industry Compliance
1.Conforms to NFPA13 and conventional domestic pipeline suspension construction standards.
2.Electro-galvanized finish meets international anti-rust coating specification.
3.Every finished piece passes factory load capacity test and dimension inspection.
Core Product Advantages
Break-off Screw Standardized Mounting
Hex head automatically breaks when reaching rated fastening force, avoid insufficient or over-tightening on site.
Uniform 9000N Heavy Load Capacity
Stable bearing capacity for large-diameter bare hot/cold pipeline long-term suspension.
Special for Non-Insulated Pipe
Optimized inner structure closely fits bare pipe outer diameter without thermal insulation gap.
Wide Caliber Coverage
Full specification from DN65 to DN250 satisfies most industrial and civil pipeline demands.
Compatible With Standard Channel

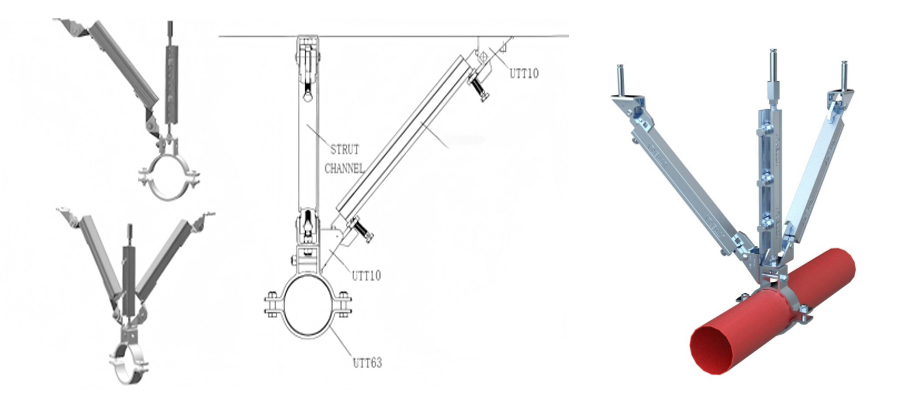

Perfect matching with UTT series channel steel and bracing accessories for complete suspension system.
FAQ
Q1: Which pipeline is UTT63 suitable for?
A1: Uninsulated cold and hot pipelines without outer thermal insulation layer.
Q2: Rated design load?
A2: All specifications have uniform maximum design load of 9000N.
Q3: Unique installation feature?
A3: Adopt break-off hex head set screw, tighten until screw head snaps off for fixed locking force.
Q4: Applicable pipe specification?
A4: DN65 up to DN250 (2-1/2''~10'').
Q5: Can free samples be provided?
A5: Free inspection samples available before bulk purchase.
